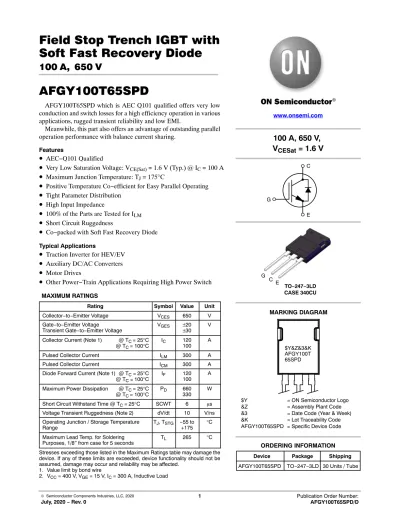

Field Stop Trench IGBT with Soft Fast Recovery Diode

Soft Fast Recovery Diode

100A, 650V

AFGY100T65SPD

AFGY100T65SPD which is AEC Q101 qualified offers very low conduction and switch losses for a high efficiency operation in various applications, rugged transient reliability and low EMI.

Meanwhile, this part also offers an advantage of outstanding parallel operation performance with balance current sharing.

Features

• AEC−Q101 Qualified

• Very Low Saturation Voltage: V

= 1.6 V (Typ.) @ I

= 100 A

• Maximum Junction Temperature: T

= 175°C

• Positive Temperature Co−efficient for Easy Parallel Operating

• Tight Parameter Distribution

• High Input Impedance

• 100% of the Parts are Tested for I

• Short Circuit Ruggedness

• Co−packed with Soft Fast Recovery Diode

• Traction Inverter for HEV/EV

• Auxiliary DC/AC Converters

• Motor Drives

• Other Power−Train Applications Requiring High Power Switch

Rating Symbol Value Unit

Collector−to−Emitter Voltage V_CES 650 V

Gate−to−Emitter Voltage

Transient Gate−to−Emitter Voltage V_GES ±20

±30 V

Collector Current (Note 1) @ T_C = 25°C

@ T_C = 100°C I_C 120

100 A

Pulsed Collector Current I_LM 300 A

Pulsed Collector Current I_CM 300 A

Diode Forward Current (Note 1) @ T_C =25°C

@ T_C =100°C IF 120

100 A

Maximum Power Dissipation @ T_C = 25°C

@ T_C = 100°C PD 660

330 W

Short Circuit Withstand Time @ TC =25°C SCWT 6 ms Voltage Transient Ruggedness (Note 2) dV/dt 10 V/ns Operating Junction / Storage Temperature

Range T_J, T_STG −55 to

+175 °C

Maximum Lead Temp. for Soldering

Purposes, 1/8″ from case for 5 seconds T_L 265 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

G C E

ORDERING INFORMATION www.onsemi.com

100 A, 650 V, V

= 1.6 V

Device Package Shipping C

G

E

TO−247−3LD CASE 340CU MARKING DIAGRAM

$Y = ON Semiconductor Logo

&Z = Assembly Plant Code

&3 = Date Code (Year & Week)

&K = Lot Traceability Code AFGY100T65SPD = Specific Device Code

$Y&Z&3&K AFGY100T 65SPD

www.onsemi.com 2

THERMAL CHARACTERISTICS

Rating Symbol Value Unit

Thermal resistance junction−to−case, for IGBT R_qJC 0.23 °C/W

Thermal resistance junction−to−case, for Diode R_qJC 0.40

Thermal resistance junction−to−ambient R_qJA 40

ELECTRICAL CHARACTERISTICS (TJ = 25°C unless otherwise noted)

Parameter Test Conditions Symbol Min Typ Max Unit

OFF CHARACTERISTICS

Collector−emitter breakdown voltage,

gate−emitter short−circuited V_GE = 0 V,

IC = 1 mA BV_CES 650 − − V

Temperature Coefficient of

Breakdown Voltage VGE = 0 V,

I_C = 1 mA DBVCES

DTJ

− 0.6 − V/°C

Collector−emitter cut−off current,

gate−emitter short−circuited V_GE = 0 V,

VCE = 650 V I_CES − − 40 mA

Gate leakage current, collector−

emitter short−circuited VGE = 20 V,

V_CE = 0 V IGES − − ±250 nA

ON CHARACTERISTICS

Gate−emitter threshold voltage V_GE = V_CE, I_C = 100 mA V_GE(th) 4.3 5.3 6.3 V Collector−emitter saturation voltage V_GE = 15 V, I_C = 100 A

V_GE = 15 V, I_C = 100 A, T_J = 175°C

V_CE(sat) −

−

1.6 2.15

2.05

−

V

DYNAMIC CHARACTERISTICS

Input capacitance V_CE = 30 V,

VGE = 0 V, f = 1 MHz

C_ies − 4220 − pF

Output capacitance C_oes − 302 −

Reverse transfer capacitance C_res − 38 −

Internal Gate Resistance f = 1 MHz RG − 3 − W

Gate charge total V_CE = 400 V,

IC = 100 A, V_GE = 15 V

Qg − 109 164 nC

Gate−to−emitter charge Qge − 34 −

Gate−to−collector charge Qgc − 36 −

SWITCHING CHARACTERISTICS, INDUCTIVE LOAD

Turn−on delay time T_J = 25°C,

VCC = 400 V, I_C = 100 A, RG = 5.0 W, V_GE = 15 V, Inductive Load

td(on) − 36 − ns

Rise time tr − 92 −

Turn−off delay time td(off) − 78 −

Fall time tf − 106 −

Turn−on switching loss E_on − 5.1 − mJ

Turn−off switching loss E_off − 2.7 −

Total switching loss E_ts − 7.8 −

Turn−on delay time TJ = 175°C,

V_CC = 400 V, I_C = 100 A, R_G = 5.0 W, V_GE = 15 V, Inductive Load

t_d(on) − 32 − ns

Rise time t_r − 96 −

Turn−off delay time t_d(off) − 84 −

Fall time t_f − 156 −

Turn−on switching loss E_on − 7.9 − mJ

Turn−off switching loss E_off − 4.0 −

Total switching loss E_ts − 11.9 −

ELECTRICAL CHARACTERISTICS (T_J = 25°C unless otherwise noted) (Continued)

Parameter Test Conditions Symbol Min Typ Max Unit

DIODE CHARACTERISTIC

Diode Forward Voltage I_F = 100 A, T_J = 25°C V_FM − 1.3 1.6 V

I_F = 100 A, T_J = 175°C − 1.25 −

Reverse Recovery Energy I_F = 100 A, dl_F/dt = 1000 A/ms,

VCE = 400 V, TJ = 25°C E_rec − 383 − mJ

I_F = 100 A, dl_F/dt = 1000 A/ms,

V_CE = 400 V, T_J = 175°C − 1668 −

Diode Reverse Recovery Time I_F = 100 A, dl_F/dt = 1000 A/ms,

VCE = 400 V, TJ = 25°C T_rr − 105 − ns

IF = 100 A, dlF/dt = 1000 A/ms,

V_CE = 400 V, T_J = 175°C − 208 −

Diode Reverse Recovery Charge I_F = 100 A, dl_F/dt = 1000 A/ms,

V_CE = 400 V, T_J = 25°C Q_rr − 2090 − nC

IF = 100 A, dlF/dt = 1000 A/ms,

V_CE = 400 V, T_J = 175°C − 6974 −

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

www.onsemi.com 4

TYPICAL CHARACTERISTICS

Figure 1. Typical Output Characteristics Figure 2. Typical Output Characteristics V_CE, COLLECTOR−EMITTER VOLTAGE (V) V_CE, COLLECTOR−EMITTER VOLTAGE (V)

8 6

4 2

00 50 100 150 200 250 300

8 6

4 2

00 50 100 150 200 250 300

Figure 3. Typical Saturation Voltage Figure 4. Transfer Characteristics V_CE, COLLECTOR−EMITTER VOLTAGE (V) V_GE, GATE−EMITTER VOLTAGE (V)

5 4

3 2

1 00

50 100 150 200 250 300

12 9

6 3

00 20 40 60 80 100

Figure 5. Saturation Voltage vs. Case Temperature

Figure 6. Saturation Voltage vs. V_GE T_C, COLLECTOR−EMITTER CASE TEMPERATURE (°C) V_GE, GATE−EMITTER VOLTAGE (V)

150 125

100 75

50 1.025

1.5 2.0 2.5 3.0 3.5

16 14

12 10

8 06

2 4 6 8 10

IC, COLLECTOR CURRENT (A) IC, COLLECTOR CURRENT (A)

IC, COLLECTOR CURRENT (A) IC, COLLECTOR CURRENT (A)

VCE, COLLECTOR−EMITTER VOLTAGE (V)

T_C = 25°C

V_GE = 8 V 20 V 15 V

12 V

10 V

T_C = 175°C

V_GE = 8 V

20 V 15 V

12 V

10 V

TC = 25°C

T_C = 175°C

Common Emitter V_GE = 15 V

Common Emitter V_GE = 15 V

T_C = 25°C T_C = 175°C

Common Emitter V_GE = 15 V

I_C = 50 A 100 A 200 A

VCE, COLLECTOR−EMITTER VOLTAGE (V)

Common Emitter T_C = −40°C I_C = 50 A 100 A 200 A

175

TYPICAL CHARACTERISTICS

Figure 7. Saturation Voltage vs. V_CE Figure 8. Saturation Voltage vs. V_CE

V_GE, GATE−EMITTER VOLTAGE (V) V_GE, GATE−EMITTER VOLTAGE (V)

16 14

12 10

8 06

2 4 6 8 10

16 14

12 10

8 06

2 4 6 8 10

Figure 9. Capacitance Characteristics Figure 10. Gate Charge Characteristics

V_CE, COLLECTOR−EMITTER VOLTAGE (V) Q_g, GATE CHARGE (nC)

30 10

1 100.1

100 1K 10K

120 100 80

60 40

20 00

3 6 9 12 15

Figure 11. SOA Characteristics Figure 12. Turn−On Characteristics vs. Gate Resistance

V_CE, COLLECTOR−EMITTER VOLTAGE (V) R_g, GATE RESISTANCE (W) 1000

100 10

0.11 1 10 100 1000

50 40

30 20

10 100

100 500

CAPACITANCE (pF) VGE, GATE−EMITTER VOLTAGE (V)

IC, COLLECTOR CURRENT (A) SWITCHING TIME (ns)

Common Emitter TC = 25°C I_C = 50 A 100 A 200 A

VCE, COLLECTOR−EMITTER VOLTAGE (V) VCE, COLLECTOR−EMITTER VOLTAGE (V)

Common Emitter TC = 175°C I_C = 50 A 100 A

200 A

Common Emitter VGE = 0 V, f = 1 MHz TC = 25°C

C_ies

Coes

C_res

Common Emitter T_C = 25°C

VCC = 260 V

390 V

325 V

DC 100 ms 1 ms 10 ms

Single Nonrepetitive Pulse T_C = 25°C, Curves must be derated linearly with increase in temperature

Common Emitter V_CC = 400 V, V_GE = 15 V IC = 100 A

T_C = 25°C T_C = 175°C

t_d(on) t_r

www.onsemi.com 6

TYPICAL CHARACTERISTICS

Figure 13. Turn−Off Characteristics vs. Gate Resistance

Figure 14. Turn−On Characteristics vs.

Collector Current

R_g, GATE RESISTANCE (W) I_C, COLLECTOR CURRENT (A)

80 60

40 20

10 100

100 1000

160 120

80 40

10 10 100 1000

Figure 15. Turn−Off Characteristics vs.

Collector Current

Figure 16. Switching Loss vs. Gate Resistance

I_C, COLLECTOR CURRENT (A) R_g, GATE RESISTANCE (W)

160 120

80 40

100 100 1000

50 40

30 20

10 10

10 50

Figure 17. Switching Loss vs. Collector Current

Figure 18. Forward Characteristics

I_C, COLLECTOR CURRENT (A) V_F, FORWARD VOLTAGE (V)

120 100

80 60

40 20

0.10 1 10 100

2.5 2.0

1.5 1.0

0.5 0.10

1 10 100 300

SWITCHING TIME (ns) SWITCHING TIME (ns)

SWITCHING TIME (ns) SWITCHING LOSS (mJ)

SWITCHING LOSS (mJ) IF, FORWARD CURRENT (A)

Common Emitter V_CC = 400 V, V_GE = 15 V I_C = 100 A

T_C = 25°C T_C = 175°C

t_d(off)

tf

Common Emitter VCC = 400 V, VGE = 15 V R_G = 5 W

TC = 25°C T_C = 175°C

t_d(on) tr

Common Emitter V_CC = 400 V, V_GE = 15 V R_G = 5 W

T_C = 25°C T_C = 175°C

t_d(off) t_f

Common Emitter V_CC = 400 V, V_GE = 15 V I_C = 100 A

T_C = 25°C T_C = 175°C

E_off Eon

Common Emitter V_CC = 400 V, V_GE = 15 V R_G = 5 W

T_C = 25°C T_C = 175°C

E_off E_on

T_C = 25°C

T_C = 175°C T_C = 125°C

TYPICAL CHARACTERISTICS

Figure 19. Reverse Current Figure 20. Stored Charge

VR, REVERSE VOLTAGE (V) VF, FORWARD CURRENT (V)

650 550

450 350

250 150

0.0150 0.1 1 10 100 1000 10,000

120 100 80

60 40

20 1000

1K 10K 20K

Figure 21. Reverse Recovery Time Figure 22. Collector−to−Emitter Breakdown Voltage vs. Junction Temperature

I_F, FORWARD CURRENT (A) T_J, JUNCTION TEMPERATURE (°C)

120 100

80 60

40 20

00 50 100 150 200 250 300

160 120

80 200

40 0

−40 600−80

650 700 750 800

IR, REVERSE CURRENT (mA) Qrr, REVERSE RECOVERY CHARGE (nC)

trr, REVERSE RECOVERY TIME (ns) BVCES, COLLECTOR−TO−EMITTER BREAKDOWN VOLTAGE (V)

T_C = 25°C T_C = 175°C

T_C = 125°C

di/dt = 1000 A/ms di/dt = 500 A/ms di/dt = 1000 A/ms

di/dt = 500 A/ms

T_C = 25°C T_C = 175°C

di/dt = 1000 A/ms di/dt = 500 A/ms

di/dt = 1000 A/ms di/dt = 500 A/ms

T_C = 25°C T_C = 175°C

www.onsemi.com 8

TYPICAL CHARACTERISTICS

Figure 23. Transient Thermal Impedance of IGBT RECTANGULAR PULSE DURATION (sec)

0.01 0.001

0.0001 0.001

0.01 0.1 1

THERMAL RESPONSE (Zthjc)

1 0.1

Single Pulse 0.5

0.050.1

0.02 0.01

P_DM

t₁

Peak T_J = P_DM x Z_qJC + T_C Duty Factor, D = t₁/t₂

t₂

0.2

Figure 24. Transient Thermal Impedance of Diode RECTANGULAR PULSE DURATION (sec)

0.01 0.001

0.0001 0.01

0.1 1

THERMAL RESPONSE (Zthjc)

1 0.1

Single Pulse 0.5

0.1

0.05 0.02

0.01

P_DM

t₁

Peak T_J = P_DM x Z_qJC + T_C Duty Factor, D = t₁/t₂

t₂

0.2

TO−247−3LD CASE 340CU

ISSUE B

DATE 28 OCT 2021

XXXX = Specific Device Code A = Assembly Site Code Y = Year

WW = Work Week ZZ = Assembly Lot Code

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.

GENERIC MARKING DIAGRAM*

AYWWZZ XXXXXXXXX XXXXXXXXX
