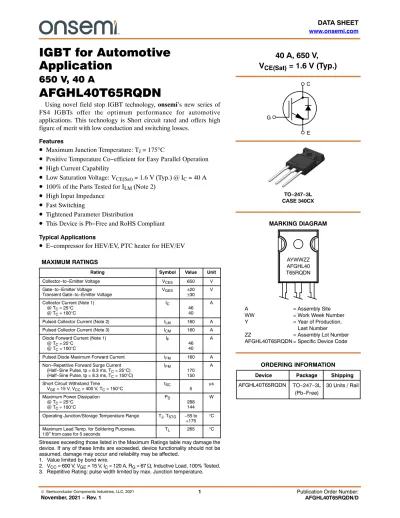

IGBT for Automotive Application

(1)

IGBT for Automotive Application

650 V, 40 A

AFGHL40T65RQDN

Using novel field stop IGBT technology, onsemi’s new series of FS4 IGBTs offer the optimum performance for automotive applications. This technology is Short circuit rated and offers high figure of merit with low conduction and switching losses.

Features

• Maximum Junction Temperature: T

_J

= 175 ° C

• Positive Temperature Co−efficient for Easy Parallel Operation

• High Current Capability

• Low Saturation Voltage: V

CE(Sat)

= 1.6 V (Typ.) @ I

C

= 40 A

• 100% of the Parts Tested for I

LM

(Note 2)

• High Input Impedance

• Fast Switching

• Tightened Parameter Distribution

• This Device is Pb−Free and RoHS Compliant

Typical Applications

• E−compressor for HEV/EV, PTC heater for HEV/EV

MAXIMUM RATINGS

Rating Symbol Value Unit

Collector−to−Emitter Voltage V_CES 650 V

Gate−to−Emitter Voltage

Transient Gate−to−Emitter Voltage VGES ±20

±30 V

Collector Current (Note 1)

@ TC = 25°C

@ TC = 100°C

IC

4640 A

Pulsed Collector Current (Note 2) ILM 160 A

Pulsed Collector Current (Note 3) ICM 160 A

Diode Forward Current (Note 1)

@ TC =25°C

@ T_C =100°C

IF

4640 A

Pulsed Diode Maximum Forward Current IFM 160 A

Non−Repetitive Forward Surge Current (Half−Sine Pulse, tp = 8.3 ms, TC = 25°C) (Half−Sine Pulse, tp = 8.3 ms, TC = 150°C)

IFM

170150 A

Short Circuit Withstand Time

VGE = 15 V, VCC = 400 V, TC = 150°C tSC

5 ms

Maximum Power Dissipation

@ TC = 25°C

@ TC = 100°C

P_D

288144 W

Operating Junction/Storage Temperature Range TJ, TSTG −55 to

+175 °C

Maximum Lead Temp. for Soldering Purposes,

1/8″ from case for 5 seconds TL 265 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

1. Value limited by bond wire.

TO−247−3L CASE 340CX

ORDERING INFORMATION MARKING DIAGRAM

40 A, 650 V, V

_CE(Sat)

= 1.6 V (Typ.)

Device Package Shipping

TO−247−3L 30 Units / Rail C

G

E

AFGHL40T65RQDN

(Pb−Free)

A = Assembly Site

WW = Work Week Number

Y = Year of Production,

Last Number

ZZ = Assembly Lot Number

AFGHL40T65RQDN = Specific Device Code AYWWZZ

AFGHL40 T65RQDN

(2)

www.onsemi.com 2

THERMAL CHARACTERISTICS

Rating Symbol Min Typ Max Unit

Thermal Resistance Junction−to−Case, for IGBT R_qJC − 0.40 0.52 °C/W

Thermal Resistance Junction−to−Case, for Diode R_qJC − 0.86 1.12

Thermal Resistance Junction−to−Ambient R_qJA − − 40

ELECTRICAL CHARACTERISTICS (TJ = 25°C unless otherwise noted)

Parameter Test Conditions Symbol Min Typ Max Unit

OFF CHARACTERISTICS

Collector−emitter Breakdown Voltage,

Gate−emitter Short−circuited V_GE= 0 V, I_C= 1 mA BV_CES 650 − − V

Temperature Coefficient of

Breakdown Voltage VGE = 0 V, IC = 1 mA DBVCES

DTJ

− 0.50 − V/°C

Collector−emitter Cut−off Current,

Gate−emitter Short−circuited V_GE= 0 V, V_CE= V_CES I_CES − − 30 mA

Gate Leakage Current,

Collector−emitter Short−circuited VGE = VGES, VCE = 0 V IGES − − ±400 nA

ON CHARACTERISTICS

Gate−emitter Threshold Voltage V_GE= V_CE, I_C= 40 mA V_GE(th) 3.75 4.90 6.05 V Collector−emitter Saturation Voltage V_GE= 15 V, I_C= 40 A, T_J= 25°C

V_GE= 15 V, I_C= 40 A, T_J= 175°C V_CE(sat) −

− 1.6

1.96 1.82

− V

DYNAMIC CHARACTERISTICS

Input Capacitance V_CE= 30 V, V_GE= 0 V, f = 1 MHz Cies − 2053 − pF

Output Capacitance Coes − 73 −

Reverse Transfer Capacitance Cres − 9 −

Gate Resistance f = 1 MHz Rg − 16.5 − W

Gate Charge Total V_CC= 400 V, I_C = 40 A, V_GE= 15 V Qg − 47 − nC

Gate−Emitter Charge Qge − 15 −

Gate−Collector Charge Qgc − 12 −

SWITCHING CHARACTERISTICS, INDUCTIVE LOAD

Turn−on Delay Time TJ = 25°C, VCC = 400 V, I_C = 20 A, R_G = 2.5 W, V_GE= 15 V, Inductive Load

t_d(on) − 21 − ns

Rise Time t_r − 24 −

Turn−off Delay Time t_d(off) − 88 −

Fall Time t_f − 94 −

Turn−on Switching Loss E_on − 0.47 − mJ

Turn−off Switching Loss E_off − 0.43 −

Total Switching Loss E_ts − 0.90 −

Turn−on Delay Time T_J= 25°C, VCC = 400 V, I_C = 40 A, R_G = 2.5 W, VGE = 15 V, Inductive Load

t_d(on) − 26 − ns

(3)

ELECTRICAL CHARACTERISTICS (T_J = 25°C unless otherwise noted) (Continued)

Parameter Test Conditions Symbol Min Typ Max Unit

SWITCHING CHARACTERISTICS, INDUCTIVE LOAD

Turn−on Delay Time T_J= 175°C, VCC = 400 V, I_C = 20 A, R_G = 2.5 W, V_GE= 15 V, Inductive Load

t_d(on) − 24 − ns

Turn−on Delay Time T_J= 175°C, VCC = 400 V, IC = 40 A, RG = 2.5 W, V_GE= 15 V, Inductive Load

t_d(on) − 26 − ns

Rise Time tr − 54 −

Turn−off Delay Time td(off) − 90 −

Fall Time tf − 138 −

Turn−on Switching Loss Eon − 1.62 − mJ

Turn−off Switching Loss Eoff − 1.40 −

Total Switching Loss Ets − 3.02 −

DIODE CHARACTERISTICS

Diode Forward Voltage IF = 40 A, TJ = 25°C VF − 1.72 2.20 V

I_F= 40 A, T_J= 175°C − 1.77 −

DIODE SWITCHING CHARACTERISTICS, INDUCTIVE LOAD

Reverse Recovery Energy I_F= 40 A, dl_F/dt = 1000 A/ms

V_R = 400 V, T_J= 25°C E_rec − 54 − mJ

Diode Reverse Recovery Time T_rr − 44 − nS

Diode Reverse Recovery Charge Q_rr − 416 − nC

Reverse Recovery Energy I_F= 40 A, dl_F/dt = 1000 A/ms

V_R = 400 V, T_J= 175°C E_rec − 224 − mJ

Diode Reverse Recovery Time T_rr − 89 − nS

Diode Reverse Recovery Charge Q_rr − 1125 − nC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

(4)

TYPICAL CHARACTERISTICS

V_CE, Collector−Emitter Voltage (V) IC, Collector Current (A)

Figure 1. Typical Output Characteristics Figure 2. Typical Output Characteristics

Figure 3. Typical Saturation Voltage

Characteristics Figure 4. Typical Transfer Characteristics

Figure 5. Saturation Voltage vs. Case Temperature

at Variant Current Level Figure 6. Capacitance Characteristics

0 1 2 3 4 5

0 40 80 120

200 20 V

15 V

12 V 10 V V_GE = 8 V

0 1 2 3 4 5

0 40 80 120 200

0 1 2 3 4 5

0 40 80 120

160 V_GE = 15 V

0 2 4 6 8 10 12

IC, Collector Current (A) 0 40 80 160

V_GE, Gate−Emitter Voltage (V) T_J = 25°C Common Emitter

V_CE = 20 V

0.1 1 10 100 1000 10000 100000

0.1 1 10

V_CE, Collector−to−Emitter Voltage (V)

Capacitance (pF) f = 1 MHz

V_GE = 0 V T_J = 25°C

C_iss

C_oss

Crss

−100 VCE, Collector−Emitter Voltage (V)

1

T_C, Collector−Emitter Case Temperature (5C) I_C = 100 A Common Emitter

V_GE = 15 V

1.5 2 2.5 3 3.5

I_C = 50 A

IC = 25 A

−50 0 50 100 150 200 30

160

TJ = 25°C T_J = 175°C

6 7

160

20 V

15 V 12 V 10 V V_GE = 8 V

T_J = 25°C

TJ = 175°C

6 7

120

14 16

T_J = 175°C

(5)

TYPICAL CHARACTERISTICS

(Continued)

0.1 1 10 100 300

1 10 100 1000

Notes:

1. T_C = 25°C 2. T_J = 175°C 3. Single Pulse

DC

10 ms 100 ms

1 ms 10 ms

Figure 7. Gate Charge Characteristics Figure 8. SOA Characteristics

Figure 9. Turn−on Characteristics vs.

Gate Resistance

Figure 10. Turn−off Characteristics vs.

Gate Resistance

Figure 11. Turn−on Characteristics vs. Figure 12. Turn−off Characteristics vs.

R_g, Gate Resistance (W) 10

100

0 10 20 30 40 50

Switching Time (ns)

t_r

td(on)

V_CC = 400 V, V_GE = 15 V I_C = 40 A

T_J = 25°C T_J = 175°C 200

R_g, Gate Resistance (W) 10

100

0 10 20 30 40 50

1000

VCC = 400 V, VGE = 15 V I_C = 40 A

T_J = 25°C T_J = 175°C

t_d(off)

t_f

I_C, Collector Current (A) 10

100

200

0 20 40 60 80 100

t_r

t_d(on)

V_CC = 400 V, V_GE = 15 V I_C = 40 A

TJ = 25°C TJ = 175°C

10 100

500

I_C, Collector Current (A)

0 20 80 120

t_f

t_d(off) V_CC = 400 V, V_GE = 15 V R_g = 2.5 W

T_J = 25°C T_J = 175°C Q_g, Gate Charge (nC)

VGE, Gate−Emitter Voltage (V)

0 10 20 30 40 50

0 3 6 9 15

V_CC = 200 V 12

TJ = 25°C

300 V 400 V

120 40 60 100

(6)

TYPICAL CHARACTERISTICS

(Continued)

R_g, Gate Resistance (W)

0 10 20 30 40 50

0.5 5

Switching Loss (mJ)

VCC = 400 V, VGE = 15 V, IC = 40 A TJ = 25°C

TJ = 175°C

E_off

E_on 10

Figure 13. Switching Loss vs. Gate Resistance Figure 14. Switching Loss vs. Collector Current

Figure 15. Forward Characteristics Figure 16. Reverse Recovery Current

Figure 17. Reverse Recovery Time

I_C, Collector Current (A)

Switching Loss (mJ)

1 10 100

0.10 20 80 120

E_off

Eon

V_CC = 400 V, V_GE = 15 V I_C = 40 A

T_J = 25°C T_J = 175°C

0 40 80 120 160 200

0 1 2 3 4

V_F, Forward Voltage (V) IF, Forward Current (A)

dI_F/dt, Diode Current Slope (A/ms) Irr, Reverse Recovery Current (A)

0 10 20 30 40

100 300 500 700 900 1100 1300 1500

T_J = 25°C T_J = 175°C T_J = 25°C

T_J = 175°C

0 50 100 150 200

100 300 500 700 900 1100 1300 1500 T_J = 25°C

T_J = 175°C

dI_F/dt, Diode Current Slope (A/ms) trr, Reverse Recovery Time (ns)

dI_F/dt, Diode Current Slope (A/ms) Qrr, Reverse Recovery Charge (mC)

100 300 500 700 900 1100 1300 1500

0 1 2

TJ = 25°C T_J = 175°C

Figure 18. Stored Charge

40 60 100

(7)

TYPICAL CHARACTERISTICS

(Continued)

Figure 19. Transient Thermal Impedance of IGBT

Figure 20. Transient Thermal Impedance of Diode Rectangular Pulse Duration (s)

ZqJC, Thermal Response

0.001 10⁻⁵ 0.01

0.1 10

10⁻⁴ 10⁻³ 10⁻² 10⁻¹ 10⁰ 10¹

Single Pulse 0.010.02 0.5

0.2 0.1

0.05

Rectangular Pulse Duration (s) ZqJC, Thermal Response

0.001 10⁻⁵ 0.01

0.1

10⁻⁴ 10⁻³ 10⁻² 10⁻¹ 10⁰ 10¹

1 10

PDM

t₁ t₂ Duty Factor, D = t₁ / t₂ Peak TJ = PDM × ZqJC + TC

Single Pulse 0.010.02 0.5

0.20.1

0.05

R1 R2

C₁ = t₁ / R₁ C₂ = t₂ / R₂

i: 1 2 3 4

ri[K/W]: 0.0637 0.2826 0.2837 0.2262 t[s]: 1.64E−05 4.74E−04 3.87E−03 2.51E−02

P_DM t₁

t2

Duty Factor, D = t₁ / t₂ Peak T_J = P_DM × ZqJC + T_C

R1 R2

C1 = t1 / R1 C2 = t2 / R2

i: 1 2 3

ri[K/W]: 0.0859 0.1421 0.1695 t[s]: 1.131E−04 5.665E−04 5.407E−03 1

(8)

TO−247−3LD CASE 340CX

ISSUE A

DATE 06 JUL 2020

GENERIC MARKING DIAGRAM*

XXXXX = Specific Device Code A = Assembly Location

Y = Year

WW = Work Week G = Pb−Free Package

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “ G”, may or may not be present. Some products may not follow the Generic Marking.

XXXXXXXXX AYWWG
