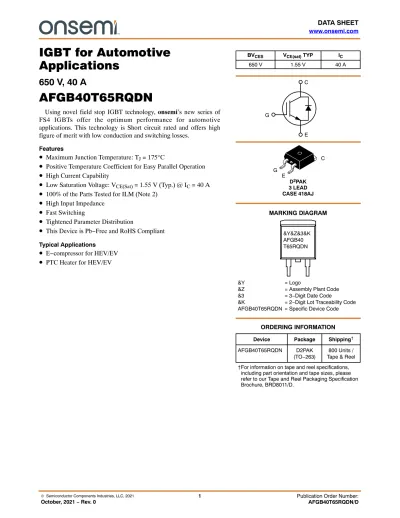

IGBT for Automotive Applications

(1)

October, 2021 − Rev. 0 1 Publication Order Number:

AFGB40T65RQDN/D

IGBT for Automotive Applications

650 V, 40 A

AFGB40T65RQDN

Using novel field stop IGBT technology, onsemi’s new series of FS4 IGBTs offer the optimum performance for automotive applications. This technology is Short circuit rated and offers high figure of merit with low conduction and switching losses.

Features

• Maximum Junction Temperature: T

J

= 175°C

• Positive Temperature Coefficient for Easy Parallel Operation

• High Current Capability

• Low Saturation Voltage: V

CE(Sat)

= 1.55 V (Typ.) @ I

C

= 40 A

• 100% of the Parts Tested for ILM (Note 2)

• High Input Impedance

• Fast Switching

• Tightened Parameter Distribution

• This Device is Pb−Free and RoHS Compliant

Typical Applications

• E−compressor for HEV/EV

• PTC Heater for HEV/EV

BV_CES V_CE(sat) TYP I_C

650 V 40 A

Device Package Shipping^† ORDERING INFORMATION

AFGB40T65RQDN D2PAK

(TO−263) 800 Units / Tape & Reel MARKING DIAGRAM

1.55 V

D²PAK 3 LEAD CASE 418AJ G

C E

G

E C

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D.

&Y = Logo

&Z = Assembly Plant Code

&3 = 3−Digit Date Code

&K = 2−Digit Lot Traceability Code AFGB40T65RQDN = Specific Device Code

&Y&Z&3&K AFGB40 T65RQDN

(2)

MAXIMUM RATINGS (T_C= 25°C unless otherwise stated)

Parameter Symbol Value Unit

Collector to Emitter Voltage VCES 650 V

Gate to Emitter Voltage

Transient Gate to Emitter Voltage T_pulse = 5 ms, D < 0.10

VGES ±20

±30 V

Collector Current (Note 1)

@T_C= 25°C

@TC = 100°C

I_C

6840

A

Pulsed Collector Current (Note 2) I_LM 160 A

Pulsed Collector Current (Note 3) I_CM 160 A

Diode Forward Current (Note 1)

@TC = 25°C

@T_C= 100°C

I_F

6840

A

Pulsed Diode Maximum Forward Current IFM 160 A

Non−Repetitive Forward Surge Current (Half*Sine Pulse, tp = 8.3 ms, TC = 25°C) (Half*Sine Pulse, tp = 8.3 ms, T_C = 150°C)

IF, SM

136118

A

Short Circuit Withstand Time

V_GE = 15 V, V_CC = 400 V, T_C= 150°C T_SC

5 ms

Maximum Power Dissipation

@T_C= 25°C

@T_C= 100°C

PD

339.37 169.68

W

Operating Junction and Storage Temperature Range T_J, T_STG *55 to +175 °C

Maximum Lead Temp. for Soldering Purposes, 1/8″ from case for 5 seconds T_L 265 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

1. Value limited by bond wire.

2. V_CC = 400 V, V_GE = 15 V, I_C = 120 A, R_G = 100W, Inductive Load, 100% Tested.

3. Repetitive rating: pulse width limited by max. Junction temperature.

THERMAL RESISTANCE RATINGS

Parameter Symbol Min Typ Max Unit

Thermal Resistance Junction−to−Case, for IGBT R_θJC − 0.34 0.44 °C/W

Thermal Resistance Junction−to−Case, for Diode R_θJC − 0.79 1.03

Thermal Resistance Junction−to−Ambient R_θJA − − 40

(3)

www.onsemi.com 3

ELECTRICAL CHARACTERISTICS (T_J= 25°C unless otherwise stated)

Parameter Symbol Test Condition Min Typ Max Unit

OFF CHARACTERISTICS

Collector−to−Emitter Breakdown Voltage,

Gate−Emitter Short−Circuited BV_CES V_GE = 0 V, I_C = 1 mA 650 − − V

Temperature Coefficient of Breakdown

Voltage DBV_CES/

DTJ

V_GE = 0 V, I_C = 1 mA − 0.62 − V/°C

Collector−Emitter Cut−Off Current,

Gate−Emitter Short−Circuited ICES VCE = VCES, VGE = 0 V − − 30 mA

Gate Leakage Current, Collector−Emitter

Short−Circuited I_GES V_GE= V_GES, V_CE= 0 V − − ±400 nA

ON CHARACTERISTICS

Gate−Emitter Threshold Voltage V_GE(th) V_GE= V_CE, I_C= 40 mA 3.75 4.90 6.05 V Collector−Emitter Saturation Voltage V_CE(sat) I_C= 40 A, V_GE= 15 V, T_J = 25°C − 1.55 1.82 V I_C= 40 A, V_GE= 15 V, T_J = 175°C − 1.90 − V DYNAMIC CHARACTERISTICS

Input Capacitance Cies VCE = 30 V, VGE = 0 V, f = 1 MHz − 2100 − pF

Output Capacitance Coes − 71 −

Reverse Transfer Capacitance Cres − 9 −

Gate Resistance Rg FREQ = 1 MHz − 14 − W

Gate Charge Total Qg VCE = 400 V, IC = 40 A, VGE = 15 V − 51 − nC

Gate–Emitter Charge Qge − 17 −

Gate–Collector Charge Qgc − 14 −

SWITCHING CHARACTERISTICS, INDUCTIVE LOAD

Turn−On Delay Time td(on) TJ = 25°C, VCC = 400 V, IC = 20 A, R_g = 3 W, V_GE= 15 V,

Inductive Load

− 21 − ns

Rise Time t_r − 21 −

Turn-Off Delay Time t_d(off) − 77 −

Fall Time t_f − 94 −

Turn-On Switching Loss E_on − 0.47 − mJ

Turn−Off Switching Loss E_off − 0.42 −

Total Switching Loss E_ts − 0.89 −

Turn-On Delay Time t_d(on) T_J= 25°C, VCC = 400 V, I_C = 40 A, R_g = 3 W, V_GE= 15 V,

Inductive Load

− 22 − ns

Turn−Off Switching Loss E_off − 0.75 −

Turn−On Delay Time t_d(on) T_J= 175°C, VCC = 400 V, I_C = 20 A, Rg = 3 W, VGE = 15 V,

Inductive Load

− 20 − ns

Turn-Off Switching Loss Eoff − 0.88 −

Total Switching Loss Ets − 1.67 −

(4)

ELECTRICAL CHARACTERISTICS (T_J= 25°C unless otherwise stated) (continued)

Parameter Symbol Test Condition Min Typ Max Unit

SWITCHING CHARACTERISTICS, INDUCTIVE LOAD

Turn-On Delay Time t_d(on) T_J = 175°C, VCC = 400 V, I_C = 40 A, R_g = 3 W, V_GE= 15 V,

Inductive Load

− 24 − ns

Turn−On Switching Loss E_on − 1.71 − mJ

Turn-Off Switching Loss E_off − 1.37 −

DIODE CHARACTERISTICS

Diode Forward Voltage V_F TJ = 25°C, IF = 40 A − 1.68 2.10 V

T_J = 175°C, I_F = 40 A − 1.75 −

DIODE SWITCHING CHARACTERISTIC, INDUCTIVE LOAD

Reverse Recovery Energy EREC TJ = 25°C, VR = 400 V,

I_F = 20 A, di_F/dt = 1000 A/ms − 59 − mJ

Diode Reverse Recovery Time Trr − 40 − ns

Diode Reverse Recovery Charge Qrr − 413 − nC

Reverse Recovery Energy EREC TJ = 25°C, VR = 400 V,

I_F = 40 A, di_F/dt = 1000 A/ms − 85 − mJ

Diode Reverse Recovery Time Trr − 52 − ns

Diode Reverse Recovery Charge Q_rr − 543 − nC

Reverse Recovery Energy E_REC T_J = 175°C, VR = 400 V,

I_F = 20 A, di_F/dt = 1000 A/ms − 203 − mJ

Diode Reverse Recovery Time T_rr − 73 − ns

Reverse Recovery Energy E_REC T_J = 175°C, VR = 400 V,

I_F = 40 A, di_F/dt = 1000 A/ms − 282 − mJ

Diode Reverse Recovery Time T_rr − 96 − ns

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

(5)

TYPICAL CHARACTERISTICS

Figure 1. Typical Output Characteristics (255C) Figure 2. Typical Output Characteristics (1755C) V_CE, COLLECTOR−EMITTER VOLTAGE (V) V_CE, COLLECTOR−EMITTER VOLTAGE (V)

4

3 5

2 1

00 40 80 120 160

5 4 3

2 1

00 40 80 120 160

Figure 3. Typical Saturation Voltage

Characteristics Figure 4. Typical Transfer Characteristics V_CE, COLLECTOR−EMITTER VOLTAGE (V)

5 4

3 2

1 00

40 80 160

Figure 5. Saturation Voltage vs. Case T_C, JUNCTION TEMPERATURE (°C)

150 100 50

0

−50 1.0−100

1.5 2.0 2.5 3.0 3.5

IC, COLLECTOR CURRENT (A) IC, COLLECTOR CURRENT (A)

IC, COLLECTOR CURRENT (A)

T_J = 25°C

VGE = 8 V 10 V 12 V

20 V 15 V

V_GE = 8 V 10 V

12 V 20 V

T_J = 175°C 15 V

T_J = 25°C

T_J = 175°C

V_GE = 15 V Common Emitter

V_CE = 20 V

VCE(sat), COLLECTOR−EMITTER SATURATION (V)

IC = 80 A

TJ = 25°C

T_J = 175°C

V_GE, GATE−EMITTER VOLTAGE (V) 10 8 6 4 2 00 40 80 120

14 12

Common Emitter V_GE = 15 V

I_C = 40 A

IC = 20 A

200

Figure 6. Capacitance Characteristics V_CE, COLLECTOR−EMITTER VOLTAGE (V)

30 1

10.1 10 100 1K 10K

C, CAPACITANCE (pF)

C_rss VGE = 0 V, f = 1 MHz

C_oss C_iss

10

6

120

(6)

TYPICAL CHARACTERISTICS

(Continued)

Figure 7. Gate Charge Characteristics Figure 8. SOA Characteristics Q_g, GATE CHARGE (nC)

50 40

30 20

10 00

3 6 9 12 15

Figure 9. Turn−On Characteristics vs. Gate Resistance

Figure 10. Turn−Off Characteristics vs. Gate Resistance

R_G, GATE RESISTANCE (W) R_G, GATE RESISTANCE (W)

50 30

20 10

100 200

50 40

30 20

10 100

100 1000

Figure 11. Turn−On Characteristics vs.

Collector Current

Figure 12. Turn−Off Characteristics vs.

Collector Current

I_C, COLLECTOR CURRENT (A) I_C, COLLECTOR CURRENT (A)

120 80

40 100

200

10 100

VGE, GATE−EMITTER VOLTAGE (V)SWITCHING TIME (ns) SWITCHING TIME (ns)

SWITCHING TIME (ns) SWITCHING TIME (ns)

Common Emitter

I_C = 40 A V_CC = 200 V

400 V 300 V

TJ = 25°C TJ = 175°C V_CC = 400 V, V_GE = 15 V

I_C = 40 A

T_J = 25°C T_J = 175°C t_r

td(on)

tf

t_r

t_d(on)

T_J = 25°C T_J = 175°C 100

T_J = 25°C TJ = 175°C t_f

t_d(off) V_CE, COLLECTOR−EMITTER VOLTAGE (V)

1000 100

10 0.11

1 10 100 300

DC

10 ms 1 ms 100 ms 10 ms

*Note:

1. T_C = 25°C 2. T_J = 175°C 3. Single Pulse

100

40 V_CC = 400 V, V_GE = 15 V

I_C = 40 A

VCC = 400 V, VGE = 15 V

RG = 3 W VCC = 400 V, VGE = 15 V

RG = 3 W 500

t_d(off)

100 60

20 0 20 40 60 80 100 120

(7)

TYPICAL CHARACTERISTICS

(Continued)

Figure 13. Switching Loss vs. Gate Resistance Figure 14. Switching Loss vs. Collector Current

Figure 15. Forward Characteristics Figure 16. Reverse Recovery Current

RG, GATE RESISTANCE (W) I_C, COLLECTOR CURRENT (A)

40 30

20 50

10 0.00

120 80

40 0.00

V_F, FORWARD VOLTAGE (V)

4 3

2 1

10 40 160

Figure 17. Reverse Recovery Time Figure 18. Stored Charge dIF/dt, DIODE CURRENT SLOPE (A/ms) dIF/dt, DIODE CURRENT SLOPE (A/ms) 600

0400 100 150 200

0 2

SWITCHING LOSS (mJ) SWITCHING LOSS (mJ)

IF, FORWARD CURRENT (A) Qrr, REVERSE RECOVERY CHARGE (mC)

trr, REVERSE RECOVERY TIME (ns) 50

V_CC = 400 V, V_GE = 15 V I_C = 40 A

T_J = 25°C T_J = 175°C E_on

E_off

TJ = 25°C TJ = 175°C

E_on E_off

T_J = 25°C

TJ = 175°C

V_CC = 400 V, V_GE = 15 V I_C = 40 A, R_G = 3 W

dI_F/dt, DIODE CURRENT SLOPE (A/ms) 0400

Irr, REVERSE RECOVERY CURRENT (A)

600 800 1000 1200 1400 1600

10 20 30 40

T_J = 25°C T_J = 175°C

V_R = 400 V, I_R = 40 A

1000

800 1200 1400 1600

VR = 400 V, IR = 40 A

TJ = 175°C

T_J = 25°C

1

600

400 800 1000 1200 1400 1600

VR = 400 V, IR = 40 A

T_J = 175°C

T_J = 25°C 80

120

E_on

Eoff

0.4 0.8 1.2 1.6 2.0 2.4 2.8

100 60

20 1.6

3.2 4.8 6.4 8.0 9.6 11.2 12.8 14.4

(8)

TYPICAL CHARACTERISTICS

(Continued)

Figure 19. Transient Thermal Impedance of IGBT RECTANGULAR PULSE DURATION (s)

1 0.1

0.01 0.001

0.0001 10

0.00001 0.01

0.1 1

Figure 20. Transient Thermal Impedance of Diode RECTANGULAR PULSE DURATION (s)

0.1

0.001 1

0.0001 0.01

0.00001 0.01

0.1 1 ZqJC, THERMAL RESPONSE (K/W)ZqJC, THERMAL RESPONSE (K/W)

10 Single Pulse

0.01 0.02

0.05 Single Pulse

0.01 0.02

0.05 0.5

P_DM

t1

t2

i: 1 2 3 4

ri [K/W]: 0.0062 0.0362 0.0721 0.0714 τ [s]: 3.543E-06 2.945E-05 8.709E-05 4.501E-04

Notes:

Duty Factor, D = t1/t2 Peak Tj= Pdm x Zthjc + Tc

R1 R2

C1=t1/R1 C2=t2/R2

P_DM t₁

t₂

Notes:

Duty Factor, D = t1/t2 Peak T_j= Pdm x Zthjc + Tc

R1 R2

C1=t1/R1 C2=t2/R2

0.2 0.1

0.5 0.2 0.1

i: 1 2 3 4

ri [K/W]: 0.0236 0.0556 0.2232 0.1865 τ [s]: 3.491E-06 2.099E-05 2.913E-04 1.188E-03

(9)

D²PAK−3 (TO−263, 3−LEAD) CASE 418AJ

ISSUE F

DATE 11 MAR 2021 SCALE 1:1

XX XXXXXXXXX AWLYWWG

GENERIC MARKING DIAGRAMS*

XXXXXX = Specific Device Code A = Assembly Location WL = Wafer Lot

Y = Year

WW = Work Week W = Week Code (SSG) M = Month Code (SSG) G = Pb−Free Package AKA = Polarity Indicator

IC Standard

XXXXXXXXG AYWW

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “ G”, may or may not be present. Some products may not follow the Generic Marking.

Rectifier XXXXXXXXGAYWW AKA

SSG XXXXXX XXYMW

ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.

ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others.

98AON56370E DOCUMENT NUMBER:

DESCRIPTION:

Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

PAGE 1 OF 1 D²PAK−3 (TO−263, 3−LEAD)
