M
edial meniscus (MM) posterior root tear (PRT) decreases the contact area and increases contact pressure between the femoral condyle and tibial plateau [1]. This results in joint overloading and rapid degener- ation of the knee. Although favorable clinical outcomes have been reported after transtibial pullout repair of the MMPRT [2], unfavorable outcomes have been reported for non-operative treatment in patients with MM poste- rior horn/root tears [3] and partial meniscectomy of complete MMPRT [4,5]. MM extrusion progresses shortly after MMPRT [6] and is correlated with injuryduration [7]. Patients with decreased meniscus extru- sion 1 year postoperatively had more favorable clinical scores and radiographic findings at midterm follow-up than those with increased extrusion [8]. Therefore, prompt diagnosis of MMPRT from clinical signs or a single painful popping event is necessary [9], and MM posterior root repair is recommended to prevent subse- quent cartilage degeneration or meniscus extrusion [10].
Although magnetic resonance imaging (MRI) has low accuracy for evaluating shape or intensity after sur- gery for meniscal tear [11], it has been successfully
CopyrightⒸ 2018 by Okayama University Medical School.
http ://escholarship.lib.okayama-u.ac.jp/amo/
Original Article

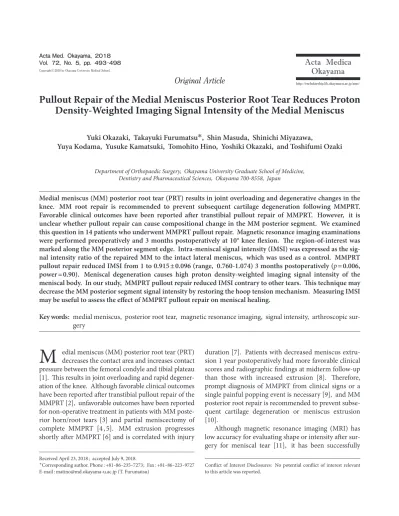

Pullout Repair of the Medial Meniscus Posterior Root Tear Reduces Proton Density-Weighted Imaging Signal Intensity of the Medial Meniscus
Yuki Okazaki, Takayuki Furumatsu＊, Shin Masuda, Shinichi Miyazawa,
Yuya Kodama, Yusuke Kamatsuki, Tomohito Hino, Yoshiki Okazaki, and Toshifumi Ozaki
Department of Orthopaedic Surgery, Okayama University Graduate School of Medicine, Dentistry and Pharmaceutical Sciences, Okayama 700-8558, Japan
Medial meniscus (MM) posterior root tear (PRT) results in joint overloading and degenerative changes in the knee. MM root repair is recommended to prevent subsequent cartilage degeneration following MMPRT.
Favorable clinical outcomes have been reported after transtibial pullout repair of MMPRT. However, it is unclear whether pullout repair can cause compositional change in the MM posterior segment. We examined this question in 14 patients who underwent MMPRT pullout repair. Magnetic resonance imaging examinations were performed preoperatively and 3 months postoperatively at 10° knee flexion. The region-of-interest was marked along the MM posterior segment edge. Intra-meniscal signal intensity (IMSI) was expressed as the sig- nal intensity ratio of the repaired MM to the intact lateral meniscus, which was used as a control. MMPRT pullout repair reduced IMSI from 1 to 0.915±0.096 (range, 0.760-1.074) 3 months postoperatively (p=0.006, power=0.90). Meniscal degeneration causes high proton density-weighted imaging signal intensity of the meniscal body. In our study, MMPRT pullout repair reduced IMSI contrary to other tears. This technique may decrease the MM posterior segment signal intensity by restoring the hoop tension mechanism. Measuring IMSI may be useful to assess the effect of MMPRT pullout repair on meniscal healing.
Key words: medial meniscus, posterior root tear, magnetic resonance imaging, signal intensity, arthroscopic sur- gery
Received April 23, 2018 ; accepted July 9, 2018.
＊Corresponding author. Phone : +81-86-235-7273; Fax : +81-86-223-9727
E-mail : [email protected] (T. Furumatsu) Conflict of Interest Disclosures: No potential conflict of interest relevant to this article was reported.
used to confirm the reduction of the MM posterior root to the original footprint of the tibial surface by disap- pearance of the giraffe neck sign or cleft/truncation sign after pullout repair [12]. However, to our knowledge, no previous studies have reported changes in intra-me- niscal signal intensity (IMSI) after MMPRT pullout repair, and it remains unclear whether pullout repair can affect a compositional change to the MM posterior segment.
In this study, we sought to investigate postoperative changes in the MRI signal intensity of the MM posterior segment, which may be caused by a compositional change following MMPRT pullout repair. We hypothe- sized that MMPRT pullout repair would decrease the signal intensity of the MM posterior segment on MRI caused by a compositional change.
Patients and Methods
The study was approved by our Institutional Review Board (#1857) and all patients provided informed con- sent. This retrospective study was designed to analyze changes in IMSI preoperatively and 3 months after MMPRT pullout repair. Twenty patients who under- went MMPRT pullout repair between March 1, 2016 and June 30, 2017 were included. Four patients were excluded because MRI was unavailable, and 2 patients were excluded because their MMPRT type was 4. The final sample size (n=14) had adequate power (0.90) to detect a significant difference between pre- and postop- erative IMSI. The Kellgren−Lawrence grade was deter- mined from plain radiographs and MMPRT type, using careful arthroscopic examinations [10]. Lysholm and International Knee Documentation Committee (IKDC) scores were obtained preoperatively and 6 months post- operatively. MRI examinations were performed preop- eratively and 3 months postoperatively (Fig.1).
Transtibial pullout repair was performed arthro- scopically. A standard anterolateral portal (longitudinal incision) was used for arthroscopic visualization with a 30° arthroscope (Smith & Nephew, Andover, MA, USA). An anteromedial portal (transverse incision) was used for the PRT guide (Smith & Nephew) [13]. Patients were treated with a FasT-Fix® (Smith & Nephew)- dependent modified Mason−Allen suture with the all-inside technique after creating a tibial bone tunnel with a PRT guide [14-17]. Tibial fixation was per- formed using a double-spike plate and screw (Meira, Nagoya, Japan), with the knee flexed 45° and a 20-N initial tension. Patients were allowed 45° flexion and one-third weight bearing 2 weeks postoperatively, 90°
flexion and full weight bearing 4 weeks postoperatively, and a full range of motion starting 8 weeks postopera- tively.
Open MRI scanning was performed preoperatively and 3 months postoperatively using an OASIS 1.2 T device (Hitachi Medical, Chiba, Japan) with a coil under the knee in the 10° flexed position. Standard OASIS sequences included coronal (repetition time/
echo time of 1,718 msec/12 msec) proton density- weighted imaging (PDWI) using a driven-equilibrium pulse with a 90° flip angle. The slice thickness was 4 mm with a 0-mm gap. The field of view was 16 cm with an acquisition matrix size of 320×416.
After assessing all coronal slices for each knee, mea- surements were taken from 2 slices, the most posterior and second-most posterior, in order to obtain a high positive predictive value [18]. The signal intensity of the MM posterior segments was compared to that of the 2 middle segment slices of the intact lateral meniscus (LM) on the ipsilateral side. IMSI of the posterior seg- ment was measured with the free-line region-of-interest (ROI) tool in a picture archiving and communication system (PACS, FUJIFILM Holdings Corporation,
Fig. 1 MRI examinations. (A) Preoperative imaging of the MM posterior segment showing a giraffe neck sign (dotted area) and cleft/
truncation sign (arrow). (B) Postoperative imaging of the MM posterior segment with no giraffe neck or cleft/truncation sign.
Tokyo, Japan). The ROI was marked by drawing a line freehand along the edge of the MM posterior segment.
Because IMSI can appear to vary between examinations due to inconsistency in the degree of screen contrast, the IMSI value was expressed as the ratio of signal intensity of the repaired MM posterior segments to that of the control intact LM middle segments to standardize the signal intensity [19].
Data were presented as mean ± standard deviation.
Statistical analysis was performed using EZR software (Saitama Medical Center Jichi Medical University, Saitama, Japan). A paired t-test was used to compare pre- and postoperative values. Statistical significance was set to p<0.05. Two orthopedic surgeons inde- pendently measured the signal intensity of the MM posterior segments and ipsilateral control intact LM middle segments. Each observer performed each mea- surement twice, at least 2 weeks apart. The inter-ob- server and intra-observer reliabilities were assessed with the intra-class correlation coefficient (ICC), with ICC
>0.83 considered a reliable measurement.
Results
The patients’ demographic and clinical characteris- tics are shown in Table 1. None of the 14 enrolled patients (3 men and 11 women) were lost during fol- low-up. Patients’ mean age at the time of pullout repair was 58 years (range, 35-69), and the mean duration from injury to surgery was 16.9 weeks (range, 4-42).
Patients’ median Lysholm score increased from 70 (range, 52-86) preoperatively to 85.5 (range, 61-99) at 6 months postoperatively (p=0.001). The mean IKDC score increased from 44.9 (range, 16.1-69.0) preopera- tively to 57.2 (range, 37.9-80.5) at 6 months postopera- tively (p<0.001).
MMPRT pullout repair reduced IMSI from 1 to 0.915±0.096 (range, 0.760-1.074) at 3 months postop-
eratively (p=0.006, power=0.90) (Fig.2). All IMSI values are shown in Table 2. Giraffe neck signs were observed in 13/14 patients (92.9%) and cleft/truncation signs were observed in 12/14 patients (85.7%) before surgery. Those signs each became negative in 12/13 patients (92.3%) and 11/12 patients (91.7%) after sur- gery.
Discussion
In this study, we analyzed IMSI change after pullout repair using serial MRI examinations. We found that MMPRT pullout repair reduced signal intensity of the MM posterior segment. Favorable clinical outcomes and meniscal healing on MRI and arthroscopy have been reported after transtibial pullout repair of MMPRT [10,20]. Alternatively, non-operative treatment of MMPRT is associated with poor clinical outcomes, worsening arthritis, and a relatively high arthroplasty rate at the 5-year follow-up [3]. Similarly unfavorable results have been reported in partial meniscectomy for complete MMPRT [4,5]. Although MMPRT repair is recommended to prevent subsequent cartilage degener- ation, to our knowledge, no previous studies have examined whether IMSI changes after pullout repair using MRI. Although some studies have assessed the change of IMSI after meniscal suture repair excluding
Table 1 Demographic and clinical characteristics
Number of patients 14
Male/female 3/11
Root tear classification type 1/2/3/4/5 0/14/0/0/0 Kellgren-Lawrence grade 0/I/II/III/IV 0/10/4/0/0
Age (years) 58.0±10.0
Duration from injury to surgery (week) 16.9±13.2 Age and duration from injury to surgery are displayed as mean ± standard deviation.
0 0.2 0.4 0.6 0.8 1
Preoperative Postoperative
IMSI value
＊
Fig. 2 MRI-based IMSI value preoperatively and 3 months post- operatively. ＊p＝0.006.
PRT, this study is the first to report a change of IMSI after MMPRT pullout repair [11,21].
MMPRT pullout repair was previously shown to achieve significantly better clinical and radiologic results than partial meniscectomy [20]. In that study, healing after root repair was classified as follows: com- plete, defined as confirmed continuity in all 3 (sagittal, coronal, and axial) MRI views (immediate-weighted or T2-weighted); partial, defined as loss of continuity in any 1 view; or repeat tear, defined as no continuity in any view. Twenty-eight of 30 patients (93.3%) showed healing on MRI (17 complete and 11 partial) after a mean of 48.5 months of follow-up, which was similar to the results of second-look arthroplasty, with sound res- toration of hoop tension. However, this study did not examine IMSI.
Histological examination of the meniscus was reported to correlate with MRI in a canine meniscus radial tear model. During healing, the meniscal gap filled with translucent and then fibrocartilaginous tissue at 3 and 6 months postoperatively, respectively, and consistently yielded an increased MRI signal, compared with normal meniscal tissue. Therefore, normal fibro- vascular repair tissue in the healing meniscus can emit persistently increased signals on MRI examination (repetition time/echo time of 1,000 msec/20 msec) [22].
Similarly, grade 3 signal intensity on MRI of peripheral meniscal tears after conservative treatment or
arthroscopic repair may persist long after the tear has become asymptomatic and presumably healed [23].
Pullout repair is essential for MMPRT because the end-to-end suture technique is not suitable, and the MMPRT healing process may differ from that of radial tears. Lateral posterior meniscal root tear is traumatic and always associated with anterior cruciate ligament injury, while the medial posterior root is prone to chronic degenerative meniscal disease, which com- monly affects middle-aged women [24,25]. The sex and age distribution of the present cohort is consistent with these reports. Minimal tearing and degeneration of the meniscus, and even jogging, can cause high signal intensity of the meniscal body on MRI (T1 and T2-weighted imaging), and high MM posterior seg- ment signal intensity in patients with MMPRT may be expected [26-28]. In our study, MMPRT pullout repair significantly reduced MM posterior segment signal intensity. Meniscal tissue remodeling following MMPRT pullout repair may lead to a compositional change of the MM posterior segment by restoring the hoop tension mechanism.
This study has several limitations. Because of its retrospective design, relatively small number of patients, and short-term follow-up, we could not consider the duration from injury to surgery, although longer dura- tion may lead to the progression of degenerative change.
However, the sample size had acceptable statistical
Table 2 Results of all cases
Case Age
(years) Sex Height
(m) Weight
(kg) BMI
(kg/m2) Injured
side Duration from
injury to surgery (w) Postoperative
IMSI value Lysholm score
pre- and post IKDC score pre- and post
1 68 male 1.63 71 26.7 Rt 16 0.957 58/89 40.2/62.1
2 49 female 1.58 62 24.8 Rt 42 0.831 69/77 33.3/37.9
3 63 female 1.62 71 27.1 Lt 31 0.965 58/76 16.1/55.2
4 69 female 1.49 51 23.0 Rt 5 0.760 84/85 63.2/78.2
5 58 female 1.53 69 29.5 Lt 5 0.958 52/74 51.7/48.3
6 35 female 1.55 88 36.6 Lt 30 1.00 81/78 44.8/54.0
7 69 male 1.61 67 25.8 Lt 38 1.00 80/94 49.4/66.7
8 64 female 1.46 51 23.9 Lt 11 1.07 79/99 65.5/72.4
9 54 female 1.60 68 26.6 Rt 6 0.945 70/79 27.6/44.8
10 67 female 1.53 55 23.5 Lt 4 0.797 80/63 59.8/50.6
11 54 female 1.62 100 38.1 Rt 8 1.01 70/79 20.7/44.8
12 46 female 1.58 75 30.0 Lt 21 0.870 54/86 43.7/48.3
13 54 male 1.72 73 24.7 Lt 8 0.819 86/81 69.0/80.5
14 62 female 1.64 65 24.2 Rt 12 0.826 61/90 43.7/56.3
Mean 58.0 1.58 69.0 27.5 16.9 0.915 44.9/57.2
Median 70/85.5
power for the endpoint. Further MRI investigations involving long-term follow-up and larger sample sizes are required. The second limitation is that we used LM to standardize IMSI, and the LM might undergo some change in 3 months. The third limitation is the absence of an immediate postoperative MRI to use as a baseline for IMSI. As T2-weighted imaging signal intensity may decrease in the displaced bucket-handle injury of the MM after reduction [29], we cannot rule out the possi- bility that a meniscal reduction caused change of IMSI.
Detailed assessments of the repaired MM posterior root by recurrent arthroscopy are needed to address this pos- sibility.
In conclusion, MMPRT pullout repair reduced IMSI. Measuring IMSI may be useful to assess the effect of MMPRT pullout repair on recovering meniscal func- tion.
Acknowledgments. We would like to thank Editage (www.editage.jp) for English language editing.
References
1. Marzo JM and Gurske-DePerio J: Effects of medial meniscus pos- terior horn avulsion and repair on tibiofemoral contact area and peak contact pressure with clinical implication. Am J Sports Med (2009) 37:124-129.
2. Moatshe G, Chahla J, Slette E, Engebretsen L and Laprade RF:
Posterior meniscal root injuries: a comprehensive review from anatomy to surgical treatment: Acta Orthop (2016) 87: 452-458.
3. Krych AJ, Reardon PJ, Johnson NR, Mohan R, Peter L, Levy BA and Stuart MJ: Non-operative management of medial meniscus posterior horn root tears is associated with worsening arthritis and poor clinical outcome at 5-year follow-up. Knee Surg Sports Traumatol Arthrosc (2017) 25:383-389.
4. Han SB, Shetty GM, Lee DH, Chae DJ, Seo SS, Wang KH, Yoo SH and Nha KW: Unfavorable results of partial menisectomy for complete posterior medial meniscus root tear with early osteoar- thritis: a 5- to 8-year follow-up study. Arthroscopy (2010) 26:1326- 1332.
5. Ozkoc G, Circi E, Gonc U, Irgit K, Pourbagher A and Tandogan RN: Radial tears in the root of the posterior horn of the medial meniscus. Knee Surg Sports Traumatol Arthrosc (2008) 16: 849- 6. Furumatsu T, Kodama Y, Kamatsuki Y, Hino T, Okazaki Y and 854.
Ozaki T: Meniscal extrusion progresses shortly after the medial meniscus posterior root tear. Knee Surg Relat Res (2017) 29: 295- 7. Furumatsu T, Kamatsuki Y, Fujii M, Kodama Y, Okazaki Y, 301.
Masuda S and Ozaki T: Medial meniscus extrusion correlates with disease duration of the sudden symptomatic medial meniscus pos- terior root tear. Orthop Traumatol Surg Res (2017) 103: 1179-1182.
8. Chung KS, Ha JK, Ra HJ, Nam GW and Kim JG: Pullout fixation of posterior medial meniscus root tears: correlation between meniscus extrusion and midterm clinical results. Am J Sports Med
(2017) 45: 42-49.
9. Bae JH, Paik NH, Park GW, Yoon JR, Chae DJ, Kwon JH, Kim JI and Nha KW: Predictive value of painful popping for a posterior root tear of the medial meniscus in middle-aged to older Asian patients. Arthroscopy (2013) 29: 545-549.
10. Chung KS, Ha JK, Ra HJ and Kim JG: A meta-analysis of clinical and radiographic outcomes of posterior horn medial meniscus root repairs. Knee Surg Sports Traumatol Arthrosc (2016) 24: 1455- 1468.
11. McCauley TR: MR imaging evaluation of the postoperative knee.
Radiology (2005) 234:53-61.
12. Furumatsu T, Fujii M, Kodama Y and Ozaki T: A giraffe neck sign of the medial meniscus: a characteristic finding of the medial meniscus posterior root tear on magnetic resonance imaging. J Orthop Sci (2017) 22: 731-736.
13. Furumatsu T, Kodama Y, Fujii M, Tanaka T, Hino T, Kamatsuki Y, Yamada K, Miyazawa S and Ozaki T: A new aiming guide can create the tibial tunnel at favorable position in transtibial pullout repair for the medial meniscus posterior root tear. Orthop Traumatol Surg Res (2017) 103:367-371.
14. Fujii M, Furumatsu T, Kodama Y, Miyazawa S, Hino T, Kamatsuki Y, Yamada K and Ozaki T: A novel suture technique using the Fast-Fix combined with Ultrabraid for pullout repair of the medial meniscus posterior root tear. Eur J Orthop Surg Traumatol (2017) 27: 559-562.
15. Kodama Y, Furumatsu T, Fujii M, Tanaka T, Miyazawa S and Ozaki T: Pullout repair of a medial meniscus posterior root tear using a FasT-Fix all-inside suture technique. Orthop Traumatol Surg Res (2016) 102: 951-954.
16. Fujii M, Furumatsu T, Xue H, Miyazawa S, Kodama Y, Hino T, Kamatsuki Y and Ozaki T: Tensile strength of the pullout repair technique for the medial meniscus posterior root tear: a porcine study. Int Orthop (2017) 41: 2113-2118.
17. Fujii M, Furumatsu T, Miyazawa S, Kodama Y, Hino T, Kamatsuki Y and Ozaki T: Bony landmark between the attachment of the medial meniscus posterior root and the posterior cruciate lig- ament: CT and MR imaging assessment. Skeletal Radiol (2017) 46: 1041-1045.
18. Smet AD and Tuite MJ: Use of the “two-slice-touch” rule for the MRI diagnosis of meniscal tears. Am J Roentgenol (2006) 187:
911-914.
19. Lee DH, Lee BS, Chung JW, Kim JM, Yang KS, Cha EJ and Bin SI: Changes in magnetic resonance imaging signal intensity of transplanted meniscus allografts are not associated with clinical outcomes. Arthroscopy (2011) 27:1211-1218.
20. Kim SB, Ha JK, Lee SW, Kim DW, Shim JC, Kim JG and Lee MY: Medial meniscus root tear refixation: comparison of clinical, radiologic, and arthroscopic findings with medial meniscectomy.
Arthroscopy (2011) 27:346-354.
21. Hantes ME, Zachos VC, Zibis AH, Papanagiotou P, Karahalios T, Malizos KN and Karantanas AH: Evaluation of meniscal repair with serial magnetic resonance imaging: a comparative study between conventional MRI and indirect MR arthroplasty. Eur J Radiol (2004) 50:231-237.
22. Arnoczky SP, Cooper TG, Stadelmaier DM and Hannafin JA:
Magnetic resonance signals in healing menisci: an experimental study in dogs. Arthroscopy (1994) 10: 552-557.
23. Deutsch AL, Mink JH, Fox JM, Arnoczky SP, Rothman BJ, Stoller DW and Cannon WD: Peripheral meniscal tears: MR find- ings after conservative treatment or arthroscopic repair. Radiology (1990) 176:485-488.
24. Shelbourne KD and Heinrich J: The long-term evaluation of lateral meniscus tears left in situ at the time of anterior cruciate ligament reconstruction. Arthroscopy (2004) 20: 346-351.
25. Mariani PP, Iannella G, Cerullo G and Giacobbe M: Avulsion of both posterior meniscal roots associated with acute rupture of the anterior cruciate ligament. J Orthop Traumatol (2015) 16: 259- 26. Li CA, Kim MK, Kim IH, Lee JH, Jang KY and Lee SY: 262.
Correlation of histological examination of meniscus with MR images. Korean J Radiol (2013) 14:935-945.
27. Hodler J, Haghighi P, Pathria MN, Trudell D and Resnick D:
Meniscal changes in the elderly: correlation of MR imaging and histologic findings. Radiology (1992) 184:221-225.
28. Kursunoglu-Brahme S, Schwaighofer B, Gundry C, Ho C and Resnick D: Jogging causes acute changes in the knee joint: an MR study in normal volunteers. Am J Roentgenol (1990) 154:
1233-1235.
29. Hamada M, Matsui T, Kinugasa K, Yoneda K, Horibe S and Shino K: Change of signal intensity in the displaced medial menis- cus after its reduction on MRI. Knee Surg Sports Traumatol Arthrosc (2013) 21:736-739.
