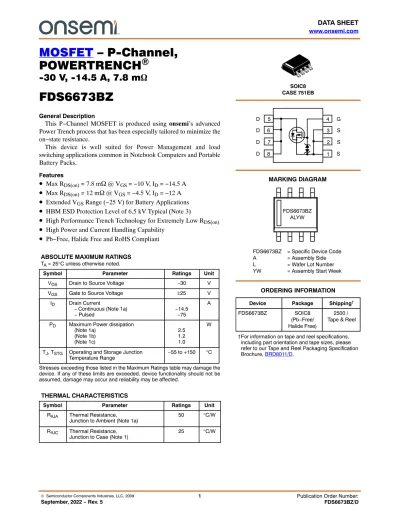

MOSFET – P-Channel,POWERTRENCH)-30 V, -14.5 A, 7.8 m

MOSFET – P-Channel, POWERTRENCH ⁾

-30 V, -14.5 A, 7.8 mW

FDS6673BZ

General Description

This P−Channel MOSFET is produced using onsemi’s advanced Power Trench process that has been especially tailored to minimize the on−state resistance.

This device is well suited for Power Management and load switching applications common in Notebook Computers and Portable Battery Packs.

Features

• ^{Max R}

= 7.8 m W @ V

= −10 V, I

= −14.5 A

• ^{Max R}

= 12 m W @ V

= −4.5 V, I

= −12 A

• Extended V

Range (−25 V) for Battery Applications

• HBM ESD Protection Level of 6.5 kV Typical (Note 3)

• High Performance Trench Technology for Extremely Low R

• High Power and Current Handling Capability

• Pb−Free, Halide Free and RoHS Compliant

T_A = 25°C unless otherwise noted.

Symbol Parameter Ratings Unit

VDS Drain to Source Voltage −30 V

VGS Gate to Source Voltage ±25 V

ID Drain Current

− Continuous(Note 1a)

− Pulsed −14.5

−75

A

PD Maximum Power dissipation (Note 1a)

(Note 1b) (Note 1c)

2.51.2 1.0

W

T_J, T_STG Operating and Storage Junction

Temperature Range −55 to +150 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL CHARACTERISTICS

Symbol Parameter Ratings Unit

R_qJA Thermal Resistance,

Junction to Ambient (Note 1a) 50 °C/W

R_qJC Thermal Resistance,

Junction to Case (Note 1) 25 °C/W

MARKING DIAGRAM

Device Package Shipping^† ORDERING INFORMATION

FDS6673BZ SOIC8

(Pb−Free/

Halide Free)

2500 / Tape & Reel SOIC8

CASE 751EB

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D.

FDS6673BZ = Specific Device Code

A = Assembly Side

L = Wafer Lot Number

YW = Assembly Start Week 1 7

5

2 8

4

6 3

D D

D D

S G

S S

FDS6673BZ ALYW

ELECTRICAL CHARACTERISTICS TA = 25°C unless otherwise noted.

Symbol Parameter Test Conditions Min Typ Max Unit

OFF CHARACTERISTICS

BV_DSS Drain to Source Breakdown Voltage I_D = −250 mA, V_GS = 0 V −30 − − V DBV_DSS

DT_J

Breakdown Voltage Temperature

Coefficient I_D = −250 mA,

Referenced to 25°C − −20 − mV/°C

I_DSS Zero Gate Voltage Drain Current V_DS = −24 V, V_GS = 0 V − − −1 mA

IGSS Gate–Body Leakage VGS = ±25 V, VDS = 0 V − − ±10 mA

ON CHARACTERISTICS (Note 2)

V_GS(th) Gate to Source Threshold Voltage V_DS = V_GS, ID = −250 mA −1 −1.9 −3 V DV_GS(th)

DT_J

Gate to Source Threshold Voltage

Temperature Coefficient I_D = −250 mA, Referenced to 25°C − 8.1 − mV/°C RDS(on) Drain to Source On–Resistance I_D = −14.5 A, V_GS = −10 V, − 6.5 7.8 mW

I_D = −12 A, V_GS = −4.5 V − 9.6 12

I_D = −14.5 A, V_GS = −10 V,

T_J = 125°C − 9.7 12

g_FS Forward Transconductance V_DS = −5 V, I_D = −14.5 A − 60 − S

DYNAMIC CHARACTERISTICS

C_iss Input Capacitance V_DS = −15 V, V_GS = 0 V,

f = 1.0 MHz − 3500 4700 pF

C_oss Output Capacitance − 600 800

C_rss Reverse Transfer Capacitance − 600 900

SWITCHING CHARACTERISTICS (Note 2)

td(on) Turn–On Delay Time V_DD = −15 V, I_D = −1 A,

V_GS = −10 V, R_GS = 6 W − 14 26 ns

t_r Rise Time − 16 29

td(off) Turn–Off Delay Time − 225 306

t_f Fall Time − 105 167

Q_g Total Gate Charge V_DS = −15 V, I_D = −14.5 A,

V_GS = −10 V − 88 124 nC

Q_g Total Gate Charge V_DS = −15 V, I_D = −14.5 A,

V_GS = −5 V − 46 65 nC

Qgs Gate–Source Charge − 8 −

Q_gd Gate–Drain Charge − 23.5 −

DRAIN−SOURCE DIODE CHARACTERISTICS AND MAXIMUM RATINGS

V_SD Drain to Source Diode Forward Voltage V_GS = 0 V, I_S = −2.1 A − −0.7 −1.2 V

t_rr Reverse Recovery Time I_F = 14.5 A, di/dt = 100 A/ms − − 45 ns

Qrr Reverse Recovery Charge IF = 14.5 A, di/dt = 100 A/ms − − 34 nC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

NOTES:

1. R_qJA is the sum of the junction−to−case and case−to−ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of the drain pins. R_qJC is guaranteed by design while R_qCA is determined by the user’s board design.

a) 50°C/W (10 sec) when mounted on a 1 in² pad of 2 oz. copper.

b) 105°C/W when mounted on a 0.04 in² pad of 2 oz. copper.

b) 125°C/W when mounted on a minimum pad.

2. Pulse Test: Pulse Width < 300 ms, Duty Cycle < 2.0%

3. The diode connected between the gate and source serves only as protection against ESD. No gate overvoltage rating is implied.

TYPICAL CHARACTERISTICS

Figure 1. On Region Characteristics Figure 2. Normalized On−Resistance vs.

Drain Current and Gate Voltage

0 1 2

0 10 20 30

−I_D, Drain Current (A) Normalized Drain to Source On−Resistance

−V_DS, Drain−Source Voltage (V)

−ID, Drain Current (A)

10 20 30 40

0.6 1.0 1.4 1.8 2.2 3.0 2.6

−V_GS, Gate to Source Voltage (V) RDS(on), Drain to Source On−Resistance (mW)

6

2 4 8 10

0 5 10 15 25

T_J = 150°C I_D = −7 A

40

80

Figure 3. Normalized On−Resistance vs. Junction Temperature

−80 −40 0 40 80 120 160

0.6 0.8

T_J, Junction Temperature (5C) Normalized Drain to Source On−Resistance1.0

1.4

1.2 1.5

Figure 4. On−Resistance vs. Gate to Source Voltage

−V_SD, Body Diode Forward Voltage (V)

−IS, Reverse Drain Current (A)

0.4

0 0.2 0.6

0.1 1 10 100

Figure 5. Transfer Characteristics

2.0 2.5 3.0 3.5 4.5

0 20 40 60 80

Figure 6. Source to Drain Diode Forward Voltage 3

VGS = −10 V

−ID, Drain Current (A)

−V_GS, Gate to Source Voltage (V)

0.01 0.001

0.8 1.0 1.4

4

V_GS = −3.5 V

V_GS = −4 V

V_GS = −4.5 V

VGS = −10 V VGS = −5 V

50

I_D = −14.5 A VGS = −10 V

T_J = 25°C 20

TJ = −55°C VDS = −6 V

TJ = 25°C

V_GS = 0 V

T_J = 150°C

T_J = 25°C

TJ = −55°C 50

60 70 80

V_GS = −5 V VGS = −4.5 V

VGS = −4 V

VGS = −3 V V_GS = −3.5 V Pulse Duration = 80 ms

Duty Cycle = 0.5% Max

0.7 0.9 1.3

1.1

Pulse Duration = 80 ms Duty Cycle = 0.5% Max

60 70

3.4

3.8 Pulse Duration = 80 ms

Duty Cycle = 0.5% Max

T_J = 150°C Pulse Duration = 80 ms Duty Cycle = 0.5% Max

4.0 1.2

TYPICAL CHARACTERISTICS

Figure 7. Gate Charge Characteristics Figure 8. Capacitance vs. Drain to Source Voltage

0 20 100

0 2

−V_DS, Drain to Source Voltage (V)

Capacitance (pF)

Q_g, Gate Charge (nC)

−VGS, Gate to Source Voltage (V) 4 8

6

100 1000

0.1 1

Figure 9. I_g vs. V_GS 0.00010

t_AV, Time in Avalanche (ms)

−V_GS (V)

−Ig (mA) 1

10

1 10

0.01 0.1 1

Figure 10. Unclamped Inductive Switching Capability 10

10 40

10 6000

30

40

1000 5

1000

0.1

−IAS, Avalanche Current (A)

60 80

V_DD = −10 V

V_DD = −20 V

V_DD = −15 V

C_iss C_oss C_rss

f = 1 MHz V_GS = 0 V

100 ms

1 ms 10 ms 100 ms 1 s DC Single Pulse

T_J = Max Rated R_qJA = 125°C T_C = 25°C

Figure 11. Maximum Continuous Drain Current vs Ambient Temperature

025

−V_DS, Drain to Source Voltage (V)

−ID, Drain Current (A)

0.010.01

Figure 12. Single Pulse Maximum Power Dissipation

−ID, Drain Current (A)

T_A, Ambient Temperature (5C) T_J = 25°C TJ = 150°C

10 15 20 25 30 35

100

0.01 0.001

100 T_J = 25°C

TJ = 125°C

V_GS = −10 V V_GS = −4.5 V

50 75 100 125 150

4 8 12 16

10 s This area

is limited by R_DS(on)

0.1 1 10 100 500

0.1 1 10 100

TYPICAL CHARACTERISTICS

Figure 13. Single Pulse Maximum Power Dissipation

Figure 14. Junction−to−Ambient Transient Thermal Response Curve 0.001

0.0001 0.01

t,Rectangular Pulse Duration (s) ZqJA, Normalized Transient Impedance

0.1 1

0.01 0.1 1 10 100 1000

NOTES:

Duty Factor D = t₁ / t₂

PEAK TJ = PDM × ZqJA × RqJA + TA

D = 0.5 0.2 0.1 0.05 0.02 0.01

Single Pulse R_qJA = 125°C/W 0.0001

0.001 1

10

t, Pulse Width (s) P(PK), Peak Transient Power (W)

1000 10000

0.01 0.1 1 10 100 1000

0.0001

Single Pulse R_qJA = 125°C/W T_A = 25°C 5

100

V_GS = −10 V

2

0.001

Duty Cycle−Descending Order

t1

t₂ P_DM
