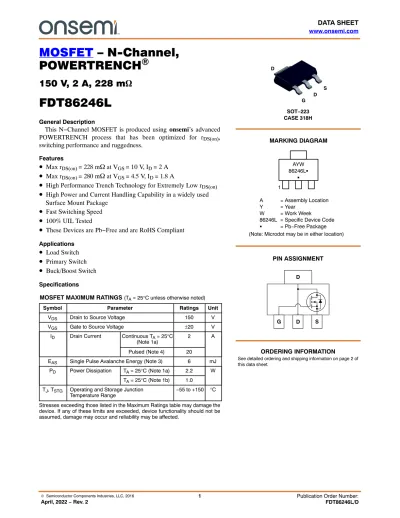

MOSFET – N-Channel, POWERTRENCH)

MOSFET – N-Channel, POWERTRENCH ⁾

150 V, 2 A, 228 mW

FDT86246L

General Description

This N−Channel MOSFET is produced using onsemi’s advanced POWERTRENCH process that has been optimized for r

, switching performance and ruggedness.

Features

• ^{Max r}

= 228 mW at V

= 10 V, I

= 2 A

• ^{Max r}

= 280 m W at V

= 4.5 V, I

= 1.8 A

• High Performance Trench Technology for Extremely Low r

• High Power and Current Handling Capability in a widely used Surface Mount Package

• Fast Switching Speed

• 100% UIL Tested

• These Devices are Pb−Free and are RoHS Compliant

• Load Switch

• Primary Switch

• Buck/Boost Switch

MOSFET MAXIMUM RATINGS (T_A = 25°C unless otherwise noted)

Symbol Parameter Ratings Unit

V_DS Drain to Source Voltage 150 V

V_GS Gate to Source Voltage ±20 V

I_D Drain Current Continuous T_A = 25°C

(Note 1a) 2 A

Pulsed (Note 4) 20

E_AS Single Pulse Avalanche Energy (Note 3) 6 mJ P_D Power Dissipation TA = 25°C (Note 1a) 2.2 W

T_A = 25°C (Note 1b) 1.0 T_J, T_STG Operating and Storage Junction

Temperature Range −55 to +150 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

PIN ASSIGNMENT

See detailed ordering and shipping information on page 2 of this data sheet.

ORDERING INFORMATION MARKING DIAGRAM

SOT−223 CASE 318H

S

G D

D G D

S D

1

AYW 86246LG

G

A = Assembly Location

Y = Year

W = Work Week

86246L = Specific Device Code G = Pb−Free Package (Note: Microdot may be in either location)

THERMAL CHARACTERISTICS

Symbol Parameter Ratings Unit

R_qJC Thermal Resistance, Junction to Case (Note 1) 12 _C/W

R_qJA Thermal Resistance, Junction to Ambient (Note 1a) 55

1. R_qJA is determined with the device mounted on a 1 in² pad 2 oz copper pad on a 1.5 x 1.5 in. board of FR−4 material. R_qJC is guaranteed by design while R_qJA is determined by the user’s board design.

a. 55°C/W when mounted on a 1 in² pad

of 2 oz copper b. 118°C/W when mounted on a minimum

pad

ORDERING INFORMATION

Device Device Marking Package Type Shipping^†

FDT86246L 86246L SOT−223 (Pb−Free) 4000 units / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

ELECTRICAL CHARACTERISTICS (T_J = 25°C unless otherwise noted)

Symbol Parameter Test Conditions Min Typ Max Unit

OFF CHARACTERISTICS

BVDSS Drain to Source Breakdown Voltage ID = 250 mA, VGS = 0 V 150 V

DBVDSS / DTJ

Breakdown Voltage Temperature

Coefficient I_D = 250 mA, referenced to 25°C 110 mV/°C

I_DSS Zero Gate Voltage Drain Current V_DS = 120 V, V_GS = 0 V 1 mA

I_GSS Gate to Source Leakage Current V_GS = ±20 V, VDS = 0 V ±100 nA

ON CHARACTERISTICS

V_GS(th) Gate to Source Threshold Voltage V_GS = V_DS, I_D = 250 mA 0.8 1.6 2.5 V

DVGS(th) / DTJ

Gate to Source Threshold Voltage

Temperature Coefficient I_D = 250 mA, referenced to 25°C −5 mV/°C

r_DS(on) Static Drain to Source On Resistance V_GS = 10 V, I_D = 2 A 189 228 mW

V_GS = 4.5 V, I_D = 1.8 A 208 280

VGS = 10 V, ID = 2 A, TJ = 125°C 375 452

gFS Forward Transconductance VDS = 10 V, ID = 2 A 7.3 S

DYNAMIC CHARACTERISTICS

Ciss Input Capacitance V_DS = 75 V, V_GS = 0 V, f = 1 MHz 238 335 pF

Coss Output Capacitance 20 30 pF

Crss Reverse Transfer Capacitance 2 5 pF

R_g Gate Resistance 0.1 0.9 2.7 W

SWITCHING CHARACTERISTICS

td(on) Turn−On Delay Time VDD = 75 V, ID = 2 A, VGS = 10 V,

R_GEN = 6 W 4.5 10 ns

tr Rise Time 1.3 10 ns

t_d(off) Turn−Off Delay Time 11 20 ns

t_f Fall Time 2 10 ns

Qg(TOT) Total Gate Charge V_GS = 0 V to 10 V, V_DD = 75 V, I_D = 2 A 4.5 6.3 nC

V_GS = 0 V to 4.5 V, V_DD = 75 V, I_D = 2 A 2.3 3.3 nC

Q_gs Gate to Source Charge V_DD = 75 V, I_D = 2 A 0.7 nC

Q_gd Gate to Drain “Miller” Charge 1.0 nC

DRAIN−SOURCE DIODE CHARACTERISTICS V_SD Source to Drain Diode Forward

Voltage V_GS = 0 V, I_S = 2 A (Note 2) 0.8 1.3 V

t_rr Reverse Recovery Time I_F = 2 A, di/dt = 100 A/ms 44 71 ns

Q_rr Reverse Recovery Charge 31 50 nC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

2. Pulse Test: Pulse Width < 300 ms, Duty cycle < 2.0%.

3. E_AS of 6 mJ is based on starting T_J = 25°C; N−ch: L = 3 mH, I_AS = 2 A, V_DD = 150 V, V_GS = 10 V. 100% test at L = 0.1 mH, I_AS = 7 A.

4. Pulsed Id please refer to Figure 11 SOA graph for more details.

5. Computed continuous current limited to Max Junction Temperature only, actual continuous current will be limited by thermal &

electro−mechanical application board design.

TYPICAL CHARACTERISTICS

Figure 1. On Region Characteristics ID, DRAIN CURRENT (A)

VDS, DRAIN TO SOURCE VOLTAGE (V)

NORMALIZED DRAIN TO SOURCE ON−RESISTANCE

T_J, JUNCTION TEMPERATURE (°C) V_GS, GATE TO SOURCE VOLTAGE (V) rDS(on), DRAIN TO SOURCE ON−RESISTANCE (mW)

V_GS, GATE TO SOURCE VOLTAGE (V)

ID, DRAIN CURRENT (A)

NORMALIZED DRAIN TO SOURCE ON−RESISTANCEID, DRAIN CURRENT (A) IS, REVERSE DRAIN CURRENT (A)

V_SD, BODY DIODE FORWARD VOLTAGE (V) Figure 2. Normalized On−Resistance vs.

Drain Current and Gate Voltage

Figure 3. Normalized On Resistance vs. Junction Temperature

Figure 4. On−Resistance vs. Gate to Source Voltage

00 200

1 2 3 10

00 1 2 3 4 5

2 4 6

4 8 9

01 1 2 3 4 5 6

0.0 0.2 0.4 0.6 0.8 1.0 1.2

0.001 0.01 0.1 1

0 1 2 3 4 5

0 1 2 3 4 5 6

V_GS = 3.5 V

V_GS = 3 V V_GS = 4.5 V

PULSE DURATION = 80ms DUTY CYCLE = 0.5% MAX V_GS = 2.5 V

V_GS = 10 V

V_GS = 4.5 V PULSE DURATION = 80 ms

DUTY CYCLE = 0.5% MAX

V_GS= 3.5 V V_GS = 3 V

V_GS = 10 V V_GS= 2.5 V

−75 −50 −25 0 25 50 75 100 125 150 0.5

1.0 1.5 2.0 2.5

ID = 2 A V_GS = 10 V

TJ= 125^oC ID= 2 A

T_J= 25^oC

PULSE DURATION = 80ms DUTY CYCLE = 0.5% MAX

400 600 800

5 6 7

T_J = 150^oC VDS= 5 V

PULSE DURATION = 80ms DUTY CYCLE = 0.5% MAX

TJ = −55^oC TJ = 25^oC

2 3 4

TJ = −55^oC TJ = 25 ^oC T_J= 150^oC

VGS= 0 V 6

TYPICAL CHARACTERISTICS

VGS, GATE TO SOURCE VOLTAGE (V)

Q_g, GATE CHARGE (nC)

CAPACITANCE (pF)

V_DS, DRAIN TO SOURCE VOLTAGE (V)

t_AV, TIME IN AVALANCHE (ms) V_DS, DRAIN TO SOURCE VOLTAGE (V) IAS, AVALANCHE CURRENT (A)(PK), PEAK TRANSIENT POWER (W)

Figure 7. Gate Charge Characteristics Figure 8. Capacitance vs. Drain to Source Voltage

Figure 9. Unclamped Inductive Switching

Capability Figure 10. Forward Bias Safe Operating Area ID, DRAIN CURRENT (A)

00 2 4 6 8 10

ID= 2 A

VDD = 75 V VDD= 100 V VDD = 50 V

1 2 3 4 5 10.1 1 10 100

10 100 1000

f = 1 MHz VGS = 0 V

Crss

Coss

Ciss

0.0011 0.01 0.1 1

2 3 4 5 67 89 10

TJ= 100^oC TJ= 25 ^oC

T_J= 125^oC

0.1 1 10 100 600

0.001 0.01 0.1 1 10 30

10ms

10 s CURVE BENT TO MEASURED DATA

100ms

10 ms

DC 1 s100 ms THIS AREA IS 1 ms

LIMITED BY r_DS(on) SINGLE PULSE TJ= MAX RATED R_qJA= 118 ^oC/W T_A= 25^oC

0.1 1 10 100 1000 10000

SINGLE PULSE R_qJA = 118^oC/W T_A = 25^oC

TYPICAL CHARACTERISTICS

t, RECTANGULAR PULSE DURATION (s)

Figure 12. Junction−to−Ambient Transient Thermal Response Curve r(t), NORMALIZED EFFECTIVE TRANSIENT THERMAL RESISTANCE

10⁻⁵ 10⁻⁴ 10⁻³ 10⁻² 10⁻¹ 10⁰ 10¹ 100 1000

0.001 0.001 0.01 0.1 1 2

SINGLE PULSE

DUTY CYCLE−DESCENDING ORDER

D = 0.5 0.2 0.1 0.05 0.02 0.01

NOTES:

Z_qJA(t) = r(t) x R_qJA R_qJA = 118^oC/W Duty Cycle, D = t₁ / t₂ Peak T_J = P_DM x Z_qJA(t) + T_A

P_DM

t₁ t₂

SOT−223 CASE 318H

ISSUE B

DATE 13 MAY 2020 SCALE 2:1

1

A = Assembly Location

Y = Year

W = Work Week

XXXXX = Specific Device Code G = Pb−Free Package GENERIC

MARKING DIAGRAM*

AYW XXXXXG

G

(Note: Microdot may be in either location)

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may
