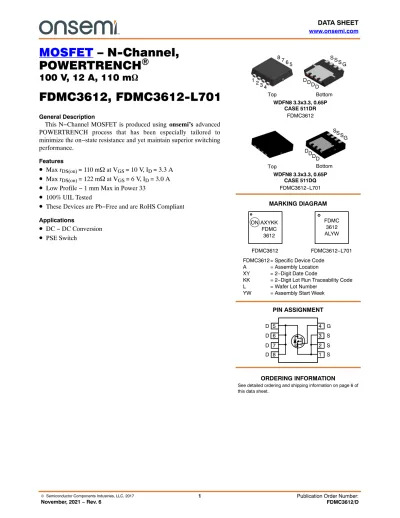

MOSFET – N-Channel, POWERTRENCH) 100 V, 12 A, 110 m

MOSFET – N-Channel, POWERTRENCH ⁾

100 V, 12 A, 110 mW

FDMC3612, FDMC3612-L701

General Description

This N−Channel MOSFET is produced using onsemi’s advanced POWERTRENCH process that has been especially tailored to minimize the on−state resistance and yet maintain superior switching performance.

Features

• ^{Max r}

= 110 m W at V

= 10 V, I

= 3.3 A

• ^{Max r}

= 122 m W at V

= 6 V, I

= 3.0 A

• Low Profile − 1 mm Max in Power 33

• 100% UIL Tested

• These Devices are Pb−Free and are RoHS Compliant

• DC − DC Conversion

• ^{PSE Switch}

MARKING DIAGRAM

PIN ASSIGNMENT

See detailed ordering and shipping information on page 6 of this data sheet.

ORDERING INFORMATION Bottom Top

Bottom 1 23 4

Top 8 76 5

DDDD

SSS G

DDDD

SSSG WDFN8 3.3x3.3, 0.65P

CASE 511DR

WDFN8 3.3x3.3, 0.65P CASE 511DQ

FDMC3612= Specific Device Code A = Assembly Location XY = 2−Digit Date Code

KK = 2−Digit Lot Run Traceability Code L = Wafer Lot Number

YW = Assembly Start Week AXYKK

FDMC 3612

FDMC3612 ALYW ON

FDMC3612 FDMC3612−L701

4 3 2 1

G S S S D

D D D

5 6 7 8

FDMC3612

FDMC3612−L701

MOSFET MAXIMUM RATINGS (T_C = 25°C unless otherwise noted)

Symbol Parameter Rating Unit

VDS Drain to Source Voltage 100 V

VGS Gate to Source Voltage ±20 V

I_D

Drain Current Continuous TC = 25°C 12 A

Continuous (Note 1a) TA = 25°C 3.3

Pulsed 15

EAS Single Pulse Avalanche Energy (Note 2) 32 mJ

P_D Power Dissipation TC = 25°C 35 W

Power Dissipation (Note 1a) TA = 25°C 2.3

T_J, T_STG Operating and Storage Junction Temperature Range −55 to + 150 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL CHARACTERISTICS

Symbol Parameter Rating Unit

RqJC Thermal Resistance, Junction to Case 3.5 °C/W

RqJA Thermal Resistance, Junction to Ambient (Note 1a) 53

1. R_qJA is determined with the device mounted on a 1 in² pad 2 oz copper pad on a 1.5 x 1.5 in. board of FR−4 material. R_qJC is guaranteed by design while R_qCA is determined by the user’s board design.

a. 53°C/W when mounted on a 1 in² pad

of 2 oz copper b. 125°C/W when mounted on a minimum

pad of 2 oz copper

2. Starting T_J = 25°C; N−ch: L = 1 mH, IAS = 8 A, V_DD = 90 V, V_GS = 10 V.

ELECTRICAL CHARACTERISTICS (T_J = 25°C unless otherwise noted)

Symbol Parameter Test Conditions Min Typ Max Unit

OFF CHARACTERISTICS

BVDSS Drain to Source Breakdown Voltage ID = 250 mA, VGS = 0 V 100 − − V DBVDSS /

DTJ

Breakdown Voltage Temperature Co-

efficient I_D = 250 mA, referenced to 25°C − 109 − mV/°C

I_DSS Zero Gate Voltage Drain Current V_DS = 80 V, V_GS = 0 V − − 1 mA

I_GSS Gate to Source Leakage Current V_GS = ±20 V, VDS = 0 V − − ±100 nA

ON CHARACTERISTICS

V_GS(th) Gate to Source Threshold Voltage V_GS = V_DS, I_D = 250 mA 2.0 2.5 4.0 V DVGS(th) /

DTJ

Gate to Source Threshold Voltage

Temperature Coefficient I_D = 250 mA, referenced to 25°C − −7 − mV/°C

r_DS(on) Static Drain to Source On Resistance V_GS = 10 V, I_D = 3.3 A − 92 110 mW

V_GS = 6 V, I_D = 3.0 A − 98 122

VGS = 10 V, ID = 3.3 A, TJ = 125°C − 177 212

gFS Forward Transconductance VDS = 10 V, ID = 3.3 A − 13 − S

DYNAMIC CHARACTERISTICS

Ciss Input Capacitance V_DS = 50 V, V_GS = 0 V, f = 1 MHz − 662 880 pF

Coss Output Capacitance − 40 55 pF

Crss Reverse Transfer Capacitance − 23 35 pF

R_g Gate Resistance − 1.3 − W

SWITCHING CHARACTERISTICS

td(on) Turn−On Delay Time VDD = 50 V, ID = 3.3 A, VGS = 10 V,

R_GEN = 6 W − 7.4 15 ns

tr Rise Time − 2.8 10 ns

t_d(off) Turn−Off Delay Time − 19 34 ns

t_f Fall Time − 2 10 ns

Q_g(TOT) Total Gate Charge V_GS = 0 V to 10 V, V_DD = 50 V, I_D = 3.3 A − 14.4 21 nC Q_g(TOT) Total Gate Charge V_GS = 0 V to 5 V, V_DD = 50 V, I_D = 3.3 A − 7.9 12 nC

Q_gs Total Gate Charge VDD = 50 V, ID = 3.3 A − 2.3 − nC

Q_gd Gate to Drain “Miller” Charge − 3.7 − nC

DRAIN−SOURCE DIODE CHARACTERISTICS V_SD Source to Drain Diode Forward

Voltage V_GS = 0 V, I_S = 3.3 A (Note 3) − 0.88 1.2 V

V_GS = 0 V, I_S = 2 A (Note 3) − 0.77 1.2

t_rr Reverse Recovery Time I_F = 3.3 A, di/dt = 100 A/ms − 34 55 ns

Q_rr Reverse Recovery Charge − 37 60 nC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

3. Pulse Test: Pulse Width < 300 ms, Duty cycle < 2.0%.

TYPICAL CHARACTERISTICS

Figure 1. On Region Characteristics ID, DRAIN CURRENT (A)

0 1 2 3 4 5

0 3 6 9 12

15 PULSE DURATION = 80 ms

DUTY CYCLE = 0.5% MAX

VDS, DRAIN TO SOURCE VOLTAGE (V)

0 3 6 9 12 15

0.5 1.0 1.5 2.0 2.5 3.0

NORMALIZED DRAIN TO SOURCE ON−RESISTANCE

−75 −50 −25 0 25 50 75 100 125 150 0.4

0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4

T_J, JUNCTION TEMPERATURE (°C)

2 4 10

0 100 200 300 400

V_GS, GATE TO SOURCE VOLTAGE (V) rDS(on), DRAIN TO SOURCE ON−RESISTANCE (mW)

2.0 2.5 3.0 3.5 4.0 4.5 5.0

0 3 6 9 12 15

V_GS, GATE TO SOURCE VOLTAGE (V)

0.2 0.4 0.6 0.8 1.0 1.2

0.001 0.1 1 1020 V_GS = 10 V

V_GS = 6 V

V_GS = 4.5 V

VGS = 4 V

V_GS = 3.5 V

PULSE DURATION = 80 ms DUTY CYCLE = 0.5% MAX

V_GS = 10 V V_GS = 6 V

V_GS = 4.5 V V_GS = 4 V

VGS = 3.5 V

ID, DRAIN CURRENT (A)

6 8

NORMALIZED DRAIN TO SOURCE ON−RESISTANCE

ID = 3.3 A VGS = 10 V

I_D = 3.3 A PULSE DURATION = 80 ms DUTY CYCLE = 0.5% MAX

T_J = 125°C T_J = 25°C

ID, DRAIN CURRENT (A) IS, REVERSE DRAIN CURRENT (A)

TJ = 150°C

T_J = 25°C

T_J = −55°C V_GS = 0 V

V_SD, BODY DIODE FORWARD VOLTAGE (V) PULSE DURATION = 80 ms

DUTY CYCLE = 0.5% MAX

0.01

Figure 2. Normalized On−Resistance vs.

Drain Current and Gate Voltage

Figure 3. Normalized On Resistance vs. Junction Temperature

Figure 4. On−Resistance vs. Gate to Source Voltage

T_J = 150°C

T_J = 25°C

TJ = −55°C V_DS = 5 V

TYPICAL CHARACTERISTICS

1000

0 2 4 6 8 10 12 14 16

0 2 4 6 8 10

V_DD = 75 V

VGS, GATE TO SOURCE VOLTAGE (V)

Q_g, GATE CHARGE (nC)

0.1 1 10 100

10 100 1000

CAPACITANCE (pF)

V_DS, DRAIN TO SOURCE VOLTAGE (V) Crss

Coss

Ciss

0.0011 0.01 0.1 1 10

10 30

T_J = 125°C

t_AV, TIME IN AVALANCHE (ms)

25 50 75 100 125 150

0 3 6 9 12

V_GS = 10 V

T_C, CASE TEMPERATURE (°C)

0.1 1 10 100 500

0.01 0.1 1 10 50

1 s 10 ms

DC10 s 100 ms 1 ms

V , DRAIN to SOURCE VOLTAGE (V) THIS AREA IS

LIMITED BY r_DS(on) SINGLE PULSE T_J = MAX RATED R_qJA = 125°C/W T_A = 25°C

10⁻⁴ 10⁻³ 10⁻² 10⁻¹ 1 10 100 0.5

1 10 100 1000

t, PULSE WIDTH (s) V_DD = 50 V

V_DD = 25 V I_D = 3.3 A

f = 1 MHz VGS = 0 V

TJ = 100°C T_J = 25°C

IAS, AVALANCHE CURRENT (A)

V_GS = 6 V

R_qJC = 3.5°C/W ID, DRAIN CURRENT (A)

100 ms

ID, DRAIN CURRENT (A) P(PK), PEAK TRANSIENT POWER (W)

V_GS = 10 V

SINGLE PULSE R_qJC = 3.5°C/W T_A = 25°C

Figure 7. Gate Charge Characteristics Figure 8. Capacitance vs. Drain to Source Voltage

Figure 9. Unclamped Inductive Switching

Capability Figure 10. Maximum Continuous Drain Current vs. Case Temperature

0.001

TYPICAL CHARACTERISTICS

10⁻⁴ 10⁻³ 10⁻² 10⁻¹ 1 10 100 1000

0.01 0.1 1

D = 0.5 0.2 0.1 0.05 0.02 0.01

SINGLE PULSE R_qJA = 125°C/W DUTY CYCLE−DESCENDING ORDER

t, RECTANGULAR PULSE DURATION (s)

P_DM

t1

t₂ NOTES:

DUTY FACTOR: D = t₁ / t₂ PEAK TJ = PDM x Z_qJA x R_qJA + TA

0.001 ZqJA, NORMALIZED THERMAL IMPEDANCE

Figure 13. Junction−to−Ambient Transient Thermal Response Curve

ORDERING INFORMATION

Device Device Marking Package Type Reel Size Tape Width Shipping^†

FDMC3612 FDMC3612 WDFN8 3.3x3.3, 0.65P

Power 33 (Pb−Free)

13” 12 mm 3000 / Tape & Reel

FDMC3612−L701 FDMC3612 WDFN8 3.3x3.3, 0.65P Power 33 (Pb−Free)

13” 12 mm 3000 / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

WDFN8 3.3x3.3, 0.65P CASE 511DQ

ISSUE O

DATE 31 OCT 2016

ISSUE O

DATE 31 OCT 2016

WDFN8 3.3x3.3, 0.65P CASE 511DR

ISSUE B

DATE 02 FEB 2022

XXXX = Specific Device Code A = Assembly Location Y = Year

WW = Work Week G = Pb−Free Package

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.

GENERIC MARKING DIAGRAM*

XXXX AYWWG

G
