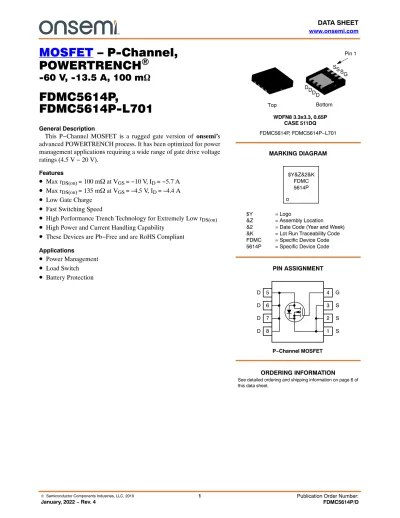

MOSFET – P-Channel, POWERTRENCH ⁾

-60 V, -13.5 A, 100 mW

FDMC5614P,

FDMC5614P-L701

General Description

This P−Channel MOSFET is a rugged gate version of onsemi’s advanced POWERTRENCH process. It has been optimized for power management applications requiring a wide range of gate drive voltage ratings (4.5 V − 20 V).

Features

• ^{Max r}

DS(on)

= 100 m W at V

GS

= −10 V, I

D

= −5.7 A

• ^{Max r}

DS(on)

= 135 m W at V

_GS

= −4.5 V, I

_D

= −4.4 A

• Low Gate Charge

• Fast Switching Speed

• High Performance Trench Technology for Extremely Low r

DS(on)

• High Power and Current Handling Capability

• These Devices are Pb−Free and are RoHS Compliant

Applications

• Power Management

• Load Switch

• Battery Protection

MARKING DIAGRAM

PIN ASSIGNMENT

See detailed ordering and shipping information on page 6 of this data sheet.

ORDERING INFORMATION Bottom Top

DDDD

SSSG

WDFN8 3.3x3.3, 0.65P CASE 511DQ FDMC5614P, FDMC5614P−L701

$Y&Z&2&K FDMC 5614P

$Y = Logo

&Z = Assembly Location

&2 = Date Code (Year and Week)

&K = Lot Run Traceability Code FDMC = Specific Device Code 5614P = Specific Device Code

P−Channel MOSFET 5

6 7 8

4 3 2 1

G S S S D

D D D

Pin 1

(2)

MOSFET MAXIMUM RATINGS (T_C = 25°C unless otherwise noted)

Symbol Parameter Rating Unit

VDS Drain to Source Voltage −60 V

VGS Gate to Source Voltage ±20 V

I_D

Drain Current Continuous (Package Limited) TC = 25°C −13.5 A

Continuous (Silicon Limited) TC = 25°C −14

Continuous (Note 1a) TA = 25°C −5.7

Pulsed −23

PD Power Dissipation TC = 25°C 42 W

Power Dissipation (Note 1a) TA = 25°C 2.1

T_J, T_STG Operating and Storage Junction Temperature Range −55 to + 150 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL CHARACTERISTICS

Symbol Parameter Rating Unit

RqJC Thermal Resistance, Junction to Case 3.0 °C/W

RqJA Thermal Resistance, Junction to Ambient (Note 1a) 60

1. R_qJAis determined with the device mounted on a 1 in² oz copper pad on a 1.5 x 1.5 in. board of FR−4 material. R_qJC is guaranteed by design while R_qJA is determined by the user’s board design.

a. R_qJA = 60°C/W when mounted on a 1 in2 pad of 2 oz copper, 1.5’ x1.5’ x 0.062’ thick PCB.

b. R_qJA = 135°C/W when mounted on a minimum pad of 2 oz copper.

a. 60°C/W when mounted on a 1 in²pad

of 2 oz copper b. 135°C/W when mounted on a minimum

pad of 2 oz copper

2. Pulse Test: Pulse Width < 300 ms, Duty cycle < 2.0%.

(3)

ELECTRICAL CHARACTERISTICS (T_J = 25°C unless otherwise noted)

Symbol Parameter Test Conditions Min Typ Max Unit

OFF CHARACTERISTICS

BVDSS Drain to Source Breakdown Voltage ID = −250 mA, VGS = 0 V −60 − − V DBV_DSS

DTJ

Breakdown Voltage Temperature Co-

efficient I_D= −250 mA, referenced to 25°C − −54 − mV/°C

I_DSS Zero Gate Voltage Drain Current V_DS= −48 V, V_GS= 0 V − − −1 mA

I_GSS Gate to Source Leakage Current V_GS= ±20 V, VDS = 0 V − − ±100 nA

ON CHARACTERISTICS

V_GS(th) Gate to Source Threshold Voltage V_GS= V_DS, I_D= −250 mA −1.0 −1.95 −3 V DV_GS(th)

DT_J

Gate to Source Threshold Voltage

Temperature Coefficient I_D= −250 mA, referenced to 25°C − 4.7 − mV/°C rDS(on) Static Drain to Source On Resistance V_GS= −10 V, I_D= −5.7 A − 84 100 mW

V_GS= −4.5 V, I_D= −4.4 A − 108 135

V_GS= −10 V, I_D= −5.7 A, T_J= 125°C − 140 168

g_FS Forward Transconductance V_DS= −15 V, I_D= −5.7 A − 11 − S

DYNAMIC CHARACTERISTICS

C_iss Input Capacitance V_DS= −30 V, V_GS= 0 V, f = 1 MHz − 795 1055 pF

C_oss Output Capacitance − 140 185 pF

C_rss Reverse Transfer Capacitance − 60 90 pF

SWITCHING CHARACTERISTICS

t_d(on) Turn−On Delay Time V_DD= −30 V, I_D= −1.0 A,

V_GS= −10 V, R_GEN= 6 W − 10 21 ns

t_r Rise Time − 11 23 ns

t_d(off) Turn−Off Delay Time − 32 65 ns

t_f Fall Time − 11 22 ns

Q_g(TOT) Total Gate Charge at 10 V V_GS= −10 V, V_DD= −30 V, I_D= −5.7 A − 15 20 nC

Q_gs Gate to Source Gate Charge − 1.6 2.1 nC

Q_gd Gate to Drain “Miller” Charge − 2.7 3.5 nC

DRAIN−SOURCE DIODE CHARACTERISTICS V_SD Source to Drain Diode Forward

Voltage V_GS= 0 V, I_S= −3.2 A − −0.8 −1.2 V

t_rr Reverse Recovery Time I_F= −3.2 A, di/dt = 100 A/ms − − 36 ns

Q_rr Reverse Recovery Charge − − 29 nC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

(4)

TYPICAL CHARACTERISTICS

(T_J = 25°C unless otherwise noted)

Figure 1. On Region Characteristics

−ID, DRAIN CURRENT (A)

0 1 2 3 4 5

0 5 10 15 20 25

PULSE DURATION = 300 ms DUTY CYCLE = 2.0% MAX

−VDS, DRAIN TO SOURCE VOLTAGE (V)

0 5 10 15 20 25

1.0 1.2 1.4 1.6 1.8 2.0

NORMALIZED DRAIN TO SOURCE ON−RESISTANCE

−50 −25 0 25 50 75 100 125 150

0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

T_J, JUNCTION TEMPERATURE (°C)

2 4 10

−V_GS, GATE TO SOURCE VOLTAGE (V) rDS(on), DRAIN TO SOURCE ON−RESISTANCE (mW)

15 20 25 30

0.1 10 30 V_GS = −10 V

V_GS = −5 V V_GS = −4.5 V

V_GS = −3.0 V

6 8

NORMALIZED DRAIN TO SOURCE ON−RESISTANCE

ID = −5.7 A VGS = −10 V

T_J = 125°C

TJ = 25°C

T_J = 125°C

T_J = 25°C V_GS = 0 V

Figure 2. Normalized On−Resistance vs.

Drain Current and Gate Voltage

Figure 3. Normalized On Resistance vs. Junction Temperature

Figure 4. On−Resistance vs. Gate to Source Voltage

T_J = 25°C V_DD = −5 V

0.8 V_GS = −3.5 V

V_GS = −3.0 V

PULSE DURATION = 300 ms DUTY CYCLE = 2.0% MAX V_GS = −3.5 V

V_GS = −5.0 V

V_GS = −10 V

100 150 200 250 300 350

50

3 5 7 9

1

V_GS = −4.5 V

ID = −5.7 A

(5)

TYPICAL CHARACTERISTICS

(T_J = 25°C unless otherwise noted) (continued)

P(PK), PEAK TRANSIENT POWER (W)

0 4 8 12 16

0 2 4 6 8 10

−VGS, GATE TO SOURCE VOLTAGE (V)

Q_g, GATE CHARGE (nC)

0.1 1 10 60

10 100 2000

CAPACITANCE (pF)

−V_DS, DRAIN TO SOURCE VOLTAGE (V)

0.01 0.1 1 10 100

1 4 8

TJ = 125°C

t_AV, TIME IN AVALANCHE (ms)

10⁻⁴ 10⁻³ 10⁻² 10⁻¹

0.5 1 10 100 1000

V_DD = −20 V I_D = −5.7 A

f = 1 MHz VGS = 0 V

T_J = 25°C

−IAS, AVALANCHE CURRENT (A)

V_GS = −10 V

SINGLE PULSE R_qJA = 135°C/W T_A = 25°C

Figure 7. Gate Charge Characteristics Figure 8. Capacitance vs. Drain to Source Voltage

Figure 9. Unclamped Inductive Switching Capability

V_DD = −30 V V_DD = −40 V

1000

C_ISS

C_OSS C_RSS

2 3 6 5 7

0.01 0.1 1 10 60

1E−3

0.1 1 10 100 200

Figure 10. Forward Bias Safe Operating Area

−V_DS, DRAIN TO SOURCE VOLTAGE (V) 100 ms

SINGLE PULSE TJ = MAX RATED R_qJA = 135°C/W TA = 25°C

1 ms 10 ms 100 ms

1 s 10 s

DC rDS(on) LIMITED

FOR TEMPERATURES ABOVE 25°C DERATE PEAK CURRENT AS FOLLOWS:

I+I₂₅

ƪ ^Ǹ

¹⁵⁰¹²⁵^*^T^A

ƫ

10⁰ 10¹ 10² 10³

(6)

TYPICAL CHARACTERISTICS

(T_J = 25°C unless otherwise noted) (continued)

10⁻⁴ 10⁻³ 10⁻² 10⁻¹

0.01 0.1

D = 0.5 0.2 0.1 0.05 0.02 0.01

SINGLE PULSE

DUTY CYCLE−DESCENDING ORDER

t, RECTANGULAR PULSE DURATION (s) 0.001

r(t), NORMALIZED EFFECTIVE TRANSIENT THERMAL RESISTANCE

Figure 12. Transient Thermal Response Curve 0.0005

1 2

t₁ t₂ PDM

Z_qJA(t) = r(t) × RqJA

R_qJA = 135°C/W

Peak T_J = P_DM × Z_qJA(t) + T_A Duty Cycle, D = t₁ / t₂ 10⁰

10 1010¹ 1010² 1010³

ORDERING INFORMATION

Device Device Marking Package Type Reel Size Tape Width Shipping^†

FDMC5614P FDMC5614P WDFN8 3.3x3.3, 0.65P

Power 33 (Pb−Free)

7” 8 mm 3000 / Tape & Reel

FDMC5614P−L701 FDMC5614P WDFN8 3.3x3.3, 0.65P Power 33 (Pb−Free)

7” 8 mm 3000 / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.
