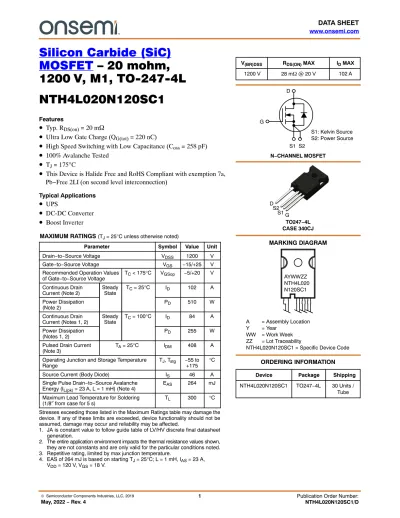

Silicon Carbide (SiC) MOSFET – 20 mohm, 1200 V, M1, TO-247-4L NTH4L020N120SC1

Silicon Carbide (SiC) MOSFET – 20 mohm, 1200V, M1, TO-247-4L NTH4L020N120SC1

Features

• ^{Typ. R}

= 20 m

• Ultra Low Gate Charge (Q

= 220 nC)

• High Speed Switching with Low Capacitance (C

= 258 pF)

• 100% Avalanche Tested

• ^T

= 175 ° C

• This Device is Halide Free and RoHS Compliant with exemption 7a, Pb−Free 2LI (on second level interconnection)

Typical Applications

• ^UPS

• DC-DC Converter

• Boost Inverter

MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)

Parameter Symbol Value Unit

Drain−to−Source Voltage VDSS 1200 V

Gate−to−Source Voltage V_GS −15/+25 V

Recommended Operation Values

of Gate−to−Source Voltage T_C < 175°C V_GSop −5/+20 V Continuous Drain

Current (Note 2) Steady

State TC = 25°C ID 102 A

Power Dissipation

(Note 2) P_D 510 W

Continuous Drain

Current (Notes 1, 2) Steady

State T_C = 100°C I_D 84 A

Power Dissipation

(Notes 1, 2) P_D 255 W

Pulsed Drain Current

(Note 3) T_A = 25°C I_DM 408 A

Operating Junction and Storage Temperature

Range T_J, T_stg −55 to

+175 °C

Source Current (Body Diode) IS 46 A

Single Pulse Drain−to−Source Avalanche

Energy (I_L(pk) = 23 A, L = 1 mH) (Note 4) E_AS 264 mJ Maximum Lead Temperature for Soldering

(1/8″ from case for 5 s) T_L 300 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

1. JA is constant value to follow guide table of LV/HV discrete final datasheet generation.

2. The entire application environment impacts the thermal resistance values shown, they are not constants and are only valid for the particular conditions noted.

3. Repetitive rating, limited by max junction temperature.

4. EAS of 264 mJ is based on starting TJ = 25°C; L = 1 mH, IAS = 23 A, V_DD = 120 V, V_GS = 18 V.

D S1G S2

V_(BR)DSS R_DS(ON) MAX I_D MAX

1200 V 28 m @ 20 V 102 A

N−CHANNEL MOSFET

TO247−4L CASE 340CJ

ORDERING INFORMATION

Device Package Shipping NTH4L020N120SC1 TO247−4L 30 Units /

Tube A = Assembly Location

Y = Year WW = Work Week ZZ = Lot Traceability

NTH4L020N120SC1 = Specific Device Code AYWWZZ

NTH4L020 N120SC1 MARKING DIAGRAM

D

S1 G

S2

S1: Kelvin Source S2: Power Source

Table 1. THERMAL RESISTANCE MAXIMUM RATINGS

Parameter Symbol Max Unit

Junction−to−Case − Steady State (Note 2) R_JC 0.3 °C/W

Junction−to−Ambient − Steady State (Notes 1, 2) R_JA 40

Table 2. ELECTRICAL CHARACTERISTICS (T_J = 25°C unless otherwise specified)

Parameter Symbol Test Condition Min Typ Max Unit

OFF CHARACTERISTICS

Drain−to−Source Breakdown Voltage V_(BR)DSS V_GS = 0 V, I_D = 1 mA 1200 − − V Drain−to−Source Breakdown Voltage

Temperature Coefficient V_(BR)DSS/T_J I_D = 1 mA, referenced to 25°C − 0.5 − V/°C Zero Gate Voltage Drain Current IDSS VGS = 0 V,

V_DS = 1200 V TJ = 25°C − − 100 A

TJ = 175°C − − 1 mA

Gate−to−Source Leakage Current I_GSS V_GS = +25/−15 V, V_DS = 0 V − − ±1 A

ON CHARACTERISTICS (Note 3)

Gate Threshold Voltage V_GS(TH) V_GS = V_DS, I_D = 20 mA 1.8 2.7 4.3 V

Recommended Gate Voltage V_GOP −5 − +20 V

Drain−to−Source On Resistance RDS(on) V_GS = 20 V, I_D = 60 A, T_J = 25°C − 20 28 m V_GS = 20 V, I_D = 60 A, T_J = 175°C − 37 50

Forward Transconductance g_FS V_DS = 20 V, I_D = 60 A − 3.6 − S

CHARGES, CAPACITANCES & GATE RESISTANCE

Input Capacitance C_ISS V_GS = 0 V, f = 1 MHz, V_DS = 800 V − 2943 − pF

Output Capacitance C_OSS − 258 −

Reverse Transfer Capacitance C_RSS − 24 −

Total Gate Charge Q_G(TOT) V_GS = −5/20 V, V_DS = 600 V,

I_D = 80 A − 220 − nC

Threshold Gate Charge Q_G(TH) − 33 −

Gate−to−Source Charge Q_GS − 66 −

Gate−to−Drain Charge Q_GD − 63 −

Gate−Resistance R_G f = 1 MHz − 1.6 −

SWITCHING CHARACTERISTICS, VGS = 10 V

Turn−On Delay Time t_d(ON) V_GS = −5/20 V, V_DS = 800 V, ID = 80 A, RG = 2 Inductive load

− 21.6 35 ns

Rise Time t_r − 21 34

Turn−Off Delay Time t_d(OFF) − 41 66

Fall Time t_f − 10 20

Turn−On Switching Loss E_ON − 494 − J

Turn−Off Switching Loss E_OFF − 397 −

Total Switching Loss Etot − 891 −

DRAIN−SOURCE DIODE CHARACTERISTICS Continuous Drain−Source Diode Forward

Current ISD V_GS = −5 V, T_J = 25°C − − 46 A

Table 2. ELECTRICAL CHARACTERISTICS (T_J = 25°C unless otherwise specified)(continued)

Parameter Symbol Test Condition Min Typ Max Unit

DRAIN−SOURCE DIODE CHARACTERISTICS

Reverse Recovery Energy EREC V_GS = −5/20 V, I_SD = 80 A,

dI_S/dt = 1000 A/s − 16 − J

Peak Reverse Recovery Current IRRM − 15 − A

Charge Time Ta − 16 − ns

Discharge Time Tb − 15 − ns

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

TYPICAL CHARACTERISTICS

16 V

Figure 1. On−Region Characteristics Figure 2. Normalized On−Resistance vs. Drain Current and Gate Voltage

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) I_D, DRAIN CURRENT (A)

2 00

200 250

250 50

0.50 1.0 1.5

Figure 3. On−Resistance Variation with Temperature

Figure 4. On−Resistance vs. Gate−to−Source Voltage

T_J, JUNCTION TEMPERATURE (°C) V_GS, GATE−TO−SOURCE VOLTAGE (V) 175

125 75

25 0 0.7 −50

5 160

0 120

3

ID, DRAIN CURRENT (A) RDS(on), NORMALIZED DRAIN−TO− SOURCE ON−RESISTANCE

RDS(on), NORMALIZED DRAIN−TO− SOURCE RESISTANCE IS, REVERSE DRAIN CURRENT (A)

17 V 19 V 18 V

VGS = 20 V V_GS = 16 V

1.5 1.9

I_D = 60 A V_GS = 20 V

10 15

0 120

TJ = 25°C I_D = 60 A

V_DS = 20 V

T_J = 175°C

TJ = 25°C 30

300 RDS(on), ON−RESISTANCE (m)

−75

10 8

6 150

40

150

1.1 1.7

20 4

50 100

0.9 1.3

20 40 60 80

100

−25 50 100 150

ID, DRAIN CURRENT (A)

T_J = −55°C T_J = 175°C

TJ = 25°C

2.0 19 V

20 V

T_J = 150°C

TJ = −55°C V_GS = −5 V

2.5

200 18 V 17 V

80

100

TYPICAL CHARACTERISTICS

Figure 7. Gate−to−Source Voltage vs. Total

Charge Figure 8. Capacitance vs. Drain−to−Source

Voltage Q_g, GATE CHARGE (nC)

250

−50 0 20

Figure 9. Unclamped Inductive Switching

Capability Figure 10. Maximum Continuous Drain

Current vs. Case Temperature

t_AV, TIME IN AVALANCHE (ms) T_C, CASE TEMPERATURE (°C)

10 0.001

1 10

150 100

025 120

Figure 11. Safe Operating Area V_DS, DRAIN−TO−SOURCE VOLTAGE (V)

1K 10

1 0.010.1

1 10 1000

VGS, GATE−TO−SOURCE VOLTAGE (V)IAS, AVALANCHE CURRENT (A) ID, DRAIN CURRENT (A)

ID, DRAIN CURRENT (A)

ID = 80 A

C_iss

C_oss

C_rss

125 VGS = 20 V

100 5

Figure 12. Single Pulse Maximum Power Dissipation

t, PULSE WIDTH (sec) 0.00001

10K 100K

P(PK), PEAK TRANSIENT POWER (w) VDD = 400 V

0.0001 0.001 0.1

100

R_JC = 0.30°C/W

V_DS, DRAIN−TO−SOURCE VOLTAGE (V)

CAPACITANCE (pF)

1 10 100 1K 100K

0.1 1 10 100 800

40

75

Single Pulse 1K T_J = Max Rated R_JC = 0.3°C/W T_C = 25°C

10 s

100 ms 1 ms 10

15

100

80

50 175

VDD = 800 V

V_DD = 600 V

f = 1 MHz V_GS = 0 V

1 0.1

0.01 T_J = 150°C

T_J = 25°C

20 60 100

100 s 10 ms

5K 0.01

Single Pulse R_JC = 0.30°C/W TC = 25°C

100 200

50 150

0.1

100 10K

TYPICAL CHARACTERISTICS

Figure 13. Junction−to−Ambient Thermal Response t, RECTANGULAR PULSE DURATION (sec)

0.01 0.001

0.0001 0.1

0.00001 0.1

1 2

r(t). NORMALIZED EFFECTIVE TRAN- SIENT THERMAL RESISTANCE (°C/W) 50% Duty Cycle

Single Pulse 20%

10%

5%

2%

1%

0.001 0.01

P_DM

t₁

Notes:

Z_JC (t) = r(t) x R_JC R_JC = 0.30°C/W

Peak TJ = PDM x Z_JC (t) + TC

Duty Cycle, D = t1/t2 t₂

TO−247−4LD CASE 340CJ

ISSUE A
