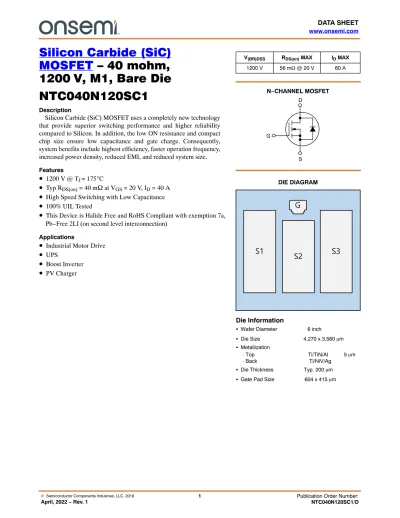

Silicon Carbide (SiC) MOSFET – 40 mohm, 1200 V, M1, Bare Die NTC040N120SC1

Silicon Carbide (SiC) MOSFET – 40 mohm, 1200V, M1, Bare Die NTC040N120SC1

Description

Silicon Carbide (SiC) MOSFET uses a completely new technology that provide superior switching performance and higher reliability compared to Silicon. In addition, the low ON resistance and compact chip size ensure low capacitance and gate charge. Consequently, system benefits include highest efficiency, faster operation frequency, increased power density, reduced EMI, and reduced system size.

Features

• 1200 V @ T

= 175°C

• Typ R

= 40 m at V

= 20 V, I

= 40 A

• High Speed Switching with Low Capacitance

• 100% UIL Tested

• This Device is Halide Free and RoHS Compliant with exemption 7a, Pb−Free 2LI (on second level interconnection)

Applications

• Industrial Motor Drive

• ^UPS

• Boost Inverter

• PV Charger

DIE DIAGRAM

Die Information

S Wafer Diameter 6 inch

S Die Size 4,270 x 3,560 m

⋅ Top Ti/TiN/Al 5 m

⋅ Back Ti/NiV/Ag S Die Thickness Typ. 200 m S Metallization

S Gate Pad Size 604 x 415 m

S1 S3

S2 G

D

S G

V_(BR)DSS R_DS(on) MAX I_D MAX

1200 V 56 m @ 20 V 60 A

N−CHANNEL MOSFET

Figure 1. Bare Die Dimensions

N+

Substrate N- Epic Source 2 Source

1 Source

3 Passivation

(Polyimide)

Die Layout Die Cross Section

Die Layout Passivation Information

− Passivation Material: Polymide (PSPI) − Passivation Type: Local Passivation − Passivation Thickness 10 m : Passivation Area

S1

1111.5

S2 S3

604 4270

3560 2437 2107

1119 1119

G

MAXIMUM RATINGS (TC = 25°C unless otherwise noted)

Parameter Symbol Value Unit

Drain−to−Source Voltage V_DSS 1200 V

Gate−to−Source Voltage V_GS −15/+25 V

Recommended Operation Values of

Gate−to−Source Voltage T_C < 175°C V_GSop −5/+20 V

Continuous Drain

Current R_JC Steady

State T_C = 25°C ID 60 A

Power Dissipation R_JC P_D 348 W

Continuous Drain

Current R_JC Steady

State T_C = 100°C I_D 42 A

Power Dissipation R_JC PD 174 W

Pulsed Drain Current (Note 2) TC = 25°C IDM 240 A

Single Pulse Surge Drain Current Capability TC = 25°C, tp = 10 s, RG = 4.7 IDSC 416 A

Operating Junction and Storage Temperature Range TJ, Tstg −55 to +175 °C

Source Current (Body Diode) IS 34 A

Single Pulse Drain−to−Source Avalanche

Energy (I_L(pk) = 35 A, L = 1 mH) (Note 3) EAS 613 mJ

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL RESISTANCE MAXIMUM RATINGS

Parameter Symbol Value Unit

Junction−to−Case (Note 1) R_JC 0.43 °C/W

1. The entire application environment impacts the thermal resistance values shown, they are not constants and are only valid for the particular conditions noted.

2. Repetitive rating, limited by max junction temperature.

3. E_AS of 613 mJ is based on starting T_J = 25°C; L = 1 mH, I_AS = 35 A, V_DD = 120 V, V_GS = 20 V.

ELECTRICAL CHARACTERISTICS (T_J = 25°C unless otherwise noted)

Parameter Symbol Test Conditions Min Typ Max Unit

OFF CHARACTERISTICS

Drain−to−Source Breakdown Voltage V_(BR)DSS V_GS= 0 V, I_D= 1 mA 1200 − − V

Drain−to−Source Breakdown Voltage

Temperature Coefficient V_(BR)DSS/T_J I_D= 1 mA, referenced to 25_C − 450 − mV/_C Zero Gate Voltage Drain Current I_DSS V_GS= 0 V, V_DS = 1200 V, T_J= 25_C − − 100 A

V_GS= 0 V, V_DS = 1200 V, T_J= 175_C − − 250

Gate−to−Source Leakage Current I_GSS V_GS= +25/−15 V, V_DS= 0 V − − ±1 A

ON CHARACTERISTICS

Gate Threshold Voltage V_GS(th) V_GS= V_DS, I_D= 10 mA 1.8 2.97 4.3 V

Recommended Gate Voltage V_GOP −5 − +20 V

Drain−to−Source On Resistance R_DS(on) V_GS= 20 V, I_D= 35 A, T_J= 25_C − 39 56 m VGS= 20 V, ID= 35 A, TJ= 150_C − 60 −

Forward Transconductance g_FS V_DS= 20 V, I_D= 35 A − 20 − S

CHARGES, CAPACITANCES & GATE RESISTANCE

Input Capacitance C_ISS V_GS= 0 V, f = 1 MHz, V_DS = 800 V − 1781 − pF

Output Capacitance C_OSS − 140 −

Reverse Transfer Capacitance C_RSS − 12 −

Total Gate Charge QG(tot) V_GS=−5/20 V, V_DS = 600 V, I_D= 47 A − 106 − nC

Threshold Gate Charge QG(th) − 16 −

Gate−to−Source Charge QGS − 34 −

Gate−to−Drain Charge QGD − 26 −

Gate Resistance RG f = 1 MHz − 2.2 −

SWITCHING CHARACTERISTICS

Turn-On Delay Time td(on) VGS=−5/20 V, VDS= 800 V, I_D= 47 A, R_G= 4.7, Inductive Load

− 18 − ns

Rise Time tr − 41 −

Turn−Off Delay Time t_d(off) − 33 −

Fall Time t_f − 10.4 −

Turn-On Switching Loss E_ON − 1003 − J

Turn-Off Switching Loss E_OFF − 247 −

Total Switching Loss E_TOT − 1248 −

DRAIN−SOURCE DIODE CHARACTERISTICS Continuous Drain−to−Source Diode

Forward Current I_SD V_GS=−5 V − − 34 A

Pulsed Drain−to−Source Diode

Forward Current (Note 2) ISDM VGS=−5 V − − 240 A

Forward Diode Voltage V_SD V_GS=−5 V, I_SD = 17.5 A − 3.8 − V

Reverse Recovery Time t_RR VGS = −5/20 V, ISD= 47 A,

dI_S/dt = 1000 A/s − 24 − ns

Reverse Recovery Charge Q_RR − 125 − nC

Reverse Recovery Energy E_REC − 8.5 − J

Peak Reverse Recovery Current I − 10.4 − A

TYPICAL CHARACTERISTICS

15 V

Figure 2. On−Region Characteristics Figure 3. Normalized On−Resistance vs. Drain Current and Gate Voltage

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) I_D, DRAIN CURRENT (A)

2 00

40 50

50 30

10 0.50 1.0 1.5

Figure 4. On−Resistance Variation with

Temperature Figure 5. On−Resistance vs. Gate−to−Source Voltage

T_J, JUNCTION TEMPERATURE (°C) V_GS, GATE−TO−SOURCE VOLTAGE (V) 175

125 75

25 0 0.7 −50

9

Figure 6. Transfer Characteristics Figure 7. Diode Forward Voltage vs. Current V_GS, GATE−TO−SOURCE VOLTAGE (V) V_SD, BODY DIODE FORWARD VOLTAGE (V)

12 8

4 02 100

7 5

4

2 9

3

ID, DRAIN CURRENT (A) RDS(on), NORMALIZED DRAIN−TO− SOURCE ON−RESISTANCE

RDS(on), NORMALIZED DRAIN−TO− SOURCE RESISTANCE IS, REVERSE DRAIN CURRENT (A)

17 V 19 V 18 V

V_GS = 20 V V_GS = 10 V

1.5

1.9 I_D = 35 A V_GS = 20 V

10 15

0 300

TJ = 25°C I_D = 35 A

VDS = 20 V

T_J = 175°C T_J = 25°C

3 6

30 300 RDS(on), ON−RESISTANCE (m)

−75

18 10 8

6

14 30

2.5

100

40

1.1 1.7

20 4

10 20

0.9 1.3

20 40

6 60

80

10 8

200

20

−25 50 100 150

ID, DRAIN CURRENT (A)

TJ = −55°C

T_J = 175°C TJ = 25°C

2.0

V_GS = 20 V 17 V

19 V 18 V

TJ = 150°C

T_J = −55°C VGS = −5 V

90 100

80

60

70 3.0

4.0 3.5

100 80

60 70 90

11 12 13 14 16 17 18 19

16 V 12 V

10 V

V_GS = 12 V

16 V 15 V

16

TYPICAL CHARACTERISTICS

Figure 8. Gate−to−Source Voltage vs. Total

Charge Figure 9. Capacitance vs. Drain−to−Source

Voltage Q_g, GATE CHARGE (nC)

20 100

−50 0 20

Figure 10. Unclamped Inductive Switching

Capability Figure 11. Maximum Continuous Drain Current vs. Case Temperature

t_AV, TIME IN AVALANCHE (ms) T_C, CASE TEMPERATURE (°C)

10 0.0011

10 500

150 100

025 60

V , DRAIN−TO−SOURCE VOLTAGE (V) 1K 10

1 0.1

0.1 1 10 500

VGS, GATE−TO−SOURCE VOLTAGE (V)IAS, AVALANCHE CURRENT (A) ID, DRAIN CURRENT (A)

ID, DRAIN CURRENT (A)

ID = 47 A C_iss

C_oss

C_rss

125 VGS = 20 V

100 5

t, PULSE WIDTH (sec) 0.0000110

10K 100K

P(PK), PEAK TRANSIENT POWER (W) V_DD = 400 V

0.0001 0.001 0.1

100

R_JC = 0.43°C/W

V_DS, DRAIN−TO−SOURCE VOLTAGE (V)

CAPACITANCE (pF)

1 10 100 1K 10K

0.1 1 10 100 800

20

75

1K

Single Pulse T_J = Max Rated R_JC = 0.43°C/W T_C = 25°C

10 s

100 ms 1 ms 10

15

100

40

50 175

V_DD = 800 V

VDD = 600 V

f = 1 MHz V_GS = 0 V

100 1

0.1 0.01

Typical performance based on characterization data Starting T_J = 150°C

Starting T_J = 25°C

10 30 50

100 s

10 ms

5K Curve bent to

measured data

0.01 Single Pulse R_JC = 0.43°C/W TC = 25°C

40 60 80

100

0.01

30 110

10 50 70 90

This area is limited by R_DS(on)

TYPICAL CHARACTERISTICS

Figure 14. Junction−to−Ambient Thermal Response t, RECTANGULAR PULSE DURATION (sec)

0.01 0.001

0.0001 0.1

0.00001 0.1

1 2

r(t). NORMALIZED EFFECTIVE TRAN- SIENT THERMAL RESISTANCE (°C/W) 50% Duty Cycle

Single Pulse 20%

10%

5%

2%

1%

0.001 0.01

P_DM

t₁

Notes:

Z_JC (t) = r(t) x R_JC R_JC = 0.43°C/W

Peak TJ = PDM x Z_JC (t) + TC

Duty Cycle, D = t1/t2 t₂

ORDERING INFORMATION AND PACKAGE MARKING

Orderable Part Number Top Marking Package Packing Method Reel Size Tape Width Quantity

NTC040N120SC1 No Marking Die Wafer N/A N/A N/A
