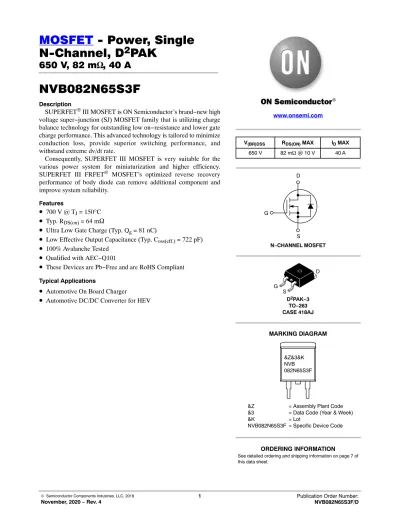

MOSFET - Power, Single N-Channel, D2PAK 650 V, 82 m

N-Channel, D ² PAK

650 V, 82 m W , 40 A

NVB082N65S3F

Description

SUPERFET

III MOSFET is ON Semiconductor’s brand−new high voltage super−junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on−resistance and lower gate charge performance. This advanced technology is tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate.

Consequently, SUPERFET III MOSFET is very suitable for the various power system for miniaturization and higher efficiency.

SUPERFET III FRFET

MOSFET’s optimized reverse recovery performance of body diode can remove additional component and improve system reliability.

Features

• ^{700 V @ T}

= 150°C

• ^{Typ. R}

= 64 m W

• Ultra Low Gate Charge (Typ. Q

= 81 nC)

• Low Effective Output Capacitance (Typ. C

= 722 pF)

• 100% Avalanche Tested

• Qualified with AEC−Q101

• These Devices are Pb−Free and are RoHS Compliant

• Automotive On Board Charger

• Automotive DC/DC Converter for HEV

TO−263 CASE 418AJ

MARKING DIAGRAM www.onsemi.com

&Z = Assembly Plant Code

&3 = Data Code (Year & Week)

&K = Lot

NVB082N65S3F = Specific Device Code

&Z&3&K NVB 082N65S3F

D

S G

V_(BR)DSS R_DS(ON) MAX I_D MAX

650 V 82 mW @ 10 V 40 A

N−CHANNEL MOSFET

D

G S

Table 1. ABSOLUTE MAXIMUM RATINGS (T_C = 25°C unless otherwise stated)

Symbol Parameter Value Unit

VDSS Drain−to−Source Voltage 650 V

VGS Gate−to−Source Voltage − DC ±30 V

− AC (f > 1 Hz) ±30

ID Drain Current − Continuous (T_C = 25°C) 40 A

− Continuous (T_C = 100°C) 25.5

I_DM Drain Current − Pulsed (Note 1) 100 W

E_AS Single Pulse Avalanche Energy (Note 2) 510 mJ

I_AS Avalanche Current 4.8 A

E_AR Repeated Avalanche Energy (Note 1) 3.13 mJ

dv/dt MOSFET dv/dt 100 V/ns

Peak Diode Recovery dv/dt (Note 3) 50

P_D Power Dissipation TC = 25°C 313 W

− Derate Above 25°C 2.5 W/°C

T_J, T_stg Operating Junction and Storage Temperature −55 to 150 °C

T_L Maximum Lead Temperature for Soldering, 1/8″ from Case for 5 Seconds 300 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

1. Repetitive rating: pulse−width limited by maximum junction temperature.

2. IAS = 4.8 A, RG = 25 W, starting TJ = 25°C.

3. ISD ≤ 20 A, di/dt ≤ 200 A/_s, VDD ≤ 400 V, starting TC = 25°C.

Table 2. THERMAL RESISTANCE RATINGS

Symbol Parameter Max Unit

R_qJC Thermal Resistance, Junction−to−Case, Max. 0.40 °C/W

R_qJA Thermal Resistance, Junction−to−Ambient, Max. 40

ELECTRICAL CHARACTERISTICS (T_C = 25°C unless otherwise noted)

Symbol Parameter Test Conditions Min Typ Max Unit

OFF CHARACTERISTICS

BVDSS Drain−to−Source Breakdown Voltage VGS= 0 V, ID= 1 mA, TJ= 25°C 650 − − V V_GS= 0 V, I_D= 10 mA, T_J= 150°C 700 − − V DBVDSS/DTJ Breakdown Voltage Temperature Coefficient I_D= 20 mA, Referenced to 25°C − 0.7 − V/°C

IDSS Zero Gate Voltage Drain Current V_DS= 650 V, V_DS= 0 V − − 10 mA

V_DS= 520 V, T_C= 125°C − 175 − mA

I_GSS Gate−to−Body Leakage Current V_GS= 0 V, I_D= 1 mA, T_J= 25°C − − ±100 nA ON CHARACTERISTICS

V_GS(th) Gate Threshold Voltage V_GS= V_DS, I_D = 1 mA 3.0 − 5.0 V

R_DS(on) Static Drain−to−Source On Resistance V_GS= 10 V, I_D= 20 A − 64 82 mW

g_FS Forward Transconductance V_GS= 20 V, I_D= 20 A − 24 − S

DYNAMIC CHARACTERISTICS

C_iss Input Capacitance V_DS= 400 V, V_GS= 0 V, f = 1 MHz − 3410 − pF

C_oss Output Capacitance − 70 − pF

C_oss(eff.) Effective Output Capacitance V_DS= 0 to 400 V, V_GS= 0 V − 722 − pF C_oss(er.) Energy Related Output Capacitance V_DS= 0 to 400 V, V_GS= 0 V − 126 − pF Q_g(total) Total Gate Charge at 10 V V_DS= 400 V, I_D= 20 A,

V_GS = 10 V (Note 4) − 81 − nC

Q_gs Gate−to−Source Gate Charge − 24 − nC

Q_gd Gate−to−Drain “Miller” Charge − 32 − nC

ESR Equivalent Series Resistance F = 1 MHz − 1.9 − W

SWITCHING CHARACTERISTICS, V_GS = 10 V

t_d(on) Turn-On Delay Time V_DD= 400 V, I_D= 20 A, V_GS= 10 V, R_G= 4.7W (Note 4)

− 31 − ns

t_r Rise Time − 29 − ns

t_d(off) Turn-Off Delay Time − 76 − ns

t_f Fall Time − 16 − ns

SOURCE−DRAIN DIODE CHARACTERISTICS

I_S Maximum Continuous Source−to−Drain Diode Forward Current − − 40 A

ISM Maximum Pulsed Source−to−Drain Diode Forward Current − − 100 A

VSD Source−to−Drain Diode Forward Voltage VGS= 0 V, ISD= 20 A − − 1.3 V t_rr Reverse−Recovery Time V_GS= 0 V, I_SD= 20 A,

dIF/dt = 100 A/ms − 108 − ns

Q_rr Reverse−Recovery Charge − 410 − nC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

4. Essentially independent of operating temperature typical characteristics.

TYPICAL CHARACTERISTICS

Figure 1. On−Region Characteristics 255C

Figure 2. On−Region Characteristics 1505C

V_DS, DRAIN−SOURCE VOLTAGE (V) V_DS, DRAIN−SOURCE VOLTAGE (V)

20 10 1

10.1 10 100

10 1

10.1 10 100

Figure 3. Transfer Characteristics Figure 4. On−Resistance Variation vs. Drain Current and Gate Voltage

V_GS, GATE−TO−SOURCE VOLTAGE (V) I_D, DRAIN CURRENT (A)

8 7

6 5

4 3

12 10 100

80 100

60 40

20 00

0.1 0.2

0.1 1 10

100 1K 10K 100K

ID, DRAIN CURRENT (A) ID, DRAIN CURRENT (A)

ID, DRAIN CURRENT (A) RDS(on), DRAIN−SOURCE ON−RESISTANCE (mW)ACITANCE (pF)

T_J = 150°C T_J = 25°C

TJ = −55°C V_DS = 20 V

250 ms Pulse Test

T_J = 150°C

T_J = 25°C 250 ms Pulse Test

T_C = 25°C

V_GS = 10 V

5.5 V 6.0 V 6.5 V 7.0 V

8.0 V 250 ms Pulse Test

TC = 150°C

VGS = 10 V

5.5 V 6.0 V 6.5 V 7.0 V

8.0 V

V_GS = 10 V

V_GS = 20 V

C_iss

C_oss V_GS = 0 V

f = 1 MHz 100 V_DS = 20 V

250 ms Pulse Test

TYPICAL CHARACTERISTICS

Figure 7. Gate Charge Characteristics Figure 8. Breakdown Voltage Variation vs.

Temperature

Q_G, TOTAL GATE CHARGE (nC) T_J, JUNCTION TEMPERATURE (°C)

100 80

60 40

20 00

4 6 8 10

175 125

75 25

−25 0.8−75

0.9 1.0 1.1 1.2

Figure 9. On−Resistance Variation vs.

Temperature

Figure 10. Maximum Safe Operating Area

T_J, JUNCTION TEMPERATURE (°C) V_DS, DRAIN−SOURCE VOLTAGE (V)

175 125

75 25

−25 0−75

0.5 1.0 1.5 2.0 2.5 3.0

1000 100

10 0.11

1 10 100

T , CASE TEMPERATURE (°C) V , DRAIN−TO−SOURCE VOLTAGE (V)

150 125

100 75

50 025

10 20 30 50

600 500 400 300 200 100 00

5 10 15 20

VGS, GATE−SOURCE VOLTAGE (V) BVDSS, DRAIN−TO−SOURCE BREAKDOWN VOLTAGE (Normalized)

RDS(on), DRAIN−SOURCE ON−RESISTANCE (Normalized) ID, DRAIN CURRENT (A)

ID, DRAIN CURRENT (A) EOSS (mJ)

Single Pulse R_qJC = 0.4°C/W T_C = 25°C R_DS(on) Limit

100 ms/DC

100 ms

1 ms

10 ms

DC 2

VDD = 130 V

V_DD = 400 V I_D = 20 A

I_D = 20 A V_GS = 10 V

V_GS = 0 V I_D = 10 mA

40

TYPICAL CHARACTERISTICS

Figure 13. Normalized Power Dissipation vs.

Case Temperature

Figure 14. Peak Current Capability

T_C, CASE TEMPERATURE (°C) t, RECTANGULAR PULSE

150 125 100

75 50 25

00 0.2 0.4 0.6 0.8 1.0 1.2

10 1

0.1 0.01 0.001 0.0001 0.00001 10 100 1000

Figure 15. R_DS(on) vs. Gate Voltage Figure 16. Normalized Gate Threshold Voltage vs. Temperature

V_GS, GATE−TO−SOURCE VOLTAGE (V) T_J, JUNCTION TEMPERATURE (°C) 10

9 8

7 06

100 200 300 400

175 125

75 25

−25 0.6−75

0.7 0.8 0.9 1.0 1.1 1.2

0.1 1 10

POWER DISSIPATION MULTIPLIER IDM, PEAK CURRENT (A)

RDS(on), ON−RESISTANCE (mW) GATE THRESHOLD VOLTAGE (Normalized)

ANCE (Normalized)

Duty Cycle = 0.5 0.2

0.1 0.05 0.02

ID = 20 A I_D = 4 mA

TA = 150°C

T_A = 25°C

Current Limited Max 100 A

Notes:

PACKAGE MARKING AND ORDERING INFORMATION

Part Number Top Marking Package Packing Method Reel Size Tape Width Quantity

NVB082N65S3F NVB082N65S3F D²PAK Tape & Reel^† 330 mm 24 mm 800 Units

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

D²PAK−3 (TO−263, 3−LEAD) CASE 418AJ

ISSUE F

DATE 11 MAR 2021 SCALE 1:1

XX XXXXXXXXX

GENERIC MARKING DIAGRAMS*

XXXXXX = Specific Device Code A = Assembly Location WL = Wafer Lot

Y = Year

WW = Work Week W = Week Code (SSG) M = Month Code (SSG) G = Pb−Free Package XXXXXXXXG

AYWW

XXXXXXXXGAYWW XXXXXX XXYMW
