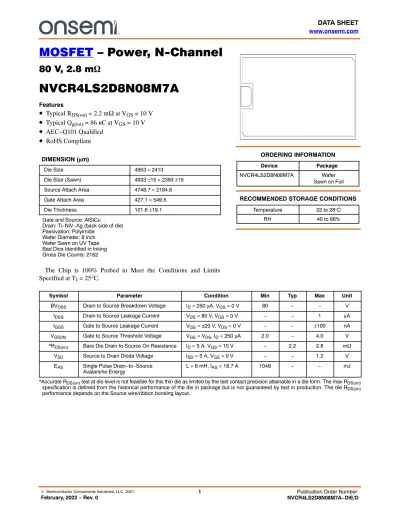

MOSFET – Power, N-Channel 80 V, 2.8 m

MOSFET – Power, N-Channel

80 V, 2.8 mW

NVCR4LS2D8N08M7A

Features

• ^{Typical R}

= 2.2 m at V

= 10 V

• ^{Typical Q}

= 86 nC at V

= 10 V

• AEC−Q101 Qualified

• RoHS Compliant

DIMENSION (mm)

Die Size 4953 ×2413

Die Size (Sawn) 4933 ±15 × 2393 ±15

Source Attach Area 4748.7 × 2184.6

Gate Attach Area 427.1 × 549.5

Die Thickness 101.6 ±19.1

Gate and Source: AlSiCu

Drain: Ti−NiV−Ag (back side of die) Passivation: Polyimide

Wafer Diameter: 8 inch Wafer Sawn on UV Tape Bad Dice Identified in Inking Gross Die Counts: 2162

The Chip is 100% Probed to Meet the Conditions and Limits Specified at T

= 25°C.

Symbol Parameter Condition Min Typ Max Unit

BVDSS Drain to Source Breakdown Voltage ID = 250 A, VGS = 0 V 80 − − V

IDSS Drain to Source Leakage Current VDS = 80 V, VGS = 0 V − − 1 A

IGSS Gate to Source Leakage Current VGS = ±20 V, VDS = 0 V − − ±100 nA

VGS(th) Gate to Source Threshold Voltage V_GS = V_DS, I_D = 250 A 2.0 − 4.0 V

*RDS(on) Bare Die Drain to Source On Resistance ID = 5 A, VGS = 10 V − 2.2 2.8 m

VSD Source to Drain Diode Voltage ISD = 5 A, VGS = 0 V − − 1.2 V

EAS Single Pulse Drain−to−Source

Avalanche Energy L = 6 mH, IAS = 18.7 A 1049 − − mJ

*Accurate RDS(on) test at die level is not feasible for this thin die as limited by the test contact precision attainable in a die form. The max RDS(on)

specification is defined from the historical performance of the die in package but is not guaranteed by test in production. The die R_DS(on) performance depends on the Source wire/ribbon bonding layout.

Device Package

ORDERING INFORMATION

NVCR4LS2D8N08M7A Wafer

Sawn on Foil RECOMMENDED STORAGE CONDITIONS

40 to 66%

RH

22 to 28°C Temperature

MOSFET MAXIMUM RATINGS in Reference to the FDBL86366−F085 electrical data in TOLL (T_J = 25°C unless otherwise noted)

Symbol Parameter Ratings Unit

V_DSS Drain to Source Voltage 80 V

V_GS Gate to Source Voltage ±20 V

I_D Continuous Drain Current R_JC (V_GS = 10) (Note 1) TC = 25°C

T_C = 100°C 221

156

A

E_AS Single Pulse Avalanche Energy (Note 2) 205 mJ

P_D Power Dissipation R_JC 300 W

Derate Above 25°C 2.0 W/°C

T_J, T_STG Operating and Storage Temperature −55 to +175 °C

R_JC Thermal Resistance, Junction to Case 0.5 °C/W

R_JA Maximum Thermal Resistance, Junction to Ambient (Note 3) 43 °C/W

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

1. Current is limited by silicon.

2. Starting T_J = 25°C, L = 0.1 mH, IAS = 64 A, V_DD = 80 V during inductor charging and V_DD = 0 V during time in avalanche.

3. R_JA is the sum of the junction−to−case and case−to−ambient thermal resistance, where the case thermal reference is defined as the solder mounting surface of the drain pins. R_JC is guaranteed by design, while R_JA is determined by the board design. The maximum rating presented here is based on mounting on a 1 in² pad of 2oz copper.

ELECTRICAL CHARACTERISTICS in Reference to the FDBL86366−F085 electrical data in TOLL (T_J = 25°C unless otherwise noted)

Symbol Parameter Test Conditions Min. Typ. Max. Unit

OFF CHARACTERISTICS

BV_DSS Drain to Source Breakdown Voltage I_D = 250 A, VGS = 0 V 80 − − V

I_DSS Drain to Source Leakage Current V_DS = 80 V,

V_GS = 0 V T_J = 25°C − − 1 A

T_J = 175°C (Note 4) − − 1 mA

I_GSS Gate to Source Leakage Current V_GS = ±20 V − − ±100 nA

ON CHARACTERISTICS

V_GS(th) Gate to Source Threshold Voltage V_GS = V_DS, I_D = 250 A 2.0 3.0 4.0 V

R_DS(on) Drain to Source on Resistance I_D = 80 A,

V_GS = 10 V T_J = 25°C − 2.4 3.0 m

TJ = 175°C (Note 4) − 4.9 6.1 m

DYNAMIC CHARACTERISTICS

C_iss Input Capacitance V_DS = 40 V, V_GS = 0 V, f = 1 MHz − 6320 − pF

C_oss Output Capacitance − 1030 − pF

Crss Reverse Transfer Capacitance − 32 − pF

R_g Gate Resistance f = 1 MHz − 2.1 −

Q_g(ToT) Total Gate Charge V_GS = 0 to 10 V, V_DD = 64 V, I_D = 80 A − 86 − nC

Q_g(th) Threshold Gate Charge V_GS = 0 to 2 V, V_DD = 64 V, I_D = 80 A − 12 − nC

Q_gs Gate to Source Gate Charge V_DD = 64 V, I_D = 80 A − 30 − nC

Qgd Gate to Drain “Miller” Charge − 18 − nC

SWITCHING CHARACTERISTICS

t_d(on) Turn−On Delay VDD = 40 V, ID = 80 A,

V_GS = 10 V, R_GEN = 6 − 30 − ns

t_r Rise Time − 34 − ns

td(off) Turn−Off Delay − 40 − ns

t_f Fall Time − 17 − ns

DRAIN−SOURCE DIODE CHARACTERISTIC

V_SD Source to Drain Diode Voltage ISD = 80 A, VGS = 0 V − − 1.25 V

I_SD = 40 A, V_GS = 0 V − − 1.2 V

t_rr Reverse Recovery Time I_F = 80 A, dI_SD/dt = 100 A/s,

VDD = 64 V − 80 − ns

Qrr Reverse Recovery Charge − 95 − nC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product

TYPICAL CHARACTERISTICS

Figure 1. Normalized Power Dissipation vs. Case Temperature

Figure 2. Maximum Continuous Drain Current vs. Case Temperature

Figure 3. Normalized Maximum Transient Thermal Impedance

Figure 4. Peak Current Capability

0

T_C, Case Temperature [°C]

Power Dissipation Multiplier

0.0 0.2 0.4 0.6 0.8 1.0 1.2

ID, Drain Current [A]

25 50 75 100 125 150 175 0

50 100 150 200

25 50 75 100 125 150 175

T_C, Case Temperature [°C]

200 Current limited

by silicon

VGS = 10 V

ZJC, Normalized Thermal Impedance 0.01

0.1 1 2

10⁻⁵ 10⁻⁴ 10⁻³ 10⁻² 10⁻¹ 10⁰ 10¹

t, Rectangular Pulse Duration (s)

NOTES:

Duty factor: D = t1 / t2

Peak TJ = PDM ×Z_JA ×R_JA + TC PDM

t1 t2 DUTY CYCLE − DESCENDING ORDER

SINGLE PULSE

IDM, Peak Current [A]

10 100 1000 10000

10⁻⁵ 10⁻⁴ 10⁻³ 10⁻² 10⁻¹ 10⁰ 10¹

t, Rectangular Pulse Duration (s) VGS = 10 V

SINGLE PULSE

For temperatures above 25°C derate peak current as follows:

TC = 25°C

I+I2

ƪ ^Ǹ

ƫ

250

D = 0.50 0.20 0.10 0.05 0.02 0.01

TYPICAL CHARACTERISTICS

VGS = 0 V

TJ = 175°C

TJ = 25°C ID, Drain Current [A]

100

0.1 1 10

V_DS, Drain to Source Voltage [V]

500 10

1

0.1 1000

100 Operation in this

area may be limited by rDS(on)

SINGLE PULSE TJ = max rated T_C = 25°C

100 s

1 ms 10 ms 100 ms

V_DS, Drain to Source Voltage [V]

3 4 5

ID, Drain Current [A] ¹⁰⁰ 50

0 150 200 250

0 1 2

80 s Pulse Width TJ = 175°C 300

2

V_GS, Gate to Source Voltage [V]

3 4 5 6 7

Pulse duration = 80 s Duty cycle = 0.5% MAX VDD = 5 V

TJ = 25°C

TJ = 175°C TJ = −55°C ID, Drain Current [A]

250

200

150

100 50

0

Figure 5. Forward Bias Safe Operating Area Figure 6. Unclamped Inductive Switching Capability

Figure 7. Transfer Characteristics Figure 8. Forward Diode Characteristics

Figure 9. Saturation Characteristics Figure 10. Saturation Characteristics IAS, Avalanche Current [A]

100

10

1 1000

0.001 1 10

t_AV, Time in Avalanche [ms]

100 Starting TJ = 25°C

Starting TJ = 150°C

NOTE: Refer to onsemi Application Notes AN7514 and AN7515.

V_SD, Body Diode Forward Voltage [V]

0.0 0.2 0.4 0.6 0.8 1.0 1.2

IS, Reverse Drain Current [A]

300 100

10

1

0.1

VDS, Drain to Source Voltage [V]

3 4 5

ID, Drain Current [A] ¹⁰⁰ 50

0 150 200 250

0 1 2

0.01 0.1 1000

300

8

80 s Pulse Width TJ = 25°C

VGS 15 V Top 10 V 8 V 7 V 6 V 5.5 V 5 V Bottom

300 VGS

15 V Top 10 V 8 V 7 V 6 V 5.5 V 5 V Bottom If R = 0

t_AV = (L)(I_AS) / (1.3 ×Rated BV_{DSS −}V_DD) If R ≠ 0

t_AV = (L/R)ln[(I_AS ×R) / (1.3 × Rated BV_DSS − V_DD) + 1]

TYPICAL CHARACTERISTICS

Figure 11. R_DSON vs. Gate Voltage Figure 12. Normalized R_DSON vs. Junction Temperature

Figure 13. Normalized Gate Threshold Voltage vs. Temperature

Figure 14. Normalized Drain to Source Breakdown Voltage vs. Junction Temperature

Figure 15. Capacitance vs. Drain to Source Voltage Figure 16. Gate Charge vs. Gate to Source Voltage

10

V_GS, Gate to Source Voltage [V]

4 6

rDS(on), Drain to Source On−Resistance [m]

30

0 10 20 40 50

8 10

Pulse duration = 80 s Duty cycle = 0.5% MAX

Normalized Drain to Source On−Resistance 2.4

2.0

1.6

1.2

0.8

0.4−80

T_J, Junction Temperature [°C]

−40 0 40 80 120 160 200

ID = 80 A VGS =10 V

−80

T_J, Junction Temperature [°C]

−40 0 40 80 120 160 200

Normalized Gate Threshold Voltage

1.5

1.2

0.9

0.6

0.3

0.0

IDV = 250 AGS = VDS

−80

T_J, Junction Temperature [°C]

−40 0 40 80 120 160 200

Normalized Drain to Source Breakdown Voltage 1.10

1.05

1.00

0.95

0.90

ID = 5 mA

VDS, Drain to Source Voltage [V]

1

0.1 10 100

Capacitance [pF]

0

100 1000 10000

Ciss

Coss

Crss

VDD = 32 V ID = 80 A

Q_g, Gate Charge [nC]

0 20 40 60 80 100

VGS, Gate to Source Voltage [V]

10

4 8

0 6

2 Pulse duration = 80 s

Duty cycle = 0.5% MAX

TJ = 25°C

TJ = 175°C ID =80 A

VDD = 40 V

VDD = 48 V

VGS = 0 V f = 1 MHz
