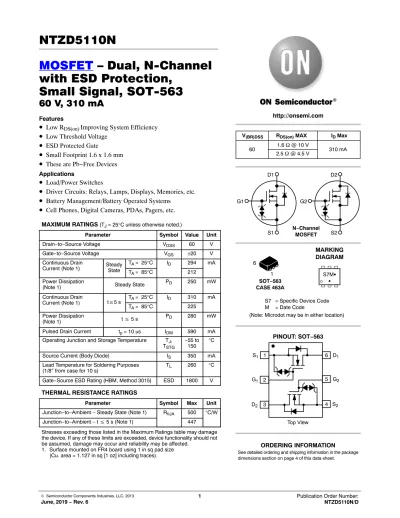

NTZD5110N MOSFET – Dual, N-Channel with ESD Protection, Small Signal, SOT-563

MOSFET – Dual, N-Channel with ESD Protection,

Small Signal, SOT-563

60 V, 310 mA

Features

• ^{Low R}

Improving System Efficiency

• Low Threshold Voltage

• ESD Protected Gate

• Small Footprint 1.6 x 1.6 mm

• These are Pb−Free Devices

• Load/Power Switches

• Driver Circuits: Relays, Lamps, Displays, Memories, etc.

• Battery Management/Battery Operated Systems

• Cell Phones, Digital Cameras, PDAs, Pagers, etc.

MAXIMUM RATINGS (TJ = 25°C unless otherwise noted.)

Parameter Symbol Value Unit

Drain−to−Source Voltage V_DSS 60 V

Gate−to−Source Voltage VGS ±20 V

Continuous Drain

Current (Note 1) Steady State

TA = 25°C I_D 294 mA T_A = 85°C 212 Power Dissipation

(Note 1) Steady State P_D 250 mW

Continuous Drain

Current (Note 1) tv5 s TA = 25°C ID 310 mA T_A = 85°C 225 Power Dissipation

(Note 1) t v 5 s P_D 280 mW

Pulsed Drain Current tp = 10 ms IDM 590 mA Operating Junction and Storage Temperature TJ,

T_STG −55 to

150 °C

Source Current (Body Diode) I_S 350 mA

Lead Temperature for Soldering Purposes

(1/8″ from case for 10 s) T_L 260 °C

Gate−Source ESD Rating (HBM, Method 3015) ESD 1800 V THERMAL RESISTANCE RATINGS

Parameter Symbol Max Unit

Junction−to−Ambient – Steady State (Note 1) R_qJA 500 °C/W Junction−to−Ambient – t v 5 s (Note 1) 447

SOT−563 CASE 463A

MARKING DIAGRAM http://onsemi.com

V_(BR)DSS R_DS(on) MAX I_D Max 60 1.6 W @ 10 V

2.5 W @ 4.5 V 310 mA

1 6

S7 = Specific Device Code M = Date Code

S7MGG

Top View

D₁

G₂

S₂ S₁

G₁

6

5

4 1

2

3 D₂

PINOUT: SOT−563 D1

S1 G1

D2

S2 G2

N−Channel MOSFET

(Note: Microdot may be in either location)

NTZD5110N

http://onsemi.com 2

ELECTRICAL CHARACTERISTICS (T_J = 25°C unless otherwise noted.)

Parameter Symbol Test Condition Min Typ Max Unit

OFF CHARACTERISTICS

Drain−to−Source Breakdown Voltage V(BR)DSS VGS = 0 V, ID = 250 mA 60 − − V

Drain−to−Source Breakdown Voltage

Temperature Coefficient V(BR)DSS/TJ − − 71 − mV/°C

Zero Gate Voltage Drain Current I_DSS V_GS = 0 V

V_DS = 60 V T_J = 25°C − − 1.0 mA

T_J = 125°C − − 500

VGS = 0 V V_DS = 50 V

T_J = 25°C − − 100 nA

T_J = 85°C − − 100

Gate−to−Source Leakage Current I_GSS V_DS = 0 V, V_GS = "20 V − − "10 mA V_DS = 0 V, V_GS = "10 V − − 450 nA V_DS = 0 V, V_GS = "5.0 V − − 150 nA ON CHARACTERISTICS (Note 3)

Gate Threshold Voltage V_GS(TH) VGS = VDS, ID = 250 mA 1.0 − 2.5 V

Negative Threshold Temperature Coefficient V_GS(TH)/T_J − − 4.0 − mV/°C

Drain−to−Source On Resistance

R_DS(on) V_GS = 10 V, I_D = 500 mA − 1.19 1.6 W V_GS = 4.5 V, I_D = 200 mA − 1.33 2.5

Forward Transconductance g_FS V_DS = 5.0 V, I_D = 200 mA − 80 − S

CHARGES AND CAPACITANCES

Input Capacitance C_ISS

VGS = 0 V, f = 1.0 MHz, V_DS = 20 V

− 24.5 − pF

Output Capacitance C_OSS − 4.2 −

Reverse Transfer Capacitance C_RSS − 2.2 −

Total Gate Charge QG(TOT)

V_GS = 4.5 V, V_DS = 10 V;

I_D = 200 mA

− 0.7 − nC

Threshold Gate Charge QG(TH) − 0.1 −

Gate−to−Source Charge QGS − 0.3 −

Gate−to−Drain Charge QGD − 0.1 −

SWITCHING CHARACTERISTICS (Note 4)

Turn−On Delay Time td(ON)

V_GS = 10 V, V_DD = 30 V, ID = 200 mA, RG = 10 W

− 12 − ns

Rise Time tr − 7.3 −

Turn−Off Delay Time td(OFF) − 63.7 −

Fall Time t_f − 30.6 −

DRAIN−SOURCE DIODE CHARACTERISTICS Forward Diode Voltage

VSD V_GS = 0 V, IS = 200 mA

T_J = 25°C − 0.8 1.2 V

T_J = 85°C − 0.7 −

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

2. Surface−mounted on FR4 board using 1 in. sq. pad size (Cu. area = 1.127 in sq [1 oz] including traces).

3. Pulse Test: pulse width v 300 ms, duty cycle v2%.

4. Switching characteristics are independent of operating junction temperatures.

TYPICAL CHARACTERISTICS

5.0 V

Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics V_DS, DRAIN−TO−SOURCE VOLTAGE (V) V_GS, GATE−TO−SOURCE VOLTAGE (V)

6 4

2 00

0.4 0.8 1.2 1.6

6 4

2 00

0.4 0.8 1.2

Figure 3. On−Resistance vs. Drain Current and

Temperature Figure 4. On−Resistance vs. Drain Current and Temperature

ID, DRAIN CURRENT (A)

1.2 1.0

0.8 0.6

0.4 0.2

00 0.4 0.8 1.2 1.6 2.0 3.2

0.4 0.8 1.6 2.4

0.6 1.0 1.4 1.8 2.2

ID, DRAIN CURRENT (A) ID, DRAIN CURRENT (A)

RDS(on), DRAIN−TO−SOURCE RESISTANCE (W), DRAIN−TO−SOURCE RESISTANCE (W) RDS(on), DRAIN−TO−SOURCE RESISTANCE (NORMALIZED)

V_GS = 10 V

7.0 V8.0 V9.0 V 4.5 V

4.0 V 6.0 V

3.5 V

3.0 V 2.5 V

TJ = −55°C T_J = 125°C

TJ = 25°C

T_J = −55°C T_J = 125°C

T_J = 25°C T_J = 85°C

V_GS = 4.5 V

ID, DRAIN CURRENT (A)

1.2 1.0 0.8

0.6 0.4

0.2 00

0.8 1.6 2.4 3.2

RDS(on), DRAIN−TO−SOURCE RESISTANCE (W)

TJ = −55°C T_J = 125°C

T_J = 25°C T_J = 85°C V_GS = 10 V

I_D = 500 mA

I_D = 200 mA

ID = 0.2 A

V_GS = 4.5 V

V_GS = 10 V 1.2

2.0 2.4 2.8

0.4 1.2 2.0 2.8

NTZD5110N

http://onsemi.com 4

TYPICAL CHARACTERISTICS

Figure 7. Capacitance Variation Figure 8. Gate−to−Source and Drain−to−Source Voltage vs. Total Charge

Qg, TOTAL GATE CHARGE (nC)

0.8 0.6

0.4 0.2

00 1 2 3 4 5

Figure 9. Diode Forward Voltage vs. Current V_SD, SOURCE−TO−DRAIN VOLTAGE (V)

1.2 1.0

0.8 0.6

0.010.4 1 10

VGS, GATE−TO−SOURCE VOLTAGE (V)

IS, SOURCE CURRENT (A)

T_J = 25°C I_D = 0.2 A

20 16

12 8

4 00

10 20 30

C, CAPACITANCE (pF)

C_iss

C_oss

C_rss

TJ = 25°C V_GS = 0 V

GATE−TO−SOURCE OR DRAIN−TO−SOURCE VOLTAGE (V)

T_J = 25°C T_J = 85°C

V_GS = 0 V

0.1

ORDERING INFORMATION

Device Package Shipping

NTZD5110NT1G SOT−563

(Pb−Free) 4000 / Tape & Reel

NTZD5110NT5G SOT−563

(Pb−Free) 8000 / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Spe- cifications Brochure, BRD8011/D.

SOT−563, 6 LEAD CASE 463A

ISSUE H

DATE 26 JAN 2021 SCALE 4:1

1 6

SOT−563, 6 LEAD CASE 463A

ISSUE H

DATE 26 JAN 2021

XX = Specific Device Code M = Month Code G = Pb−Free Package

XX MG GENERIC MARKING DIAGRAM*

1

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.
