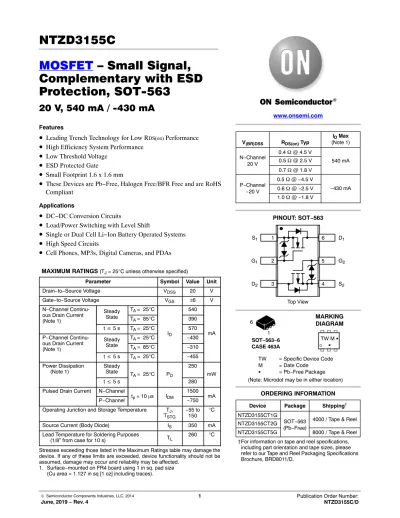

NTZD3155C MOSFET – Small Signal, Complementary with ESD Protection, SOT-563

MOSFET – Small Signal, Complementary with ESD Protection, SOT-563

20 V, 540 mA / -430 mA

Features

• Leading Trench Technology for Low R

Performance

• High Efficiency System Performance

• Low Threshold Voltage

• ESD Protected Gate

• Small Footprint 1.6 x 1.6 mm

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Applications

• DC−DC Conversion Circuits

• Load/Power Switching with Level Shift

• Single or Dual Cell Li−Ion Battery Operated Systems

• High Speed Circuits

• Cell Phones, MP3s, Digital Cameras, and PDAs

Parameter Symbol Value Unit

Drain−to−Source Voltage V_DSS 20 V

Gate−to−Source Voltage VGS ±6 V

N−Channel Continu- ous Drain Current (Note 1)

Steady State

T_A = 25°C

ID

540

mA T_A = 85°C 390 t v 5 s T_A = 25°C 570 P−Channel Continu-

ous Drain Current (Note 1)

Steady State

TA = 25°C −430 T_A = 85°C −310 t v 5 s T_A = 25°C −455 Power Dissipation

(Note 1) Steady

State T_A = 25°C P_D

250 mW

t v 5 s 280

Pulsed Drain Current N−Channel

t_p = 10 ms IDM

1500 mA

P−Channel −750

Operating Junction and Storage Temperature T_J, TSTG

−55 to

150 °C

Source Current (Body Diode) I_S 350 mA

Lead Temperature for Soldering Purposes

(1/8” from case for 10 s) T_L 260 °C

SOT−563−6 CASE 463A

MARKING DIAGRAM www.onsemi.com

V_(BR)DSS R_DS(on) Typ

I_D Max (Note 1) N−Channel

20 V

0.4 W @ 4.5 V

0.5 W @ 2.5 V 540 mA

P−Channel

−20 V

0.5 W @ −4.5 V

0.6 W @ −2.5 V −430 mA 0.7 W @ 1.8 V

1.0 W @ −1.8 V

1 6

TW MG G

Device Package Shipping^† ORDERING INFORMATION NTZD3155CT1G

4000 / Tape & Reel

†For information on tape and reel specifications, Top View

D₁

G2

S2

S₁

G1

6

5

4 1

2

3 D2

PINOUT: SOT−563

NTZD3155CT2G SOT−563 (Pb−Free)

TW = Specific Device Code M = Date Code

G = Pb−Free Package (Note: Microdot may be in either location)

NTZD3155CT5G 8000 / Tape & Reel

www.onsemi.com 2

Thermal Resistance Ratings

Parameter Symbol Max Unit

Junction−to−Ambient – Steady State (Note 2) R_qJA 500 °C/W

Junction−to−Ambient – t = 5 s (Note 2) 447

2. Surface mounted on FR4 board using 1 in sq pad size (Cu area = 1.127 in sq [1 oz] including traces).

ELECTRICAL CHARACTERISTICS (T_J = 25°C unless otherwise specified)

Parameter Symbol N/P Test Condition Min Typ Max Unit

OFF CHARACTERISTICS

Drain−to−Source Breakdown Voltage V_(BR)DSS N V_GS = 0 V I_D = 250 mA 20 V

P I_D = −250 mA −20

Drain−to−Source Breakdown Voltage

Temperature Coefficient V(_BR)DSS/T_J 18 mV/°C

Zero Gate Voltage Drain Current I_DSS N V_GS = 0 V, V_DS = 16 V T_J = 25°C 1.0 mA

P V_GS = 0 V, V_DS= −16 V −1.0

N V_GS = 0 V, V_DS = 16 V T_J = 125°C 2.0 mA

P V_GS = 0 V, V_DS= − 16V −5.0

Gate−to−Source Leakage Current I_GSS P V_DS = 0 V, V_GS = ±4.5 V $2.0 mA

N $5.0

ON CHARACTERISTICS (Note 3)

Gate Threshold Voltage V_GS(TH) N V_GS = V_DS ID = 250 mA 0.45 1.0 V

P ID = −250 mA −0.45 −1.0

Gate Threshold

Temperature Coefficient VGS(TH)/TJ −1.9 −mV/°C

Drain−to−Source On Resistance RDS(on) N V_GS = 4.5 V, I_D = 540 mA 0.4 0.55

W

P V_GS = −4.5V, I_D = −430 mA 0.5 0.9

N V_GS = 2.5 V, I_D = 500 mA 0.5 0.7

P V_GS = −2.5V, I_D = −300 mA 0.6 1.2

N V_GS = 1.8 V, I_D = 350 mA 0.7 0.9

P V_GS = −1.8V, I_D = −150 mA 1.0 2.0

Forward Transconductance g_FS N V_DS = 10 V, I_D = 540 mA 1.0

P V_DS = −10 V, I_D = −430 mA 1.0 S CHARGES, CAPACITANCES AND GATE RESISTANCE

Input Capacitance C_ISS

N f = 1 MHz, V_GS = 0 V VDS = 16 V

80 150

pF

Output Capacitance C_OSS 13 25

Reverse Transfer Capacitance C_RSS 10 20

Input Capacitance C_ISS

P f = 1 MHz, VGS = 0 V V_DS = −16 V

105 175

Output Capacitance C_OSS 15 30

Reverse Transfer Capacitance C_RSS 10 20

3. Pulse Test: pulse width v300 ms, duty cycle v2%

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

ELECTRICAL CHARACTERISTICS (T_J = 25°C unless otherwise specified)

Parameter Symbol N/P Test Condition Min Typ Max Unit

CHARGES, CAPACITANCES AND GATE RESISTANCE

Total Gate Charge QG(TOT)

N V_GS = 4.5 V, V_DS = −10 V; I_D = 540 mA

1.5 2.5

nC

Threshold Gate Charge QG(TH) 0.1

Gate−to−Source Charge QGS 0.2

Gate−to−Drain Charge QGD 0.35

Total Gate Charge QG(TOT)

P V_GS = −4.5 V, V_DS = 10 V; I_D = −380 mA

1.7 2.5

Threshold Gate Charge QG(TH) 0.1

Gate−to−Source Charge Q_GS 0.3

Gate−to−Drain Charge Q_GD 0.4

SWITCHING CHARACTERISTICS (V_GS = V) (Note 4)

Turn−On Delay Time t_d(ON) N

VGS = 4.5 V, VDD = −10 V, ID = 540 mA, R_G = 10 W

6.0

ns

Rise Time t_r 4.0

Turn−Off Delay Time t_d(OFF) 16

Fall Time t_f 8.0

Turn−On Delay Time t_d(ON) P

VGS = −4.5 V, VDD = 10 V, ID = −215 mA, R_G = 10 W

10

Rise Time t_r 12

Turn−Off Delay Time t_d(OFF) 35

Fall Time t_f 19

Drain−Source Diode Characteristics

Forward Diode Voltage V_SD N

V_GS = 0 V, T_J = 25°C I_S = 350 mA 0.7 1.2

P I_S = −350 mA −0.8 −1.2 V

Reverse Recovery Time t_RR N V_GS = 0 V,

dIS/dt = 100 A/ms I_S = 350 mA 6.5

P I_S = −350 mA 13 ns

4. Switching characteristics are independent of operating junction temperatures

www.onsemi.com 4

N−CHANNEL TYPICAL PERFORMANCE CURVES

0 0.2 0.4 0.6 0.8 1.0 1.2

0 1 2 3 4 5 6 7 8 9 10

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) ID, DRAIN CURRENT (A)

Figure 1. On−Region Characteristics 1.8 V

V_GS = 1.6 V

V_GS = 1.4 V

V_GS = 1.2 V VGS = 1.0 V

0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8

0.5 1.0 1.5 2.0 2.5 3.0

V_GS, GATE−TO−SOURCE VOLTAGE (V) ID, DRAIN CURRENT (A)

Figure 2. Transfer Characteristics VDS w 10 V

T_J = 25°C

T_J = 100°C T_J = −55°C

0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

1 2 3 4 5 6

V_GS, GATE−TO−SOURCE VOLTAGE (V) RDS(on), DRAIN−TO−SOURCE CURRENT RESISTANCE (W)

Figure 3. On−Resistance versus Gate−to−Source Voltage

ID = 0.54 A T_J = 25°C 5.5 V

VGS = 2.0 V to 2.2 V

0.3 0.4 0.5 0.6 0.7 0.8 0.9

0.2 0.4 0.6 0.8 1 1.2

I_D, DRAIN CURRENT (A)

Figure 4. On−Resistance versus Drain Current and Gate Voltage

RDS(on), DRAIN−TO−SOURCE RESISTANCE (W) TJ = 25°C

V_GS = 1.8 V

V_GS = 2.5 V V_GS = 4.5 V T_J = 25°C

0.6 0.8 1 1.2 1.4 1.6 1.8 2

−50 −25 0 25 50 75 100 125 150 T_J, JUNCTION TEMPERATURE (°C)

RDS(on), DRAIN−TO−SOURCE RESISTANCE (NORMALIZED)

Figure 5. On−Resistance Variation with Temperature

I_D = 0.54 A V_GS = 4.5 V

10 100 1000

2 4 6 8 10 12 14 16 18 20

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) IDSS, LEAKAGE (nA)

Figure 6. Drain−to−Source Leakage Current versus Voltage

TJ = 150°C

T_J = 100°C V_GS = 0 V

N−CHANNEL TYPICAL PERFORMANCE CURVES

0 50 100 150 200

0 5 10 15 20

Figure 7. Capacitance Variation

C, CAPACITANCE (pF)

TJ = 25°C

V_GS = 0 V

CISS

0 1 2 3 4 5

0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.60

4 8 12 16 20

VDS, DRAIN−TO−SOURCE VOLTAGE (V) VGS, GATE−TO−SOURCE VOLTAGE (V)

Q_T

QGD

QGS

Figure 8. Gate−to−Source and Drain−to−Source Voltage versus Total Charge

Q_g, TOTAL GATE CHARGE (nC) I_D = 0.54 A T_J = 25°C V_DS

V_GS

1 10 100

1 10 100

t, TIME (ns)

Figure 9. Resistive Switching Time Variation versus Gate Resistance

R_G, GATE RESISTANCE (W) t_d(OFF)

tf

t_d(ON) t_r

V_DS = 10 V I_D = 0.2 A VGS = 4.5 V

0 0.1 0.2 0.3 0.4 0.5 0.6

0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

IS, SOURCE CURRENT (A)

Figure 10. Diode Forward Voltage versus Current

V_SD, SOURCE−TO−DRAIN VOLTAGE (V) V_GS = 0 V

T_J = 25°C COSS

DRAIN−TO−SOURCE VOLTAGE (V) V_DS = 0 V

V_DS

www.onsemi.com 6

P−CHANNEL TYPICAL PERFORMANCE CURVES

−1 V

100°C 0

1

5 0.6

6 3

2

−VDS, DRAIN−TO−SOURCE VOLTAGE (V)

−ID,DRAIN CURRENT (A) 0.4

0.2 0

1

Figure 1. On−Region Characteristics

0.5 1

2

1.5 2.5

0.8

0.4 0.2

0 1 0

Figure 2. Transfer Characteristics

−V_GS, GATE−TO−SOURCE VOLTAGE (V)

0.5

3 5

0.7

0.6

0.4

Figure 3. On−Resistance vs. Gate−to−Source Voltage

−V_GS, GATE−TO−SOURCE VOLTAGE (V)

RDS(on),DRAIN−TO−SOURCE RESISTANCE (W) −ID,DRAIN CURRENT (A)

0.1 1.0

0.8

Figure 4. On−Resistance vs. Drain Current and Gate Voltage

−I_D, DRAIN CURRENT (A)

−50 −25 0 25 1.4

1.2

1

0.8

0.6 50 100 125

Figure 5. On−Resistance Variation with Temperature

T_J, JUNCTION TEMPERATURE (°C) T_J = 25°C

2 4

T_J = −55°C

I_D = −0.43 A T_J = 25°C

1.4

0.5

75 150

TJ = 25°C

I_D = −0.43 A V_GS = −4.5 V

RDS(on),DRAIN−TO−SOURCE RESISTANCE (NORMALIZED)

4

25°C

RDS(on),DRAIN−TO−SOURCE RESISTANCE (W)

1.6

V_GS = −1.8 V

−1.2 V

1 6

−1.4 V

−1.6 V

1.3

0.6 1.1

VGS = −2.5 V

7 10

V_DS ≥ −10 V

0.8

0.2 0.3 0.4 0.9

V_GS = −1.8 V VGS = −2 V

Figure 6. Drain−to−Source Leakage Current vs. Voltage

2 4 8

10 16 20

−VDS, DRAIN−TO−SOURCE VOLTAGE (V) 12

V_GS = 0 V

−IDSS, LEAKAGE (nA)

T_J = 150°C

T_J = 100°C 100

1000 10000

6 10 14 18

0.45 0.65

0.55 0.75

0.7 1.0 1.2

0.5 0.6 0.7 0.8 0.9 0.8

8 9

0.6

P−CHANNEL TYPICAL PERFORMANCE CURVES

V_GS = 0 V

−V_GS

5 10

150

100

50 0

20 DRAIN−TO−SOURCE VOLTAGE (V)

C, CAPACITANCE (pF)

0 1 2

4

1 0

Q_G, TOTAL GATE CHARGE (nC)

−VGS, GATE−TO−SOURCE VOLTAGE (V) TJ = 25°C

C_OSS C_ISS

C_RSS I_D = −0.215 A

TJ = 25°C 250

1.8 1.6 2

3

−VDS,DRAIN−TO−SOURCE VOLTAGE (VOLTS) 10

8

2

0 QGD

10 1

10

1

100 RG, GATE RESISTANCE (W)

t, TIME (ns)

V_DD = −10 V I_D = −0.215 A V_GS = −4.5 V 100

0 200

5

4 6

t_d(OFF)

t_d(ON) t_f t_r

−V_DS

15 0.2 1.2 1.4

0.9 0.2

0

−V_SD, SOURCE−TO−DRAIN VOLTAGE (V)

−IS, SOURCE CURRENT (AMPS)

V_GS = 0 V T_J = 25°C 0.6

0.7 0.5

0.3 0.4

Figure 7. Capacitance Variation Figure 8. Gate−to−Source and Drain−to−Source Voltage vs. Total Charge

Figure 9. Resistive Switching Time Variation

vs. Gate Resistance Figure 10. Diode Forward Voltage vs. Current 0.4 0.6 0.8

Q_T

0.8 0.6

0.4

9

3 1 5 7

Q_GS

SOT−563, 6 LEAD CASE 463A

ISSUE H

DATE 26 JAN 2021 SCALE 4:1

1 6

ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.

ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others.

98AON11126D DOCUMENT NUMBER:

DESCRIPTION:

Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

PAGE 1 OF 2 SOT−563, 6 LEAD

© Semiconductor Components Industries, LLC, 2019 www.onsemi.com

ISSUE H

DATE 26 JAN 2021

XX = Specific Device Code M = Month Code G = Pb−Free Package

XX MG GENERIC MARKING DIAGRAM*

1

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.

98AON11126D
