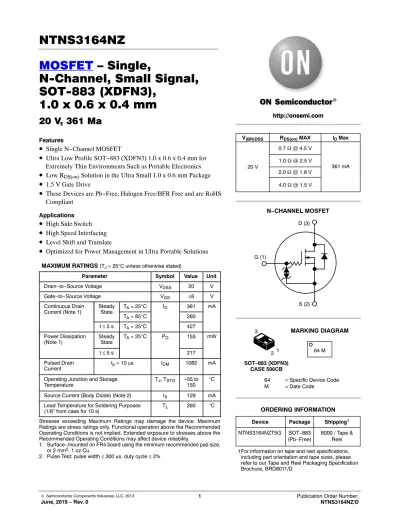

NTNS3164NZ MOSFET – Single, N-Channel, Small Signal, SOT-883 (XDFN3), 1.0 x 0.6 x 0.4 mm

MOSFET – Single,

N-Channel, Small Signal, SOT-883 (XDFN3),

1.0 x 0.6 x 0.4 mm

20 V, 361 Ma

Features

• Single N−Channel MOSFET

• Ultra Low Profile SOT−883 (XDFN3) 1.0 x 0.6 x 0.4 mm for Extremely Thin Environments Such as Portable Electronics

• ^{Low R}

Solution in the Ultra Small 1.0 x 0.6 mm Package

• 1.5 V Gate Drive

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Applications

• High Side Switch

• High Speed Interfacing

• Level Shift and Translate

• Optimized for Power Management in Ultra Portable Solutions

Parameter Symbol Value Unit

Drain−to−Source Voltage V_DSS 20 V

Gate−to−Source Voltage V_GS ±8 V

Continuous Drain

Current (Note 1) Steady

State T_A = 25°C ID 361 mA

T_A = 85°C 260

t ≤ 5 s T_A = 25°C 427

Power Dissipation

(Note 1) Steady

State T_A = 25°C P_D 155 mW

t ≤ 5 s 217

Pulsed Drain

Current t_p = 10 ms IDM 1082 mA

Operating Junction and Storage

Temperature T_J, T_STG −55 to

150 °C

Source Current (Body Diode) (Note 2) I_S 129 mA Lead Temperature for Soldering Purposes

(1/8” from case for 10 s) T_L 260 °C

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

1. Surface−mounted on FR4 board using the minimum recommended pad size, or 2 mm², 1 oz Cu.

2. Pulse Test: pulse width ≤ 300 ms, duty cycle ≤ 2%

http://onsemi.com

V_(BR)DSS R_DS(on) MAX I_D Max

20 V

0.7 W @ 4.5 V 1.0 W @ 2.5 V

361 mA

Device Package Shipping^† ORDERING INFORMATION

NTNS3164NZT5G SOT−883

(Pb−Free) 8000 / Tape &

Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please

http://onsemi.com

MARKING DIAGRAM

SOT−883 (XDFN3) CASE 506CB

64 = Specific Device Code M = Date Code

64 M D (3)

S (2) G (1)

N−CHANNEL MOSFET

2 1 3

2.0 W @ 1.8 V 4.0 W @ 1.5 V

Parameter Symbol Max Unit

Junction−to−Ambient – Steady State (Note 3) R_θJA 806

°C/W

Junction−to−Ambient – t ≤ 5 s (Note 3) R_θJA 575

3. Surface−mounted on FR4 board using the minimum recommended pad size, or 2 mm², 1 oz Cu.

ELECTRICAL CHARACTERISTICS (T_J = 25°C unless otherwise stated)

Parameter Symbol Test Condition Min Typ Max Unit

OFF CHARACTERISTICS

Drain−to−Source Breakdown Voltage V_(BR)DSS V_GS = 0 V, I_D = 250 mA 20 V

Drain−to−Source Breakdown Voltage

Temperature Coefficient V_(BR)DSS/ TJ

I_D = 250 mA, ref to 25°C 23 mV/°C

Zero Gate Voltage Drain Current IDSS VGS = 0 V, VDS = 20 V T_J = 25°C 1 mA

Gate−to−Source Leakage Current IGSS VDS = 0 V, VGS = ±5 V ±10 mA

ON CHARACTERISTICS (Note 4)

Gate Threshold Voltage VGS(TH) V_GS = V_DS, I_D = 250 mA 0.4 1.0 V

Negative Threshold Temperature

Coefficient VGS(TH)/TJ 1.8 mV/°C

Drain−to−Source On Resistance R_DS(on)

V_GS = 4.5 V, I_D = 200 mA 0.5 0.7 V_GS = 2.5 V, I_D = 100 mA 0.7 1.0 W V_GS = 1.8 V, I_D = 50 mA 1.0 2.0

V_GS= 1.5 V, I_D = 10 mA 1.2 4.0

Forward Transconductance g_FS V_DS = 5 V, I_D = 200 mA 1.26 S

Source−Drain Diode Voltage V_SD V_GS = 0 V, I_S = 100 mA 0.75 1.2 V

CHARGES & CAPACITANCES

Input Capacitance C_ISS

VGS = 0 V, freq = 1 MHz, VDS = 10 V

24

Output Capacitance C_OSS 5.0 pF

Reverse Transfer Capacitance C_RSS 3.4

Total Gate Charge Q_G(TOT)

V_GS = 4.5 V, V_DS = 10 V;

I_D = 200 mA

0.8

Threshold Gate Charge Q_G(TH) 0.1 nC

Gate−to−Source Charge Q_GS 0.2

Gate−to−Drain Charge Q_GD 0.1

SWITCHING CHARACTERISTICS, VGS = 4.5 V (Note 4)

Turn−On Delay Time td(ON)

V_GS = 4.5 V, V_DD = 10 V, ID = 200 mA, RG = 2 W

10

Rise Time tr 11 ns

Turn−Off Delay Time td(OFF) 67

Fall Time tf 31

4. Switching characteristics are independent of operating junction temperatures

TYPICAL CHARACTERISTICS

4.0 V 3.5 V

Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics V_DS, DRAIN−TO−SOURCE VOLTAGE (V) V_GS, GATE−TO−SOURCE VOLTAGE (V)

3.0 2.5

2.0 1.5

1.0 0.5

0 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7

2.5 2.0

1.5 3.0

1.0 0.5

00 0.1 0.2 0.3 0.6 0.7 0.8 1.0

Figure 3. On−Resistance vs. Gate−to−Source Voltage

Figure 4. On−Resistance vs. Drain Current and Gate Voltage

V_GS, GATE VOLTAGE (V) I_D, DRAIN CURRENT (A)

4.0 3.5

3.0 4.5

2.5 2.0 1.5 01.0 0.5 1.0 2.0 2.5 3.5 4.0 5.0

0.7 0.6 0.5 0.4 0.3 0.2 0.1 00 0.5 1.0 1.5 3.0 3.5 4.5 5.0

Figure 5. On−Resistance Variation with Temperature

Figure 6. Drain−to−Source Leakage Current vs. Voltage

T_J, JUNCTION TEMPERATURE (°C) V_DS, DRAIN−TO−SOURCE VOLTAGE (V) 125

100 75 50 25 0

−25 0.6−50 0.7 0.9 1.1 1.3 1.4 1.6 1.8

18 16 14 10

8 6 4 12 10 100 1000

ID, DRAIN CURRENT (A) ID, DRAIN CURRENT (A)

RDS(on), DRAIN−TO−SOURCE RESISTANCE (W)RDS(on), NORMALIZED DRAIN−TO− SOURCE RESISTANCE (W) IDSS, LEAKAGE (nA)

0.8 0.9 1.0

V_GS = 2.0 V

1.8 V

1.5 V

1.2 V 4.5 V

3.0 V 2.5 V

0.4 0.5

0.9 V_DS = 5.0 V

T_J = −55°C T_J = 125°C

T_J = 25°C

1.5 3.0

4.5 T_J = 25°C

I_D = 200 mA

RDS(on), DRAIN−TO−SOURCE RESISTANCE (W)

1.0 0.9 0.8 2.0

2.5 4.0

T_J = 25°C

V_GS = 2.5 V VGS = 4.5 V VGS = 1.8 V

V_GS = 1.5 V

150 0.8

1.0 1.2 1.5

1.7 VGS = 4.5 V

I_D = 200 mA

V_GS = 1.8 V I_D = 50 mA

12 20

TJ = 150°C

TJ = 85°C TJ = 125°C

Figure 7. Capacitance Variation Figure 8. Gate−to−Source and Drain−to−Source Voltage vs. Total Charge

VDS, DRAIN−TO−SOURCE VOLTAGE (V) QG, TOTAL GATE CHARGE (nC)

20 18 14

12 10 4

2 00 5 10 15 20 25 30 35

0.8 0.7 0.6 0.5 0.4 0.2

0.1 00 1 2 3 4 5

Figure 9. Resistive Switching Time Variation

vs. Gate Resistance Figure 10. Diode Forward Voltage vs. Current

R_G, GATE RESISTANCE (W) VSD, SOURCE−TO−DRAIN VOLTAGE (V)

100 10

101 100

1.0 0.9 0.8 0.7 0.6 0.5 0.4 0.0010.3

0.01 0.1 1 10

Figure 11. Threshold Voltage Figure 12. Maximum Rated Forward Biased Safe Operating Area

TJ, JUNCTION TEMPERATURE (°C) VDS, DRAIN−TO−SOURCE VOLTAGE (V) 125

100 75 50 25 0

−25 0.45−50

0.50 0.55 0.60 0.65 0.75 0.80 0.85

100 10

1 0.0010.1

0.01 0.1 1 10

C, CAPACITANCE (pF) VGS, GATE−TO−SOURCE VOLTAGE (V)

t, TIME (ns) IS, SOURCE CURRENT (A)

VGS(th) (V) ID, DRAIN CURRENT (A)

6 16 0.3 0.9

V_DS

V_GS

0 2 4 6 8 12 10 Q_T

VDS = 10 V I_D = 0.2 A T_J = 25°C

DS, DRAIN−TO−SOURCE VOLTAGE (V)

Q_GS QGD

1.1 1.2 V_GS = 0 V

f = 1 MHz T_J = 25°C CISS

COSS

CRSS

V_GS = 4.5 V V_DD = 10 V

t_r td(on)

t_f t_d(off)

TJ = −55°C T_J = 125°C T_J = 25°C

150 I_D = 250 mA

0.70

VGS ≤ 8 V Single Pulse T_C = 25°C

R_DS(on) Limit Thermal Limit Package Limit

10 ms 100 ms 1 ms 10 ms dc 8

TYPICAL CHARACTERISTICS

Figure 13. FET Thermal Response t, TIME (s)

1E+01

1E−03 1E−02

1E−04 1E+00

1E−05 1E−01

1E−06 0 100 200 400 500 600 700 900

R(t), EFFECTIVE TRANSIENT THER- MAL RESPONSE (°C/W) 300 800

1E+02 1E+03 R_qJA = 806°C/W

Steady State

Duty Cycle = 0.5

0.2 0.1

Single Pulse 0.05 0.02 0.01

ÉÉ

ÉÉ

CASE 506CB ISSUE A

DATE 30 MAR 2012 SCALE 8:1

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: MILLIMETERS.

3. EXPOSED COPPER ALLOWED AS SHOWN.

A B

E D

BOTTOM VIEW b

0.10 C

TOP VIEW 0.10 C

A

0.10 C A1 0.10 C

C ^SEATING_PLANE SIDE VIEW

DIM MIN MAX MILLIMETERS A 0.340 0.440 A1 0.000 0.030 b 0.075 0.200 D2 0.620 BSC

e 0.350 BSC

L 0.170 0.300

SOLDER FOOTPRINT*

DIMENSIONS: MILLIMETERS

1.10

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

1

GENERIC MARKING DIAGRAM*

*This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G”, may or not be present.

XX = Specific Device Code M = Date Code

XX M

L

0.43

RECOMMENDED

D 0.950 1.075

E 0.550 0.675 E2 0.425 0.550

A 0.10 M C B 0.05 M C

e e/2

2X 3X

D2

E2

2X 0.41

0.55 0.20

2X PACKAGE

OUTLINE PIN ONE

REFERENCE

NOTE 3

3X

1

98AON65407E DOCUMENT NUMBER:

DESCRIPTION:

Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

PAGE 1 OF 1 SOT−883 (XDFN3), 1.0X0.6, 0.35P
