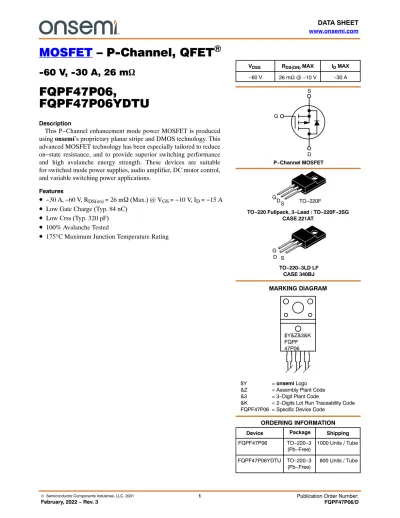

MOSFET – P-Channel, QFET

MOSFET – P-Channel, QFET ⁾

-60 V, -30 A, 26 mW

FQPF47P06,

FQPF47P06YDTU

Description

This P−Channel enhancement mode power MOSFET is produced using onsemi’s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on−state resistance, and to provide superior switching performance and high avalanche energy strength. These devices are suitable for switched mode power supplies, audio amplifier, DC motor control, and variable switching power applications.

Features

• −30 A, −60 V, R

= 26 m W (Max.) @ V

= −10 V, I

= −15 A

• Low Gate Charge (Typ. 84 nC)

• Low Crss (Typ. 320 pF)

• 100% Avalanche Tested

• ¹⁷⁵ ° C Maximum Junction Temperature Rating

TO−220 Fullpack, 3−Lead / TO−220F−3SG CASE 221AT

MARKING DIAGRAM

V_DSS R_DS(ON) MAX I_D MAX

−60 V 26 mW @ −10 V −30 A

$Y = onsemi Logo

&Z = Assembly Plant Code

&3 = 3−Digit Plant Code

&K = 2−Digits Lot Run Traceability Code FQPF47P06 = Specific Device Code

$Y&Z&3&K FQPF 47P06

P−Channel MOSFET G

D S

ORDERING INFORMATION

GDS TO−220F

TO−220−3LD LF CASE 340BJ G

D S

ABSOLUTE MAXIMUM RATINGS (T_C = 25°C unless otherwise specified)

Symbol Parameter FQPF47P06 / FQPF47P06YDTU Unit

VDSS Drain−Source Voltage −60 V

I_D Drain Current − Continuous (TC = 25°C) −30 A

− Continuous (TC = 100°C) −21.2 A

IDM Drain Current (Note 1) − Pulsed −120 A

VGSS Gate−Source Voltage + 25 V

EAS Single Pulsed Avalanche Energy (Note 2) 820 mJ

IAR Avalanche Current (Note 1) −30 A

EAR Repetitive Avalanche Energy (Note 1) 6.2 mJ

dv/dt Peak Diode Recovery dv/dt (Note 3) −7.0 V/ns

PD Power Dissipation (TC = 25°C) 62 W

− Derate above 25°C 0.41 W/°C

T_J, T_STG Operating and Storage Temperature Range −55 to +175 °C

T_L Maximum Lead Temperature for Soldering Purposes,

1/8” from Case for 5 Seconds 300 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

1. Repetitive Rating: Pulse width limited by maximum junction temperature 2. L = 1.06 mH, I_AS = −30 A, V_DD = −25 V, R_G = 25 W, Starting TJ = 25°C 3. I_SD ≤ −47 A, di/dt ≤ 300A/ms, VDD ≤ BVDSS, Starting T_J = 25°C

THERMAL CHARACTERISTICS

Symbol Characteristic Typ Max Unit

R_qJC Thermal Resistance, Junction−to−Case − 2.42 °C/W

R_qJA Thermal Resistance, Junction−to−Ambient − 62.5 °C/W

ELECTRICAL CHARACTERISTICS (T_C = 25°C unless otherwise noted)

Symbol Parameter Test Condition Min Typ Max Unit

OFF CHARACTERISTICS

BVDSS Drain−Source Breakdown Voltage VGS = 0 V, ID = −250 mA −60 −− − V

DBVDSS

/ DTJ

Breakdown Voltage Temperature Coefficient I_D = −250 mA, Referenced to 25°C − −0.06 − V/°C

I_DSS Zero Gate Voltage Drain Current V_DS = −60 V, V_GS = 0 V − − −1 mA

V_DS = −48 V, T_C = 150°C − − −10 mA

I_GSSF Gate−Body Leakage Current, Forward V_GS = −25 V, V_DS = 0 V − − −100 nA

I_GSSR Gate−Body Leakage Current, Reverse V_GS = 25 V, V_DS = 0 V − − 100 nA

ON CHARACTERISTICS

V_GS(th) Gate Threshold Voltage V_DS = V_GS, I_D = −250 mA −2.0 − −4.0 V

R_DS(on) Static Drain−Source On−Resistance V_GS = −10 V, I_D = −15 A − 0.021 0.026 W

g_FS Forward Transconductance V_DS = −30 V, I_D = −15 A (Note 4) − 19 − S

DYNAMIC CHARACTERISTICS

C_iss Input Capacitance V_DS = −25 V, V_GS = 0 V, f = 1.0 MHz − 2800 3600 pF

C_oss Output Capacitance − 1300 1700 pF

C_rss Reverse Transfer Capacitance − 320 420 pF

SWITCHING CHARACTERISTICS

t_d(on) Turn−On Delay Time V_DD = −30 V, I_D = −23.5 A, R_G = 25 W

(Note 4, 5) − 50 110 ns

t_r Turn−On Rise Time − 450 910 ns

t_d(off) Turn−Off Delay Time − 100 210 ns

t_f Turn−Off Fall Time − 195 400 ns

Q_g Total Gate Charge V_DS = −48 V, I_D = −47 A, V_GS = −10 V

(Note 4, 5) − 84 110 nC

Q_gs Gate−Source Charge − 18 − nC

Qgd Gate−Drain Charge − 44 − nC

DRAIN−SOURCE DIODE CHARACTERISTICS AND MAXIMUM RATING

IS Maximum Continuous Drain−Source Diode Forward Current − − −30 A

ISM Maximum Pulsed Drain−Source Diode Forward Current − − −120 A

VSD Drain−Source Diode Forward Voltage VGS = 0 V, IS = −30 A − − −4.0 V

trr Reverse Recovery Time V_GS = 0 V, I_S = −47 A,

dI_F / dt = 100 A/ms (Note 4) − 130 − ns

Qrr Reverse Recovery Charge − 0.55 − mC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

4. Pulse Test: Pulse width ≤ 300 ms, Duty cycle ≤ 2%

5. Essentially independent of operating temperature

TYPICAL CHARACTERISTICS

−V_DS, Drain−Source Voltage (V)

−V_SD, Source−Drain Voltage (V)

VDS, Drain−Source Voltage (V)

−I_D, Drain Current (A)

Q_G, Total Gate Charge (nC)

−VGS, Gate−Source Voltage (V)

−ID, Drain Current (A) −IDR, Reverse Drain Current (A)−ID, Drain Current (A)

RDS(on), Drain−Source On−Resistance (W) −VGS, Gate−Source Voltage (V)

Capacitance (pF)

Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics

Figure 3. On−Resistance Variation vs. Drain Current and Gate Voltage

Figure 4. Body Diode Forward Voltage Variation vs. Source Current and Temperature

0 1000 4000 5000 6000 7000 8000

0 2 4 6 8 10 12 10⁻¹

10⁰ 10¹

10⁰ 10¹

10⁰ 10¹

10⁻¹

2 4 6 8 10

10⁻¹ 10⁰ 10¹ 0 10 20 30 40 50 60 90

175°C

10² _VGS

Top: − 15.0 V

− 10.0 V

− 8.0 V

− 7.0 V

− 6.0 V

− 5.5 V

− 5.0 V Bottom:− 4.5 V

* Notes:

1. 250 ms Pulse Test 2. T_C = 25°C

10²

25°C

−55°C

* Notes:

1. V_DS = −30 V 2. 250 ms Pulse Test

0 100 200 300 400

0.00 0.02 0.04 0.06 0.08 0.10

V_GS = −20 V V_GS = −10 V

* Note: T_J = 25°C

10⁰ 10¹

10⁻¹ 10²

* Notes:

1. V_GS = 0 V 2. 250 ms Pulse Test 25°C

175°C

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8

3000 2000

Ciss = Cgs + Cgd (Cds = shorted) Coss = Cds + Cgd

C_rss = C_gd Coss

C_rss

C_iss * Notes:

1. V_GS = 0 V 2. f = 1 MHz

70 80 V_DS = −30 V

V_DS = −48 V

* Note: I_D = −47 A

TYPICAL CHARACTERISTICS

ZqJC (t), Thermal Response

TJ, Junction Temperature (°C)

T_C, Case Temperature (°C)

−V_DS, Drain−Source Voltage (V)

TJ, Junction Temperature (°C)

−BVDSS, (Normalized) Drain−Source Breakdown Voltage −ID, Drain Current (A)RDS(ON), (Normalized) Drain−Source On−Resistance (W)

−ID, Drain Current (A)

Figure 7. Breakdown Voltage Variation vs. Temperature

Figure 8. On−Resistance Variation vs. Temperature

Figure 9. Maximum Safe Operating Area Figure 10. Maximum Drain Current vs. Case Temperature

−100 −50 0 50 100 150 200 −100 −50 0 50 100 150 200

25 50 75 100 125 150 175

10⁰ 10⁰ 10¹

10¹ 10²

10²

10⁻¹ 10⁰

* Notes:

1. V_GS = −10 V 2. I_D = −23.5 A

* Notes:

1. V_GS = 0 V 2. I_D = −250 mA

0 0

5 10 15 20 25 30 0.0 0.5 1.0 1.5 2.0 2.5

0.8 0.9 1.0 1.1 1.2

Operation in This Area is Limited by R_DS(on)

DC 100 ms

10 ms1 ms 100 ms

* Notes : 1. T_C = 25°C 2. T_J = 175°C 3. Single Pulse

0.02 0.01 0.05 0.1 0.2 D = 0.5

* Notes:

1. Z_qJC (t) = 2.42°C/W Max.

2. Duty Factor, D = t₁ / t₂ 3. T_JM − T_C = P_DM x Z_qJC (t)

P_DM

D

Charge V_GS

−10 V

Qg

Q_gs Q_gd

−3 mA V_GS

DUT

V_DS 300 nF

200 nF 50 k 12 V

Same Type as DUT

V_DS V_GS

10%

90%

t_d(on)

t_r t_f

V_DD

−10 V

V_DS R_L

DUT R_G

V_GS

t_on t_off

t_d(off)

V_DD V_DS

BV_DSS V_DD

I_AS

V_DS(t) I_D(t)

Time

−10 V DUT

R_G

L

I

t_p

tp

L

I W

Figure 12. Gate Charge Test Circuit & Waveform

Figure 13. Resistive Switching Test Circuit & Waveforms

Figure 14. Unclamped Inductive Switching Test Circuit & Waveforms E_AS+1

2LI_AS² BV_DSS BV_DSS*V_DD

DUT

V_DS +

_

Driver R_G

Compliment of DUT (N−Channel) V_GS

V_DD L

I_SD

V_GS 10 V (Driver)

I_SD (DUT)

VDS

(DUT)

V_DD Body Diode

Forward Voltage Drop V_SD

IFM, Body Diode Forward Current

Body Diode Reverse Current I_RM

Body Diode Recovery dv/dt di/dt LL

Figure 15. Peak Diode Recovery dv/dt Test Circuit & Waveforms D+Gate Pulse Width

Gate Pulse Period

• dv/dt controlled by RG

• I_SD controlled by pulse period

TO−220 Fullpack, 3−Lead / TO−220F−3SG CASE 221AT

ISSUE B

DATE 19 JAN 2021 Scale 1:1

98AON67439E

DOCUMENT NUMBER: Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

TO−220−3LD LF CASE 340BJ

ISSUE O

DATE 31 AUG 2016
