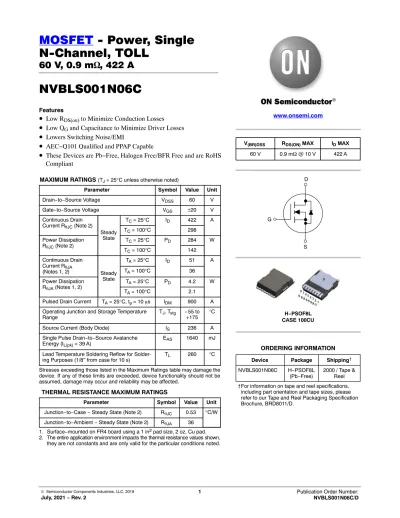

MOSFET - Power, Single N-Channel, TOLL

N-Channel, TOLL

60 V, 0.9 m W , 422 A

NVBLS001N06C

Features

• ^{Low R}

to Minimize Conduction Losses

• ^{Low Q}

and Capacitance to Minimize Driver Losses

• Lowers Switching Noise/EMI

• AEC−Q101 Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

MAXIMUM RATINGS (T_J = 25°C unless otherwise noted)

Parameter Symbol Value Unit

Drain−to−Source Voltage V_DSS 60 V

Gate−to−Source Voltage VGS ±20 V

Continuous Drain Current R_qJC (Note 2)

Steady State

TC = 25°C ID 422 A

TC = 100°C 298

Power Dissipation

R_qJC (Note 2) T_C = 25°C PD 284 W

T_C = 100°C 142

Continuous Drain Current R_qJA

(Notes 1, 2) Steady State

T_A = 25°C ID 51 A

T_A = 100°C 36

Power Dissipation

R_qJA (Notes 1, 2) T_A = 25°C PD 4.2 W

T_A = 100°C 2.1

Pulsed Drain Current T_A = 25°C, tp = 10 ms I_DM 900 A Operating Junction and Storage Temperature

Range T_J, T_stg −55 to

+175 °C

Source Current (Body Diode) I_S 236 A

Single Pulse Drain−to−Source Avalanche

Energy (IL(pk) = 39 A) E_AS 1640 mJ

Lead Temperature Soldering Reflow for Solder-

ing Purposes (1/8″ from case for 10 s) T_L 260 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL RESISTANCE MAXIMUM RATINGS

Parameter Symbol Value Unit

Junction−to−Case − Steady State (Note 2) R_qJC 0.53 °C/W Junction−to−Ambient − Steady State (Note 2) R_qJA 36

1. Surface−mounted on FR4 board using a 1 in² pad size, 2 oz. Cu pad.

2. The entire application environment impacts the thermal resistance values shown, they are not constants and are only valid for the particular conditions noted.

Device Package Shipping^† ORDERING INFORMATION

www.onsemi.com

NVBLS001N06C H−PSOF8L

(Pb−Free) 2000 / Tape &

Reel H−PSOF8L

CASE 100CU S G

D

V_(BR)DSS R_DS(ON) MAX I_D MAX

60 V 0.9 mW @ 10 V 422 A

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D.

OFF CHARACTERISTICS

Drain−to−Source Breakdown Voltage V_(BR)DSS I_D = 250 mA, VGS = 0 V 60 V

Drain−to−Source Breakdown Voltage

Temperature Coefficient V_(BR)DSS/T_J I_D = 562 mA, ref to 25°C 26 mV/°C

Zero Gate Voltage Drain Current I_DSS V_DS = 60 V,

V_GS = 0 V T_J = 25°C 10 mA

T_J = 125°C 100 mA

Gate−to−Source Leakage Current I_GSS V_DS = 0 V, V_GS = 20 V 100 nA

ON CHARACTERISTICS (Note 3)

Gate Threshold Voltage V_GS(th) V_GS = V_DS, I_D = 562 mA 2.0 2.8 4.0 V

Negative Threshold Temperature Coefficient V_GS(th)/T_J ID = 562 mA, ref to 25°C 9.9 mV/°C

Drain−to−Source On Resistance R_DS(on) V_GS = 10 V, I_D = 80 A 0.75 0.9 mW

Forward Transconductance g_FS V_DS = 5 V, I_D = 80 A 290 S

CHARGES & CAPACTIANCES

Input Capacitance C_iss V_GS = 0 V, V_DS = 30 V, f = 10 kHz 11575 pF

Output Capacitance C_oss 5973 pF

Reverse Transfer Capacitance C_rss 76 pF

Total Gate Charge Q_G(tot) V_GS = 10 V, V_DS = 30 V,

ID = 80 A 143 nC

Threshold Gate Charge QG(th) 31 nC

Gate−to−Source Charge Qgs 54 nC

Gate−to−Drain Charge Qgd 13 nC

SWITCHING CHARACTERISTICS, V_GS = 10 V (Note 3)

Turn−On Delay Time td(on) V_GS = 10 V, V_DS = 30 V,

I_D = 80 A, R_G = 6 W 34 ns

Rise Time tr 53 ns

Turn−Off Delay Time td(off) 119 ns

Fall Time tf 91 ns

DRAIN−SOURCE DIODE CHARACTERISTICS

Forward Diode Voltage V_SD I_S = 80 A, V_GS = 0 V T_J = 25°C 0.79 1.2 V

I_S = 80 A, V_GS = 0 V T_J = 125°C 0.66 V Reverse Recovery Time t_rr V_GS = 0 V, dI_S/d_t = 100 A/ms,

IS = 56 A 120 ns

Charge Time t_a 60 ns

Discharge Time t_b 60 ns

Reverse Recovery Charge Q_rr 322 nC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

3. Switching characteristics are independent of operating junction temperatures

TYPICAL CHARACTERISTICS

Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics

Figure 3. On−Resistance vs. V_GS Figure 4. On−Resistance vs. Drain Current and Gate Voltage

TJ, JUNCTION TEMPERATURE (°C) 100 75 50 0.7 25

Figure 5. On−Resistance Variation with Temperature

Figure 6. Drain−to−Source Leakage Current vs. Voltage

40 30

20 10

IDSS, LEAKAGE CURRENT (nA) V_GS = 10 V

I_D = 80 A

1.4

0 1.6

0 1.0

150

1K

100

175 10

10K 1M

100K VDS, DRAIN−TO−SOURCE VOLTAGE (V)

1.0 0 0.5

800 1200

4.0 3.0

02.5 300

ID, DRAIN CURRENT (A)

TJ = 125°C

VGS = 6 V T_J = −55°C

4.5 5.5

V_GS = 5.0 V

2.0

200

1.5 3.0

6.0 V

200 600 400

V_DS = 5 V

0.0

10 V & 8 V

100

I_D, DRAIN CURRENT (A) 250

100 200

0 50

−50 50 60

1000

3.5 5.0

V_GS = 10 V

0.8 1.2 1.8

−25 125

RDS(on), NORMALIZED DRAIN− SOURCE ON−RESISTANCE

150 300

T_J = 25°C

T_J = 85°C T_J = 125°C

V_GS = 0 V TJ = 175°C

4.5 V

400

2.5

500

V_GS, GATE−TO−SOURCE VOLTAGE (V) ID, DRAIN CURRENT (A)

8 7.5 7 0.5 6.5

T_J = 25°C I_D = 80 A 2.25

1.5 1.75

6 1.0

9 4.5 5

0.75 1.25 2.0

5.5 8.5

V_GS, GATE−TO−SOURCE VOLTAGE (V) RDS(on), DRAIN−SOURCE RESISTANCE (mW) 3.0

2.5

10 9.5 R, DRAIN−SOURCE RESISTANCE (mW)DS(on)

1.3 1.5

0.9 1.1 1.7

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) T_J = 150°C

7.0 V

700 1100

100 500 300 900

2.75

0.5 2.25

1.5 1.75

1.0 0.75 1.25 2.0 3.0

2.5 2.75

350 400 VGS = 7 V VGS = 5.5 V V_GS = 5 V

Figure 7. Capacitance Variation Figure 8. Gate−to−Source Voltage vs. Total Gate Charge

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) 100

1K

Figure 9. Resistive Switching Time Variation

vs. Gate Resistance Figure 10. Diode Forward Voltage vs. Current

Figure 11. Maximum Rated Forward Biased

Safe Operating Area Figure 12. Avalanche Characteristics

CAPACITANCE (pF)

100K

10K

Q_G, TOTAL GATE CHARGE (nC) 0

2

VGS, GATE−TO−SOURCE VOLTAGE (V) 10

20 0 6 8

80 V_GS = 0 V

T_J = 25°C f = 10 kHz

C_iss

40 60 100

4 C_oss

Crss

100 10 20 30 40 50 60

1 3 11

7 9

5

160 120 140 Q_GS

VDS = 30 V I_D = 80 A T_J = 25°C

R_G, GATE RESISTANCE (W) VSD, SOURCE−TO−DRAIN VOLTAGE (V)

10 101

100

0.9

0.8 1.0

0.7 0.6 0.5 0.4 0.1 0.3

VDS, DRAIN−TO−SOURCE VOLTAGE (V) TIME IN AVALANCHE (s)

1000 10

1 0.10.1

10 100 1000

1 10

t, TIME (ns) IS, SOURCE CURRENT (A)

ID, DRAIN CURRENT (A) IPEAK (A)

V_GS = 10 V V_DS = 30 V I_D = 80 A

t_d(off)

t_d(on) tf

t_r

V_GS = 0 V

T_J = 25°C TJ = −55°C

T_J(initial) = 100°C

T_J(initial) = 25°C

0.01 RDS(on) Limit

Thermal Limit Package Limit

10 ms

0.5 ms 1 ms 10 ms Single Pulse

T_C = 25°C V_GS ≤ 10 V

0.001 1000

T_J = 150°C 10

100

0.0001 100

1

Q_T

100 1000

1 100 1000

0.2 1.1

T_J = 175°C

Q_GD

TYPICAL CHARACTERISTICS

0.001 0.1 1 10 100

0.000001 0.00001 0.0001 0.001 0.01 0.1 1 10 100 1000

Figure 13. Thermal Characteristics (Junction−to−Ambient) PULSE TIME (sec)

R(t) (°C/W)

Single Pulse 50% Duty Cycle

20%

10%

5%

2%

1%

0.01

R_qJA Steady State = 36°C/W

CASE 100CU ISSUE B

DATE 20 MAY 2022

A = Assembly Location Y = Year

WW = Work Week ZZ = Assembly Lot Code XXXX = Specific Device Code

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.

GENERIC MARKING DIAGRAM*

AYWWZZ

XXXXXXXX XXXXXXXX
