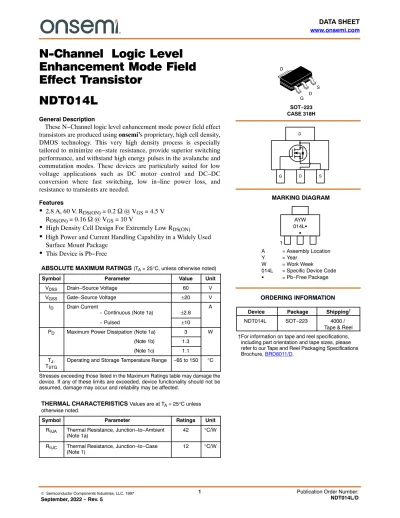

N-Channel Logic LevelEnhancement Mode FieldEffect TransistorNDT014L

N-Channel Logic Level Enhancement Mode Field Effect Transistor

NDT014L

General Description

These N−Channel logic level enhancement mode power field effect transistors are produced using onsemi’s proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on−state resistance, provide superior switching performance, and withstand high energy pulses in the avalanche and commutation modes. These devices are particularly suited for low voltage applications such as DC motor control and DC–DC conversion where fast switching, low in−line power loss, and resistance to transients are needed.

Features

w 2.8 A, 60 V. R

= 0.2 W @ V

= 4.5 V R

= 0.16 W @ V

= 10 V

w High Density Cell Design For Extremely Low R

w High Power and Current Handling Capability in a Widely Used Surface Mount Package

w This Device is Pb−Free

ABSOLUTE MAXIMUM RATINGS (T_A = 25°C, unless otherwise noted)

Symbol Parameter Value Unit

V_DSS Drain−Source Voltage 60 V

VGSS Gate−Source Voltage ±20 V

I_D Drain Current

− Continuous (Note 1a) ±2.8 A

− Pulsed ±10

P_D Maximum Power Dissipation (Note 1a) 3 W

(Note 1b) 1.3

(Note 1c) 1.1

TJ, TSTG

Operating and Storage Temperature Range −65 to 150 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL CHARACTERISTICS Values are at TA = 25°C unless otherwise noted.

Symbol Parameter Ratings Unit

R_qJA Thermal Resistance, Junction−to−Ambient

(Note 1a) 42 °C/W

R_qJC Thermal Resistance, Junction−to−Case

(Note 1) 12 °C/W

MARKING DIAGRAM SOT−223 CASE 318H

Device Package Shipping^† ORDERING INFORMATION

NDT014L SOT−223 4000 /

Tape & Reel

D

D S

G

G D S D

1

AYW 014LG G

A = Assembly Location

Y = Year

W = Work Week

014L = Specific Device Code G = Pb−Free Package

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

ELECTRICAL CHARACTERISTICS Values are at TA = 25°C unless otherwise noted.

Symbol Parameter Conditions Min Typ Max Unit

OFF CHARACTERISTICS

BV_DSS Drain–Source Breakdown Voltage VGS = 0 V, ID = 250 mA 60 − − V

I_DSS Zero Gate Voltage Drain Current V_DS = 60 V, V_GS = 0 V

T_J = 55°C − − 25

250 mA

I_GSSF Gate−Body Leakage, Forward V_GS = 20 V, V_DS = 0 V − − 100 nA

IGSSR Gate−Body Leakage, Reverse VGS = −20 V, VDS = 0 V − − −100 nA

ON CHARACTERISTICS (Note 2)

VGS(th) Gate Threshold Voltage V_DS = V_GS, I_D = 250 mA

T_J = 125°C 1

0.8 1.5

1.1 3

2 V

R_DS(on) Static Drain–Source On–Resistance VGS = 4.5 V, ID = 2.8 A

T_J = 125°C − 0.17

0.22 0.2

0.36 W

VGS = 10 V, ID = 3.4 A − 0.12 0.16

I_D(on) On–State Drain Current V_GS = 4.5 V, V_DS = 5 V 5 − − A

VDS = 10 V, VDS = 5 V 10 − −

g_FS Forward Transconductance V_DS = 5 V, I_D = 2.8 A − 4.2 − S

DYNAMIC CHARACTERISTICS

C_iss Input Capacitance V_DS = 30 V, V_GS = 0 V,

f = 1.0 MHz − 214 − pF

C_oss Output Capacitance − 70 − pF

Crss Reverse Transfer Capacitance − 27 − pF

SWITCHING CHARACTERISTICS (Note 2)

t_d(on) Turn–On Delay Time VDD = 30 V, ID = 3 A,

V_GEN = 10 V, R_GEN = 12 W − 6 12 ns

t_r Turn–On Rise Time − 14 25 ns

t_d(off) Turn–Off Delay Time − 15 28 ns

tf Turn–Off Fall Time − 10 18 ns

Q_g Total Gate Charge V_DS = 10 V, I_D = 2.8 A,

V_GS = 4.5 V − 36 5 nC

Q_gs Gate–Source Charge − 0.8 − nC

Q_gd Gate–Drain Charge − 1.4 − nC

DRAIN–SOURCE DIODE CHARACTERISTICS AND MAXIMUM RATINGS

IS Maximum Continuous Drain–Source Diode Forward Current − − 2.3 A

V_SD Drain–Source Diode Forward

Voltage V_GS = 0 V, I_S = 2.3 A (Note 2) − 0.85 1.3 V

t_rr Reverse Recovery Time V_GS = 0 V, I_F = 2.3 A, d_iF/d_t = 100 A/ms − − 140 ns Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

1. R_qJA is the sum of the junction−to−case and case−to−ambient resistance where the case thermal reference is defined as the solder mounting surface of the drain pins. R_qJC is guaranteed by design while R_qCA is determined by the user’s board design.

P_D(t)+T_J*T_A

R_qJA(t) + T_J*T_A

R_qJC)R_qCA(t)+I²_D(t) R_DS(on)@TJ

Applications on 4.5”x5” FR−4 PCB under still air environment, typical R_qJA is found to be:

a. 42°C/W with 1 in² of 2 oz copper mounting pad.

b. 95°C/W with 0.066 in² of 2 oz copper mounting pad.

c. 110°C/W with 0.0123 in² of 2 oz copper mounting pad.

Scale 1 : 1 on letter size paper 2. Pulse Test: Pulse Width ≤ 300 ms, Duty Cycle ≤2.0%.

TYPICAL CHARACTERISTICS

0.5 0 1.25

0.5−50

0.5 0 00

Figure 1. On−Region Characteristics Figure 2. On−Resistance Variation with Gate Voltage and Drain Current

Figure 3. On−Resistance Variation with Temperature

Figure 4. On−Resistance Variation with Drain Current and Temperature

Figure 5. Transfer Characteristics Figure 6. Gate Threshold Variation with Temperature

V_DS, Drain−Source Voltage (V) ID , Drain−Source Current (A)

I_D, Drain Current (A) RDS(on), Normalized Drain−Source On−Resistance

T_J, Junction Temperature (5C) RDS(on), Normalized Drain−Source On−Resistance

00

V_GS, Gate to Source Voltage (V) ID, Drain Current (A)

I_D, Drain Current (A) RDS(on), Normalized Drain−Source On−Resistance

0.7−50

T_J, Junction Temperature (5C) VGS(th), Normalized Gate−Source Threshold Voltage

2 4 6 8 10

1 2 3 4 5

VGS = 10 V

6.0 5.0

4.5 4.0

3.5

3.0

2.5

1 1.25 1.5 1.75 2

0.75

2 4 6 8 10

VGS = 3.0 V

3.5

4.0

4.5 5.0 6.0

10

I_D = 2.8 A V_GS = 4.5 V

0.75 1 1.5 1.75

−25 0 25 50 75 100 125 150

1.25

0.5 0.75 1 1.5 1.75

1.5

0.75 1.25 1.75 2

2 4 6 8 10

VGS = 4.5 V T_J = 125°C

25°C

−55°C 1

T_J = −55°C 25°C

125°C V_DS = 5 V

2 4 6 8 10

1 2 3 4 5 6

1.1 1 1.2

0.9 0.8

−25 0 25 50 75 100 125 150

VDS = VGS

ID = 250 mA 3.0

TYPICAL CHARACTERISTICS

Figure 7. Breakdown Voltage Variation with Temperature

Figure 8. Body Diode Forward Voltage Variation with Current and Temperature

Figure 9. Capacitance Characteristics Figure 10. Gate Charge Characteristics

Figure 11. Switching Test Circuit Figure 12. Switching Waveforms 0.92−50

T_J, Junction Temperature (5C) BVDSS , Normalized Drain−Source Breakdown Voltage

0.00010.2

V_SD, Body Diode Forward Voltage (V) IS, Reverse Drain Current (A)

100.1

V_DS, Drain to Source Voltage (V)

Capacitance (pF)

0 0

Q_g, Gate Charge (nC) VGS, Gate−Source Voltage (V)

0.96 1 1.04 1.08 1.12

I_D = 250 mA

−25 0 25 50 75 100 125 150

0.001 10

0.01 0.1 1

0.4 0.6 0.8 1 1.2

T_J = 125°C 25°C T_J = 125°C

−55°C VGS = 0 V

20 50 100 200 500 700

Crss

C_oss C_iss

f = 1 MHz VGS = 0 V

V_DS = 5 V ID = 2.8 A

0.2 0.5 1 2 5 10 20 40 60

2 4 6 8 10

2 4 6 8 10

10 V 20 V

D VGS

td(on)

R_GEN

V_DD VIN

G S

V_OUT DUT

V_OUT

V_IN

t_on t_r

PULSE WIDTH t_d(off)

INVERTED t_off

tf 90%

10%

50%

10%

50%

90%

10%

90%

R_L

TYPICAL CHARACTERISTICS

Figure 13. Transconductance Variation with Drain Current and Temperature

Figure 14. SOT−223 Maximum Steady− State Power Dissipation versus Copper

Mounting Pad Area

Figure 15. Maximum Steady− State Drain Current versus Copper Mounting Pad

Area

Figure 16. Maximum Safe Operating Area

Figure 17. Typical Transient Thermal Impedance Curve 00

I_D, Drain Current (A) gFS, Transconductance (SIEMENS)

0.50

2oz Copper Mounting Pad Area (in²) Steady−State Power Dissipation (W)

00

2oz Copper Mounting Pad Area (in²) ID, Steady−State Drain Current(A)

t₁ , Time (sec) r(t), Normalized Effective Transient Thermal Resistance

0.01

V_DS, Drain−Source Voltage (V) ID , Drain Current (A)

2 4 6 8

2 4 6 8 10

V_DS = 5 V

T_J = −55°C 25°C

125°C

4.5”x5” FR−4 Board T_A = 25°C Still Air 1.5

2 2.5 3 3.5

1

0.2 0.4 0.6 0.8 1

1a

1c 1b

1 2 3 4

0.1 0.2 0.3 0.4 0.5

4.5”x5” FR−4 Board T_A = 25°C

Still Air V_GS = 4.5 V 1c 1b

1a

V_GS = 4.5 V Single Pulse R_qJA = See Note 1c

T_C = 25°C

R_DS(ON) LIMIT _{10 ms 100 ms} ^{10 ms}

100 ms

0.1 0.5 1 2 5 10 30 50 80

0.1 0.5 1 5 10 20

0.05

1 s 10 s

DC

0.001 0.02 0.05 0.1 0.2 0.5 1

0.01 0.005 0.002

0.0001 0.001 0.01 0.1 1 10 100 300

Thermal characterization performed under the conditions of Note 1c. Should better thermal design employs, R_qJA will be lower and reach thermal equivalent sooner.

D = 0.5 0.2

0.1 0.05

0.02 0.01 Single Pulse

P(pk) t1

t2

R_qJA (t) = r(t) x R_qJA R_qJA = See Note 1c

T_J − T_A = P x R_qJA (t) Duty Cycle, D = t₁ / t₂

SOT−223 CASE 318H

ISSUE B

DATE 13 MAY 2020 SCALE 2:1

1

A = Assembly Location

Y = Year

W = Work Week

XXXXX = Specific Device Code G = Pb−Free Package GENERIC

MARKING DIAGRAM*

AYW XXXXXG

G

(Note: Microdot may be in either location)

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.
