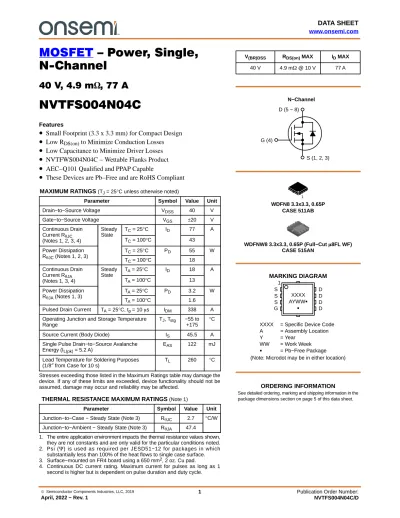

MOSFET – Power, Single, N-Channel

MOSFET – Power, Single, N-Channel

40 V, 4.9 m W , 77 A

NVTFS004N04C

Features

• Small Footprint (3.3 x 3.3 mm) for Compact Design

• ^{Low R}

to Minimize Conduction Losses

• Low Capacitance to Minimize Driver Losses

• NVTFWS004N04C − Wettable Flanks Product

• AEC−Q101 Qualified and PPAP Capable

• These Devices are Pb−Free and are RoHS Compliant

Parameter Symbol Value Unit

Drain−to−Source Voltage V_DSS 40 V

Gate−to−Source Voltage V_GS ±20 V

Continuous Drain Current R_qJC (Notes 1, 2, 3, 4)

Steady State

T_C = 25°C I_D 77 A

T_C = 100°C 43

Power Dissipation R_qJC (Notes 1, 2, 3)

T_C = 25°C P_D 55 W

T_C = 100°C 18

Continuous Drain Current R_qJA (Notes 1, 3, 4)

Steady State

T_A = 25°C I_D 18 A

T_A = 100°C 13

Power Dissipation R_qJA (Notes 1, 3)

T_A = 25°C P_D 3.2 W T_A = 100°C 1.6 Pulsed Drain Current T_A = 25°C, t_p = 10 ms I_DM 338 A Operating Junction and Storage Temperature

Range

T_J, T_stg −55 to +175 °C

Source Current (Body Diode) I_S 45.5 A

Single Pulse Drain−to−Source Avalanche Energy (I_L(pk) = 5.2 A)

E_AS 122 mJ

Lead Temperature for Soldering Purposes (1/8″ from Case for 10 s)

T_L 260 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL RESISTANCE MAXIMUM RATINGS (Note 1)

Parameter Symbol Value Unit

Junction−to−Case − Steady State (Note 3) R_qJC 2.7 °C/W Junction−to−Ambient − Steady State (Note 3) R_qJA 47.4

1. The entire application environment impacts the thermal resistance values shown, they are not constants and are only valid for the particular conditions noted.

2. Psi (Y) is used as required per JESD51−12 for packages in which substantially less than 100% of the heat flows to single case surface.

3. Surface−mounted on FR4 board using a 650 mm², 2 oz. Cu pad.

V_(BR)DSS R_DS(on) MAX I_D MAX 40 V 4.9 mW @ 10 V 77 A

N−Channel D (5 − 8)

S (1, 2, 3) G (4)

See detailed ordering, marking and shipping information in the package dimensions section on page 5 of this data sheet.

ORDERING INFORMATION WDFN8 3.3x3.3, 0.65P

CASE 511AB

MARKING DIAGRAM

(Note: Microdot may be in either location)

1

XXXX = Specific Device Code A = Assembly Location

Y = Year

WW = Work Week G = Pb−Free Package

1

XXXX AYWWG

G

D D D D S

S S G

WDFNW8 3.3x3.3, 0.65P (Full−Cut m8FL WF) CASE 515AN

Parameter Symbol Test Condition Min Typ Max Unit OFF CHARACTERISTICS

Drain−to−Source Breakdown Voltage V_(BR)DSS V_GS = 0 V, I_D = 250 mA 40 − − V Zero Gate Voltage Drain Current I_DSS V_GS = 0 V,

V_DS = 40 V

T_J = 25°C − − 10 mA

T_J = 125°C − − 250

Gate−to−Source Leakage Current I_GSS V_DS = 0 V, V_GS = 20 V − − 100 nA

ON CHARACTERISTICS (Note 5)

Gate Threshold Voltage V_GS(TH) V_GS = V_DS, I_D = 50 mA 2.5 − 3.5 V

Drain−to−Source On Resistance R_DS(on) V_GS = 10 V, I_D = 35 A − 4.1 4.9 mW

Forward Transconductance g_FS V_DS = 15 V, I_D = 35 A − 57 − S

CHARGES AND CAPACITANCES

Input Capacitance C_iss V_GS = 0 V, f = 1.0 MHz, V_DS = 25 V

− 1150 − pF

Output Capacitance C_oss − 600 −

Reverse Transfer Capacitance C_rss − 25 −

Threshold Gate Charge Q_G(TH) V_GS = 10 V, V_DS = 32 V, I_D = 35 A − 3.7 − nC

Gate−to−Source Charge Q_GS − 5.7 −

Gate−to−Drain Charge Q_GD − 3.0 −

Total Gate Charge Q_G(TOT) V_GS = 10 V, V_DS = 32 V, I_D = 35 A − 18 − nC

SWITCHING CHARACTERISTICS (Note 6)

Turn−On Delay Time t_d(on) V_GS = 10 V, V_DS = 32 V, I_D = 35 A

− 12 − ns

Rise Time t_r − 80 −

Turn−Off Delay Time t_d(off) − 26 −

Fall Time t_f − 8 −

DRAIN−SOURCE DIODE CHARACTERISTICS

Forward Diode Voltage V_SD V_GS = 0 V, I_S = 35 A

T_J = 25°C − 0.82 1.2 V

T_J = 125°C − 0.69 −

Reverse Recovery Time t_RR V_GS = 0 V, dl_S/dt = 100 A/ms, I_S = 35 A

− 33 − ns

Charge Time t_a − 16 −

Discharge Time t_b − 17 −

Reverse Recovery Charge Q_RR − 18 − nC

5. Pulse Test: Pulse Width ≤ 300 ms, Duty Cycle ≤ 2%.

6. Switching characteristics are independent of operating junction temperatures.

TYPICAL CHARACTERISTICS

4.0 V

Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics V_DS, DRAIN−TO−SOURCE VOLTAGE (V) V_GS, GATE−TO−SOURCE VOLTAGE (V)

3 1

0 0 20 100

3.5 3.0 0 60

Figure 3. On−Resistance vs. Gate−to−Source Voltage

Figure 4. On−Resistance vs. Drain Current and Gate Voltage

V_GS, GATE−TO−SOURCE VOLTAGE (V) I_D, DRAIN CURRENT (A)

10 8

6 0

75 0

6

Figure 5. On−Resistance Variation with Temperature

Figure 6. Drain−to−Source Leakage Current vs. Voltage

T_J, JUNCTION TEMPERATURE (°C) V_DS, DRAIN−TO−SOURCE VOLTAGE (V) 150

125 100 75 25

0

−25

−50 1.0 1.4 1.8 2.0

40 35 30 25 15

5

ID, DRAIN CURRENT (A) ID, DRAIN CURRENT (A)

RDS(on), DRAIN−TO−SOURCE RESISTANCE (mW) RDS(on), DRAIN−TO−SOURCE RESISTANCE (mW)

RDS(on), NORMALIZED DRAIN−TO− SOURCE RESISTANCE IDSS, LEAKAGE (nA)

T_J = 125°C T_J = 25°C

T_J = −55°C

T_J = 25°C I_D = 35 A

T_J = 25°C

V_GS = 10 V

V_GS = 10 V I_D = 35 A

50 175

T_J = 125°C T_J = 85°C 80

120

8 20

100

10 20

T_J = 150°C 4.0 V_GS = 10 V to 8 V

1K

2 5.5

35 55

T_J = 175°C

T_J = 25°C 10K

0.6

10

5 15

16

1 80

200

140

4.8 V

7 12

0.8 1.2 1.6

20

25 45

1 4

9

5.0 100

V_DS = 10 V

4 3 2

65 60

180

6.0 40

7.0 V

4.4 V 6.0 V 5.6 V 5.2 V

4.5

5 4 24 28

100K 40

120 160

0.4 0.1

5

Figure 7. Capacitance Variation Figure 8. Gate−to−Source Voltage vs. Total Charge

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) Q_G, TOTAL GATE CHARGE (nC)

40 30

20 10

0 1 100

6 0

0 2 4 6 8 10

Figure 9. Resistive Switching Time Variation vs. Gate Resistance

Figure 10. Diode Forward Voltage vs. Current

R_G, GATE RESISTANCE (W) V_SD, SOURCE−TO−DRAIN VOLTAGE (V)

100 10

1 1

0.9

0.8 1.0

0.7 0.6 0.5 0.3

0.1

Figure 11. Maximum Rated Forward Biased Safe Operating Area

Figure 12. I_PEAK vs. Time in Avalanche

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) TIME IN AVALANCHE (s)

1000 10

1 0.1

0.1 10 100 1000

10

C, CAPACITANCE (pF) VGS, GATE−TO−SOURCE VOLTAGE (V)

t, TIME (ns) IS, SOURCE CURRENT (A)

ID, DRAIN CURRENT(A) IPEAK (A)

V_GS = 0 V T_J = 25°C f = 1 MHz

C_ISS C_OSS

C_RSS

V_DS = 32 V T_J = 25°C I_D = 35 A

Q_GS Q_GD

V_GS = 10 V V_DS = 32 V I_D = 35 A t_d(off)

t_d(on) t_f t_r

T_J = 25°C T_J = −55°C

T_J(initial) = 100°C

T_J(initial) = 25°C

0.00001 0.01

R_DS(on) Limit Thermal Limit Package Limit

10 ms 0.5 ms 1 ms 10 ms T_C = 25°C

Single Pulse V_GS≤ 10 V 10K

0.001 100

35 25

15 5

T_J = 125°C 100

8 1

3 5 7 9

V_GS = 0 V

0.0001 1K

10

10

1

100

0.1 2

1000

14 10

10

4 12

0.4 100

1

20 16 18

1

TYPICAL CHARACTERISTICS

Figure 13. Thermal Characteristics PULSE TIME (sec)

1000 10

0.1 0.0001

0.000001 0.01

0.1

R(t) (°C/W)

10 100

100 1

0.01

0.00001 0.001

1

Single Pulse Duty Cycle = 0.5 0.2

0.1 0.05 0.02 0.01

DEVICE ORDERING INFORMATION

Device Marking Package Shipping^†

NVTFS004N04CTAG 04NC WDFN8 3.3x3.3, 0.65P

(Pb−Free)

1500 / Tape & Reel

NVTFWS004N04CTAG 04NW WDFNW8 3.3x3.3, 0.65P

(Full−Cut m8FL WF) (Pb−Free, Wettable Flanks)

1500 / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

M 1.40 1.50 q 0 _ −−− ^1.6012 _ WDFN8 3.3x3.3, 0.65P

CASE 511AB ISSUE D

DATE 23 APR 2012 SCALE 2:1

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: MILLIMETERS.

3. DIMENSION D1 AND E1 DO NOT INCLUDE MOLD FLASH PROTRUSIONS OR GATE BURRS.

1 2 3 4 5 6

TOP VIEW

SIDE VIEW

BOTTOM VIEW D1

E1 q

D

E A B

0.20 C

0.20 C

2X

2X

DIM MIN NOM MILLIMETERS A 0.70 0.75 A1 0.00 −−−

b 0.23 0.30 c 0.15 0.20 D1D 2.95 3.05 D2 1.98 2.11

E

E1 2.95 3.05 E2 1.47 1.60

e 0.65 BSC

G 0.30 0.41 K 0.65 0.80 L 0.30 0.43 L1 0.06 0.13

A 0.10 C

0.10 C

DETAIL A

1 4

8 L1

e/2

8X

G D2 E2

K b

A 0.10 C B 0.05 C

L

DETAIL A

A1

6Xe c

4X

C

SEATING PLANE 1

5

MAX0.80 0.05 0.40 0.25 3.15 2.24 3.15 1.73

0.51 0.95 0.56 0.20

M

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

SOLDERING FOOTPRINT*

0.65 0.42

0.75 2.30

3.46

PACKAGE 8X

0.055 0.059 0 _ −−− ^0.06312 _

0.028 0.030

0.000 −−−

0.009 0.012 0.006 0.008 0.116 0.120 0.078 0.083 0.116 0.120 0.058 0.063 0.026 BSC 0.012 0.016 0.026 0.032 0.012 0.017 0.002 0.005

0.031 0.002 0.016 0.010 0.124 0.088 0.124 0.068

0.020 0.037 0.022 0.008 MIN NOM

INCHES 7 MAX

8

PITCH

3.60 0.57

0.47

OUTLINE

DIMENSION: MILLIMETERS 3.30 BSC

3.30 BSC

0.130 BSC

0.130 BSC

2.37

0.66^4X

GENERIC MARKING DIAGRAM*

XXXXX = Specific Device Code A = Assembly Location

Y = Year

WW = Work Week G = Pb−Free Package

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “ G”, may or may not be present.

XXXXX AYWWG

G 1

E3 0.23 0.30 0.40 0.009 0.012 0.016

E3

4X

98AON30561E DOCUMENT NUMBER:

DESCRIPTION:

Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

PAGE 1 OF 1 WDFN8 3.3X3.3, 0.65P

WDFNW8 3.3x3.3, 0.65P (Full−Cut m8FL WF) CASE 515AN

ISSUE O

DATE 25 AUG 2020

XXXX = Specific Device Code A = Assembly Location Y = Year

WW = Work Week G = Pb−Free Package

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.

GENERIC MARKING DIAGRAM*

XXXX AYWWG

G (Note: Microdot may be in either location)

PACKAGE DIMENSIONS

98AON24556H DOCUMENT NUMBER:

DESCRIPTION:

Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

PAGE 1 OF 1 WDFNW8 3.3x3.3, 0.65P (Full−Cut m8FL WF)
