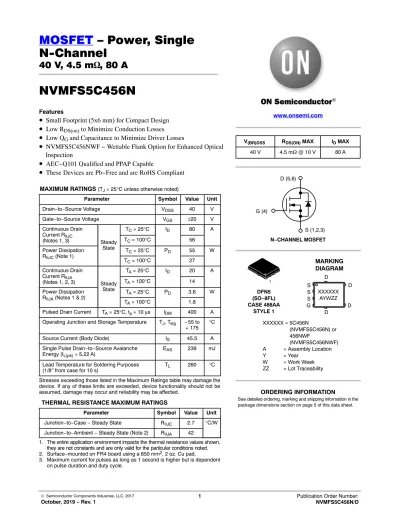

MOSFET – Power, Single N-Channel

N-Channel

40 V, 4.5 m W , 80 A

NVMFS5C456N

Features

• Small Footprint (5x6 mm) for Compact Design

• ^{Low R}

to Minimize Conduction Losses

• ^{Low Q}

and Capacitance to Minimize Driver Losses

• NVMFS5C456NWF − Wettable Flank Option for Enhanced Optical Inspection

• AEC−Q101 Qualified and PPAP Capable

• These Devices are Pb−Free and are RoHS Compliant

Parameter Symbol Value Unit

Drain−to−Source Voltage V_DSS 40 V

Gate−to−Source Voltage V_GS ±20 V

Continuous Drain Current R_qJC

(Notes 1, 3) Steady State

TC = 25°C ID 80 A

T_C = 100°C 56

Power Dissipation

R_qJC (Note 1) TC = 25°C PD 55 W

TC = 100°C 27

Continuous Drain Current R_qJA

(Notes 1, 2, 3) Steady State

T_A = 25°C ID 20 A

T_A = 100°C 14

Power Dissipation

R_qJA (Notes 1 & 2) T_A = 25°C PD 3.6 W

T_A = 100°C 1.8

Pulsed Drain Current T_A = 25°C, tp = 10 ms I_DM 400 A Operating Junction and Storage Temperature T_J, T_stg −55 to

+ 175 °C

Source Current (Body Diode) I_S 45.5 A

Single Pulse Drain−to−Source Avalanche

Energy (IL(pk) = 5.22 A) E_AS 239 mJ

Lead Temperature for Soldering Purposes

(1/8″ from case for 10 s) T_L 260 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL RESISTANCE MAXIMUM RATINGS

Parameter Symbol Value Unit

Junction−to−Case − Steady State R_qJC 2.7 °C/W Junction−to−Ambient − Steady State (Note 2) R_qJA 42

1. The entire application environment impacts the thermal resistance values shown, they are not constants and are only valid for the particular conditions noted.

2. Surface−mounted on FR4 board using a 650 mm², 2 oz. Cu pad.

3. Maximum current for pulses as long as 1 second is higher but is dependent on pulse duration and duty cycle.

MARKING DIAGRAM www.onsemi.com

XXXXXX AYWZZ G (4)

S (1,2,3) N−CHANNEL MOSFET

D (5,6)

S S S G

D

D D

D DFN5

(SO−8FL) CASE 488AA

STYLE 1

1

See detailed ordering, marking and shipping information in the package dimensions section on page 5 of this data sheet.

ORDERING INFORMATION XXXXXX = 5C456N

XXXXXX = (NVMFS5C456N) or XXXXXX = 456NWF

XXXXXX = (NVMFS5C456NWF) A = Assembly Location

Y = Year

W = Work Week ZZ = Lot Traceability

V_(BR)DSS R_DS(ON) MAX I_D MAX 40 V 4.5 mW @ 10 V 80 A

Parameter Symbol Test Condition Min Typ Max Unit OFF CHARACTERISTICS

Drain−to−Source Breakdown Voltage V(BR)DSS VGS = 0 V, ID = 250 mA 40 V

Drain−to−Source Breakdown Voltage

Temperature Coefficient V(BR)DSS/

T_J 23 mV/°C

Zero Gate Voltage Drain Current I_DSS V_GS = 0 V,

V_DS = 40 V T_J = 25 °C 10

T_J = 125°C 250 mA

Gate−to−Source Leakage Current I_GSS V_DS = 0 V, V_GS = 20 V 100 nA

ON CHARACTERISTICS (Note 4)

Gate Threshold Voltage V_GS(TH) V_GS = V_DS, I_D = 250 mA 2.5 3.5 V

Threshold Temperature Coefficient V_GS(TH)/T_J −6.5 mV/°C

Drain−to−Source On Resistance R_DS(on) V_GS = 10 V I_D = 35 A 3.8 4.5 mV/°C

Forward Transconductance g_FS V_DS =15 V, I_D = 35 A 57 S

CHARGES, CAPACITANCES & GATE RESISTANCE

Input Capacitance C_ISS

V_GS = 0 V, f = 1 MHz, V_DS = 25 V

1150

Output Capacitance C_OSS 600 pF

Reverse Transfer Capacitance C_RSS 25

Total Gate Charge Q_G(TOT)

VGS = 10 V, VDS = 32 V; ID = 35 A

18

Threshold Gate Charge Q_G(TH) 3.7 nC

Gate−to−Source Charge Q_GS 5.7

Gate−to−Drain Charge Q_GD 3.0

Plateau Voltage V_GP 4.5 V

SWITCHING CHARACTERISTICS (Note 5)

Turn−On Delay Time t_d(ON)

V_GS = 10 V, V_DS = 32 V, ID = 35 A, RG = 1 W

12

Rise Time tr 80 ns

Turn−Off Delay Time td(OFF) 26

Fall Time tf 8

DRAIN−SOURCE DIODE CHARACTERISTICS

Forward Diode Voltage V_SD V_GS = 0 V,

I_S = 35 A

TJ = 25°C 0.82 1.2

TJ = 125°C 0.69 V

Reverse Recovery Time tRR

VGS = 0 V, dIS/dt = 100 A/ms, I_S = 35 A

33

Charge Time ta 16 ns

Discharge Time t_b 17

Reverse Recovery Charge Q_RR 18 nC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

4. Pulse Test: pulse width v 300 ms, duty cycle v 2%.

5. Switching characteristics are independent of operating junction temperatures.

TYPICAL CHARACTERISTICS

0 20 40 80 60

3.0 3.5 4.0 5.0 5.5

Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics V_DS, DRAIN−TO−SOURCE VOLTAGE (V) V_GS, GATE−TO−SOURCE VOLTAGE (V)

Figure 3. On−Resistance vs. Gate−to−Source

Voltage Figure 4. On−Resistance vs. Drain Current and Gate Voltage

V_GS, GATE−TO−SOURCE VOLTAGE (V) I_D, DRAIN CURRENT (A)

Figure 5. On−Resistance Variation with

Temperature Figure 6. Drain−to−Source Leakage Current vs. Voltage

T_J, JUNCTION TEMPERATURE (°C) V_DS, DRAIN−TO−SOURCE VOLTAGE (V)

ID, DRAIN CURRENT (A) ID, DRAIN CURRENT (A)

RDS(on), DRAIN−TO−SOURCE RESISTANCE (mW) RDS(on), DRAIN−TO−SOURCE RESISTANCE (mW)

RDS(on), NORMALIZED DRAIN−TO− SOURCE RESISTANCE IDSS, LEAKAGE (nA)

T_J = 125°C TJ = 25°C

T_J = −55°C

T_J = 25°C

VGS = 10 V I_D = 35 A

T_J = 125°C

T_J = 85°C VDS = 3 V

T_J = 150°C 10 V to 8 V

0 20 40 60 100 120 140

0 1 2 3

6.0 V 7.0 V

0 4 6 8 10 12 14

2.5 3.5 4.5 5.5 6.5 7.5 9.5

6

10 20 40 50 100

5

0

30

0.7−50 −25 0 25 50 75 100 125 150 175 10

100 1K 10K 100K

5 15 25 35

160 200

100 120

6.0

16 18 20

4 3 2 1

60 70 80 90

10 20 30 40

8.5

0.9 1.1 1.3 1.5 1.7 1.9 80 180

5.6 V 5.2 V 4.8 V 4.4 V 4.0 V

2

V_GS = 10 V

4.5

Figure 7. Capacitance Variation Figure 8. Gate−to−Source Voltage vs. Total Charge

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) Q_G, TOTAL GATE CHARGE (nC)

Figure 9. Resistive Switching Time Variation

vs. Gate Resistance Figure 10. Diode Forward Voltage vs. Current

R_G, GATE RESISTANCE (W) V_SD, SOURCE−TO−DRAIN VOLTAGE (V)

Figure 11. Safe Operating Area Figure 12. I_PEAK vs. Time in Avalanche

V_DS (V) TIME IN AVALANCHE (s)

C, CAPACITANCE (pF) VGS, GATE−TO−SOURCE VOLTAGE (V)

t, TIME (ns) IS, SOURCE CURRENT (A)

ID, DRAIN CURRENT (A) IPEAK, (A)

V_GS = 0 V T_J = 25°C f = 1 MHz

C_ISS COSS

CRSS

VDS = 32 V I_D = 35 A T_J = 25°C

Q_GS Q_GD

V_GS = 10 V V_DS = 32 V td(off)

t_d(on) t_f t_r

T_J = 25°C T_J = −55°C

TJ (initial) = 100°C

T_J (initial) = 25°C

R_DS(on) Limit Thermal Limit Package Limit

1 ms 10 ms

T_C = 25°C V_GS ≤ 10 V Single Pulse 10

100 1000 10000

0 10 20 30 40 0

2 4 6 8 10

0 10 14 20

1 10

1 10

10

0.4 0.6 0.8 0.9 1.0

1000

1 10 100

0.1 100

10

1

0.1 1

10 100

0.00001 0.001 0.01

5 15 25 35 2 12

1 3 5 7 9

100

0.3

T_J = 125°C V_GS = 0 V

4 6 8 16

100

1

0.1

1000 10 ms

0.5 ms

18

0.5 0.7

0.0001

TYPICAL CHARACTERISTICS

0.01 0.1 1 10 100

0.000001 0.00001 0.0001 0.001 0.01 0.1 1 10 100 1000

Figure 13. Thermal Characteristics PULSE TIME (sec)

R(t) (°C/W)

Single Pulse 50% Duty Cycle 20%

10%

5%

2%

1%

DEVICE ORDERING INFORMATION

Device Marking Package Shipping^†

NVMFS5C456NT1G 5C456N DFN5

(Pb−Free) 1500 / Tape & Reel

NVMFS5C456NWFT1G 456NWF DFN5

(Pb−Free, Wettable Flanks) 1500 / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

M 3.00 3.40 q 0 _ −−− ^3.8012 _ (SO−8FL)

CASE 488AA ISSUE N

DATE 25 JUN 2018 SCALE 2:1

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: MILLIMETER.

3. DIMENSION D1 AND E1 DO NOT INCLUDE MOLD FLASH PROTRUSIONS OR GATE BURRS.

XXXXXX = Specific Device Code A = Assembly Location

Y = Year

W = Work Week

ZZ = Lot Traceability

1 2 3 4

TOP VIEW

SIDE VIEW

BOTTOM VIEW D1

E1 q

D

E 2

2 B A

0.20 C

0.20 C

2 X

2 X

DIM MIN NOM MILLIMETERS A 0.90 1.00 A1 0.00 −−−

b 0.33 0.41 c 0.23 0.28

D 5.15

D1 4.70 4.90 D2 3.80 4.00

E 6.15

E1 5.70 5.90 E2 3.45 3.65

e 1.27 BSC

G 0.51 0.575

K 1.20 1.35

L 0.51 0.575

L1 0.125 REF

A 0.10 C

0.10 C

DETAIL A

1 4

L1 e/2

8X

G D2 E2

K b

A 0.10 C B 0.05 c

L

DETAIL A c A1

4 X

C

SEATING PLANE

GENERIC MARKING DIAGRAM*

1

XXXXXX AYWZZ 1

MAX 1.10 0.05 0.51 0.33 5.10 4.20 6.10 3.85 0.71 1.50 0.71

STYLE 1:

PIN 1. SOURCE 2. SOURCE 3. SOURCE 4. GATE 5. DRAIN

M

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

SOLDERING FOOTPRINT*

1.270

2X

0.750 1.000 0.905

4.530 1.530

4.560 0.495

3.200

1.330

0.965

2X 2X

4X 4X PIN 5

(EXPOSED PAD)

STYLE 2:

PIN 1. ANODE 2. ANODE 3. ANODE 4. NO CONNECT 5. CATHODE

5.00 5.30

6.00 6.30

PITCH

DIMENSIONS: MILLIMETERS

1

RECOMMENDED e

2X

0.475

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “ G”, may or may not be present. Some products may not follow the Generic Marking.
