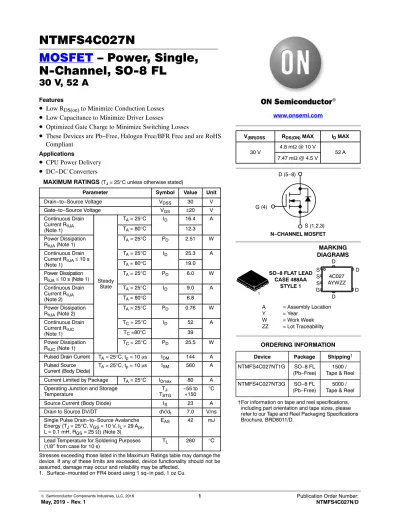

MOSFET – Power, Single, N-Channel, SO-8 FL
30 V, 52 A
Features
• Low R
DS(on)to Minimize Conduction Losses
• Low Capacitance to Minimize Driver Losses
• Optimized Gate Charge to Minimize Switching Losses
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications
• CPU Power Delivery
• DC−DC Converters
MAXIMUM RATINGS (TJ = 25°C unless otherwise stated)
Parameter Symbol Value Unit
Drain−to−Source Voltage VDSS 30 V
Gate−to−Source Voltage VGS ±20 V
Continuous Drain Current RqJA (Note 1)
Steady State
TA = 25°C ID 16.4 A
TA = 80°C 12.3
Power Dissipation
RqJA (Note 1) TA = 25°C PD 2.51 W
Continuous Drain Current RqJA ≤ 10 s (Note 1)
TA = 25°C ID 25.3 A
TA = 80°C 19.0
Power Dissipation
RqJA ≤ 10 s (Note 1) TA = 25°C PD 6.0 W Continuous Drain
Current RqJA (Note 2)
TA = 25°C ID 9.0 A
TA = 80°C 6.8
Power Dissipation
RqJA (Note 2) TA = 25°C PD 0.76 W
Continuous Drain Current RqJC (Note 1)
TC = 25°C ID 52 A
TC =80°C 39
Power Dissipation
RqJC (Note 1) TC = 25°C PD 25.5 W
Pulsed Drain Current TA = 25°C, tp = 10 ms IDM 144 A Pulsed Source
Current (Body Diode) TA = 25°C, tp = 10 ms ISM 560 A Current Limited by Package TA = 25°C IDmax 80 A Operating Junction and Storage
Temperature TJ,
TSTG
−55 to
+150 °C
Source Current (Body Diode) IS 23 A
Drain to Source DV/DT dV/dt 7.0 V/ns
Single Pulse Drain−to−Source Avalanche Energy (TJ = 25°C, VGS = 10 V, IL = 29 Apk, L = 0.1 mH, RGS = 25 W) (Note 3)
EAS 42 mJ
Lead Temperature for Soldering Purposes
(1/8″ from case for 10 s) TL 260 °C
Stresses exceeding those listed in the Maximum Ratings table may damage the
MARKING DIAGRAMS www.onsemi.com
V(BR)DSS RDS(ON) MAX ID MAX 30 V 4.8 mW @ 10 V
7.47 mW @ 4.5 V 52 A
N−CHANNEL MOSFET G (4)
S (1,2,3) D (5−8)
SO−8 FLAT LEAD CASE 488AA
STYLE 1
A = Assembly Location
Y = Year
W = Work Week ZZ = Lot Traceabililty
4C027 AYWZZ
1
Device Package Shipping† ORDERING INFORMATION
NTMFS4C027NT1G SO−8 FL
(Pb−Free) 1500 / Tape & Reel NTMFS4C027NT3G SO−8 FL
(Pb−Free) 5000 / Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.
S S S G
D
D D
D
www.onsemi.com 2
2. Surface−mounted on FR4 board using the minimum recommended pad size.
3. This is the absolute maximum rating. Parts are 100% tested at TJ = 25°C, VGS = 10 V, IL = 21 Apk, EAS = 22 mJ.
THERMAL RESISTANCE MAXIMUM RATINGS
Parameter Symbol Value Unit
Junction−to−Case (Drain) RqJC 4.9
Junction−to−Ambient – Steady State (Note 4) RqJA 49.8 °C/W
Junction−to−Ambient – Steady State (Note 5) RqJA 164.6
Junction−to−Ambient – (t ≤ 10 s) (Note 4) RqJA 21.0
4. Surface−mounted on FR4 board using 1 sq−in pad, 1 oz Cu.
5. Surface−mounted on FR4 board using the minimum recommended pad size.
ELECTRICAL CHARACTERISTICS (TJ = 25°C unless otherwise specified)
Parameter Symbol Test Condition Min Typ Max Unit
OFF CHARACTERISTICS
Drain−to−Source Breakdown Voltage V(BR)DSS VGS = 0 V, ID = 250 mA 30 V
Drain−to−Source Breakdown Voltage
(transient) V(BR)DSSt VGS = 0 V, ID(aval) = 8.4 A,
Tcase = 25°C, ttransient = 100 ns 34 V Drain−to−Source Breakdown Voltage
Temperature Coefficient V(BR)DSS/
TJ 13.8 mV/°C
Zero Gate Voltage Drain Current IDSS VGS = 0 V,
VDS = 24 V TJ = 25°C 1.0
mA
TJ = 125°C 10
Gate−to−Source Leakage Current IGSS VDS = 0 V, VGS = ±20 V ±100 nA
ON CHARACTERISTICS (Note 6)
Gate Threshold Voltage VGS(TH) VGS = VDS, ID = 250 mA 1.3 2.1 V
Negative Threshold Temperature Coefficient VGS(TH)/TJ 4.9 mV/°C
Drain−to−Source On Resistance RDS(on) VGS = 10 V ID = 18 A 4.0 4.8
VGS = 4.5 V ID = 30 A 6.01 7.47 mW
Forward Transconductance gFS VDS = 1.5 V, ID = 15 A 42 S
Gate Resistance RG TA = 25°C 0.3 1.0 2.0 W
CHARGES AND CAPACITANCES
Input Capacitance CISS
VGS = 0 V, f = 1 MHz, VDS = 15 V
1113 1670
Output Capacitance COSS 702 pF
Reverse Transfer Capacitance CRSS 39
Capacitance Ratio CRSS/CISS VGS = 0 V, VDS = 15 V, f = 1 MHz 0.035
Total Gate Charge QG(TOT)
VGS = 4.5 V, VDS = 15 V; ID = 30 A
8.4
Threshold Gate Charge QG(TH) 1.8 nC
Gate−to−Source Charge QGS 3.5
Gate−to−Drain Charge QGD 3.3
Gate Plateau Voltage VGP 3.4 V
Total Gate Charge QG(TOT) VGS = 10 V, VDS = 15 V; ID = 30 A 18.2 nC
SWITCHING CHARACTERISTICS (Note 7)
6. Pulse Test: pulse width v 300 ms, duty cycle v 2%.
7. Switching characteristics are independent of operating junction temperatures.
ELECTRICAL CHARACTERISTICS (TJ = 25°C unless otherwise specified)
Parameter Symbol Test Condition Min Typ Max Unit
SWITCHING CHARACTERISTICS (Note 7)
Turn−On Delay Time td(ON)
VGS = 4.5 V, VDS = 15 V, ID = 15 A, RG = 3.0 W
9.0
Rise Time tr 33 ns
Turn−Off Delay Time td(OFF) 15
Fall Time tf 4.0
Turn−On Delay Time td(ON)
VGS = 10 V, VDS = 15 V, ID = 15 A, RG = 3.0 W
7.0
Rise Time tr 26 ns
Turn−Off Delay Time td(OFF) 19
Fall Time tf 3.0
DRAIN−SOURCE DIODE CHARACTERISTICS
Forward Diode Voltage VSD VGS = 0 V,
IS = 10 A
TJ = 25°C 0.79 1.1
TJ = 125°C 0.66 V
Reverse Recovery Time tRR
VGS = 0 V, dIS/dt = 100 A/ms, IS = 30 A
28.3
Charge Time ta 14.5 ns
Discharge Time tb 13.8
Reverse Recovery Charge QRR 15.3 nC
6. Pulse Test: pulse width v 300 ms, duty cycle v 2%.
7. Switching characteristics are independent of operating junction temperatures.
www.onsemi.com 4
TYPICAL CHARACTERISTICS
Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics VDS, DRAIN−TO−SOURCE VOLTAGE (V) VGS, GATE−TO−SOURCE VOLTAGE (V)
3.0 1.5
1.0 0.5
00 10 20 50
4.0 3.5 3.0 2.0
1.5 1.0
Figure 3. On−Resistance vs. VGS Figure 4. On−Resistance vs. Drain Current and Gate Voltage
VGS, GATE−TO−SOURCE VOLTAGE (V) ID, DRAIN CURRENT (A)
9.0 8.0
7.0 10
6.0 5.0 4.0 0.0023.0
0.006 0.010
70 50
30 40 60
20 0.004
0.006 0.008 0.010
0.002
Figure 5. On−Resistance Variation with
Temperature Figure 6. Drain−to−Source Leakage Current vs. Voltage
TJ, JUNCTION TEMPERATURE (°C) VDS, DRAIN−TO−SOURCE VOLTAGE (V) 150
125 100 75 25
0
−25
−50 0.8 1.0 1.1 1.3
30 25
20 15
10 105
100 1000 10000
ID, DRAIN CURRENT (A) ID, DRAIN CURRENT (A)
RDS(on), DRAIN−TO−SOURCE RESISTANCE (W) RDS(on), DRAIN−TO−SOURCE RESISTANCE (W)
RDS(on), DRAIN−TO−SOURCE RESISTANCE (NORMALIZED) IDSS, LEAKAGE (nA)
100 4.5 V to 10 V
4.0 V
3.4 V 3.2 V 3.0 V 2.8 V 4.2 V
TJ = 25°C VDS = 3 V
TJ = 25°C TJ = 125°C
TJ = −55°C
0.008
0.007 ID = 30 A
VGS = 4.5 V
TJ = 25°C
VGS = 10 V
50 ID = 30 A
VGS = 10 V
VGS = 0 V
TJ = 85°C TJ = 150°C
TJ = 125°C 2.5
0.004 0.014 0.012
1.2 1.4
0.7 1.5 0.016 60
10 3.8 V
2.0 0
20 40 60
30 70
10 50 80
5.0 0.5
0
0.020 0.018
0.003
1.6 1.7
0.9
4.5 30
40
0.005 0.009 2.5
80 90
70
3.6 V
TYPICAL CHARACTERISTICS
Qgs
Figure 7. Capacitance Variation Figure 8. Gate−to−Source and Drain−to−Source Voltage vs. Total Charge
VDS, DRAIN−TO−SOURCE VOLTAGE (V) Qg, TOTAL GATE CHARGE (nC)
25 20
15
10 30
5 00
400
Figure 9. Resistive Switching Time Variation
vs. Gate Resistance Figure 10. Diode Forward Voltage vs. Current
RG, GATE RESISTANCE (W) VSD, SOURCE−TO−DRAIN VOLTAGE (V)
100 10
11 10 100 1000
0.9 0.8
0.7 0.6
0.5 00.4
2 4 6 8 10 12
Figure 11. Maximum Rated Forward Biased Figure 12. Maximum Avalanche Energy vs.
VDS, DRAIN−TO−SOURCE VOLTAGE (V) TJ, STARTING JUNCTION TEMPERATURE (°C) 100
10 1
0.01 0.1 0.1 1 10 1000
150 125
100 75
50 025
2 6 10
C, CAPACITANCE (pF) VGS, GATE−TO−SOURCE VOLTAGE (V)
t, TIME (ns) IS, SOURCE CURRENT (A)
ID, DRAIN CURRENT (A) EAS, SINGLE PULSE DRAIN−TO− SOURCE AVALANCHE ENERGY (mJ)
VGS = 0 V TJ = 25°C Ciss
Coss
Crss
QT
Qgd
VDD = 15 V ID = 15 A VGS = 10 V
td(off)
td(on) tr tf
TJ = 25°C TJ = 125°C
VGS = 0 V
0 V < VGS < 10 V Single Pulse TC = 25°C RDS(on) Limit Thermal Limit Package Limit
100 ms
10 ms 1 ms
dc
ID = 21 A 1000
4 8 16 200
600 800
12 14 1800
1.0 0
2 4 6 8 10
0 4 6 8 12 14 16 18 20
TJ = 25°C VDD = 15 V VGS = 10 V ID = 30 A
14 16 18 20
10 ms
0.01
10 2
1200 1400 1600
100
22 18 20
www.onsemi.com 6
TYPICAL CHARACTERISTICS
Figure 13. Thermal Response PULSE TIME (sec)
0.01 0.001
0.0001 0.00001
0.000001 0.01
0.1 1 10 100
R(t) (°C/W)
0.1 1 10 100 1000
10%
Duty Cycle = 50%
20%
5%
2%
1%
Single Pulse
Figure 14. GFS vs. ID ID (A)
40 30 10
00 10 50
GFS (S)
20 50
20
60 30
40 80
70
Figure 15. Avalanche Characteristics PULSE WIDTH (SECONDS)
1.E−03 1.E−04 1.E−06
1.E−08 1 10 100
ID, DRAIN CURRENT (A)
1.E−05
TA = 25°C TA = 85°C
1.E−07 60
70
M 3.00 3.40 q 0 _ −−− 3.8012 _ DFN5 5x6, 1.27P
(SO−8FL) CASE 488AA
ISSUE N
DATE 25 JUN 2018 SCALE 2:1
NOTES:
1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETER.
3. DIMENSION D1 AND E1 DO NOT INCLUDE MOLD FLASH PROTRUSIONS OR GATE BURRS.
XXXXXX = Specific Device Code A = Assembly Location
Y = Year
W = Work Week
ZZ = Lot Traceability
1 2 3 4
TOP VIEW
SIDE VIEW
BOTTOM VIEW D1
E1 q
D
E 2
2 B A
0.20 C
0.20 C
2 X
2 X
DIM MIN NOM MILLIMETERS A 0.90 1.00 A1 0.00 −−−
b 0.33 0.41 c 0.23 0.28
D 5.15
D1 4.70 4.90 D2 3.80 4.00
E 6.15
E1 5.70 5.90 E2 3.45 3.65
e 1.27 BSC
G 0.51 0.575
K 1.20 1.35
L 0.51 0.575
L1 0.125 REF
A 0.10 C
0.10 C
DETAIL A
1 4
L1 e/2
8X
G D2 E2
K b
A 0.10 C B 0.05 c
L
DETAIL A c A1
4 X
C
SEATING PLANE
GENERIC MARKING DIAGRAM*
1
XXXXXX AYWZZ 1
MAX 1.10 0.05 0.51 0.33 5.10 4.20 6.10 3.85 0.71 1.50 0.71
STYLE 1:
PIN 1. SOURCE 2. SOURCE 3. SOURCE 4. GATE 5. DRAIN
M
*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.
SOLDERING FOOTPRINT*
1.270
2X
0.750 1.000 0.905
4.530 1.530
4.560 0.495
3.200
1.330
0.965
2X 2X
4X 4X PIN 5
(EXPOSED PAD)
STYLE 2:
PIN 1. ANODE 2. ANODE 3. ANODE 4. NO CONNECT 5. CATHODE
5.00 5.30
6.00 6.30
PITCH
DIMENSIONS: MILLIMETERS
1
RECOMMENDED e
2X
0.475
*This information is generic. Please refer to device data sheet for actual part marking.
Pb−Free indicator, “G” or microdot “ G”, may or may not be present. Some products may not follow the Generic Marking.
98AON14036D DOCUMENT NUMBER:
DESCRIPTION:
Electronic versions are uncontrolled except when accessed directly from the Document Repository.
Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
PAGE 1 OF 1 DFN5 5x6, 1.27P (SO−8FL)
