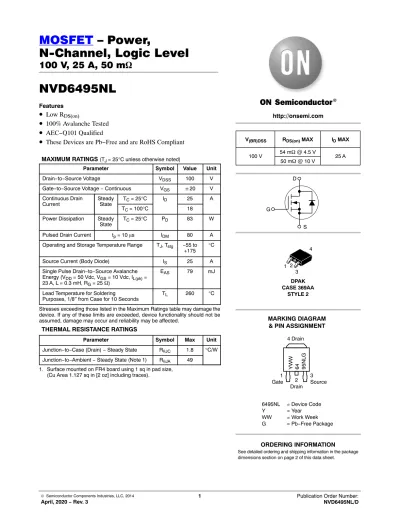

MOSFET – Power, N-Channel, Logic Level

N-Channel, Logic Level

100 V, 25 A, 50 m W

NVD6495NL

Features

• ^{Low R}

• 100% Avalanche Tested

• AEC−Q101 Qualified

• These Devices are Pb−Free and are RoHS Compliant

Parameter Symbol Value Unit

Drain−to−Source Voltage V_DSS 100 V

Gate−to−Source Voltage − Continuous VGS $20 V Continuous Drain

Current Steady

State TC = 25°C ID 25 A

T_C = 100°C 18

Power Dissipation Steady

State T_C = 25°C P_D 83 W

Pulsed Drain Current tp = 10 ms I_DM 80 A Operating and Storage Temperature Range T_J, T_stg −55 to

+175 °C

Source Current (Body Diode) IS 25 A

Single Pulse Drain−to−Source Avalanche Energy (V_DD = 50 Vdc, V_GS = 10 Vdc, I_L(pk) = 23 A, L = 0.3 mH, RG = 25 W)

EAS 79 mJ

Lead Temperature for Soldering

Purposes, 1/8″ from Case for 10 Seconds T_L 260 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL RESISTANCE RATINGS

Parameter Symbol Max Unit

Junction−to−Case (Drain) − Steady State R_qJC 1.8 °C/W Junction−to−Ambient − Steady State (Note 1) R_qJA 49

1. Surface mounted on FR4 board using 1 sq in pad size, (Cu Area 1.127 sq in [2 oz] including traces).

http://onsemi.com

D

S G

MARKING DIAGRAM

& PIN ASSIGNMENT

6495NL = Device Code

Y = Year

WW = Work Week G = Pb−Free Package

DPAK CASE 369AA

STYLE 2

YWW 64 95NLG

4 Drain

3Source Gate1 2

Drain

V_(BR)DSS R_DS(on) MAX I_D MAX

100 V

50 mW @ 10 V 25 A

See detailed ordering and shipping information in the package dimensions section on page 2 of this data sheet.

ORDERING INFORMATION 54 mW @ 4.5 V

1 2 3 4

ELECTRICAL CHARACTERISTICS (TJ = 25°C unless otherwise noted)

Parameter Symbol Test Condition Min Typ Max Unit

OFF CHARACTERISTICS

Drain−to−Source Breakdown Voltage V(BR)DSS VGS = 0 V, ID = 250 mA

V_GS = 0 V, I_D = 250 mA, TJ = −40°C 100

92 V

Drain−to−Source Breakdown Voltage

Temperature Coefficient V_(BR)DSS/T_J 115 mV/°C

Zero Gate Voltage Drain Current I_DSS V_GS = 0 V, V_DS = 100 V

T_J = 25°C 1.0 mA

TJ = 125°C 100

Gate−to−Source Leakage Current I_GSS V_DS = 0 V, V_GS = "20 V "100 nA ON CHARACTERISTICS (Note 2)

Gate Threshold Voltage V_GS(TH) V_GS = V_DS, I_D = 250 mA 1.0 2.0 V

Negative Threshold Temperature

Coefficient V_GS(TH)/T_J 4.8 mV/°C

Drain−to−Source On−Resistance R_DS(on) V_GS = 4.5 V, I_D = 10 A 44 54 mW

VGS = 10 V, ID = 10 A 43 50

Forward Transconductance g_FS V_DS = 5.0 V, I_D = 10 A 24 S

CHARGES, CAPACITANCES AND GATE RESISTANCE

Input Capacitance CISS

V_GS = 0 V, f = 1.0 MHz, V_DS = 25 V

1024 pF

Output Capacitance C_OSS 156

Reverse Transfer Capacitance C_RSS 70

Total Gate Charge QG(TOT)

V_GS = 4.5 V, V_DS = 80 V, I_D = 23 A

20 nC

Threshold Gate Charge Q_G(TH) 1.1

Gate−to−Source Charge QGS 3.1

Gate−to−Drain Charge Q_GD 14

Total Gate Charge Q_G(TOT) V_GS = 10 V, V_DS = 80 V, I_D = 23 A 35 nC

SWITCHING CHARACTERISTICS (Note 3)

Turn−On Delay Time t_d(on)

V_GS = 4.5 V, V_DD = 80 V, I_D = 23 A, R_G = 6.1 W

11 ns

Rise Time t_r 91

Turn−Off Delay Time td(off) 40

Fall Time t_f 71

DRAIN−SOURCE DIODE CHARACTERISTICS

Forward Diode Voltage V_SD

V_GS = 0 V, I_S = 23 A T_J = 25°C 0.87 1.2 V

TJ = 125°C 0.74

Reverse Recovery Time t_RR

V_GS = 0 V, dI_S/dt = 100 A/ms, I_S = 23 A

64 ns

Charge Time T_a 40

Discharge Time T_b 24

Reverse Recovery Charge Q_RR 152 nC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

2. Pulse Test: Pulse Width ≤300 ms, Duty Cycle ≤ 2%.

3. Switching characteristics are independent of operating junction temperatures.

ORDERING INFORMATION

Device Package Shipping^†

0 5 10 15 20 25 30 35 40 45

0 1 2 3 4 5

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) ID, DRAIN CURRENT (A)

Figure 1. On−Region Characteristics TJ = 25°C V_GS = 10 V

5 V 4 V 3.6 V

3.4 V 3.2 V 3.0 V 2.8 V

V_GS, GATE−TO−SOURCE VOLTAGE (V) ID, DRAIN CURRENT (A)

Figure 2. Transfer Characteristics V_DS w 10 V

T_J = 125°C

T_J = −55°C T_J = 25°C

V_GS, GATE−TO−SOURCE VOLTAGE (V) RDS(on), DRAIN−TO−SOURCE RESISTANCE (W)

Figure 3. On−Region versus Gate Voltage

0.040 0.042 0.044 0.046 0.048 0.050

5 10 15 20 25

I_D, DRAIN CURRENT (A)

Figure 4. On−Resistance versus Drain Current and Gate Voltage RDS(on), DRAIN−TO−SOURCE RESISTANCE (W)

V_GS = 4.5 V

V_GS = 10 V T_J = 25°C

0.5 1.0 1.5 2.0 2.5 3.0

−50 −25 0 25 50 75 100 125 150 175

T_J, JUNCTION TEMPERATURE (°C) Figure 5. On−Resistance Variation with

Temperature RDS(on), DRAIN−TO−SOURCE RESISTANCE (NORMALIZED)

I_D = 23 A V_GS = 4.5 V

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) IDSS, LEAKAGE (nA)

Figure 6. Drain−to−Source Leakage Current versus Voltage

100 1000 10000

10 20 30 40 50 60 70 80 90 100

T_J = 125°C V_GS = 0 V

TJ = 150°C 0

5 10 15 20 25 30 35 40 45

1 2 3 4

0.040 0.042 0.044 0.046 0.048 0.050

2 3 4 5 6 7 8 9 10

I_D = 23 A T_J = 25°C

0 500 1000 1500 2000 2500

0 10 20 30 40 50 60 70 80 90 100

VDS, DRAIN−TO−SOURCE VOLTAGE (V)

C, CAPACITANCE (pF)

Figure 7. Capacitance Variation T_J = 25°C V_GS = 0 V

C_iss

C_oss Crss

0 2 4 6 8 10

0 5 10 15 20 25 30 35

Qg, TOTAL GATE CHARGE (nC) Figure 8. Gate−to−Source Voltage and Drain−to−Source Voltage versus Total Charge VGS, GATE−TO−SOURCE VOLTAGE (V)

Q_T

Q_ds

Q_gs

VDS = 80 V ID = 23 A TJ = 25°C

1 10 100 1000

1 10 100

R_G, GATE RESISTANCE (W)

t, TIME (ns)

Figure 9. Resistive Switching Time Variation versus Gate Resistance

td(off)

t_f tr

t_d(on) V_DS = 80 V

ID = 23 A VGS = 4.5 V

0 5 10 15 20 25

0.50 0.55 0.60 0.65 0.70 0.75 0.80 0.85 0.90 0.95 V_SD, SOURCE−TO−DRAIN VOLTAGE (V)

Figure 10. Diode Forward Voltage versus Current

IS, SOURCE CURRENT (A)

T_J = 25°C VGS = 0 V

0.1 1 10 100

1 10 100 1000

VDS, DRAIN−TO−SOURCE VOLTAGE (V) ID, DRAIN CURRENT (A)

Figure 11. Maximum Rated Forward Biased Safe Operating Area

R_DS(on) LIMIT THERMAL LIMIT PACKAGE LIMIT V_GS = 10 V

SINGLE PULSE TC = 25°C

10 ms 100 ms

10 ms dc 1 ms

0 25 50 75 100 125

25 50 75 100 125 150 175

AVALANCHE ENERGY (mJ)

TJ, STARTING JUNCTION TEMPERATURE Figure 12. Maximum Avalanche Energy versus

Starting Junction Temperature ID = 23 A

Figure 13. Thermal Response t, PULSE TIME (s) 0.02

0.2

0.01 0.05

Duty Cycle = 0.5

SINGLE PULSE

RqJC(t) (°C/W) EFFECTIVE TRANSIENT THERMAL RESISTANCE

0.1

0.001 0.01 0.1 1 10

0.000001 0.00001 0.0001 0.001 0.01 0.1 1 10

DPAK (SINGLE GUAGE) CASE 369AA−01

ISSUE B

DATE 03 JUN 2010 SCALE 1:1

STYLE 1:

PIN 1. BASE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

STYLE 2:

PIN 1. GATE 2. DRAIN 3. SOURCE 4. DRAIN

STYLE 3:

PIN 1. ANODE 2. CATHODE 3. ANODE 4. CATHODE

STYLE 4:

PIN 1. CATHODE 2. ANODE 3. GATE 4. ANODE STYLE 5:

PIN 1. GATE 2. ANODE 3. CATHODE 4. ANODE

b D E

b3

L3

L4b2

e 0.005 (0.13) ^M C

c2 A

c

C

Z

DIM MININCHESMAX MILLIMETERSMIN MAX

D 0.235 0.245 5.97 6.22 E 0.250 0.265 6.35 6.73 A 0.086 0.094 2.18 2.38 b 0.025 0.035 0.63 0.89

c2 0.018 0.024 0.46 0.61 b2 0.030 0.045 0.76 1.14 c 0.018 0.024 0.46 0.61

e 0.090 BSC 2.29 BSC b3 0.180 0.215 4.57 5.46

L4 −−− 0.040 −−− 1.01 L 0.055 0.070 1.40 1.78

L3 0.035 0.050 0.89 1.27

Z 0.155 −−− 3.93 −−−

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: INCHES.

3. THERMAL PAD CONTOUR OPTIONAL WITHIN DI- MENSIONS b3, L3 and Z.

4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS, OR BURRS. MOLD FLASH, PROTRUSIONS, OR GATE BURRS SHALL NOT EXCEED 0.006 INCHES PER SIDE.

5. DIMENSIONS D AND E ARE DETERMINED AT THE OUTERMOST EXTREMES OF THE PLASTIC BODY.

6. DATUMS A AND B ARE DETERMINED AT DATUM PLANE H.

1 2 3

4

STYLE 6:

PIN 1. MT1 2. MT2 3. GATE 4. MT2

STYLE 7:

PIN 1. GATE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

XXXXXX = Device Code A = Assembly Location

L = Wafer Lot

Y = Year

WW = Work Week

G = Pb−Free Package YWW XXX XXXXXG XXXXXXG

ALYWW

Discrete IC

1 2 3 4

5.80 0.228

2.58 0.102

1.60 0.063 6.20

0.244

3.00 0.118

6.17 0.243

ǒ

Ǔ

SCALE 3:1

GENERIC MARKING DIAGRAM*

*This information is generic. Please refer to device data sheet for actual part marking.

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

SOLDERING FOOTPRINT*

H 0.370 0.410 9.40 10.41 A1 0.000 0.005 0.00 0.13

L1 0.108 REF 2.74 REF L2 0.020 BSC 0.51 BSC

A1

DETAIL A H

SEATING PLANE

A

B

C

L1 L

H L2 ^GAUGE_PLANE

DETAIL A

ROTATED 90 CW5
