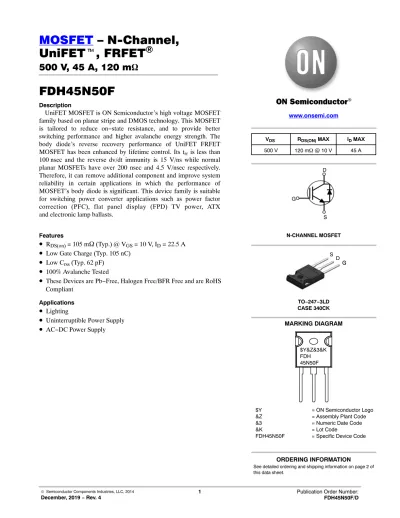

UniFETt, FRFET )
500 V, 45 A, 120 mW
FDH45N50F
Description
UniFET MOSFET is ON Semiconductor’s high voltage MOSFET family based on planar stripe and DMOS technology. This MOSFET is tailored to reduce on−state resistance, and to provide better switching performance and higher avalanche energy strength. The body diode’s reverse recovery performance of UniFET FRFET MOSFET has been enhanced by lifetime control. Its t
rris less than 100 nsec and the reverse dv/dt immunity is 15 V/ns while normal planar MOSFETs have over 200 nsec and 4.5 V/nsec respectively.
Therefore, it can remove additional component and improve system reliability in certain applications in which the performance of MOSFET’s body diode is significant. This device family is suitable for switching power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power, ATX and electronic lamp ballasts.
Features
• R
DS(on)= 105 mW (Typ.) @ V
GS= 10 V, I
D= 22.5 A
• Low Gate Charge (Typ. 105 nC)
• Low C
rss(Typ. 62 pF)
• 100% Avalanche Tested
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications
• Lighting
• Uninterruptible Power Supply
• AC−DC Power Supply
www.onsemi.com
See detailed ordering and shipping information on page 2 of this data sheet.
ORDERING INFORMATION N-CHANNEL MOSFET
MARKING DIAGRAM
VDS RDS(ON) MAX ID MAX
500 V 120 mW @ 10 V 45 A
D
G
S
DG S
G
TO−247−3LD CASE 340CK
$Y = ON Semiconductor Logo
&Z = Assembly Plant Code
&3 = Numeric Date Code
&K = Lot Code
FDH45N50F = Specific Device Code
$Y&Z&3&K FDH 45N50F
ABSOLUTE MAXIMUM RATINGS (TC = 25°C unless otherwise noted)
Symbol Parameter FDH45N50F−F133 Unit
VDSS Drain to Source Voltage 500 V
ID Drain Current − −Continuous (TC = 25°C)
−Continuous (TC = 100°C)
28.445 A
A
IDM Drain Current −Pulsed (Note 1) 180 A
VGSS Gate−Source Voltage ±30 V
EAS Single Pulsed Avalanche Energy (Note 2) 1868 mJ
IAR Avalanche Current (Note 1) 45 A
EAR Repetitive Avalanche Energy (Note 1) 62.5 mJ
dv/dt Peak Diode Recovery dv/dt (Note 3) 50 V/ns
PD Power Dissipation (TC = 25°C)
−Derate Above 25°C
625 5
W W/°C
TJ, TSTG Operating and Storage Temperature Range −55 to + 150 °C
TL Maximum Lead Temperature for Soldering, 1/8″ from Case for 5 Second 300 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
1. Repetitive Rating: Pulse width limited by maximum junction temperature.
2. L = 1.46 mH, IAS = 48 A, VDD = 50 V, RG = 25 W, Starting TJ = 25 °C.
3. ISD ≤ 45 A, di/dt ≤ 200 A/ms, VDD ≤BVDSS, Starting TJ = 25 °C.
PACKAGE MARKING AND ORDERING INFORMATION
Device Marking Device Package Package Method Reel Size Tape Width Quantity
FDH45N50F−F133 FDH45N50F TO−247−3 Tube − − 30 Units
THERMAL CHARACTERISTICS
Symbol Parameter FDH45N50F−F133 Unit
RqJC Thermal Resistance, Junction to Case, Max. 0.2 °C/W
RqJA Thermal Resistance, Junction to Ambient, Max. 40
www.onsemi.com 3
ELECTRICAL CHARACTERISTICS (TC = 25°C unless otherwise noted)
Symbol Parameter Test Condition Min. Typ. Max. Unit
OFF CHARACTERISTICS
BVDSS Drain to Source Breakdown Voltage ID = 250 mA, VGS = 0 V 500 − − V
DBVDSS
/ DTJ
Breakdown Voltage Temperature
Coefficient ID = 250 mA, Referenced to 25°C − 0.5 − V/°C
IDSS Zero Gate Voltage Drain Current VDS = 500 V, VGS = 0 V − − 25 mA
VDS = 400 V, TC = 125°C − − 250 mA
IGSSF Gate−Body Leakage Current, Forward VGS = 30 V, VDS = 0 V − − 100 nA
IGSSR Gate−Body Leakage Current, Reverse VGS = −30 V, VDS = 0 V − − −100 nA ON CHARACTERISTICS
VGS(th) Gate Threshold Voltage VDS = VGS, ID = 250 mA 3 − 5 V
RDS(on) Static Drain−Source On−Resistance VGS = 10 V, ID = 22.5 A − 0.105 0.12 W
gFS Forward Transconductance VDS = 40 V, ID = 22.5 A − 49 − S
DYNAMIC CHARACTERISTICS
Ciss Input Capacitance VDS = 25 V, VGS = 0 V, f = 1 MHz − 5100 6630 pF
Coss Output Capacitance − 790 1030 pF
Crss Reverse Transfer Capacitance − 62 − pF
Coss Output Capacitance VDS = 400 V, VGS = 0 V, f = 1 MHz − 161 − pF
Cosseff. Effective Output Capacitance VDS = 0 V to 400 V, VGS = 0 V − 342 − pF SWITCHING CHARACTERISTICS
td(on) Turn-On Delay Time VDD = 250 V, ID = 48 A, VGS = 10 V, RG = 25 W (Note 4)
− 140 290 ns
tr Turn−On Rise Time − 500 1010 ns
td(off) Turn-Off Delay Time − 215 440 ns
tf Turn−Off Fall Time − 245 500 ns
Qg Total Gate Charge VDS = 400 V, ID = 48 A, VGS = 10 V
(Note 4)
− 105 137 nC
Qgs Gate−Source Charge − 33 − nC
Qgd Gate−Drain Charge − 45 − nC
DRAIN-SOURCE DIODE CHARACTERISTICS AND MAXIMUM RATINGS
IS Maximum Continuous Drain−Source Diode Forward Current − − 45 A
ISM Maximum Pulsed Drain−Source Diode Forward Current − − 180 A
VSD Source to Drain Diode Voltage VGS = 0 V, IS = 45 A − − 1.4 V
trr Reverse Recovery Time VGS = 0 V, IS = 45 A,
dIF/dt = 100 A/ms − 188 − ns
Qrr Reverse Recovery Charge − 0.64 − mC
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.
4. Essentially Independent of Operating Temperature Typical Characteristics.
TYPICAL CHARACTERISTICS
Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics
Figure 3. On−Resistance Variation vs. Drain Current and Gate voltage
10−1 100 101
100 101 102
ID, Drain Current [A]
VDS, Drain−Source Voltage [V]
2 4 6 8 10
100 101 102
VGS, Gate−Source Voltage [V]
ID, Drain Current [A]
0 20 40 60 80 100 120 140 160
0.00 0.05 0.10 0.15 0.20 0.25
ID, Drain Current [A]
RDS(ON) [W], Drain−Source On−Resistance
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 100
101 102
VSD, Source−Drain Voltage [V]
IDR, Reverse Drain Current [A]
Figure 4. Body Diode Forward Voltage Variation vs. Source Current and Temperature
Capacitance [pF]
2 4 6 8 10 12
VGS, Gate−Source Voltage [V]
*Notes:
1. 250 ms Pulse Test 2. TC = 25°C
VGS Top: 15.0 V
10.0 V 8.0 V 7.0 V 6.5 V 6.0 V Bottom: 5.5 V
12
*Notes:
1. VDS = 40 V 2. 250 ms Pulse Test 150°C
−55°C 25°C
0.30
VGS = 20 V VGS = 10 V
*Note: TJ = 25°C
1.8
*Notes:
1. VGS = 0 V 2. 250 ms Pulse Test 150°C
25°C
2000 4000 6000 8000 10000 12000
*Notes:
1. VGS = 0 V 2. f = 1 MHz Ciss = Cgs + Cgd (Cds = shorted) Coss = Cds + Cgd
Crss = Cgd Coss
Ciss
Crss
VDS = 100 V VDS = 250 V VDS = 400 V
*Note: I = 48 A
www.onsemi.com 5
TYPICAL CHARACTERISTICS
Figure 7. Breakdown Voltage Variation vs. Temperature
Figure 8. On−Resistance Variation vs. Temperature
Figure 9. Maximum Safe Operating Area Figure 10. Maximum Drain Current vs. Case Temperature
Figure 11. Typical Drain Current Slope vs. Gate Resistance
0.8 0.9 1.0 1.1 1.2
−100 −50 0 50 100 150 200
TJ, Junction Temperature [°C]
BVDSS, (Normalized) Drain−Source Breakdown Voltage
0.0 0.5 1.0 1.5 2.0 2.5
−100 −50 0 50 100 150 200
TJ, Junction Temperature [°C]
RDS(ON), (Normalized) Drain−Source On−Resistance
100 101 102 103
10−1 100 101 102
VDS, Drain−Source Voltage [V]
ID, Drain Current [A]
25 50 75 100 125 150
0 10 20 30 40 50
TC, Case Temperature [°C]
ID, Drain Current [A]
0
*Notes:
1. VGS = 0 V 2. ID = 250 mA
*Notes:
1. VGS = 10 V 2. ID = 22.5 A
100 ms 1 ms 10 ms Operation in This Area
is Limited by RDS(on)
*Notes:
1. TC = 25°C 2. TJ = 150°C 3. Single Pulse
DC
10 ms 100 ms
di/dt(off) di/dt(on)
*Notes:
1. VDS = 400 V 2. VGS = 12 V 3. ID = 25 A 4. TJ = 125°C
5 10 15 20 25 30 35 40 45 50
0 500 1000 1500 2000 2500 3000 3500 4000
di/dt [A/ms]
RG, Gate Resistance [W]
dv/dt(off)
dv/dt(on)
0 5 10 15 20 25 30 35 40 45 50
0 5 10 15 20 25 30 35 40 45
*Notes:
1. VDS = 400 V 2. VGS = 12 V 3. ID = 25 A 4. TJ = 125°C
dv/dt [V/nS]
RG, Gate Resistance [W]
Figure 12. Typical Drain−Source Voltage Slope vs. Gate Resistance
Figure 13. Typical Switching Losses vs. Gate Resistance
Figure 14. Unclamped Inductive Switching Capability
Figure 15. Transient Thermal Resistance Curve 0
200 600 800 1000
0 5 10
RG, Gate Resistance [W]
Energy [mJ]
0.01 0.1 1 10 100
tAV, Time In Avalanche [ms]
Eoff
Eon
15 20 25 30 35 40 45 50
400 *Notes:
1. VDS = 400 V 2. VGS = 12 V 3. ID = 25 A 4. TJ = 125C
10 100
1
Starting TJ = 25°C Starting TJ = 150°C
*Notes:
1. If R = 0 W
tAV = (L) (IAS) / (1.3 Rated BVDSS − VDC) 2. If R ≠0 W
tAV = (L/R) In [(IAS x R) / (1.3 Rated BVDSS − VDD) + 1
IAS, Avalanche Current [A]
D=0.5
0.02 0.2 0.05 0.1
0.01
10−3 10−2 10−1
10−5 10−4 10−3 10−2 10−1 100 101
Single Pulse
Notes:
1. ZqJC(t) = 0.2°C/W Max.
2. Duty Factor, D = t1/t2
3. TJM − TC = PDM * ZqJC(t)
PDM t1 t2
t1, Square Wave Pulse Duration [sec]
ZqJC(t), Thermal Response [°C/W]
www.onsemi.com 7
Figure 16. Gate Charge Test Circuit & Waveform
Figure 17. Resistive Switching Test Circuit & Waveforms
Figure 18. Unclamped Inductive Switching Test Circuit & Waveforms RL
VDS VGS
VGS
RG
DUT
VDD
VDS
VGS10%
90%
10%
90% 90%
ton toff
tr tf
td(on) td(off)
Qg
Qgd Qgs
VGS
Charge VDS
VGS
RL
DUT IG = Const.
VDD VDS
RG VGS DUT
L
ID
tp
VDD
tp Time
IAS
BVDSS
ID(t)
VDS(t) EAS+1
2@LIAS2 BVDSS BVDSS*VDD
Figure 19. Peak Diode Recovery dv/dt Test Circuit & Waveforms DUT
L
VDD
RG
ISD
VSD +
−
VGS
Same Type as DUT
− dv/dt controlled by RG
− ISD controlled by pulse period Driver
VGS (Driver)
ISD
(DUT)
VDS
(DUT) VSD
IRM
10 V
di/dt
VDD IFM, Body Diode Forward Current
Body Diode Reverse Current
Body Diode Recovery dv/dt
Body Diode Forward Voltage Drop D+ Gate Pulse Width
Gate Pulse Period
TO−247−3LD SHORT LEAD CASE 340CK
ISSUE A
DATE 31 JAN 2019
XXXX = Specific Device Code A = Assembly Location Y = Year
WW = Work Week ZZ = Assembly Lot Code
*This information is generic. Please refer to device data sheet for actual part marking.
Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.
GENERIC MARKING DIAGRAM*
AYWWZZ XXXXXXX XXXXXXX
E
D
L1 E2
(3X) b (2X) b2
b4
(2X) e
Q
L
0.25 M B A M A
A1 A2 A
c
B
D1 P1
S P
E1
D2
1 2 3 2
DIM MILLIMETERS MIN NOM MAX A 4.58 4.70 4.82 A1 2.20 2.40 2.60 A2 1.40 1.50 1.60 b 1.17 1.26 1.35 b2 1.53 1.65 1.77 b4 2.42 2.54 2.66 c 0.51 0.61 0.71 D 20.32 20.57 20.82
D1 13.08 ~ ~
D2 0.51 0.93 1.35 E 15.37 15.62 15.87
E1 12.81 ~ ~
E2 4.96 5.08 5.20
e ~ 5.56 ~
L 15.75 16.00 16.25 L1 3.69 3.81 3.93
P 3.51 3.58 3.65 P1 6.60 6.80 7.00 Q 5.34 5.46 5.58 S 5.34 5.46 5.58
