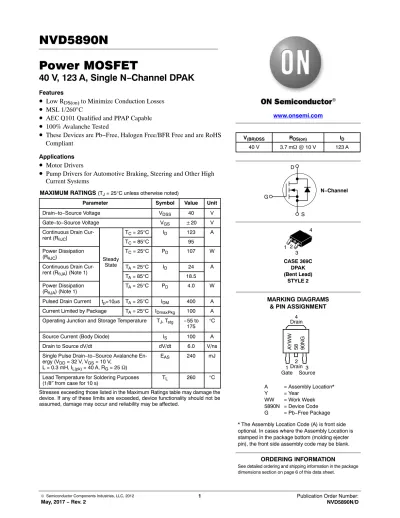

NVD5890N Power MOSFET

Power MOSFET

40 V, 123 A, Single N−Channel DPAK

Features

• ^{Low R}

to Minimize Conduction Losses

• ^{MSL 1/260} ° C

• AEC Q101 Qualified and PPAP Capable

• 100% Avalanche Tested

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Applications

• Motor Drivers

• Pump Drivers for Automotive Braking, Steering and Other High Current Systems

MAXIMUM RATINGS (T_J = 25°C unless otherwise noted)

Parameter Symbol Value Unit

Drain−to−Source Voltage V_DSS 40 V

Gate−to−Source Voltage V_GS "20 V

Continuous Drain Cur- rent (R_qJC)

Steady State

T_C = 25°C I_D 123 A

TC = 85°C 95

Power Dissipation

(R_qJC) T_C = 25°C P_D 107 W

Continuous Drain Cur-

rent (R_qJA) (Note 1) T_A = 25°C I_D 24 A

T_A = 85°C 18.5

Power Dissipation

(R_qJA) (Note 1) T_A = 25°C P_D 4.0 W

Pulsed Drain Current tp=10ms TA = 25°C IDM 400 A Current Limited by Package TA = 25°C IDmaxPkg 100 A Operating Junction and Storage Temperature TJ, Tstg −55 to

175 °C

Source Current (Body Diode) I_S 100 A

Drain to Source dV/dt dV/dt 6.0 V/ns

Single Pulse Drain−to−Source Avalanche En- ergy (VDD = 32 V, VGS = 10 V,

L = 0.3 mH, I_L(pk) = 40 A, R_G = 25 W)

E_AS 240 mJ

Lead Temperature for Soldering Purposes

(1/8″ from case for 10 s) T_L 260 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

CASE 369C DPAK (Bent Lead)

STYLE 2

MARKING DIAGRAMS

& PIN ASSIGNMENT 40 V 3.7 mW @ 10 V

R_DS(on)

123 A I_D V_(BR)DSS

www.onsemi.com

1 2 3 4

N−Channel D

S G

Gate1 Drain 32

Source Drain4

AYWW 58 90NG

A = Assembly Location*

Y = Year

WW = Work Week 5890N = Device Code G = Pb−Free Package

* The Assembly Location Code (A) is front side optional. In cases where the Assembly Location is stamped in the package bottom (molding ejecter pin), the front side assembly code may be blank.

www.onsemi.com 2

THERMAL RESISTANCE MAXIMUM RATINGS

Parameter Symbol Value Unit

Junction−to−Case (Drain) R_qJC 1.4 °C/W

Junction−to−Ambient − Steady State (Note 1) R_qJA 37

Junction−to−Ambient − Steady State (Note 2) R_qJA 76

1. Surface−mounted on FR4 board using 650 mm² pad size, 2 oz Cu.

2. Surface−mounted on FR4 board using 36 mm² pad size.

ELECTRICAL CHARACTERISTICS(TJ = 25°C unless otherwise noted)

Parameter Symbol Test Condition Min Typ Max Unit

OFF CHARACTERISTICS

Drain−to−Source Breakdown Voltage V_(BR)DSS VGS = 0 V, ID = 250 mA 40 V

Drain−to−Source Breakdown Voltage

Temperature Coefficient V_(BR)DSS/T_J 40 mV/°C

Zero Gate Voltage Drain Current IDSS V_GS = 0 V, VDS = 40 V

TJ = 25°C 1.0 mA

TJ = 150°C 100

Gate−to−Source Leakage Current I_GSS V_DS = 0 V, V_GS = "20 V "100 nA ON CHARACTERISTICS (Note 3)

Gate Threshold Voltage V_GS(TH) V_GS = V_DS, I_D = 250 mA 1.5 3.5 V

Negative Threshold Temperature Co-

efficient V_GS(TH)/T_J 7.4 mV/°C

Drain−to−Source On Resistance R_DS(on) V_GS = 10 V, I_D = 50 A 2.9 3.7 mW

Forward Transconductance gFS V_DS = 15 V, I_D = 15 A 16.8 S

CHARGES AND CAPACITANCES

Input Capacitance C_iss

V_GS = 0 V, f = 1.0 MHz, VDS = 12 V

4975 pF

Output Capacitance C_oss 785

Reverse Transfer Capacitance C_rss 490

Input Capacitance C_iss V_GS = 0 V, f = 1.0 MHz,

V_DS = 25 V 4760 pF

Output Capacitance C_oss 580

Reverse Transfer Capacitance C_rss 385

Total Gate Charge QG(TOT)

V_GS = 10 V, V_DS = 15 V, I_D = 50 A

74 100 nC

Threshold Gate Charge QG(TH) 5.0

Gate−to−Source Charge QGS 17

Gate−to−Drain Charge QGD 16

SWITCHING CHARACTERISTICS (Note 4)

Turn−On Delay Time td(on)

V_GS = 10 V, V_DS = 20 V, ID = 50 A, RG = 2.0 W

14 ns

Rise Time tr 55

Turn−Off Delay Time td(off) 35

Fall Time t_f 7.0

3. Pulse Test: Pulse Width ≤ 300 ms, Duty Cycle ≤ 2%.

4. Switching characteristics are independent of operating junction temperatures.

ELECTRICAL CHARACTERISTICS(T_J = 25°C unless otherwise noted)

Parameter Symbol Test Condition Min Typ Max Unit

DRAIN−SOURCE DIODE CHARACTERISTICS

Forward Diode Voltage V_SD V_GS = 0 V,

I_S = 50 A T_J = 25°C 0.9 1.2 V

V_GS = 0 V,

IS = 20 A T_J = 25°C 0.8 1.0

Reverse Recovery Time t_RR

VGS = 0 V, dIs/dt = 100 A/ms, I_S = 50 A

35 ns

Charge Time ta 20

Discharge Time tb 15

Reverse Recovery Charge Q_RR 40 nC

www.onsemi.com 4

TYPICAL PERFORMANCE CURVES

7 V

1 10 100 1000

0 4 8 12 16 20 24 28 32 36

V_GS, GATE−TO−SOURCE VOLTAGE (V) Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics

ID, DRAIN CURRENT (A)

Figure 3. On−Resistance vs. Drain Current Figure 4. On−Resistance vs. Drain Current and Gate Voltage

I_D, DRAIN CURRENT (A) RDS(on), DRAIN−TO−SOURCE RESISTANCE (mW)

Figure 5. On−Resistance Variation with Temperature

T_J, JUNCTION TEMPERATURE (°C)

Figure 6. Drain−to−Source Leakage Current vs. Voltage

V_DS, DRAIN−TO−SOURCE VOLTAGE (V)

RDS(on), NORMALIZED DRAIN−TO−SOURCE RESISTANCE (mW) IDSS, LEAKAGE (mA)

2 3 4 5 6

V_DS ≥ 10 V

TJ = 25°C

T_J = −55°C T_J = 150°C

0 2 4 6 8 10 12 14 16 18 20

40 80 120 160

V_GS = 5 V T_J = 25°C

VGS = 10 V

0.5 0.75 1.0 1.25 1.5 1.75 2.0

−50 −25 0 25 50 75 100 125 150 175

V_GS = 10 V I_D = 50 A

VGS = 0 V

T_J = 150°C T_J = 175°C 200

100 140 200

0 1 2 5

V_DS, DRAIN−TO−SOURCE VOLTAGE (V)

ID, DRAIN CURRENT (A)

3 4

40 60 80 120 160 180

TJ = 25°C V_GS = 5 V

10 V 6 V

4 V 4.5 V 4.2 V

3.8 V 3.6 V

RDS(on), DRAIN−TO−SOURCE RESISTANCE (mW)

V_GS, GATE−TO−SOURCE VOLTAGE (V) I_D = 50 A

0 4 10

3 4 6 7 9 10

2 6

TJ = 25°C

5 8

220240 260280 300

200 100 140 200

40 60 80 120 160 180 220240 260280 300

12 16 20

14 18

8

0 200 240 280

40

TYPICAL PERFORMANCE CURVES

1 10 100 1000

1 10 100

Figure 7. Capacitance Variation

Q_g, TOTAL GATE CHARGE (nC) Figure 8. Gate−to−Source and Drain−to−Source Voltage vs. Total Charge

VGS, GATE−TO−SOURCE VOLTAGE (V)

Figure 9. Resistive Switching Time Variation vs. Gate Resistance

R_G, GATE RESISTANCE (W)

Figure 10. Diode Forward Voltage vs. Current

t, TIME (ns)

V_DS = 15 V I_D = 50 A T_J = 25°C VGS

QDS

V_GS = 10 V V_DD = 20 V I_D = 50 A

t_r t_d(off)

t_d(on) tf

Q_GS

QT

V_DS

VDS, DRAIN−TO−SOURCE VOLTAGE (V)

V_DS, DRAIN−TO−SOURCE VOLTAGE (V)

C, CAPACITANCE (pF)

0 1000 2000 3000 4000 5000 6000 7000

0 5 10 15 20 25 30 35 40

C_iss

C_oss C_rss

V_GS = 0 V T_J = 25°C f = 1 MHz

0 3 6 9 12 15

0 20 40 60 800

5 10 15 20

0.4 0.6 0.8 1.0 1.1 1.2

0.1 1 10 100

VSD, SOURCE−TO−DRAIN VOLTAGE (V)

IS, SOURCE CURRENT (A)

I D, DRAIN CURRENT (AMPS)

R_DS(on) LIMIT THERMAL LIMIT PACKAGE LIMIT V_GS ≤ 20 V

SINGLE PULSE TC = 25°C

1 ms 100 ms

10 ms dc 10 ms

10 100

10 100 1000

10.1

2 5 8 11 14

1 4 7 10 13

10 30 50 70

0.3 0.5 0.7 0.9

T_J = 150°C

T_J = −55°C 100°C 25°C

1

www.onsemi.com 6

TYPICAL PERFORMANCE CURVES

Figure 12. Thermal Response t, TIME (s)

0.1 10

0.001 0.1 0.2

0.02 D = 0.5

0.05

0.01 SINGLE PULSE

0.01 1000

0.001 0.0001

0.00001 0.000001

1.0

0.1 1 10 100

r(t), EFFECTIVE TRANSIENT THERMAL RESPONSE (°C/W)

R_qJC = 1.4°C/W Steady State 0.01

ORDERING INFORMATION

Order Number Package Shipping^†

NVD5890NT4G DPAK

(Pb−Free) 2500/Tape & Reel

NVD5890NT4G−VF01 DPAK

(Pb−Free) 2500/Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

DPAK (SINGLE GAUGE) CASE 369C

ISSUE F

DATE 21 JUL 2015 SCALE 1:1

STYLE 1:

PIN 1. BASE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

STYLE 2:

PIN 1. GATE 2. DRAIN 3. SOURCE 4. DRAIN

STYLE 3:

PIN 1. ANODE 2. CATHODE 3. ANODE 4. CATHODE

STYLE 4:

PIN 1. CATHODE 2. ANODE 3. GATE 4. ANODE

STYLE 5:

PIN 1. GATE 2. ANODE 3. CATHODE 4. ANODE STYLE 6:

PIN 1. MT1 2. MT2 3. GATE 4. MT2

STYLE 7:

PIN 1. GATE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

1 2 3 4

STYLE 8:

PIN 1. N/C 2. CATHODE 3. ANODE 4. CATHODE

STYLE 9:

PIN 1. ANODE 2. CATHODE 3. RESISTOR ADJUST 4. CATHODE

STYLE 10:

PIN 1. CATHODE 2. ANODE 3. CATHODE 4. ANODE

b D E

b3

L3

L4 b2

0.005 (0.13)M C

c2 A

c

C

Z

DIM MIN MAX MIN MAX MILLIMETERS INCHES

D 0.235 0.245 5.97 6.22 E 0.250 0.265 6.35 6.73 A 0.086 0.094 2.18 2.38 b 0.025 0.035 0.63 0.89

c2 0.018 0.024 0.46 0.61 b2 0.028 0.045 0.72 1.14 c 0.018 0.024 0.46 0.61

e 0.090 BSC 2.29 BSC b3 0.180 0.215 4.57 5.46

L4 −−− 0.040 −−− 1.01 L 0.055 0.070 1.40 1.78

L3 0.035 0.050 0.89 1.27

Z 0.155 −−− 3.93 −−−

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: INCHES.

3. THERMAL PAD CONTOUR OPTIONAL WITHIN DI- MENSIONS b3, L3 and Z.

4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS, OR BURRS. MOLD FLASH, PROTRUSIONS, OR GATE BURRS SHALL NOT EXCEED 0.006 INCHES PER SIDE.

5. DIMENSIONS D AND E ARE DETERMINED AT THE OUTERMOST EXTREMES OF THE PLASTIC BODY.

6. DATUMS A AND B ARE DETERMINED AT DATUM PLANE H.

7. OPTIONAL MOLD FEATURE.

1 2 3

4

XXXXXX = Device Code A = Assembly Location

L = Wafer Lot

Y = Year

WW = Work Week

G = Pb−Free Package AYWW XXX XXXXXG XXXXXXG

ALYWW

Discrete IC

5.80 0.228

2.58 0.102

1.60 0.063 6.20

0.244

3.00 0.118

6.17 0.243

ǒ

Ǔ

SCALE 3:1

GENERIC MARKING DIAGRAM*

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

SOLDERING FOOTPRINT*

H 0.370 0.410 9.40 10.41 A1 0.000 0.005 0.00 0.13

L1 0.114 REF 2.90 REF L2 0.020 BSC 0.51 BSC

A1

H

DETAIL A

SEATING PLANE

A

B

C

L1 L

H L2^GAUGE_PLANE

DETAIL A

ROTATED 90 CW5

e BOTTOM VIEW

Z

BOTTOM VIEW SIDE VIEW

TOP VIEW

ALTERNATE CONSTRUCTIONS NOTE 7

Z

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.
