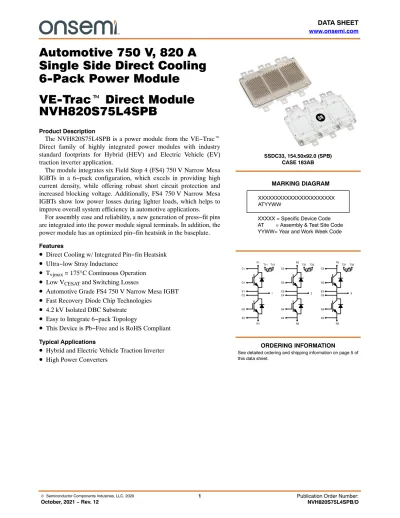

Automotive 750 V, 820 A Single Side Direct Cooling 6-Pack Power Module VE-Tract Direct Module NVH820S75L4SPB

Automotive 750 V, 820 A Single Side Direct Cooling 6-Pack Power Module

VE-Trac t Direct Module NVH820S75L4SPB

Product Description

The NVH820S75L4SPB is a power module from the VE−Trac t Direct family of highly integrated power modules with industry standard footprints for Hybrid (HEV) and Electric Vehicle (EV) traction inverter application.

The module integrates six Field Stop 4 (FS4) 750 V Narrow Mesa IGBTs in a 6−pack configuration, which excels in providing high current density, while offering robust short circuit protection and increased blocking voltage. Additionally, FS4 750 V Narrow Mesa IGBTs show low power losses during lighter loads, which helps to improve overall system efficiency in automotive applications.

For assembly ease and reliability, a new generation of press−fit pins are integrated into the power module signal terminals. In addition, the power module has an optimized pin−fin heatsink in the baseplate.

Features

• Direct Cooling w/ Integrated Pin−fin Heatsink

• Ultra−low Stray Inductance

• ^T

= 175 ° C Continuous Operation

• ^{Low V}

and Switching Losses

• Automotive Grade FS4 750 V Narrow Mesa IGBT

• Fast Recovery Diode Chip Technologies

• 4.2 kV Isolated DBC Substrate

• Easy to Integrate 6−pack Topology

• This Device is Pb−Free and is RoHS Compliant

• Hybrid and Electric Vehicle Traction Inverter

• High Power Converters

See detailed ordering and shipping information on page 5 of this data sheet.

ORDERING INFORMATION SSDC33, 154.50x92.0 (SPB)

CASE 183AB

N3 P3 T31 T32

3

E6 G6 C6 E5 G5 C5

N2

P2 T22

2

E4 G4 C4 E3 G3 C3

N1

P1 T12

1

E2 G2 C2 E1 G1 C1

T21 T11

XXXXX = Specific Device Code AT = Assembly & Test Site Code YYWW= Year and Work Week Code

MARKING DIAGRAM XXXXXXXXXXXXXXXXXXXXXX ATYYWW

Pin Description

Figure 1. Pin Description P1

N1

P2

N2

P3

N3

T11 T12

1 C1

G1

E1 C2

G2

E2

T21 T22

2 C3

G3

E3 C4

G4

E4

T31 T32

3 C5

G5

E5 C6

G6

E6

PIN FUNCTION DESCRIPTION

Pin # Pin Function Description

P1, P2, P3 Positive Power Terminals N1, N2, N3 Negative Power Terminals

1 Phase 1 Output

2 Phase 2 Output

3 Phase 3 Output

G1−G6 IGBT Gate

E1−E6 IGBT Gate Return

C1−C6 Desat Detect/Collector Sense

T11, T12 Phase 1 Temperature Sensor Output T21, T22 Phase 2 Temperature Sensor Output T31, T32 Phase 3 Temperature Sensor Output

Materials

DBC Substrate: Al

O

isolated substrate, basic isolation, and copper on both sides

Terminals: Copper + Tin electro−plating Signal Leads: Copper + Tin plating Pin−fin Base plate: Copper + Ni plating

The module frame meets UL94V−0 flammability rating.

MODULE CHARACTERISTICS (Tvj = 25°C, Unless Otherwise Specified)

Symbol Parameter Rating Unit

Tvj Operating Junction Temperature −40 to 175 °C

T_STG Storage Temperature −40 to 125 °C

V_ISO Isolation Voltage (DC, 0 Hz, 1 s) 4200 V

L_sCE Stray Inductance 8 nH

RCC’+EE’ Module Lead Resistance, Terminals − Chip 0.75 mW

G Module Weight 700 g

CTI Comparative Tracking Index >200 −

dcreep Creepage: Terminal to Heatsink

Terminal to Terminal 9.0

9.0 mm

dclear Clearance: Terminal to Heatsink

Terminal to Terminal 4.5

4.5 mm

Symbol Parameters Conditions Min Typ Max Unit

Dp Pressure Drop in Cooling Circuit 10 L/min, 65°C, 50/50 EGW − 95 − mbar

P (Note 1) Maximum Pressure in Cooling

Loop (relative) TBaseplate < 40°C

T_Baseplate > 40°C −

− −

− 2.5

2.0 bar

1. EPDM rubber 50 durometer ‘O’ ring used.

ABSOLUTE MAXIMUM RATINGS (T_vj = 25°C, Unless Otherwise Specified)

Symbol Parameter Rating Unit

IGBT

V_CES Collector to Emitter Voltage 750 V

V_GES Gate to Emitter Voltage ±20 V

ICN Implemented Collector Current 820 A

I_{C nom} Continuous DC Collector Current, T_vj = 175°C, TF = 65°C, Ref. Heatsink 600 (Note 2) A

I_CRM Pulsed Collector Current @ V_GE = 15 V, t_p =1 ms 1640 A

P_tot Total Power Dissipation T_vj = 175°C, TF = 65°C, Ref. Heatsink 1000 W Diode

V_RRM Repetitive Peak Reverse Voltage 750 V

I_FN Implemented Forward Current 820 A

I_F Continuous Forward Current, T_vj = 175°C, TF = 65°C, Ref. Heatsink 400 (Note 2) A

IFRM Repetitive Peak Forward Current, tp = 1 ms 1640 A

I²t value Surge Current Capability, t_p = 10 ms, T_vj = 150°C

T_vj = 175°C 19000

16000 A²s

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

2. Verified by characterization/design, not by test.

CHARACTERISTICS OF IGBT (Tvj = 25°C, Unless Otherwise Specified)

Symbol Parameters Conditions Min Typ Max Unit

V_CESAT Collector to Emitter Saturation

Voltage (Terminal) VGE = 15 V, IC = 600 A Tvj = 25°C − 1.30 1.55 V Collector to Emitter Saturation

Voltage (Chip) VGE = 15 V, IC = 600 A Tvj = 25°C T_vj = 150°C T_vj = 175°C

−−

−

1.251.37 1.40

1.50−

− VGE = 15 V, IC = 820 A Tvj = 25°C

T_vj = 150°C T_vj = 175°C

−−

−

1.401.59 1.63

−−

− ICES Collector to Emitter Leakage

Current VGE = 0, VCE = 750 V Tvj = 25°C

T_vj = 150°C −

− −

2.0 500

− mA

mA I_GES Gate – Emitter Leakage

Current VCE = 0, VGE = ±20 V − − 300 nA

V_th Threshold Voltage VCE =VGE, IC = 90 mA 4.8 5.7 6.6 V

Q_G Total Gate Charge VGE= −8 to 15 V, VCE = 400 V − 2.3 − mC

R_Gint Internal Gate Resistance − 1.7 − W

C_ies Input Capacitance VCE = 30 V, VGE = 0 V, f = 100 kHz − 60 − nF

C_oes Output Capacitance VCE = 30 V, VGE = 0 V, f = 100 kHz − 1.90 − nF

C_res Reverse Transfer

Capacitance VCE = 30 V, VGE = 0 V, f = 100 kHz − 0.2 − nF

T_d.on Turn On Delay, Inductive

Load IC = 600 A, VCE = 400 V,

V_GE = +15/−8 V, R_g.on = 4 W

Tvj = 25°C T_vj = 150°C T_vj = 175°C

−−

−

315320 322

−−

−

ns

T_r Rise Time, Inductive Load IC = 600 A, VCE = 400 V, V_GE = +15/−8 V, R_g.on = 4 W

Tvj = 25°C T_vj = 150°C T_vj = 175°C

−−

−

108127 132

−−

−

ns

T_d.off Turn Off Delay, Inductive

Load I_C = 600 A, V_CE = 400 V,

VGE = +15/−8 V, R_g.off = 12 W

T_vj = 25°C Tvj = 150°C T_vj = 175°C

−−

−

10631196 1203

−−

−

ns

T_f Fall Time, Inductive Load I_C = 600 A, V_CE = 400 V, VGE = +15/−8 V, R_g.off = 12 W

T_vj = 25°C Tvj = 150°C T_vj = 175°C

−−

−

14485 151

−−

−

ns

E_on Turn−On Switching Loss (Including Diode Reverse Recovery Loss)

I_C = 600 A, V_CE = 400 V, VGE = +15/−8 V, Ls = 22 nH, R_g.on = 4 W

di/dt = 4.5 A/ns, Tvj = 25°C di/dt = 3.9 A/ns, T_vj = 150°C di/dt = 3.6 A/ns, T_vj = 175°C

−

−

−

26 36 38

−

−

−

mJ

Eoff Turn−Off Switching Loss IC = 600 A, VCE = 400 V, V_GE= +15/−8 V, Ls = 22 nH, Rg.off = 12 W

dv/dt = 2.7 V/ns, T_vj = 25°C dv/dt = 1.9 V/ns, T_vj = 150°C dv/dt = 1.9 V/ns, Tvj = 175°C

−

−

−

33 46 50

−

−

−

mJ

ESC Minimum Short Circuit Energy

Withstand V_GE = 15 V, V_CC = 400 V T_vj = 25°C

T_vj = 175°C 9

4.5 −

− −

− J

CHARACTERISTICS OF INVERSE DIODE (Tvj = 25°C, Unless Otherwise Specified)

Symbol Parameters Conditions Min Typ Max Unit

VF Diode Forward Voltage

(Terminal) IF = 600 A Tvj = 25°C − 1.70 1.95 V

Diode Forward Voltage (Chip) IF = 600 A Tvj = 25°C T_vj = 150°C T_vj = 175°C

−−

−

1.601.55 1.50

1.85−

− IF = 820 A Tvj = 25°C

T_vj = 150°C T_vj = 175°C

−−

−

1.701.70 1.65

−−

− E_rr Reverse Recovery Energy IF = 600 A, VR = 400 V,

V_GE = −8 V, R_g.on = 4 W

di/dt = 4.5 A/ns, T_vj = 25°C di/dt = 3.9 A/ns, T_vj = 150°C di/dt = 3.6 A/ns, T_vj = 175°C

−

−

−

3 9 11

−

−

−

mJ

Qrr Recovered Charge I_F = 600 A, V_R = 400 V, V_GE = −8 V,

R_g.on = 4 W

di/dt = 4.5 A/ns, T_vj = 25°C di/dt = 3.9 A/ns, Tvj = 150°C di/dt = 3.6 A/ns, Tvj = 175°C

−

−

−

9 32 39

−

−

−

mC

I_rr Peak Reverse Recovery

Current IF = 600 A, VR = 400 V, V_GE = −8 V,

R_g.on = 4 W

di/dt = 4.5 A/ns, T_vj = 25°C di/dt = 3.9 A/ns, T_vj = 150°C di/dt = 3.6 A/ns, T_vj = 175°C

−

−

−

133 246 282

−

−

−

A

NTC SENSOR CHARACTERISTICS (T_vj = 25°C, Unless Otherwise Specified)

Symbol Parameters Conditions Min Typ Max Unit

R₂₅

(Note 3) Rated Resistance T_C = 25°C − 5 − kW

DR/R Deviation of R100 TC = 100°C, R100 = 493 W 5 − 5 %

P₂₅ Power Dissipation T_C = 25°C − − 20 mW

B25/50 B−Value R = R25 exp [B25/50 (1/T−1/298)] − 3375 − K

B_25/80 B−Value R = R₂₅ exp [B_25/80 (1/T−1/298)] − 3411 − K

B25/100 B−Value R = R25 exp [B25/100 (1/T−1/298)] − 3433 − K

THERMAL CHARACTERISTICS

Symbol Parameter Min Typ Max Unit

IGBT.R_th,J−F Rth, Junction to Fluid, 10 L/min, 65°C, 50/50 EGW − 0.11 0.13 °C/W Diode.R_th,J−F Rth, Junction to Fluid, 10 L/min, 65°C, 50/50 EGW − 0.185 0.20 °C/W

ORDERING INFORMATION

Part Number Package Shipping

NVH820S75L4SPB SSDC33, 154.50x92.0 (SPB)

(Pb−Free) 4 Units / Tray

TYPICAL CHARACTERISTICS

Figure 2. IGBT Output Characteristic Figure 3. IGBT Output Characteristic V_CE (V)

2.6 1.8

1.4 1.0

0.6 00.2

200 400 600 800 1000 1200 1400

Figure 4. IGBT Transfer Characteristic Figure 5. IGBT Turn−off Losses vs. I_C VGE (V)

12 8

6 04

200 400 600 800 1000 1200 1400

Figure 6. IGBT Turn−on Losses vs. I_C Figure 7. E_ON vs. R_G IC (A)

700 500

400 300 200 0100 10 20 30 50 60 IC (A)IC (A)E (mJ)

V_GE = 15 V

TVj = 25°C

T_Vj = 175°C T_Vj = 150°C

VGE = 9 V

V_CE (V)

4 2

1 00

200 400 600 800 1000 1200 1400

IC (A)

VCE = 20 V

T_Vj = 150°C V_GE = 11 V

V_GE = 13 V V_GE = 15 V

VGE = 17 V

IC (A)

400 500

300 700

200 0100 10 20 30 40 50

E (mJ)

60

R_G (W)

8 6

102 50

E (mJ)

600 VGE = +15/−8 V,

RGoff = 12 W, VCE = 400 V

40

600 V_GE = +15/−8 V,

R_Gon = 4 W, V_CE = 400 V

20 30 40

V_GE = +15/−8 V, I_C = 600 A, V_CE = 400 V

Eon, T_Vj = 175°C

Eon, TVj = 150°C

Eon, T_Vj = 25°C

1600 1600

1600

T_Vj = 25°C T_Vj = 175°C

T_Vj = 150°C

800 Eoff, TVj = 175°C

Eoff, T_Vj = 150°C

Eoff, TVj = 25°C

800 4

60

2.2 3

10

70

70

Eon, T_Vj = 175°C

Eon, TVj = 150°C

Eon, T_Vj = 25°C

10

TYPICAL CHARACTERISTICS

Figure 8. E_OFF vs. R_G Figure 9. Gate Charge Characteristic

RG (W) QG (mC)

16 14

2012 30 40

1.2 0.8

0.4

−100

−5 0 10 15

Figure 10. Maximum Allowed V_CE Figure 11. Reverse Bias Safe Operating Area VCE (V)

800 600

400 200

00 200 800 1000 1200 1400

VCE (V)

500 200

100 0.10

1 10 100

E (mJ) VGE (V)IC (A)

C (nF)

V_GE = +15/−8 V, IC = 600 A, VCE = 400 V

V_CE = 400 V, I_C = 600 A, T_vj = 25°C

V_GE = 0 V, T_vj = 25°C f = 1 MHz

400 18

50

5

Q_G

Tvj (°C) VCES (V)

600

I_CES = 1 mA, T_vj ≤ 25°C, ICES = 30 mA, Tvj > 25°C

300 400

VF (F) 1.0 0.6

00.2 200 400 1400

IF (A)

1.4 1.8 2.2

1000

V_GE = +15/−8 V, R_Goff = 12 W, T_vj = 175°C

Module Chip

C_ies

Coes

C_res

600 800 1200

T_vj = 25°C T_vj = 175°C

Tvj = 150°C 60

20 1.6 2.0

1600 1800

1600 Eoff, T_Vj = 175°C

Eoff, T_Vj = 150°C Eoff, T_Vj = 25°C

2.4

650 675 700 725 750 775

−40 20 80 140 200

TYPICAL CHARACTERISTICS

Figure 14. Diode Switching Losses vs. R_G Figure 15. Diode Switching Losses vs. I_F RG (W)

8 6

5 3

02 2 4 8 10

Err (mJ)

IF (A)

800 500

400 300 0100

6 12 14

Err (mJ)

12

6

200 Err, T_vj = 175°C

Err, T_vj = 150°C

Err, T_vj = 25°C

R_Gon = 4 W V_CE = 400 V 10

8

4 2

600

4 7 700

VGE = +15/−8 V, I_C = 600 A, V_CE = 400 V

Err, T_vj = 175°C

Err, T_vj = 150°C

Err, T_vj = 25°C

10

Figure 16. IGBT Transient Thermal Impedance (Typ.)

Figure 17. Diode Transient Thermal Impedance (Typ.)

TIME (s)

10 1

0.1 0.01

0.001 0.01

1

Figure 18. IGBT, Thermal Resistance (Typ.) Figure 19. Diode, Thermal Resistance (Typ.) Q_V (L/min)

12 10

6 0.1004

0.104 0.106 0.112 0.120

Zth (K/W)

Rth,J−F (K/W)

i: 1 2 3 4

Rth [K/W]: 0.034 0.075 0.031 0.043 tth [s]: 0.012 0.064 0.0008 0.639

R_th = f(Q_V), T_f = 65°C, 50/50 EGW, Ref. Cooler Assy.

TIME (s)

10 1

0.1 0.01

0.001 0.001

0.01 0.1 1

Zth (K/W) 0.1

QV (L/min)

14 10

8 0.1784

0.182 0.196 0.198

Rth,J−F (K/W) Zth,j−f: IGBT

i: 1 2 3 4

Rth [K/W]: 0.044 0.046 0.009 0.009 tth [s]: 0.046 0.388 0.001 1.273

10 L/Min, T_f = 65°C, 50/50 EGW, Ref. Cooler Assy.

6 Z_th: (K/W) 10 L/Min, T_f = 65°C, 50/50 EGW,

Ref. Cooler Assy.

8 0.102

0.108 0.110 0.116 0.114 0.118

R_th = f(Q_V), T_f = 65°C, 50/50 EGW, Ref. Cooler Assy.

0.194

0.190 0.188

0.180 0.184 0.186 0.124

0.122

12 0.192

TYPICAL CHARACTERISTICS

Figure 20. Pressure Drop in Cooling Circuit Figure 21. NTC Thermistor − Temperature Characteristic (Typical)

Dp (mbar)

T_C (°C)

125 75

50 1000

10K 100K

R (W)

25 1K

100 Q_V (L/min)

9 205

60 180 200

120

80

40

7 11 15

100 160

Dp = f(QV), 50/50 EGW, Ref. Cooler Assy.

140

T_f = 25°C

13 T_f = 65°C

SSDC33, 154.50x92.0 (SPB) CASE 183AB

ISSUE A

DATE 05 DEC 2019

XXXXX = Specific Device Code G = Pb−Free Package

AT = Assembly & Test Site Code YYWW= Year and Work Week Code

*This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “ G”, may or may not be present. Some products may not follow the Generic Marking.

GENERIC MARKING DIAGRAM*

XXXXXXXXXXXXXXXXXXXXXG ATYYWW

98AON10436H DOCUMENT NUMBER:

DESCRIPTION:

Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

PAGE 1 OF 2 SSDC33, 154.50x92.0 (SPB)

SSDC33, 154.50x92.0 (SPB) CASE 183AB

ISSUE A

DATE 05 DEC 2019

98AON10436H

DOCUMENT NUMBER: Electronic versions are uncontrolled except when accessed directly from the Document Repository.

information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
