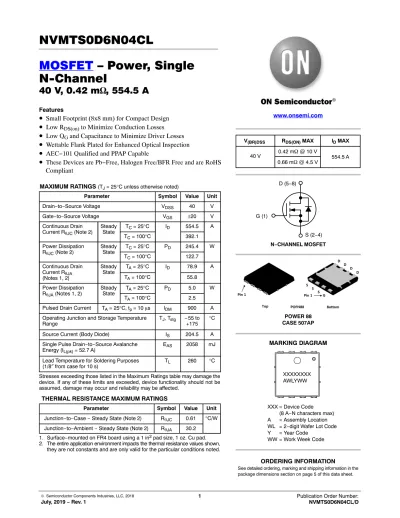

NVMTS0D6N04CL MOSFET – Power, Single N-Channel

MOSFET – Power, Single N-Channel

40 V, 0.42 m W , 554.5 A

Features

• Small Footprint (8x8 mm) for Compact Design

• ^{Low R}

to Minimize Conduction Losses

• ^{Low Q}

and Capacitance to Minimize Driver Losses

• Wettable Flank Plated for Enhanced Optical Inspection

• AEC−101 Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

MAXIMUM RATINGS (T_J = 25°C unless otherwise noted)

Parameter Symbol Value Unit

Drain−to−Source Voltage V_DSS 40 V

Gate−to−Source Voltage V_GS ±20 V

Continuous Drain

Current R_qJC (Note 2) Steady

State T_C = 25°C I_D 554.5 A T_C = 100°C 392.1 Power Dissipation

R_qJC (Note 2) Steady

State TC = 25°C P_D 245.4 W

TC = 100°C 122.7

Continuous Drain Current R_qJA (Notes 1, 2)

Steady

State TA = 25°C I_D 78.9 A

T_A = 100°C 55.8

Power Dissipation

R_qJA (Notes 1, 2) Steady

State TA = 25°C P_D 5.0 W

TA = 100°C 2.5

Pulsed Drain Current T_A = 25°C, tp = 10 ms IDM 900 A Operating Junction and Storage Temperature

Range TJ, Tstg −55 to

+175 °C

Source Current (Body Diode) I_S 204.5 A

Single Pulse Drain−to−Source Avalanche

Energy (I_L(pk) = 52.7 A) E_AS 2058 mJ

Lead Temperature for Soldering Purposes

(1/8″ from case for 10 s) TL 260 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL RESISTANCE MAXIMUM RATINGS

Parameter Symbol Value Unit

Junction−to−Case − Steady State (Note 2) R_qJC 0.61 °C/W Junction−to−Ambient − Steady State (Note 2) R_qJA 30.2 1. Surface−mounted on FR4 board using a 1 in² pad size, 1 oz. Cu pad.

2. The entire application environment impacts the thermal resistance values shown, they are not constants and are only valid for the particular conditions noted.

www.onsemi.com

ORDERING INFORMATION V_(BR)DSS R_DS(ON) MAX I_D MAX

40 V 0.42 mW @ 10 V

554.5 A 0.66 mW @ 4.5 V

G (1)

S (2−4) N−CHANNEL MOSFET

D (5−8)

POWER 88 CASE 507AP MARKING DIAGRAM

XXXXXXXX AWLYWW

XXX = Device Code (8 A−N characters max) A = Assembly Location WL = 2−digit Wafer Lot Code Y = Year Code

WW = Work Week Code

Parameter Symbol Test Condition Min Typ Max Unit OFF CHARACTERISTICS

Drain−to−Source Breakdown Voltage V(BR)DSS VGS = 0 V, ID = 250 mA 40 V

Drain−to−Source Breakdown Voltage

Temperature Coefficient V(BR)DSS/

T_J I_D = 250 mA, ref to 25°C 12.6 mV/°C

Zero Gate Voltage Drain Current I_DSS V_GS = 0 V,

V_DS = 40 V T_J = 25°C 10

T_J = 125°C 250 mA

Gate−to−Source Leakage Current I_GSS V_DS = 0 V, V_GS = 20 V 100 nA

ON CHARACTERISTICS (Note 3)

Gate Threshold Voltage V_GS(TH) V_GS = V_DS, I_D = 250 mA 1.2 2.0 V

Negative Threshold Temperature Coefficient V_GS(TH)/T_J I_D = 250 mA, ref to 25°C −6.0 mV/°C Drain−to−Source On Resistance R_DS(on) V_GS = 10 V I_D = 50 A 0.35 0.42

V_GS = 4.5 V I_D = 50 A 0.52 0.66 mW

Forward Transconductance g_FS V_DS =5 V, I_D = 50 A 323 S

Gate Resistance R_G T_A = 25°C 1.0 W

CHARGES, CAPACITANCES & GATE RESISTANCE

Input Capacitance C_ISS

VGS = 0 V, f = 1 MHz, VDS = 20 V

16013

Output Capacitance C_OSS 6801 pF

Reverse Transfer Capacitance C_RSS 299

Total Gate Charge Q_G(TOT)

V_GS = 4.5 V, V_DS = 20 V; I_D = 50 A

126

Threshold Gate Charge Q_G(TH) 22.5 nC

Gate−to−Source Charge Q_GS 39.9

Gate−to−Drain Charge Q_GD 38.4

Total Gate Charge QG(TOT) VGS = 10 V, VDS = 20 V; ID = 50 A 265 nC

SWITCHING CHARACTERISTICS, V_GS = 4.5 V (Note 4)

Turn−On Delay Time td(ON)

V_GS = 4.5 V, V_DS = 20 V, ID = 50 A, RG = 6 W

89.4

Rise Time tr 111 ns

Turn−Off Delay Time td(OFF) 180

Fall Time tf 84.7

DRAIN−SOURCE DIODE CHARACTERISTICS

Forward Diode Voltage VSD V_GS = 0 V,

IS = 50 A

TJ = 25°C 0.75 1.2

TJ = 125°C 0.6 V

Reverse Recovery Time t_RR

VGS = 0 V, dIS/dt = 100 A/ms, I_S = 50 A

99.3

Charge Time t_a 62.4 ns

Discharge Time t_b 36.9

Reverse Recovery Charge Q_RR 228 nC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

3. Pulse Test: pulse width v 300 ms, duty cycle v 2%.

4. Switching characteristics are independent of operating junction temperatures.

TYPICAL CHARACTERISTICS

Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics

Figure 3. On−Resistance vs. Gate−to−Source Voltage

Figure 4. On−Resistance vs. Drain Current and Gate Voltage

V_GS, GATE−TO−SOURCE VOLTAGE (V) I_D, DRAIN CURRENT (A)

9 8 7 0 6

260 110

10

Figure 5. On−Resistance Variation with Temperature

Figure 6. Drain−to−Source Leakage Current vs. Voltage

T_J, JUNCTION TEMPERATURE (°C) V_DS, DRAIN−TO−SOURCE VOLTAGE (V) 145

105 65

−15 0−55 2.0

40 35 30 25 10

RDS(on), DRAIN−TO−SOURCE RESISTANCE (mW) RDS(on), DRAIN−TO−SOURCE RESISTANCE (mW)

RDS(on), NORMALIZED DRAIN−TO− SOURCE RESISTANCE IDSS, LEAKAGE CURRENT (nA)

T_J = 25°C I_D = 50 A

V_GS = 10 V

V_GS = 10 V I_D = 50 A

25

TJ = 85°C 12

4

5 15

T_J = 25°C 1E+06

1.0 2 8

210 0.6

1.0 1.4

5 6

10

0.2 0.4 0.8 1.2 1.6 1.8

10

T_J = 150°C TJ = 125°C

1E+03 1E+02 1E+01 1E+00 0 0.2 0.4 0.8 1.2

T_J = 25°C

1

20 1E+04

1E+05

60 160

0.6 1.4

V_GS = 4.5 V

4 3 2

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) V_GS, GATE−TO−SOURCE VOLTAGE (V) 0 0.25

200 600 1000

2 1

00 400 600

ID, DRAIN CURRENT (A) ID, DRAIN CURRENT (A)

TJ = 125°C TJ = 25°C

T_J = −55°C

2.00 3 5

V_GS = 4.6 V to 10 V

3.0 V 0.75

300 300

1.50 100

500 800

500

V_DS = 10 V

0

4.2 V

1.00 400

700

100 200

0.50 1.25 1.75

900

800 1000

700 900

4 4.0 V

3.2 V 3.4 V 3.6 V

Figure 7. Capacitance Variation Figure 8. Gate−to−Source Voltage vs. Total Charge

Q_G, TOTAL GATE CHARGE (nC) 80 40

00 2 4 6 5

Figure 9. Resistive Switching Time Variation

vs. Gate Resistance Figure 10. Diode Forward Voltage vs. Current

Figure 11. Maximum Rated Forward Biased

Safe Operating Area Figure 12. I_PEAK vs. Time in Avalanche

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) TIME IN AVALANCHE (s)

1000 10

1 0.10.1

10 100 1000

100 VGS, GATE−TO−SOURCE VOLTAGE (V)

ID, DRAIN CURRENT(A) IPEAK (A)

V_DS = 20 V T_J = 25°C I_D = 50 A

Q_GS Q_GD

T_J(initial) = 100°C

T_J(initial) = 25°C

0.00001 0.01

R_DS(on) Limit Thermal Limit Package Limit

10 ms

0.5 ms 1 ms 10 ms TC = 25°C

Single Pulse V_GS≤ 10 V

1000

0.0001 1

100 1

20 60

0.001 10

100 120

1 3

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) 100

R_G, GATE RESISTANCE (W) V_SD, SOURCE−TO−DRAIN VOLTAGE (V)

50 30

1E−082 1E−05

0.5

0.4 1.1

0.3 0.2 0.1 0.1

C, CAPACITANCE (pF)t, SWITCHING TIME (ns) IS, SOURCE CURRENT (A)

VGS = 0 V TJ = 25°C f = 1 MHz

C_ISS C_OSS

C_RSS

V_GS = 4.5 V VDS = 20 V ID = 50 A

td(off)

td(on)

tf

t_r

T_J = 25°C TJ = −55°C 100K

1 0.1

VGS = 0 V 1K

1 1E−06

10K

10

T_J = 125°C 1E−07

14 22 26 34 42 46

10

10 0.6

T_J = 150°C TJ = 175°C

0.7 0.8 0.9 1.0 38

18 6

100 100

TYPICAL CHARACTERISTICS

Figure 13. Thermal Characteristics PULSE TIME (sec)

1000 10

0.1 0.0001

0.000001 0.001

R(t) (°C/W) 0.1 10 100

100 1

0.01

0.00001 0.001

1

Single Pulse Duty Cycle = 0.5 0.2

0.050.1 0.02 0.01

0.01

DEVICE ORDERING INFORMATION

Device Marking Package Shipping^†

NVMTS0D6N04CLTXG 0D6N04CL POWER 88

(Pb−Free) 3000 / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

CASE 507AP ISSUE D

DATE 29 MAR 2021

XXXX = Specific Device Code A = Assembly Location WL = Wafer Lot Code Y = Year Code WW = Work Week Code

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “ G”, may or may not be present. Some products may not follow the Generic Marking.

GENERIC MARKING DIAGRAM*
