(1)

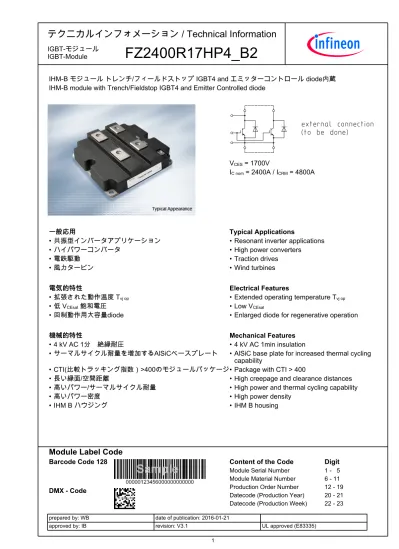

IHM-BmodulewithTrench/FieldstopIGBT4andEmitterControlleddiode

V

CES

= 1700V

I

C nom

= 2400A / I

CRM

= 4800A

一般応用 TypicalApplications

• 共振型インバータアプリケーション • Resonantinverterapplications

• ハイパワーコンバータ • Highpowerconverters

• 電鉄駆動 • Tractiondrives

• 風力タービン • Windturbines

電気的特性 ElectricalFeatures

• 拡張された動作温度T

vjop

• ExtendedoperatingtemperatureT

vjop

• 低V

CEsat

飽和電圧 • LowV

CEsat

• 回制動作用大容量diode • Enlargeddiodeforregenerativeoperation

機械的特性 MechanicalFeatures

• 4kVAC1分 絶縁耐圧 • 4kVAC1mininsulation

• サーマルサイクル耐量を増加するAlSiCベースプレート • AlSiC base plate for increased thermal cycling capability

• CTI(比較トラッキング指数)>400のモジュールパッケージ • PackagewithCTI>400

• 長い縁面/空間距離 • Highcreepageandclearancedistances

• 高いパワー/サーマルサイクル耐量 • Highpowerandthermalcyclingcapability

• 高いパワー密度 • Highpowerdensity

• IHMBハウジング • IHMBhousing

ModuleLabelCode

BarcodeCode128

DMX-Code

ContentoftheCode Digit

ModuleSerialNumber 1-5 ModuleMaterialNumber 6-11 ProductionOrderNumber 12-19 Datecode(ProductionYear) 20-21 Datecode(ProductionWeek) 22-23

(2)

IGBT- インバータ/IGBT,Inverter

最大定格/MaximumRatedValues

コレクタ・エミッタ間電圧

Collector-emittervoltage Tvj = 25°C VCES 1700 V

連続DCコレクタ電流

ContinuousDCcollectorcurrent TC = 100°C, Tvj max = 175°C IC nom 2400 A 繰り返しピークコレクタ電流

Repetitivepeakcollectorcurrent tP = 1 ms ICRM 4800 A

トータル損失

Totalpowerdissipation TC = 25°C, Tvj max = 175°C Ptot 13,0 kW ゲート・エミッタ間ピーク電圧

Gate-emitterpeakvoltage VGES +/-20 V

電気的特性/CharacteristicValues

min. typ. max.

コレクタ・エミッタ間飽和電圧

Collector-emittersaturationvoltage IC = 2400 A, VGE = 15 V IC = 2400 A, VGE = 15 V IC = 2400 A, VGE = 15 V

VCE sat

1,90 2,30 2,40

2,25 V V V Tvj = 25°C

Tvj = 125°C Tvj = 150°C ゲート・エミッタ間しきい値電圧

Gatethresholdvoltage IC = 96,0 mA, VCE = VGE, Tvj = 25°C VGEth 5,20 5,80 6,40 V ゲート電荷量

Gatecharge VGE = -15 V ... +15 V QG 25,5 µC

内蔵ゲート抵抗

Internalgateresistor Tvj = 25°C RGint 0,81 Ω

入力容量Inputcapacitance f = 1 MHz, Tvj = 25°C, VCE = 25 V, VGE = 0 V Cies 195 nF 帰還容量Reversetransfercapacitance f = 1 MHz, Tvj = 25°C, VCE = 25 V, VGE = 0 V Cres 6,30 nF コレクタ・エミッタ間遮断電流

Collector-emittercut-offcurrent VCE = 1700 V, VGE = 0 V, Tvj = 25°C ICES 5,0 mA ゲート・エミッタ間漏れ電流

Gate-emitterleakagecurrent VCE = 0 V, VGE = 20 V, Tvj = 25°C IGES 400 nA ターンオン遅れ時間(誘導負荷)

Turn-ondelaytime,inductiveload IC = 2400 A, VCE = 900 V VGE = ±15 V

RGon = 0,5 Ω

td on 0,615 0,67 0,70

µs µs µs Tvj = 25°C

Tvj = 125°C Tvj = 150°C ターンオン上昇時間(誘導負荷)

Risetime,inductiveload IC = 2400 A, VCE = 900 V VGE = ±15 V

RGon = 0,5 Ω

tr 0,21

0,22 0,23

µs µs µs Tvj = 25°C

Tvj = 125°C Tvj = 150°C ターンオフ遅れ時間(誘導負荷)

Turn-offdelaytime,inductiveload IC = 2400 A, VCE = 900 V VGE = ±15 V

RGoff = 0,5 Ω

td off 1,30

1,40 1,45

µs µs µs Tvj = 25°C

Tvj = 125°C Tvj = 150°C ターンオフ下降時間(誘導負荷)

Falltime,inductiveload IC = 2400 A, VCE = 900 V VGE = ±15 V

RGoff = 0,5 Ω

tf 0,19

0,33 0,36

µs µs µs Tvj = 25°C

Tvj = 125°C Tvj = 150°C ターンオンスイッチング損失

Turn-onenergylossperpulse IC = 2400 A, VCE = 900 V, LS = 50 nH VGE = ±15 V, di/dt = 10500 A/µs (Tvj = 150°C)

RGon = 0,5 Ω Eon

470 680 720

mJ mJ mJ Tvj = 25°C

Tvj = 125°C Tvj = 150°C ターンオフスイッチング損失

Turn-offenergylossperpulse IC = 2400 A, VCE = 900 V, LS = 50 nH VGE = ±15 V, du/dt = 2800 V/µs (Tvj = 150°C)

RGoff = 0,5 Ω Eoff

660 830 880

mJ mJ mJ Tvj = 25°C

Tvj = 125°C Tvj = 150°C 短絡電流SCdata VGE≤ 15 V, VCC = 1000 V

VCEmax = VCES -LsCE ·di/dt tP≤ 10 µs, Tvj = 150°C ISC 9500 A

ジャンクション・ケース間熱抵抗

Thermalresistance,junctiontocase IGBT部(1素子当り)/perIGBT RthJC 8,51 K/kW ケース・ヒートシンク間熱抵抗

Thermalresistance,casetoheatsink IGBT部(1素子当り)/perIGBT

λPaste=1W/(m·K)/λgrease=1W/(m·K) RthCH 14,5 K/kW

動作温度Temperatureunderswitchingconditions Tvj op -40 150 °C

(3)

Diode、インバータ/Diode,Inverter

最大定格/MaximumRatedValues

ピーク繰返し逆電圧

Repetitivepeakreversevoltage Tvj = 25°C VRRM 1700 V

連続DC電流

ContinuousDCforwardcurrent IF 2400 A

ピーク繰返し順電流

Repetitivepeakforwardcurrent tP = 1 ms IFRM 4800 A

電流二乗時間積

I²t-value VR = 0 V, tP = 10 ms, Tvj = 125°C

VR = 0 V, tP = 10 ms, Tvj = 150°C I²t 1000

955 kA²s

kA²s

最大損失Maximumpowerdissipation Tvj = 125°C PRQM 3200 kW

最小ターンオン時間

Minimumturn-ontime ton min 10,0 µs

電気的特性/CharacteristicValues

min. typ. max.

順電圧Forwardvoltage IF = 2400 A, VGE = 0 V IF = 2400 A, VGE = 0 V IF = 2400 A, VGE = 0 V

VF

1,65 1,65 1,65

2,10 V V V Tvj = 25°C

Tvj = 125°C Tvj = 150°C ピーク逆回復電流

Peakreverserecoverycurrent IF = 2400 A, - diF/dt = 10500 A/µs (Tvj=150°C) VR = 900 V

VGE = -15 V

IRM

2450 2800 2850

A A A Tvj = 25°C

Tvj = 125°C Tvj = 150°C 逆回復電荷量

Recoveredcharge IF = 2400 A, - diF/dt = 10500 A/µs (Tvj=150°C) VR = 900 V

VGE = -15 V

Qr

650 1100 1250

µC µC µC Tvj = 25°C

Tvj = 125°C Tvj = 150°C 逆回復損失

Reverserecoveryenergy IF = 2400 A, - diF/dt = 10500 A/µs (Tvj=150°C) VR = 900 V

VGE = -15 V

Erec

425 755 830

mJ mJ mJ Tvj = 25°C

Tvj = 125°C Tvj = 150°C ジャンクション・ケース間熱抵抗

Thermalresistance,junctiontocase /Diode(1素子当り)/perdiode RthJC 12,0 K/kW ケース・ヒートシンク間熱抵抗

Thermalresistance,casetoheatsink /Diode(1素子当り)/perdiode

λPaste=1W/(m·K)/λgrease=1W/(m·K) RthCH 16,0 K/kW

動作温度Temperatureunderswitchingconditions Tvj op -40 150 °C

(4)

モジュール/Module

絶縁耐圧Isolationtestvoltage RMS, f = 50 Hz, t = 1 min. VISOL 4,0 kV ベースプレート材質

Materialofmodulebaseplate AlSiC

沿面距離Creepagedistance 連絡方法-ヒートシンク/terminaltoheatsink

連絡方法-連絡方法/terminaltoterminal 32,2

32,2 mm

空間距離Clearance 連絡方法-ヒートシンク/terminaltoheatsink

連絡方法-連絡方法/terminaltoterminal 19,1

19,1 mm

相対トラッキング指数

Comperativetrackingindex CTI > 400

min. typ. max.

内部インダクタンス

Strayinductancemodule LsCE 9,0 nH

パワーターミナル・チップ間抵抗

Moduleleadresistance,terminals-chip TC=25°C,/スイッチ/perswitch RCC'+EE' 0,13 mΩ

保存温度Storagetemperature Tstg -40 150 °C

取り付けネジ締め付けトルク

Mountingtorqueformodulmounting 取り付けネジM6

適切なアプリケーションノートによるマウンティング

ScrewM6-Mountingaccordingtovalidapplicationnote M 4,25 5,75 Nm 主端子ネジ締め付けトルク

Terminalconnectiontorque 取り付けネジM4

適切なアプリケーションノートによるマウンティング ScrewM4-Mountingaccordingtovalidapplicationnote 取り付けネジM8

適切なアプリケーションノートによるマウンティング ScrewM8-Mountingaccordingtovalidapplicationnote

M 1,8 8,0

- -

2,1 10

Nm Nm

質量Weight G 800 g

(5)

出力特性IGBT- インバータ(Typical) outputcharacteristicIGBT,Inverter(typical) IC=f(VCE)

VGE=15V

VCE [V]

IC [A]

0,0 0,5 1,0 1,5 2,0 2,5 3,0 3,5 4,0 0

400 800 1200 1600 2000 2400 2800 3200 3600 4000 4400 4800

Tvj = 25°C Tvj = 125°C Tvj = 150°C

出力特性IGBT- インバータ(Typical) outputcharacteristicIGBT,Inverter(typical) IC=f(VCE)

Tvj=150°C

VCE [V]

IC [A]

0,0 0,5 1,0 1,5 2,0 2,5 3,0 3,5 4,0 4,5 5,0 0

400 800 1200 1600 2000 2400 2800 3200 3600 4000 4400 4800

VGE = 20V VGE = 15V VGE = 12V VGE = 10V VGE = 9V VGE = 8V

伝達特性IGBT- インバータ(Typical) transfercharacteristicIGBT,Inverter(typical) IC=f(VGE)

VCE=20V

VGE [V]

IC [A]

5 6 7 8 9 10 11 12 13

0 400 800 1200 1600 2000 2400 2800 3200 3600 4000 4400 4800

Tvj = 25°C Tvj = 125°C Tvj = 150°C

スイッチング損失IGBT- インバータ(Typical) switchinglossesIGBT,Inverter(typical) Eon=f(IC),Eoff=f(IC)

VGE=±15V,RGon=0.5Ω,RGoff=0.5Ω,VCE=900V

IC [A]

E [mJ]

0 600 1200 1800 2400 3000 3600 4200 4800 0

200 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400

Eon, Tvj = 125°C Eon, Tvj = 150°C Eoff, Tvj = 125°C Eoff, Tvj = 150°C

(6)

スイッチング損失IGBT- インバータ(Typical) switchinglossesIGBT,Inverter(typical) Eon=f(RG),Eoff=f(RG)

VGE=±15V,IC=2400A,VCE=900V

RG [Ω]

E [mJ]

0,0 1,0 2,0 3,0 4,0 5,0

0 500 1000 1500 2000 2500 3000 3500 4000 4500

Eon, Tvj = 125°C Eon, Tvj = 150°C Eoff, Tvj = 125°C Eoff, Tvj = 150°C

過渡熱インピーダンスIGBT- インバータ transientthermalimpedanceIGBT,Inverter ZthJC=f(t)

t [s]

ZthJC [K/kW]

0,001 0,01 0,1 1 10

0,1 1 10 100

ZthJC : IGBT

i:

ri[K/kW]:

τi[s]:

1 1,5 0,00161

2 4,75 0,0403

3 1,4 0,417

4 0,86 6,49

逆バイアス安全動作領域IGBT- インバータ(RBSOA)) reversebiassafeoperatingareaIGBT,Inverter(RBSOA) IC=f(VCE)

VGE=±15V,RGoff=0.5Ω,Tvj=150°C

VCE [V]

IC [A]

0 200 400 600 800 1000 1200 1400 1600 1800 0

800 1600 2400 3200 4000 4800 5600

IC, Modul IC, Chip

順電圧特性Diode、インバータ(typical)

forwardcharacteristicofDiode,Inverter(typical) IF=f(VF)

VF [V]

IF [A]

0,0 0,2 0,4 0,6 0,8 1,0 1,2 1,4 1,6 1,8 2,0 2,2 2,4 0

400 800 1200 1600 2000 2400 2800 3200 3600 4000 4400 4800

Tvj = 25°C Tvj = 125°C Tvj = 150°C

(7)

スイッチング損失Diode、インバータ(Typical) switchinglossesDiode,Inverter(typical) Erec=f(IF)

RGon=0.5Ω,VCE=900V

IF [A]

E [mJ]

0 600 1200 1800 2400 3000 3600 4200 4800 0

200 400 600 800 1000 1200 1400

Erec, Tvj = 125°C Erec, Tvj = 150°C

スイッチング損失Diode、インバータ(Typical) switchinglossesDiode,Inverter(typical) Erec=f(RG)

IF=2400A,VCE=900V

RG [Ω]

E [mJ]

0,0 1,0 2,0 3,0 4,0 5,0

0 100 200 300 400 500 600 700 800 900 1000 1100 1200

Erec, Tvj = 125°C Erec, Tvj = 150°C

過渡熱インピーダンスDiode、インバータ transientthermalimpedanceDiode,Inverter ZthJC=f(t)

t [s]

ZthJC [K/kW]

0,001 0,01 0,1 1 10

0,1 1 10 100

ZthJC : Diode

i:

ri[K/kW]:

τi[s]:

1 2,42 0,00144

2 6,26 0,0373

3 2,1 0,315

4 1,22 5,86

安全動作領域Diode、インバータ(SOA) safeoperationareaDiode,Inverter(SOA) IR=f(VR)

Tvj=150°C

VR [V]

IR [A]

0 200 400 600 800 1000 1200 1400 1600 1800 0

800 1600 2400 3200 4000 4800 5600

IR, Modul

(8)

回路図/Circuitdiagram

パッケージ概要/Packageoutlines

(9)

Publishedby

InfineonTechnologiesAG 81726München,Germany

©InfineonTechnologiesAG2015.

AllRightsReserved.
