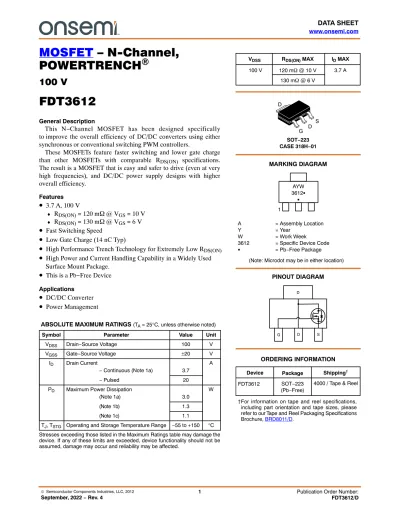

MOSFET – N-Channel, POWERTRENCH )
100 V
FDT3612
General Description
This N−Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.
These MOSFETs feature faster switching and lower gate charge than other MOSFETs with comparable R
DS(ON)specifications.
The result is a MOSFET that is easy and safer to drive (even at very high frequencies), and DC/DC power supply designs with higher overall efficiency.
Features
• 3.7 A, 100 V
♦
R
DS(ON)= 120 m W @ V
GS= 10 V
♦
R
DS(ON)= 130 m W @ V
GS= 6 V
• Fast Switching Speed
• Low Gate Charge (14 nC Typ)
• High Performance Trench Technology for Extremely Low R
DS(ON)• High Power and Current Handling Capability in a Widely Used Surface Mount Package.
• This is a Pb−Free Device
Applications• DC/DC Converter
• Power Management
ABSOLUTE MAXIMUM RATINGS (TA = 25°C, unless otherwise noted)
Symbol Parameter Value Unit
VDSS Drain−Source Voltage 100 V
VGSS Gate−Source Voltage ±20 V
ID Drain Current
− Continuous (Note 1a) 3.7
A
− Pulsed 20
PD Maximum Power Dissipation
(Note 1a) 3.0
W
(Note 1b) 1.3
(Note 1c) 1.1
TJ, TSTG Operating and Storage Temperature Range −55 to +150 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
SOT−223 CASE 318H−01
1
MARKING DIAGRAM
AYW 3612G G
(Note: Microdot may be in either location)
A = Assembly Location
Y = Year
W = Work Week
3612 = Specific Device Code
G = Pb−Free Package
ORDERING INFORMATION
Device Package Shipping†
FDT3612 SOT−223
(Pb−Free) 4000 / Tape & Reel
D
D S
G
PINOUT DIAGRAM D
G D S
VDSS RDS(ON) MAX ID MAX
100 V 120 mW @ 10 V 3.7 A
130 mW @ 6 V
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.
www.onsemi.com 2
THERMAL CHARACTERISTICS (TA = 25°C, unless otherwise noted)
Symbol Parameter Max Unit
RqJA Thermal Resistance, Junction−to−Ambient (Note 1a) 42 °C/W
RqJC Thermal Resistance, Junction−to−Case (Note 1) 12 °C/W
ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted)
Symbol Parameter Conditions Min Typ Max Unit
DRAIN−SOURCE AVALANCHE RATINGS (Note 2)
WDSS Drain−Source Avalanche Energy Single Pulse, VDD = 50 V, ID = 3.7 A − − 90 mJ
IAR Drain−Source Avalanche Current − − 3.7 A
OFF CHARACTERISTICS
BVDSS Drain−Source Breakdown Voltage VGS = 0 V, ID = 250 mA 100 − − V
DBVDSS DTJ
Breakdown Voltage Temperature
Coefficient ID = 250 mA, Referenced to 25°C − 106 − mV/°C
IDSS Zero Gate Voltage Drain Current VDS = 80 V, VGS = 0 V − − 10 mA
IGSSF Gate−Body Leakage, Forward VGS = 20 V, VDS = 0 V − − 100 nA
IGSSR Gate−Body Leakage, Reverse VGS = −20 V, VDS = 0 V − − −100 nA
ON CHARACTERISTICS (Note 2)
VGS(th) Gate Threshold Voltage VDS = VGS, ID = 250 mA 2 2.5 4 V
DVGS(th) DTJ
Gate Threshold Voltage Temperature
Coefficient ID = 250 mA, Referenced to 25°C − −6 − mV/°C
RDS(ON) Static Drain−Source On−Resistance VGS = 10 V, ID = 3.7 A − 88 120 mW
VGS = 6 V, ID = 3.5 A − 94 130
VGS = 10 V, ID = 3.7 A, TJ = 125°C − 170 245
ID(ON) On−State Drain Current VGS = 10 V, VDS = 10 V 10 − − A
gFS Forward Transconductance VDS = 10 V, ID = 3.7 A − 11 − S
DYNAMIC CHARACTERISTICS
Ciss Input Capacitance VDS = 50 V, VGS = 0 V, f = 1.0 MHz − 632 − pF
Coss Output Capacitance − 40 − pF
Crss Reverse Transfer Capacitance − 20 − pF
SWITCHING CHARACTERISTICS (Note 2)
td(on) Turn − On Delay Time VDD = 50 V, ID = 1 A, VGS = 10 V, RGEN = 6 W
− 8.5 17 ns
tr Turn − On Rise Time − 2 4 ns
td(off) Turn − Off Delay Time − 23 37 ns
tf Turn − Off Fall Time − 4.5 9 ns
Qg Total Gate Charge VDS = 50 V, ID = 3.7 A, VGS = 10 V − 14 20 nC
Qgs Gate−Source Charge − 2.4 − nC
Qgd Gate−Drain Charge − 3.8 − nC
DRAIN−SOURCE DIODE CHARACTERISTICS AND MAXIMUM RATINGS
IS Maximum Continuous Drain−Source Diode Forward Current − − 2.5 A
VSD Drain−Source Diode Forward Voltage VGS = 0 V, IS = 2.5 A (Note 2) − 0.75 1.2 V Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.
NOTES:
1. RqJA is the sum of the junction−to−case and case−to−ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of the drain pins. RqJC is guaranteed by design while RqCA is determined by the user’s board design.
a. 42°C/W when mounted on a 1 in2 pad of 2 oz copper.
b. 95°C/W when mounted on a 0.0066 in2 pad of 2 oz copper.
c. 110°C/W when mounted on a minimum pad.
2. Pulse Test: Pulse Width < 300 ms, Duty Cycle < 2.0%.
www.onsemi.com 4
TYPICAL CHARACTERISTICS
0 0.2 0.4 0.6 0.8 1 1.2 1.4
0.0001 0.001 0.01 0.1 1 10 100
3 4 6 8 10
0 0.1 0.2 0.3 0.4 Figure 1. On−Region Characteristics
ID, DRAIN CURRENT (A)
VDS, DRAIN−SOURCE VOLTAGE (V)
RDS(ON), NORMALIZED DRAIN−SOURCE ON−RESISTANCE
TJ, JUNCTION TEMPERATURE (°C) VGS, GATE TO SOURCE VOLTAGE (V) RDS(ON), ON−RESISTANCE (W)
VGS, GATE TO SOURCE VOLTAGE (V)
ID, DRAIN CURRENT (A)
RDS(ON), NORMALIZED DRAIN−SOURCE ON−RESISTANCEID, DRAIN CURRENT (A) IS, REVERSE DRAIN CURRENT (A)
TA = 125°C
−55°C VGS = 0 V
VSD, BODY DIODE FORWARD VOLTAGE (V) Figure 2. On−Resistance Variation with
Drain Current and Gate Voltage
Figure 3. On−Resistance Variation with
Temperature Figure 4. On−Resistance Variation with
Gate−to−Source Voltage
Figure 5. Transfer Characteristics Figure 6. Body Diode Forward Voltage Variation with Source Current and Temperature
0 2 4
0 8 12 16
20 VGS= 10 V 5.0 V
4.0 V
3.5 V
0 4 8 12 20
0.8 1 1.2 1.4 1.6 1.8
VGS = 4.0 V
4.5 V
5.0 V 6.0 V10.0 V
−50 −25 0 25 50 75 100 125 150 0.6
0.8 1.2 1.4 1.6
ID = 3.7 A VGS = 10 V
1
ID = 1.9 A
TA = 125°C TA = 25°C
2 2.5 3 3.5
0 4 8
20 VDS = 10 V
−55°C TA = 125°C 25°C
25°C 1.8
4 4.5 5
4.5 V
4
6 8 16
2 2.2
0.4 5 7 9
16 12
TYPICAL CHARACTERISTICS
(continued)0.0001 0.001 0.01 0.1 1 10 100 1000
0.01 0.1 1
Single Pulse D = 0.5
0.1 0.05
0.02 0.01 0.2
0.001 0.01 0.1 1 10 100
0 30 40
t1, TIME (s)
P(pk), PEAK TRANSIENT POWER (W)
0 20 40 60 80 100
300 400 600 700 800
VDS, DRAIN to SOURCE VOLTAGE (V) ID, DRAIN CURRENT (A)
Crss
Coss
Ciss
t1, TIME (s) VGS, GATE−SOURCE VOLTAGE (V)
Qg, GATE CHARGE (nC)
CAPACITANCE (pF)
VDS, DRAIN TO SOURCE VOLTAGE (V) f = 1 MHz VGS = 0 V
Figure 7. Gate Charge Characteristics Figure 8. Capacitance Characteristics
Figure 9. Maximum Safe Operating Area Figure 10. Single Pulse Maximum Power Dissipation
Figure 11. Transient Thermal Response Curve
Thermal characterization performed using the conditions described in Note 1c.
Transient thermal response will change depending on the circuit board design.
0 2 4 6 8 10
0 2 4 6 8
10 ID = 3.7 A
VDS = 40 V 60 V
80 V
0.1 1
0.01 0.1 1 10 50
100 ms
THIS AREA IS LIMITED BY rDS(on)
SINGLE PULSE TJ = MAX RATED RqJA = 110°C/W TA = 25°C
10
r(t), NORMALIZED EFFECTIVE TRANSIENT THERMAL RESISTANCE
12 14 0
100
100
0.001
10 ms 100 ms
1 ms
1 s 10 s DC
P(pk) t1
t2
RqJA (t) = r(t) x RqJA RqJA = 110°C/W
TJ − TA = P x RqJA (t) Duty Cycle, D = t1 / t2
16
200 500
0.001
500 20
10
SINGLE PULSE RqJA = 110°C/W TA = 25°C
