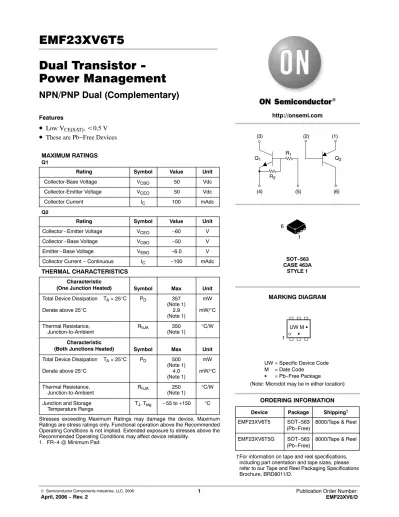

EMF23XV6T5 Dual Transistor - Power Management

Dual Transistor - Power Management

NPN/PNP Dual (Complementary)

Features

• ^{Low V} CE(SAT) , t 0.5 V

• These are Pb−Free Devices MAXIMUM RATINGS Q1

Rating Symbol Value Unit

Collector-Base Voltage V

50 Vdc

Collector-Emitter Voltage V

50 Vdc

Collector Current I

100 mAdc

Q2

Rating Symbol Value Unit

Collector −Emitter Voltage V

−60 V

Collector −Base Voltage V

−50 V

Emitter −Base Voltage V

−6.0 V

Collector Current − Continuous I

−100 mAdc

THERMAL CHARACTERISTICS Characteristic

(One Junction Heated) Symbol Max Unit Total Device Dissipation T

= 25°C

Derate above 25°C

P

357

(Note 1) (Note 1) 2.9

mW mW/°C

Thermal Resistance,

Junction-to-Ambient R

350

(Note 1) °C/W Characteristic

(Both Junctions Heated) Symbol Max Unit Total Device Dissipation T

= 25°C

Derate above 25°C

P

500

(Note 1) (Note 1) 4.0

mW mW/°C

Thermal Resistance,

Junction-to-Ambient R

250

(Note 1) °C/W Junction and Storage

Temperature Range T

, T

−55 to +150 °C Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the

SOT−563 CASE 463A

STYLE 1

(1) (2)

Q

http://onsemi.com

UW = Specific Device Code M = Date Code

G = Pb−Free Package MARKING DIAGRAM

Device Package Shipping

ORDERING INFORMATION

EMF23XV6T5 SOT−563

(Pb−Free) 8000/Tape & Reel Q

R

R

(3)

(4) (5) (6)

(Note: Microdot may be in either location) UW M G

1 G

1

6

EMF23XV6T5

http://onsemi.com 2

ELECTRICAL CHARACTERISTICS (T

= 25°C)

Characteristic Symbol Min Typ Max Unit

Q1: NPN

Collector-Base Cutoff Current (V

= 50 V, I

= 0) I

− − 100 nAdc

Collector-Emitter Cutoff Current (V

= 50 V, I

= 0) I

− − 500 nAdc

Emitter-Base Cutoff Current (V

= 6.0 V, I

= 0) I

− − 0.5 mAdc

Collector-Base Breakdown Voltage (I

= 10 mA, I

= 0) V

50 − − Vdc

Collector-Emitter Breakdown Voltage (Note 3) (I

= 2.0 mA, I

= 0) V

50 − − Vdc

DC Current Gain (V

= 10 V, I

= 5.0 mA) h

35 60 − −

Collector-Emitter Saturation Voltage (I

= 10 mA, I

= 0.3 mA) V

− − 0.25 Vdc

Output Voltage (on) (V

= 5.0 V, V

= 2.5 V, R

= 1.0 kW) V

− − 0.2 Vdc

Output Voltage (off) (V

= 5.0 V, V

= 0.5 V, R

= 1.0 kW) V

4.9 − − Vdc

Input Resistor R1 7.0 10 13 kW

Resistor Ratio R1/R2 0.8 1.0 1.2 −

Q2: PNP

Collector−Base Breakdown Voltage (I

= −50 mAdc, I

= 0) V

−60 − − Vdc

Collector−Emitter Breakdown Voltage (I

= −1.0 mAdc, I

= 0) V

−50 − − Vdc

Emitter−Base Breakdown Voltage (I

= −50 mAdc, I

= 0) V

−6.0 − − Vdc

Collector−Base Cutoff Current (V

= −30 Vdc, I

= 0) I

− − −0.5 nA

Emitter−Base Cutoff Current (V

= −5.0 Vdc, I

= 0) I

− − −0.5 mA

Collector−Emitter Saturation Voltage (Note 3)

(I

= −50 mAdc, I

= −5.0 mAdc) V

− − −0.5 Vdc

DC Current Gain (Note 3) (V

= −6.0 Vdc, I

= −1.0 mAdc) h

120 − 560 −

Transition Frequency (V

= −12 Vdc, I

= −2.0 mAdc, f = 30 MHz) f

− 140 − MHz

Output Capacitance (V

= −12 Vdc, I

= 0 Adc, f = 1.0 MHz) C

− 3.5 − pF

2. Device mounted on a FR-4 glass epoxy printed circuit board using the minimum recommended footprint.

3. Pulse Test: Pulse Width ≤ 300 ms, DC ≤ 2%.

TYPICAL ELECTRICAL CHARACTERISTICS — Q1, NPN

V in , INPUT VOL TAGE (VOL TS)

I C , COLLECT OR CURRENT (mA) h , DC CURRENT GAIN (NORMALIZED) FE

Figure 1. V

versus I

10

1

T

=-25 ° C

75 ° C

25 ° C

Figure 2. DC Current Gain

Figure 3. Output Capacitance 1

0.1

0.01

0.001

0 20 40 50

I

, COLLECTOR CURRENT (mA)

V CE(sat) , MAXIMUM COLLECT OR VOL TAGE (VOL TS) 1000

100

10 1 10 100

I

, COLLECTOR CURRENT (mA)

T

=75 ° C 25 ° C -25 ° C T

=-25 ° C

25 ° C

Figure 4. Output Current versus Input Voltage 75 ° C

25 ° C T

=-25 ° C 100

10

1

0.1

0.01

0.001

0 1 2 3 4

V

, INPUT VOLTAGE (VOLTS)

5 6 7 8 9 10

50

0 10 20 30 40

4

3

1 2

0

V

, REVERSE BIAS VOLTAGE (VOLTS)

C ob , CAP ACIT ANCE (pF)

75 ° C

V

= 10 V

f = 1 MHz I

= 0 V T

= 25 ° C

V

= 5 V

V

= 0.2 V

I

/I

= 10

EMF23XV6T5

http://onsemi.com 4

TYPICAL ELECTRICAL CHARACTERISTICS − Q2, PNP

Figure 6. I

− V

V

, COLLECTOR VOLTAGE (V)

Figure 7. DC Current Gain I

, COLLECTOR CURRENT (mA)

Figure 8. Collector Saturation Region I

, BASE CURRENT (mA)

Figure 9. On Voltage I

, COLLECTOR CURRENT (mA)

I C , COLLECT OR CURRENT (mA)

0 120

90

60

30

0 3 6 9 15

DC CURRENT GAIN

1000

0.1 100

10 1 10 100

T

= 25 ° C

T

= - 25 ° C T

= 75 ° C

V

= 10 V

V CE , COLLECT OR‐EMITTER VOL TAGE (V)

2

0.01 1.5

1

0.5

0 0.1 1 10 100

T

= 25 ° C

COLLECT OR VOL TAGE (mV)

900

0.2 800 700 600 500 400 300 200 100

0.5 1 5 10 20 40 60 80 100 150 200

T

= 25 ° C V

= 5 V 12

0 T

= 25 ° C

300 m A

I

= 50 m A 100 150 200 250

Figure 10. Capacitance

V

(V)

Figure 11. Capacitance V

(V)

13

0 12 11 10 9

6 1 2 3 4

14

0

C ib , INPUT CAP ACIT ANCE ( pF)

12 10 8 6 4

0 10 20 30 40

C ob , CAP ACIT ANCE (pF)

8

7 2

SOT−563, 6 LEAD CASE 463A

ISSUE H

DATE 26 JAN 2021 SCALE 4:1

1

6

SOT−563, 6 LEAD CASE 463A

ISSUE H

DATE 26 JAN 2021

XX = Specific Device Code M = Month Code G = Pb−Free Package

XX M G GENERIC MARKING DIAGRAM*

1

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.
