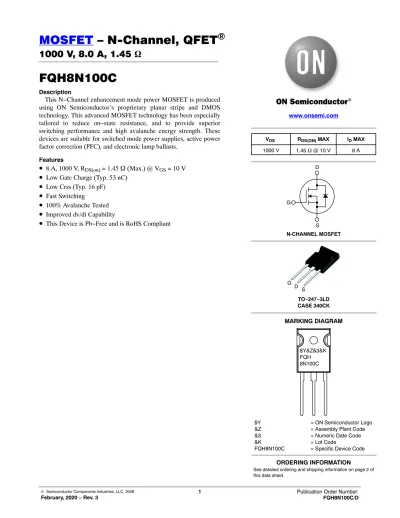

MOSFET – N-Channel, QFET

1000 V, 8.0 A, 1.45 W

FQH8N100C

Description

This N−Channel enhancement mode power MOSFET is produced using ON Semiconductor’s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on−state resistance, and to provide superior switching performance and high avalanche energy strength. These devices are suitable for switched mode power supplies, active power factor correction (PFC), and electronic lamp ballasts.

Features

• 8 A, 1000 V, R

= 1.45 Max.) @ V

= 10 V

• Low Gate Charge (Typ. 53 nC)

• Low Crss (Typ. 16 pF)

• Fast Switching

• 100% Avalanche Tested

• Improved dv/dt Capability

• This Device is Pb−Free and is RoHS Compliant

www.onsemi.com

TO−247−3LD CASE 340CK N-CHANNEL MOSFET

MARKING DIAGRAM

V_DS R_DS(ON) MAX I_D MAX

1000 V 1.45 @ 10 V 8 A

G

S D

G D S

$Y&Z&3&K FQH 8N100C

ABSOLUTE MAXIMUM RATINGS (T_C = 25°C unless otherwise noted)

Symbol Parameter FQH8N100C Unit

VDSS Drain−Source Voltage 1000 V

I_D Drain Current: Continuous (TC = 25°C) 8.0 A

Continuous (TC = 100°C) 5.0

IDM Drain Current: Pulsed (Note 1) 32 A

VGSS Gate−Source Voltage ±30 V

EAS Single Pulsed Avalanche Energy (Note 2) 850 mJ

IAR Avalanche Current (Note 1) 8.0 A

EAR Repetitive Avalanche Energy (Note 1) 22 mJ

dv/dt Peak Diode Recovery dv/dt (Note 3) 4.0 V/ns

PD Power Dissipation TC = 25°C 225 W

Derate Above 25°C 1.79 W/°C

T_J, T_STG Operating and Storage Temperature Range −55 to + 150 °C

T_L Maximum Lead Temperature for Soldering, 1/8″ from Case for 5 seconds 300 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

1. Repetitive rating: Pulse−width limited by maximum junction temperature.

2. L = 25 mH, I_AS = 8.0 A, V_DD = 50 V, R_G = 25 , Starting TJ = 25°C 3. I_SD≤ 8.0 A, di/dt ≤ 200 A/s, V_DD≤BV_DSS, Starting T_J = 25 °C.

PACKAGE MARKING AND ORDERING INFORMATION

Part Number Top Marking Package Packing Method Reel Size Tape Width Quantity

FQH8N100C FQH8N100C TO−247 Tube N/A N/A 30 Units

THERMAL CHARACTERISTICS

Symbol Parameter FQH8N100C Unit

R_JC Thermal Resistance, Junction to Case, Max. 0.56 °C/W

R_JA Thermal Resistance, Junction to Ambient, Max. 40

ELECTRICAL CHARACTERISTICS (T_C = 25°C unless otherwise noted)

Symbol Parameter Test Condition Min. Typ. Max. Unit

OFF CHARACTERISTICS

BVDSS Drain−Source Breakdown Voltage VGS = 0 V, ID = 250 A 1000 − − V

BVDSS

/TJ

Breakdown Voltage Temperature

Coefficient I_D = 250 A, Referenced to 25°C − 1.4 − V/°C

I_DSS Zero Gate Voltage Drain Current V_DS = 1000 V, V_GS = 0 V − − 10 A

V_DS = 800 V, T_C = 125 °C − − 100 A

I_GSSF Gate−Body Leakage Current, Forward V_GS = 30 V, V_DS = 0 V − − 100 nA

I_GSSR Gate−Body Leakage Current, Reverse V_GS = −30 V, V_DS = 0 V − − −100 nA ON CHARACTERISTICS

V_GS(th) Gate Threshold Voltage V_GS = V_DS, I_D = 250 A 3.0 − 5.0 V

R_DS(on) Static Drain−Source On−Resistance V_GS = 10 V, I_D = 4.0 A − 1.2 1.45

g_FS Forward Transconductance V_DS = 50 V, I_D = 4.0 A − 8.0 − S

DYNAMIC CHARACTERISTICS

C_iss Input Capacitance V_DS = 25 V, V_GS = 0 V, f = 1.0 MHz − 2475 3220 pF

C_oss Output Capacitance − 195 255 pF

C_rss Reverse Transfer Capacitance − 16 21 pF

SWITCHING CHARACTERISTICS

t_d(on) Turn-On Delay Time V_DD = 500 V, I_D = 8.0 A, RG = 25

(Note 4)

− 50 110 ns

t_r Turn−On Rise Time − 95 200 ns

t_d(off) Turn-Off Delay Time − 122 254 ns

t_f Turn−Off Fall Time − 80 170 ns

Q_g Total Gate Charge V_DS = 800 V, I_D = 8.0 A_, V_GS = 10 V

(Note 4) − 53 70 nC

Q_gs Gate−Source Charge − 13 − nC

Qgd Gate−Drain Charge − 23 − nC

DRAIN-SOURCE DIODE CHARACTERISTICS AND MAXIMUM RATINGS

IS Maximum Continuous Source−Drain Diode Forward Current − − 8.0 A

ISM Maximum Pulsed Drain−Source Diode Forward Current − − 32.0 A

VSD Drain−Source Diode Forward Voltage VGS = 0 V, IS = 8.0 A − − 1.4 V

trr Reverse Recovery Time V_GS = 0 V, I_S = 8.0 A,

dI_F/dt = 100 A/s − 620 − ns

Qrr Reverse Recovery Charge − 5.2 − C

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

4. Essentially independent of operating temperature.

TYPICAL PERFORMANCE CHARACTERISTICS

Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics

Figure 3. On−Resistance Variation vs. Drain Current and Gate Voltage

Figure 4. Body Diode Forward Voltage Variation vs. Source Current and Temperature

VGS Top: 15.0 V

10.0 V 8.0 V 7.0 V 6.5 V 6.0 V Bottom 5.5 V 10¹

10⁰

10⁻¹

10⁻¹ 10⁰ 10¹

*Notes:

1. 250 s Pulse Test 2. TC = 25°C

V_DS, Drain−Source Voltage [V]

ID, Drain Current [A]

2 4 6 8 10

10⁻¹ 10⁰ 10¹

150°C

25°C

55°C

*Notes:

1. V_DS = 50 V 2. 250 s Pulse Test

V_GS, Gate−Source Voltage [V]

ID, Drain Current [A]

0 5 10 15 20 25

0.5 1.0 1.5 2.0 2.5 3.0

VGS = 20 V VGS = 10 V

*Note: TJ = 25°C

ID, Drain Current [A]

RDS(ON) [], Drain−Source On−Resistance

0.2 0.4 0.6 0.8 1.0 1.2 1.4

10⁻¹ 10⁰ 10¹

150°C 25°C

*Notes:

1. VGS = 0 V 2. 250 s Pulse Test

V_SD, Source−Drain Voltage [V]

IDR, Reverse Drain Current [A]

0 500 1000 1500 2000 2500 3000 3500 4000

10⁻¹ 10⁰ 10¹

*Notes:

1. VGS = 0 V 2. f = 1 MHz Ciss = Cgs + Cgd (Cds = Shorted) Coss = Cds + Cgd

Crss = Cgd Ciss

Coss

Crss

V_DS, Drain−Source Voltage [V]

Capacitance [pF]

0 2 4 6 8 10 12

0 10 20 30 40 50 60 70

*Note: ID = 8 A VDS = 200 V

V_DS = 500 V VDS = 800 V

QG, Total Gate Charge [nC]

VGS, Gate−Source Voltage [V]

TYPICAL PERFORMANCE CHARACTERISTICS (continued)

Figure 7. Breakdown Voltage Variation vs. Temperature

Figure 8. On−Resistance Variation vs. Temperature

Figure 9. Maximum Safe Operating Area Figure 10. Maximum Drain Current vs. Case Temperature

0.8 0.9 1.0 1.1 1.2

−100 −50 0 50 100 150 200

*Notes:

1. VGS = 0 V 2. ID = 250 A BVDSS, (Normalized) Drain−Source Breakdown Voltage

T_J, Junction Temperature [°C]

0.5 1.0 1.5 2.0 2.5 3.0

0.0−100 −50 0 50 100 150 200

*Notes:

1. VGS = 10 V 2. ID = 4 A

T_J, Junction Temperature [°C]

RDS(ON), (Normalized) Drain−Source On−Resistance

Operation in This Area is Limited by RDS(on)

10 s 100 s ms ms DC

*Notes:

1. TC = 25°C 2. TJ = 150 C°

3. Single Pulse 10²

10¹

10⁰

10⁻¹

10⁻²

10⁰ 10¹ 10² 10³

V_DS, Drain−Source Voltage [V]

ID, Drain Current [A]

0 2 4 6 8

25 50 75 100 125 150

T_C, Case Temperature [°C]

ID, Drain Current [A]

Single Pulse D= 0.5

0.02 0.2

0.05 0.1

0.01

t₁ t₂ PDM

*Notes:

1. Z_JC(t) = 0.56 °C/W Max.

2. Duty Factor, D = t1/t2 3. TJM − TC = PDM * Z_JC(t) 10⁻²

10⁻¹ 10⁰

JC(t), Thermal Response [°C/W]

Figure 12. Gate Charge Test Circuit & Waveform

Figure 13. Resistive Switching Test Circuit & Waveforms

Figure 14. Unclamped Inductive Switching Test Circuit & Waveforms RL

V_DS VGS

VGS

RG

DUT

VDD

V_DS

V_GS10%

90%

10%

90% 90%

t_on t_off

t_r t_f

td(on) td(off)

Q_g Q_gd Q_gs

VGS

Charge V_DS

V_GS

DUT IG = Const.

V_DD VDS

R_G VGS DUT

L

ID

tp

V_DD

t_p Time

IAS

BV_DSS

I_D(t)

V_DS(t) E_AS+1

2@LI_AS² Same Type

as DUT 300 nF

50 k 200 nF 12 V

BV_DSS BV_DSS*V_DD

DUT

L

V_DD R_G

I_SD

V_DS +

−

V_GS

Same Type as DUT

− dv/dt controlled by R_G

− I_SD controlled by pulse period Driver

V_GS (Driver)

I_SD (DUT)

VDS

(DUT)

V_SD

IRM

10 V

di/dt

VDD

IFM, Body Diode Forward Current

Body Diode Reverse Current Body Diode Recovery dv/dt

Body Diode Forward Voltage Drop D+ Gate Pulse Width

Gate Pulse Period

TO−247−3LD SHORT LEAD CASE 340CK

ISSUE A

DATE 31 JAN 2019

XXXX = Specific Device Code A = Assembly Location Y = Year

WW = Work Week ZZ = Assembly Lot Code

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may

GENERIC MARKING DIAGRAM*

AYWWZZ XXXXXXX XXXXXXX

E

D

L1 E2

(3X) b (2X) b2

b4

(2X) e

Q

L

0.25 ^M B A ^M A

A1 A2 A

c

B

D1 P1

S P

E1

D2

1 2 3 2

DIM MILLIMETERS MIN NOM MAX A 4.58 4.70 4.82 A1 2.20 2.40 2.60 A2 1.40 1.50 1.60 b 1.17 1.26 1.35 b2 1.53 1.65 1.77 b4 2.42 2.54 2.66 c 0.51 0.61 0.71 D 20.32 20.57 20.82

D1 13.08 ~ ~

D2 0.51 0.93 1.35 E 15.37 15.62 15.87

E1 12.81 ~ ~

E2 4.96 5.08 5.20

e ~ 5.56 ~

L 15.75 16.00 16.25 L1 3.69 3.81 3.93

P 3.51 3.58 3.65

P1 6.60 6.80 7.00

Q 5.34 5.46 5.58

S 5.34 5.46 5.58
