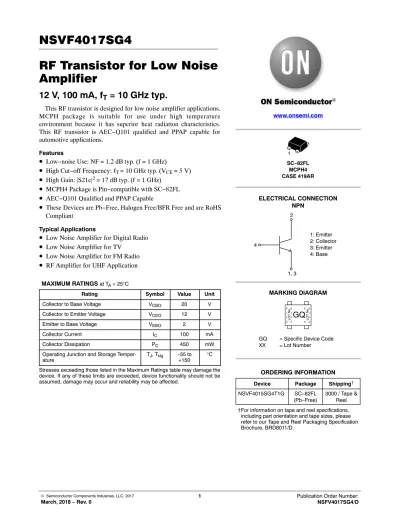

NSVF4017SG4 RF Transistor for Low Noise Amplifier

RF Transistor for Low Noise Amplifier

12 V, 100 mA, f _T = 10 GHz typ.

This RF transistor is designed for low noise amplifier applications.

MCPH package is suitable for use under high temperature environment because it has superior heat radiation characteristics.

This RF transistor is AEC−Q101 qualified and PPAP capable for automotive applications.

Features

• Low−noise Use: NF = 1.2 dB typ. (f = 1 GHz)

• High Cut−off Frequency: f _T = 10 GHz typ. (V _CE = 5 V)

• High Gain: |S21e| ² = 17 dB typ. (f = 1 GHz)

• MCPH4 Package is Pin−compatible with SC−82FL

• AEC−Q101 Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Typical Applications

• Low Noise Amplifier for Digital Radio

• Low Noise Amplifier for TV

• Low Noise Amplifier for FM Radio

• RF Amplifier for UHF Application

MAXIMUM RATINGS at T

= 25°C

Rating Symbol Value Unit

Collector to Base Voltage V

20 V

Collector to Emitter Voltage V

12 V

Emitter to Base Voltage V

2 V

Collector Current I

100 mA

Collector Dissipation P

450 mW

Operating Junction and Storage Temper-

ature T

, T

−55 to

+150 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

www.onsemi.com

SC−82FL MCPH4 CASE 419AR

MARKING DIAGRAM

GQ = Specific Device Code XX = Lot Number

Device Package Shipping

ORDERING INFORMATION

NSVF4015SG4T1G SC−82FL

(Pb−Free) 3000 / Tape &

Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D.

1

ELECTRICAL CONNECTION NPN

4

1, 3 2

1: Emitter 2: Collector 3: Emitter 4: Base

LOT No.

GQ

www.onsemi.com 2

Table 1. ELECTRICAL CHARACTERISTICS at T

= 25°C (Note 1)

Parameter Symbol Conditions

Value Min Typ Max Unit

Collector Cutoff Current I

V

= 5 V, I

= 0 A 1.0 mA

Emitter Cutoff Current I

V

= 1 V, I

= 0 A 1.0 mA

DC Current Gain h

V

= 5 V, I

= 50 mA 60 150

Gain−Bandwidth Product f

V

= 5 V, I

= 30 mA 8 10 GHz

Forward Transfer Gain | S21e |

V

= 5 V, I

= 30 mA, f = 1 GHz 14 17 dB

Noise Figure NF V

= 5 V, I

= 10 mA, f = 1 GHz 1.2 1.8 dB

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

1. Pay attention to handling since it is liable to be affected by static electricity due to the high−frequency process adopted.

TYPICAL CHARACTERISTICS

Collector−to− Base Voltage, VCB − V

Output Capacitance, Cob − pF

Collector Current, IC − mA DC Current Gain, h FE

Collector−to− Emitter Voltage, VCE − V Collector Current, I C − mA

Base−to− Emitter Voltage, VBE − V Collector Current, I C − mA

Collector Current, IC − mA Gain − Bandwidth Product, f T −− GHz

Collector−to− Base Voltage, VCB − V

Reverse Transfer Capacitance, Cre − pF

0 0.2 0.4 0.6 0.8 1.0

0 2 4 6 8 10 12

0 10 30 50 100

70

20 40 60 80 90

0 20 10 30 40 60 90 80 70

50 100

IB =0 A 100 A

2 3 5 7 2 3 5 7

100

10 1000

3

2 5 7

1.0 10 2 3 5 7 100

VCE=5V

VCE=5V

7

2 5 3 7

2 5 3

1.0

0.1 10

3

2 5 100

0.1 71.0 2 3 5 7 10 2 3 5 7

f=1MHz

7

2 3 5 7

2 3 5 100

10

1.0

1.0 2 3 5 7 10 2 3 5 7 100

VCE=5V f=1GHz

5 7

2 3 1.0

0.10.1 2 3 5 7 1.0 2 3 5 7 10 2 3 5 7100

f=1MHz 200 A 300 A 400 A 500 A 600 A 700 A

800 A 900 A 1000 A

Figure 1. I

vs. V

Figure 2. I

vs. V

Figure 3. h

vs. I

Figure 4. C

vs. V

Figure 5. Cre vs. V

Figure 6. f

vs. I

m

m m

m m

m

m m

m

m

m

www.onsemi.com 4

TYPICAL CHARACTERISTICS

Figure 7. M S21e S

vs. I

Figure 8. NF vs. I

Figure 9. P

vs. T

Collector Current, IC − mA

Noise Figure, NF − dB

Ambient Temperature, Ta − ° C Collector Dissipation, P C − mW

Collector Current, IC − mA Forward Transfer Gain, | S21e |

− dB

00

20 40 60 80 100 120 140 160

450 400 500

350

250 300

150

50 200

100 25

20

15

10

5

0

3 10

2 5 7 2 3 5 7 100

1.0 1.0 2 3 5 7 10 2 3 5 7 100

0 3

1 2 6 8

4 5 7 9 10

Zs=50 VCE=5V

f=1GHz VCE=5V

f=1GHz

Zs=Zsopt

W

www.onsemi.com

6

www.onsemi.com

8

www.onsemi.com

10

SC−82FL / MCPH4 CASE 419AR

ISSUE O

DATE 30 DEC 2011
