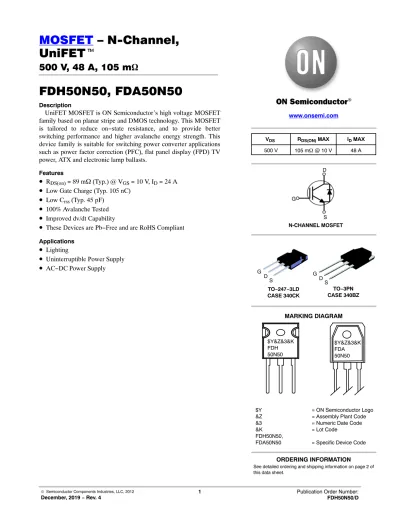

MOSFET – N-Channel, UniFETt

UniFETt

500 V, 48 A, 105 mW

FDH50N50, FDA50N50

Description

UniFET MOSFET is ON Semiconductor’s high voltage MOSFET family based on planar stripe and DMOS technology. This MOSFET is tailored to reduce on−state resistance, and to provide better switching performance and higher avalanche energy strength. This device family is suitable for switching power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power, ATX and electronic lamp ballasts.

Features

• ^R

= 89 m W (Typ.) @ V

= 10 V, I

= 24 A

• Low Gate Charge (Typ. 105 nC)

• Low C

(Typ. 45 pF)

• 100% Avalanche Tested

• Improved dv/dt Capability

• These Devices are Pb−Free and are RoHS Compliant

• ^Lighting

• Uninterruptible Power Supply

• AC−DC Power Supply

www.onsemi.com

N-CHANNEL MOSFET

MARKING DIAGRAM

V_DS R_DS(ON) MAX I_D MAX

500 V 105 mW @ 10 V 48 A

D

G

S

TO−247−3LD CASE 340CK

$Y = ON Semiconductor Logo

&Z = Assembly Plant Code

&3 = Numeric Date Code

&K = Lot Code

FDH50N50,

FDA50N50 = Specific Device Code

$Y&Z&3&K FDH 50N50

TO−3PN CASE 340BZ G D

S

GD S

$Y&Z&3&K FDA 50N50

ABSOLUTE MAXIMUM RATINGS (T_C = 25°C unless otherwise noted)

Symbol Parameter FDH50N50−F133/

FDA50N50 Unit

V_DSS Drain to Source Voltage 500 V

I_D Drain Current − −Continuous (T_C = 25°C)

−Continuous (T_C = 100°C)

30.848 A

A

IDM Drain Current −Pulsed (Note 1) 192 A

V_GSS Gate−Source Voltage ±20 V

E_AS Single Pulsed Avalanche Energy (Note 2) 1868 mJ

I_AR Avalanche Current (Note 1) 48 A

E_AR Repetitive Avalanche Energy (Note 1) 62.5 mJ

dv/dt Peak Diode Recovery dv/dt (Note 3) 20 V/ns

PD Power Dissipation (TC = 25°C)

−Derate Above 25°C

625 5

W W/°C

T_J, T_STG Operating and Storage Temperature Range −55 to + 150 °C

T_L Maximum Lead Temperature for Soldering, 1/8″ from Case for 5 Second 300 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

1. Repetitive Rating: Pulse width limited by maximum junction temperature.

2. L = 1.46 mH, I_AS = 48 A, V_DD = 50 V, R_G = 25 W, Starting TJ = 25 °C.

3. I_SD ≤ 48 A, di/dt ≤ 200 A/ms, VDD ≤BV_DSS, Starting T_J = 25 °C.

PACKAGE MARKING AND ORDERING INFORMATION

Part Number Top Mark Package Package Method Reel Size Tape Width Quantity

FDH50N50−F133 FDH50N50 TO−247−3 Tube N/A N/A 30 Units

FDA50N50 FDA50N50 TO−3PN Tube N/A N/A 30 Units

THERMAL CHARACTERISTICS

Symbol Parameter FDH50N50−F133/

FDA50N50

Unit

R_qJC Thermal Resistance, Junction to Case, Max. 0.2 °C/W

R_qJA Thermal Resistance, Junction to Ambient, Max. 40

ELECTRICAL CHARACTERISTICS (T_C = 25°C unless otherwise noted)

Symbol Parameter Test Condition Min. Typ. Max. Unit

OFF CHARACTERISTICS

BVDSS Drain to Source Breakdown Voltage ID = 250 mA, VGS = 0 V 500 − − V

DBVDSS

/ DTJ

Breakdown Voltage Temperature

Coefficient I_D = 250 mA, Referenced to 25°C − 0.5 − V/°C

I_DSS Zero Gate Voltage Drain Current V_DS = 500 V, V_GS = 0 V − − 25 mA

V_DS = 400 V, T_C = 125°C − − 250 mA

I_GSSF Gate−Body Leakage Current, Forward V_GS = 20 V, V_DS = 0 V − − 100 nA

I_GSSR Gate−Body Leakage Current, Reverse V_GS = −20 V, V_DS = 0 V − − −100 nA ON CHARACTERISTICS

V_GS(th) Gate Threshold Voltage V_DS = V_GS, I_D = 250 mA 3.0 − 5.0 V

R_DS(on) Static Drain−Source On−Resistance V_GS = 10 V, I_D = 24 A − 0.089 0.105 W

g_FS Forward Transconductance V_DS = 40 V, I_D = 48 A − 20 − S

DYNAMIC CHARACTERISTICS

C_iss Input Capacitance V_DS = 25 V, V_GS = 0 V, f = 1 MHz − 4979 6460 pF

C_oss Output Capacitance − 760 1000 pF

C_rss Reverse Transfer Capacitance − 50 65 pF

C_oss Output Capacitance V_DS = 400 V, V_GS = 0 V, f = 1 MHz − 161 − pF

C_oss(_eff.) Effective Output Capacitance V_DS = 0 V to 400 V, V_GS = 0 V − 342 − pF SWITCHING CHARACTERISTICS

t_d(on) Turn-On Delay Time V_DD = 250 V, I_D = 48 A, VGS = 10 V, RG = 25 W (Note 4)

− 105 220 ns

t_r Turn−On Rise Time − 360 730 ns

t_d(off) Turn-Off Delay Time − 225 460 ns

t_f Turn−Off Fall Time − 230 470 ns

Q_g Total Gate Charge V_DS = 400 V, I_D = 48 A_, VGS = 10 V

(Note 4)

− 105 137 nC

Q_gs Gate−Source Charge − 33 − nC

Qgd Gate−Drain Charge − 45 − nC

DRAIN-SOURCE DIODE CHARACTERISTICS AND MAXIMUM RATINGS

IS Maximum Continuous Drain−Source Diode Forward Current − − 48 A

ISM Maximum Pulsed Drain−Source Diode Forward Current − − 192 A

VSD Source to Drain Diode Voltage VGS = 0 V, IS = 48 A − − 1.4 V

trr Reverse Recovery Time V_GS = 0 V, I_S = 48 A,

dI_F/dt = 100 A/ms − 580 − ns

Qrr Reverse Recovery Charge − 10 − mC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

4. Essentially Independent of Operating Temperature Typical Characteristics.

TYPICAL CHARACTERISTICS

Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics

Figure 3. On−Resistance Variation vs. Drain Current and Gate Voltage

10⁻¹ 10⁰ 10¹

10⁰ 10¹ 10²

ID, Drain Current [A]

V_DS, Drain−Source Voltage [V]

4 6 8 10

V_GS, Gate−Source Voltage [V]

ID, Drain Current [A]

0 25 50 75 100 125 150 175

0.0 0.1 0.2 0.3

I_D, Drain Current [A]

RDS(ON) [W], Drain−Source On−Resistance

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

V_SD, Source−Drain Voltage [V]

IDR, Reverse Drain Current [A]

Figure 4. Body Diode Forward Voltage Variation vs. Source Current and Temperature

V_DS, Drain−Source Voltage [V]

Capacitance [pF]

10⁻¹ 10⁰ 10¹

Figure 5. Capacitance Characteristics

0 20 40 60 80 100

0 2 4 6 8 10 12

QG, Total Gate Charge [nC]

VGS, Gate−Source Voltage [V]

Figure 6. Gate Charge Characteristics 7

0.4

0 2000 4000 6000 8000 10000 12000

120

V_GS Top: 15.0 V

10.0 V 8.0 V 7.0 V 6.5 V 6.0 V Bottom: 5.5 V

*Notes:

1. 250 ms Pulse Test 2. T_C = 25°C 10⁻¹

25°C 150°C

−55°C

*Notes:

1. V_DS = 40 V 2. 250 ms Pulse Test

5 9

0.1 1 10 100

V_GS = 20 V V_GS = 10 V

*Note: T_J = 25°C

0 40 80 120 160

*Notes:

1. VGS = 0 V 2. 250 ms Pulse Test 150°C

25°C

C_iss = C_gs + C_gd (C_ds = shorted) C_oss = C_ds + C_gd

C_rss = C_gd

*Notes:

1. VGS = 0 V 2. f = 1 MHz C_oss

C_iss

C_rss

V_DSV = 400 VDS = 250 V VDS = 100 V

*Note: ID = 48 A

TYPICAL CHARACTERISTICS

Figure 7. Breakdown Voltage Variation

vs. Temperature Figure 8. On−Resistance Variation

vs. Temperature

Figure 9. Maximum Safe Operating Area Figure 10. Maximum Drain Current vs. Case Temperature

Figure 11. Typical Drain Current Slope vs. Gate Resistance

0.8 0.9 1.0 1.1 1.2

−100 −50 0 50 100 150 200

T_J, Junction Temperature [°C]

BVDSS, (Normalized) Drain−Source Breakdown Voltage

0.0 0.5 1.0 1.5 2.0 2.5

−100 −50 0 50 100 150 200

TJ, Junction Temperature [°C]

RDS(ON), (Normalized) Drain−Source On−Resistance

10⁰ 10¹ 10² 10³

10⁻¹ 10⁰ 10¹ 10²

V_DS, Drain−Source Voltage [V]

ID, Drain Current [A]

25 50 75 100 125 150

0 10 20 30 40 50

TC, Case Temperature [°C]

ID, Drain Current [A]

0

*Notes:

1. V_GS = 0 V 2. ID = 250 mA

*Notes:

1. V_GS = 10 V 2. ID = 24 A

5 10 15 20 25 30 35 40 45 50

0 500 1000 1500 2000 2500 3000 3500 4000

di/dt [A/ms]

R_G, Gate Resistance [W] 00 5 10 15 20 25 30 35 40 45 50

5 10 15 20 25 30 35 40 45

dv/dt [V/nS]

R_G, Gate Resistance [W]

Figure 12. Typical Drain−Source Voltage Slope vs. Gate Resistance

DC

Operation in This Area is Limited by R_DS(on)

10 ms

1 ms 100 ms 10 ms

*Notes:

1. T_C = 25°C 2. T_J = 150°C 3. Single Pulse 10³

*Notes:

1. V_DS = 400 V 2. V_GS = 12 V 3. ID = 25 A 4. T_J = 125°C di/dt(on)

di/dt(off)

*Notes:

1. V_DS = 400 V 2. V_GS = 12 V 3. I_D = 25 A 4. T_J = 125°C dv/dt(on)

dv/dt(off)

Figure 13. Typical Switching Losses

vs. Gate Resistance Figure 14. Unclamped Inductive Switching Capability

Figure 15. Transient Thermal Resistance Curve 0

200 600 800 1000

0 5 10

R_G, Gate Resistance [W]

Energy [mJ]

0.01 0.1 1 10 100

t_AV, Time In Avalanche [ms]

Eoff

15 20 25 30 35 40 45 50

400

10 100

1 IAS, Avalanche Current [A]

D=0.5

0.02 0.2 0.05 0.1

0.01

10⁻³ 10⁻² 10⁻¹

10⁻⁵ 10⁻⁴ 10⁻³ 10⁻² 10⁻¹ 10⁰ 10¹

Single Pulse

Notes:

1. Z_qJC(t) = 0.2°C/W Max.

2. Duty Factor, D = t1/t2

3. T_JM − T_C = P_DM * Z_qJC(t)

PDM t1 t2

t1, Square Wave Pulse Duration [sec]

ZqJC(t), Thermal Response [°C/W]

*Notes:

1. VDS = 400 V 2. V_GS = 12 V 3. I_D = 25 A 4. TJ = 125°C

Eon

*Notes:

1. If R = 0 W

t_AV = (L) (I_AS) / (1.3 Rated BV_DSS − V_DC) 2. If R ≠0 W

t_AV = (L/R) In [(I_AS x R) / (1.3 Rated BV_DSS − V_DC) + 1]

Starting T_J = 25°C

Starting TJ = 150°C

Figure 16. Gate Charge Test Circuit & Waveform

Figure 17. Resistive Switching Test Circuit & Waveforms

Figure 18. Unclamped Inductive Switching Test Circuit & Waveforms RL

V_DS VGS

VGS

RG

DUT

VDD

V_DS

V_GS10%

90%

t_on t_off

t_r t_f

td(on) td(off)

Charge

V_DD VDS

R_G VGS DUT

L

ID

tp

V_DD

t_p Time

IAS

BV_DSS

I_D(t)

V_DS(t) E_AS+1

2@LI_AS² BV_DSS BV_DSS*V_DD V_GS

DUT

V_DS

300nF 50KW 200nF 12V

Same Type as DUT

V_GS

DUT

V_DS

300nF 50KW 200nF 12V

Same Type as DUT

IG = const.

Q_g

Q_gd Q_gs

Figure 19. Peak Diode Recovery dv/dt Test Circuit & Waveforms DUT

L

VDD

RG

I_SD

V_DS +

−

VGS

Same Type as DUT

− dv/dt controlled by R_G

− I_SD controlled by pulse period Driver

V_GS (Driver)

ISD

(DUT)

V_DS

(DUT) V_SD

I_RM

10 V

di/dt

V_DD I_FM, Body Diode Forward Current

Body Diode Reverse Current

Body Diode Recovery dv/dt

Body Diode Forward Voltage Drop D+ Gate Pulse Width

Gate Pulse Period

TO−3P−3LD / EIAJ SC−65, ISOLATED CASE 340BZ

ISSUE O

DATE 31 OCT 2016

98AON13862G
