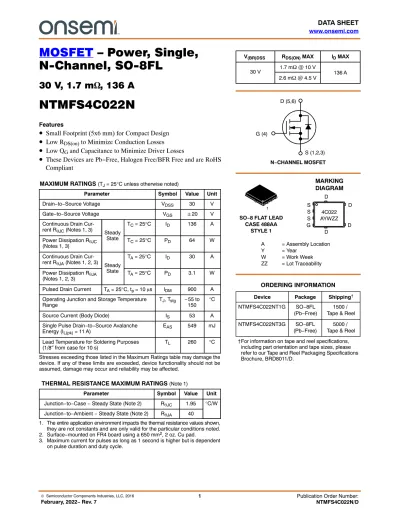

MOSFET – Power, Single, N-Channel, SO-8FL

MOSFET – Power, Single, N-Channel, SO-8FL

30 V, 1.7 m W , 136 A

NTMFS4C022N

Features

• Small Footprint (5x6 mm) for Compact Design

• ^{Low R}

to Minimize Conduction Losses

• ^{Low Q}

and Capacitance to Minimize Driver Losses

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

MAXIMUM RATINGS (T_J = 25°C unless otherwise noted)

Parameter Symbol Value Unit

Drain−to−Source Voltage V_DSS 30 V

Gate−to−Source Voltage V_GS "20 V

Continuous Drain Cur-

rent R_qJC (Notes 1, 3) Steady State

T_C = 25°C I_D 136 A

Power Dissipation R_qJC

(Notes 1, 3) T_C = 25°C P_D 64 W

Continuous Drain Cur-

rent R_qJA (Notes 1, 2, 3) Steady State

T_A = 25°C I_D 30 A

Power Dissipation R_qJA

(Notes 1, 2, 3) T_A = 25°C P_D 3.1 W

Pulsed Drain Current T_A = 25°C, tp = 10 ms I_DM 900 A Operating Junction and Storage Temperature

Range T_J, T_stg −55 to

150 °C

Source Current (Body Diode) I_S 53 A

Single Pulse Drain−to−Source Avalanche

Energy (IL(pk) = 11 A) E_AS 549 mJ

Lead Temperature for Soldering Purposes

(1/8″ from case for 10 s) TL 260 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL RESISTANCE MAXIMUM RATINGS (Note 1)

Parameter Symbol Value Unit

Junction−to−Case − Steady State (Note 2) R_qJC 1.95 °C/W Junction−to−Ambient − Steady State (Note 2) R_qJA 40

1. The entire application environment impacts the thermal resistance values shown, they are not constants and are only valid for the particular conditions noted.

2. Surface−mounted on FR4 board using a 650 mm², 2 oz. Cu pad.

3. Maximum current for pulses as long as 1 second is higher but is dependent

SO−8 FLAT LEAD CASE 488AA

STYLE 1

MARKING DIAGRAM

A = Assembly Location

Y = Year

W = Work Week ZZ = Lot Traceability

4C022 AYWZZ

1

V_(BR)DSS R_DS(ON) MAX I_D MAX 30 V 1.7 mW @ 10 V

136 A 2.6 mW @ 4.5 V

G (4)

S (1,2,3) N−CHANNEL MOSFET

D (5,6)

Device Package Shipping^† ORDERING INFORMATION

NTMFS4C022NT1G SO−8FL

(Pb−Free) 1500 / Tape & Reel NTMFS4C022NT3G SO−8FL

(Pb−Free) 5000 / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

S S S G

D

D D

D

Parameter Symbol Test Condition Min Typ Max Unit OFF CHARACTERISTICS

Drain−to−Source Breakdown Voltage V(BR)DSS VGS = 0 V, ID = 250 mA 30 V

Drain−to−Source Breakdown Voltage

Temperature Coefficient V(BR)DSS/

T_J 18.2 mV/°C

Zero Gate Voltage Drain Current I_DSS V_GS = 0 V,

V_DS = 24 V T_J = 25 °C 1

T_J = 125°C 10 mA

Gate−to−Source Leakage Current I_GSS V_DS = 0 V, V_GS = 20 V 100 nA

ON CHARACTERISTICS (Note 4)

Gate Threshold Voltage V_GS(TH) V_GS = V_DS, I_D = 250 mA 1.3 2.2 V

Negative Threshold Temperature Coefficient V_GS(TH)/T_J 4.8 mV/°C

Drain−to−Source On Resistance R_DS(on) V_GS = 10 V I_D = 30 A 1.4 1.7

V_GS = 4.5 V I_D = 30 A 2.0 2.6 mW

Forward Transconductance g_FS V_DS = 3 V, I_D = 30 A 136 S

Gate Resistance R_G T_A = 25 °C 1.0 W

CHARGES AND CAPACITANCES

Input Capacitance C_ISS

VGS = 0 V, f = 1 MHz, VDS = 15 V

3071

Output Capacitance C_OSS 1673 pF

Reverse Transfer Capacitance C_RSS 67

Total Gate Charge Q_G(TOT)

V_GS = 4.5 V, V_DS = 15 V; I_D = 30 A

20.8

Threshold Gate Charge Q_G(TH) 4.9 nC

Gate−to−Source Charge Q_GS 8.5

Gate−to−Drain Charge Q_GD 4.7

Total Gate Charge QG(TOT) VGS = 10 V, VDS = 15 V,

I_D = 30 A 45.2 nC

SWITCHING CHARACTERISTICS (Note 5)

Turn−On Delay Time t_d(ON)

VGS = 4.5 V, VDS = 15 V, ID = 15 A, R_G = 3.0 W

14

Rise Time t_r 32 ns

Turn−Off Delay Time t_d(OFF) 27

Fall Time t_f 17

DRAIN−SOURCE DIODE CHARACTERISTICS

Forward Diode Voltage V_SD VGS = 0 V,

I_S = 10 A

T_J = 25°C 0.75 1.1

T_J = 125°C 0.6 V

Reverse Recovery Time t_RR

V_GS = 0 V, dI_S/dt = 100 A/ms, I_S = 30 A

47

Charge Time t_a 23 ns

Discharge Time t_b 24

Reverse Recovery Charge Q_RR 39 nC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

4. Pulse Test: pulse width v 300 ms, duty cycle v 2%.

5. Switching characteristics are independent of operating junction temperatures.

TYPICAL CHARACTERISTICS

Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics V_DS, DRAIN−TO−SOURCE VOLTAGE (V) V_GS, GATE−TO−SOURCE VOLTAGE (V)

Figure 3. On−Resistance vs. V_GS Figure 4. On−Resistance vs. Drain Current and Gate Voltage

V_GS, GATE−TO−SOURCE VOLTAGE (V) I_D, DRAIN CURRENT (A)

ID, DRAIN CURRENT (A) ID, DRAIN CURRENT (A)

RDS(on), DRAIN−TO−SOURCE RESISTANCE (mW) RDS(on), DRAIN−TO−SOURCE RESISTANCE (mW)

VGS = 10 V

3.4 V 3.2 V 3.0 V 2.8 V T_J = 25°C

T_J = 25°C T_J = 150°C

TJ = −55°C

ID = 30 A

V_GS = 4.5 V T_J = 25°C

V_GS = 10 V 3.8 V

3.6 V

2.6 V

T_J = 25°C

1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0

3 4 5 6 7 8 9 10

0 25 50 75 100 125 150 175 200 225 250

0.0 0.5 1.0 1.5 2.0 2.5 3.0

4.5 V

0 25 50 75 100 125 150 175 200 225 250

1.5 2 2.5 3 3.5 4 4.5

1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0

0 25 50 75 100 125 150 175 200 225 250 VDS = 3 V

RDS(on), DRAIN−TO−SOURCE RESISTANCE (NORMALIZED)

I_D = 30 A VGS = 10 V 1.8

1.6 1.4 1.2 1.0 0.8

0.6 10

100 1000 10000

IDSS, LEAKAGE (nA)

V_GS = 0 V

TJ = 85°C T_J = 125°C

T_J = 100°C

Figure 7. Capacitance Variation Figure 8. Gate−to−Source and Drain−to−Source Voltage vs. Total Charge

Qg, TOTAL GATE CHARGE (nC)

Figure 9. Resistive Switching Time Variation

vs. Gate Resistance Figure 10. Diode Forward Voltage vs. Current

R_G, GATE RESISTANCE (W) VSD, SOURCE−TO−DRAIN VOLTAGE (V)

Figure 11. Maximum Rated Forward Biased Safe Operating Area

VDS, DRAIN−TO−SOURCE VOLTAGE (V) 100 10

1 0.1

C, CAPACITANCE (pF) VGS, GATE−TO−SOURCE VOLTAGE (V)

t, TIME (ns) IS, SOURCE CURRENT (A)

ID, DRAIN CURRENT (A) V_GS = 0 V

TJ = 25°C f = 1 MHz

C_iss C_oss

Crss

VDD = 15 V ID = 15 A VGS = 4.5 V

t_d(on) t_r t_f

T_J = 25°C T_J = 150°C

VGS = 0 V

R_DS(on) Limit Thermal Limit Package Limit

100 ms 10 ms

1 ms

TJ = 25°C V_DS = 15 V I_D = 30 A

10 ms 1000

td(off)

10 100 1000 10000

0.1 1 10 100

VDS, DRAIN−TO−SOURCE VOLTAGE (V)

0 3 6 9 12 15 18

0 1 2 3 4 5 6 7 8 9 10 11 12

0 5 10 15 20 25 30 35 40 45 50

Q_T

Qgs Q_gd

VDS, DRAIN−TO−SOURCE VOLTAGE (V)

10 100 1000

0.1 1 10 100 0.1

1.0 10.0 100.0 1000.0

0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

T_J = −55°C VDS

V_GS

VGS ≤ 10 V T_C = 25°C 100

10

1

TYPICAL CHARACTERISTICS

Figure 12. Thermal Impedance (Junction−to−Case) PULSE TIME (sec)

ZqJC (°C/W)

10%

Duty Cycle = 50%

20%

5%

2%

1%

Single Pulse 0.001

0.01 0.1 1 10

0.000001 0.00001 0.0001 0.001 0.01 0.1 1

Figure 13. Avalanche Characteristics TIME IN AVALANCHE (s)

1.00E−02 1.00E−03

1 10 IPEAK, (A)

1.00E−04 100

TJ(initial) = 25°C

TJ(initial) = 100°C

M 3.00 3.40 q 0 _ −−− ^3.8012 _ (SO−8FL)

CASE 488AA ISSUE N

DATE 25 JUN 2018 SCALE 2:1

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: MILLIMETER.

3. DIMENSION D1 AND E1 DO NOT INCLUDE MOLD FLASH PROTRUSIONS OR GATE BURRS.

XXXXXX = Specific Device Code A = Assembly Location

Y = Year

W = Work Week

ZZ = Lot Traceability

1 2 3 4

TOP VIEW

SIDE VIEW

BOTTOM VIEW D1

E1 q

D

E 2

2 B A

0.20 C

0.20 C

2 X

2 X

DIM MIN NOM MILLIMETERS A 0.90 1.00 A1 0.00 −−−

b 0.33 0.41 c 0.23 0.28

D 5.15

D1 4.70 4.90 D2 3.80 4.00

E 6.15

E1 5.70 5.90 E2 3.45 3.65

e 1.27 BSC

G 0.51 0.575

K 1.20 1.35

L 0.51 0.575

L1 0.125 REF

A 0.10 C

0.10 C

DETAIL A

1 4

L1 e/2

8X

G D2 E2

K b

A 0.10 C B 0.05 c

L

DETAIL A c A1

4 X

C

SEATING PLANE

GENERIC MARKING DIAGRAM*

1

XXXXXX AYWZZ 1

MAX 1.10 0.05 0.51 0.33 5.10 4.20 6.10 3.85 0.71 1.50 0.71

STYLE 1:

PIN 1. SOURCE 2. SOURCE 3. SOURCE 4. GATE 5. DRAIN

M

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

SOLDERING FOOTPRINT*

1.270

2X

0.750 1.000 0.905

4.530 1.530

4.560 0.495

3.200

1.330

0.965

2X 2X

4X 4X PIN 5

(EXPOSED PAD)

STYLE 2:

PIN 1. ANODE 2. ANODE 3. ANODE 4. NO CONNECT 5. CATHODE

5.00 5.30

6.00 6.30

PITCH

DIMENSIONS: MILLIMETERS

1

RECOMMENDED e

2X

0.475

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “ G”, may or may not be present. Some products may not follow the Generic Marking.
