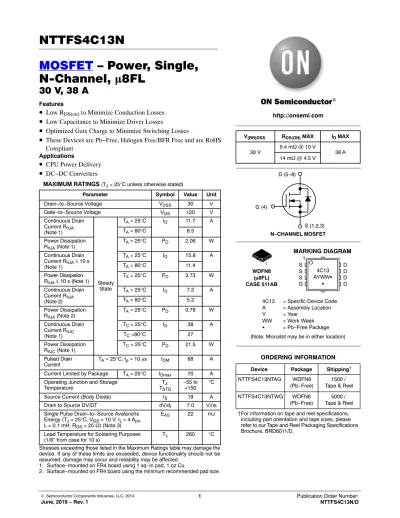

NTTFS4C13N MOSFET – Power, Single, N-Channel, m8FL

MOSFET – Power, Single, N-Channel, m 8FL

30 V, 38 A

Features

• ^{Low R}

to Minimize Conduction Losses

• Low Capacitance to Minimize Driver Losses

• Optimized Gate Charge to Minimize Switching Losses

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Applications

• CPU Power Delivery

• DC−DC Converters

MAXIMUM RATINGS (T_J = 25°C unless otherwise stated)

Parameter Symbol Value Unit

Drain−to−Source Voltage V_DSS 30 V

Gate−to−Source Voltage V_GS ±20 V

Continuous Drain Current R_qJA (Note 1)

Steady State

TA = 25°C ID 11.7 A

TA = 80°C 8.5

Power Dissipation

R_qJA (Note 1) TA = 25°C PD 2.06 W

Continuous Drain Current R_qJA≤ 10 s (Note 1)

TA = 25°C I_D 15.8 A

T_A = 80°C 11.4

Power Dissipation

R_qJA ≤ 10 s (Note 1) T_A = 25°C P_D 3.73 W Continuous Drain

Current R_qJA (Note 2)

T_A = 25°C I_D 7.2 A

T_A = 80°C 5.2

Power Dissipation

R_qJA (Note 2) T_A = 25°C P_D 0.78 W

Continuous Drain Current R_qJC (Note 1)

T_C = 25°C I_D 38 A

T_C =80°C 27

Power Dissipation

R_qJC (Note 1) T_C = 25°C P_D 21.5 W

Pulsed Drain

Current TA = 25°C, tp = 10 ms I_DM 68 A

Current Limited by Package T_A = 25°C I_Dmax 70 A Operating Junction and Storage

Temperature TJ,

T_STG −55 to

+150 °C

Source Current (Body Diode) IS 19 A

Drain to Source DV/DT dV/d_t 7.0 V/ns

Single Pulse Drain−to−Source Avalanche Energy (TJ = 25°C, VGS = 10 V, IL = 4 Apk, L = 0.1 mH, R_GS = 25 W) (Note 3)

E_AS 22 mJ

Lead Temperature for Soldering Purposes

(1/8″ from case for 10 s) T_L 260 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be

http://onsemi.com

V_(BR)DSS R_DS(ON) MAX I_D MAX

30 V 9.4 mW @ 10 V 14 mW @ 4.5 V 38 A

N−CHANNEL MOSFET

Device Package Shipping^† ORDERING INFORMATION

NTTFS4C13NTAG WDFN8

(Pb−Free) 1500 / Tape & Reel NTTFS4C13NTWG WDFN8

(Pb−Free) 5000 / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

G (4)

S (1,2,3) D (5−8)

WDFN8 (m8FL) CASE 511AB

MARKING DIAGRAM

(Note: Microdot may be in either location)

1

4C13 = Specific Device Code A = Assembly Location

Y = Year

WW = Work Week G = Pb−Free Package

1

4C13 AYWWG

G

D DD D S

SS G

http://onsemi.com 2

3. This is absolute maximum rating. Parts are tested at T_J = 25°C Vqs = 10 V, IL = 15 Apk, EAS = 11 mJ.

THERMAL RESISTANCE MAXIMUM RATINGS

Parameter Symbol Value Unit

Junction−to−Case (Drain) R_qJC 5.8

Junction−to−Ambient – Steady State (Note 4) R_qJA 60.8 °C/W

Junction−to−Ambient – Steady State (Note 5) R_qJA 160

Junction−to−Ambient – (t ≤ 10 s) (Note 4) R_qJA 33.5

4. Surface−mounted on FR4 board using 1 sq−in pad, 1 oz Cu.

5. Surface−mounted on FR4 board using the minimum recommended pad size.

ELECTRICAL CHARACTERISTICS (TJ = 25°C unless otherwise specified)

Parameter Symbol Test Condition Min Typ Max Unit

OFF CHARACTERISTICS

Drain−to−Source Breakdown Voltage V_(BR)DSS V_GS = 0 V, I_D = 250 mA 30 V

Drain−to−Source Breakdown Voltage

(transient) V_(BR)DSSt V_GS = 0 V, I_D(aval) = TBD A,

Tcase = 25°C, ttransient = 100 ns 34 V Drain−to−Source Breakdown Voltage

Temperature Coefficient V(BR)DSS/

T_J 14.9 mV/°C

Zero Gate Voltage Drain Current I_DSS V_GS = 0 V,

V_DS = 24 V T_J = 25°C 1.0

T_J = 125°C 10 mA

Gate−to−Source Leakage Current I_GSS V_DS = 0 V, V_GS = ±20 V ±100 nA

ON CHARACTERISTICS (Note 6)

Gate Threshold Voltage V_GS(TH) V_GS = V_DS, I_D = 250 mA 1.3 2.1 V

Negative Threshold Temperature Coefficient V_GS(TH)/T_J 4.8 mV/°C

Drain−to−Source On Resistance R_DS(on) V_GS = 10 V I_D = 30 A 7.5 9.4

V_GS = 4.5 V I_D = 12 A 11.2 14 mW

Forward Transconductance g_FS V_DS = 1.5 V, I_D = 15 A 40 S

Gate Resistance R_G T_A = 25°C 1.0 W

CHARGES AND CAPACITANCES

Input Capacitance C_ISS

VGS = 0 V, f = 1 MHz, VDS = 15 V

770

Output Capacitance C_OSS 443 pF

Reverse Transfer Capacitance C_RSS 127

Capacitance Ratio C_RSS/C_ISS V_GS = 0 V, V_DS = 15 V, f = 1 MHz 0.165

Total Gate Charge Q_G(TOT)

VGS = 4.5 V, VDS = 15 V; ID = 30 A

7.8

Threshold Gate Charge Q_G(TH) 1.4 nC

Gate−to−Source Charge Q_GS 2.9

Gate−to−Drain Charge Q_GD 3.7

Gate Plateau Voltage VGP 3.6 V

Total Gate Charge QG(TOT) VGS = 10 V, VDS = 15 V; ID = 30 A 15.2 nC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

6. Pulse Test: pulse width v 300 ms, duty cycle v 2%.

7. Switching characteristics are independent of operating junction temperatures.

ELECTRICAL CHARACTERISTICS (T_J = 25°C unless otherwise specified)

Parameter Symbol Test Condition Min Typ Max Unit

SWITCHING CHARACTERISTICS (Note 7)

Turn−On Delay Time td(ON)

V_GS = 4.5 V, V_DS = 15 V, ID = 15 A, RG = 3.0 W

9

Rise Time tr 35 ns

Turn−Off Delay Time td(OFF) 13

Fall Time tf 5

Turn−On Delay Time t_d(ON)

V_GS = 10 V, V_DS = 15 V, I_D = 15 A, R_G = 3.0 W

6.0

Rise Time t_r 26 ns

Turn−Off Delay Time t_d(OFF) 16

Fall Time t_f 3.0

DRAIN−SOURCE DIODE CHARACTERISTICS

Forward Diode Voltage VSD VGS = 0 V,

I_S = 30 A

T_J = 25°C 0.82 1.1

T_J = 125°C 0.69 V

Reverse Recovery Time t_RR

V_GS = 0 V, dIS/dt = 100 A/ms, I_S = 30 A

23.4

Charge Time t_a 12.1 ns

Discharge Time t_b 11.3

Reverse Recovery Charge Q_RR 9.7 nC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

6. Pulse Test: pulse width v 300 ms, duty cycle v 2%.

7. Switching characteristics are independent of operating junction temperatures.

http://onsemi.com 4

TYPICAL CHARACTERISTICS

10 100 1000 10000

5 10 15 20 25 30

0.006 0.008 0.010 0.012 0.014 0.016 0.018 0.020 0.022

10 20 30 40 50 60 70

0 10 20 30 40 50 60 70

0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5

0 10 20 30 40 50 60 70

0 1 2 3 4 5

Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics V_DS, DRAIN−TO−SOURCE VOLTAGE (V) V_GS, GATE−TO−SOURCE VOLTAGE (V)

Figure 3. On−Resistance vs. V_GS Figure 4. On−Resistance vs. Drain Current and Gate Voltage

V_GS, GATE−TO−SOURCE VOLTAGE (V) I_D, DRAIN CURRENT (A)

Figure 5. On−Resistance Variation with

Temperature Figure 6. Drain−to−Source Leakage Current vs. Voltage

T_J, JUNCTION TEMPERATURE (°C) V_DS, DRAIN−TO−SOURCE VOLTAGE (V)

ID, DRAIN CURRENT (A) ID, DRAIN CURRENT (A)

RDS(on), DRAIN−TO−SOURCE RESISTANCE (W) RDS(on), DRAIN−TO−SOURCE RESISTANCE (W)

RDS(on), DRAIN−TO−SOURCE RESISTANCE (NORMALIZED) IDSS, LEAKAGE (nA)

3.8 V

3.2 V 3.0 V 2.8 V T_J = 25°C

VDS = 5 V

TJ = 25°C T_J = 125°C

T_J = −55°C

ID = 30 A

V_GS = 4.5 V T_J = 25°C

VGS = 10 V

ID = 30 A

V_GS = 10 V V_GS = 0 V

T_J = 85°C T_J = 150°C

T_J = 125°C 3.6 V

3.4 V 4 V 4.2 V 4.5 V

6.5 V 10 V

0.006 0.007 0.008 0.009 0.010 0.011 0.012 0.013 0.014 0.015

3.0 4.0 5.0 6.0 7.0 8.0 9.0 10

0.7 0.8 0.9 1 1.1 1.2 1.3 1.4 1.5 1.6 1.7

−50 −25 0 25 50 75 100 125 150

TYPICAL CHARACTERISTICS

0 5 10 15 20 25 30

0.4 0.5 0.6 0.7 0.8 0.9 1.0

1 10 100 1000

1 10 100

0 1 2 3 4 5 6 7 8 9 10 11

0 2 4 6 8 10 12 14 16

0 100 200 300 400 500 600 700 800 900 1000

0 5 10 15 20 25 30

Figure 7. Capacitance Variation Figure 8. Gate−to−Source and Drain−to−Source Voltage vs. Total Charge

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) Q_g, TOTAL GATE CHARGE (nC)

Figure 9. Resistive Switching Time Variation

vs. Gate Resistance Figure 10. Diode Forward Voltage vs. Current

R_G, GATE RESISTANCE (W) V_SD, SOURCE−TO−DRAIN VOLTAGE (V)

Figure 11. Maximum Rated Forward Biased Figure 12. Maximum Avalanche Energy vs.

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) T_J, STARTING JUNCTION TEMPERATURE (°C)

C, CAPACITANCE (pF) VGS, GATE−TO−SOURCE VOLTAGE (V)

t, TIME (ns) IS, SOURCE CURRENT (A)

ID, DRAIN CURRENT (A) EAS, SINGLE PULSE DRAIN−TO− SOURCE AVALANCHE ENERGY (mJ)

VGS = 0 V TJ = 25°C C_iss

C_oss

Crss

V_DD = 15 V I_D = 15 A V_GS = 10 V

t_d(off)

t_d(on) tr

t_f

T_J = 25°C

T_J = 125°C VGS = 0 V

0 V < V_GS < 10 V Single Pulse T_C = 25°C RDS(on) Limit Thermal Limit Package Limit

100 ms 10 ms 1 ms

dc

ID = 15 A 10 ms

Q_gs T_J = 25°C

V_DD = 15 V V_GS = 10 V I_D = 30 A Q_T

Qgd

0.01 0.1 1 10 100

0.01 0.1 1 10 100 0

2 4 6 8 10 12

25 50 75 100 125 150

http://onsemi.com 6

TYPICAL CHARACTERISTICS

0 5 10 15 20 25 30 35 40 45 50

0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 0.01

0.1 1 10 100

0.000001 0.00001 0.0001 0.001 0.01 0.1 1 10 100 1000

Figure 13. Thermal Response PULSE TIME (sec)

R(t) (°C/W)

10%

Duty Cycle = 50%

20%

5%

2%

1%

Single Pulse

Figure 14. G_FS vs. I_D I_D (A) GFS (S)

Figure 15. Avalanche Characteristics PULSE WIDTH (SECONDS) ID, DRAIN CURRENT (A)

1 10 100

TA = 25°C T_A = 85°C

1.0E−08 1.0E−07 1.0E−06 1.0E−05 1.0E−04 1.E−03

M 1.40 1.50 q 0 _ −−− ^1.6012 _ WDFN8 3.3x3.3, 0.65P

CASE 511AB ISSUE D

DATE 23 APR 2012 SCALE 2:1

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: MILLIMETERS.

3. DIMENSION D1 AND E1 DO NOT INCLUDE MOLD FLASH PROTRUSIONS OR GATE BURRS.

1 2 3 4 5 6

TOP VIEW

SIDE VIEW

BOTTOM VIEW D1

E1 q

D

E A B

0.20 C

0.20 C

2X

2X

DIM MIN NOM MILLIMETERS A 0.70 0.75 A1 0.00 −−−

b 0.23 0.30 c 0.15 0.20 D1D 2.95 3.05 D2 1.98 2.11

E

E1 2.95 3.05 E2 1.47 1.60

e 0.65 BSC

G 0.30 0.41 K 0.65 0.80 L 0.30 0.43 L1 0.06 0.13

A 0.10 C

0.10 C

DETAIL A

1 4

8 L1

e/2

8X

G D2 E2

K b

A 0.10 C B 0.05 C

L

DETAIL A

A1

6Xe c

4X

C

SEATING PLANE 1

5

MAX0.80 0.05 0.40 0.25 3.15 2.24 3.15 1.73

0.51 0.95 0.56 0.20

M

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

SOLDERING FOOTPRINT*

0.65 0.42

0.75 2.30

3.46

PACKAGE 8X

0.055 0.059 0 _ −−− ^0.06312 _

0.028 0.030

0.000 −−−

0.009 0.012 0.006 0.008 0.116 0.120 0.078 0.083 0.116 0.120 0.058 0.063 0.026 BSC 0.012 0.016 0.026 0.032 0.012 0.017 0.002 0.005

0.031 0.002 0.016 0.010 0.124 0.088 0.124 0.068

0.020 0.037 0.022 0.008 MIN NOM

INCHES 7 MAX

8

PITCH

3.60 0.57

0.47

OUTLINE

DIMENSION: MILLIMETERS 3.30 BSC

3.30 BSC

0.130 BSC

0.130 BSC

2.37

0.66^4X

GENERIC MARKING DIAGRAM*

XXXXX = Specific Device Code A = Assembly Location

Y = Year

WW = Work Week G = Pb−Free Package

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “ G”, may or may not be present.

XXXXX AYWWG

G 1

E3 0.23 0.30 0.40 0.009 0.012 0.016

E3

4X

98AON30561E DOCUMENT NUMBER:

DESCRIPTION:

Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

PAGE 1 OF 1 WDFN8 3.3X3.3, 0.65P
