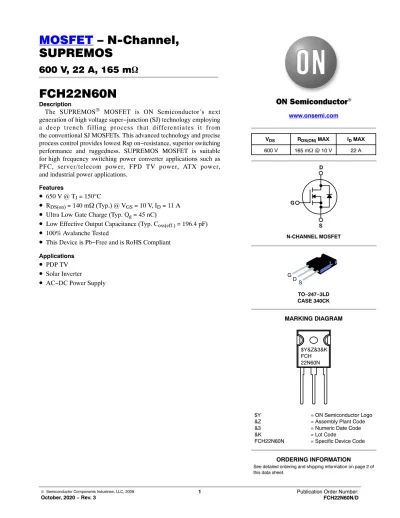

MOSFET – N-Channel, SUPREMOS

(1)

SUPREMOS

600 V, 22 A, 165 mW

FCH22N60N

Description

The SUPREMOS

^®

MOSFET is ON Semiconductor’s next generation of high voltage super−junction (SJ) technology employing a deep trench filling process that differentiates it from the conventional SJ MOSFETs. This advanced technology and precise process control provides lowest Rsp on−resistance, superior switching performance and ruggedness. SUPREMOS MOSFET is suitable for high frequency switching power converter applications such as PFC, server/telecom power, FPD TV power, ATX power, and industrial power applications.

Features

• ^{650 V @ T}

J

= 150 ° C

• ^R

DS(on)

= 140 m (Typ.) @ V

GS

= 10 V, I

D

= 11 A

• Ultra Low Gate Charge (Typ. Q

_g

= 45 nC)

• Low Effective Output Capacitance (Typ. C

_oss(eff.)

= 196.4 pF)

• 100% Avalanche Tested

• This Device is Pb−Free and is RoHS Compliant

Applications

• PDP TV

• Solar Inverter

• AC−DC Power Supply

www.onsemi.com

N-CHANNEL MOSFET

MARKING DIAGRAM

V_DS R_DS(ON) MAX I_D MAX

600 V 165 m @ 10 V 22 A

TO−247−3LD CASE 340CK

$Y = ON Semiconductor Logo

&Z = Assembly Plant Code

&3 = Numeric Date Code

$Y&Z&3&K FCH 22N60N GDS

G

S D

(2)

ABSOLUTE MAXIMUM RATINGS (T_C = 25°C unless otherwise noted)

Symbol Parameter FCH22N60N Unit

VDSS Drain to Source Voltage 600 V

VGSS Gate to Source Voltage ±30 V

I_D Drain Current − Continuous (TC = 25°C) 22 A

− Continuous (TC = 100°C) 13.8

IDM Drain Current − Pulsed (Note 1) 66 A

EAS Single Pulsed Avalanche Energy (Note 2) 672 mJ

IAR Avalanche Current (Note 1) 7.3 A

EAR Repetitive Avalanche Energy (Note 1) 2.75 mJ

dv/dt MOSFET dv/dt 100 V/ns

Peak Diode Recovery dv/dt (Note 3) 20

PD Power Dissipation (TC = 25°C) 205 W

− Derate above 25°C 1.64 W/°C

T_J, T_STG Operating and Storage Temperature Range −55 to + 150 °C

T_L Maximum Lead Temperature for Soldering, 1/8″ from Case for 5 Second 300 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

1. Repetitive Rating: Pulse width limited by maximum junction temperature.

2. I_AS = 7.3 A, R_G = 25 , starting T_J = 25 °C

3. I_SD≤22 A, di/dt ≤ 200 A/s, V_DD≤ 380 V, starting T_J = 25 °C THERMAL CHARACTERISTICS

Symbol Parameter FCH22N60N Unit

R_JC Thermal Resistance, Junction to Case, Max. 0.61 °C/W

R_JA Thermal Resistance, Junction to Ambient, Max. 40

PACKAGE MARKING AND ORDERING INFORMATION

Part Number Top Mark Package Package Method Reel Size Tape Width Quantity

FCH22N60N FCH22N60N TO−247−3LD Tube N/A N/A 30 Units

(3)

ELECTRICAL CHARACTERISTICS (T_C = 25°C unless otherwise noted)

Symbol Parameter Test Condition Min. Typ. Max. Unit

OFF CHARACTERISTICS

BV_DSS Drain to Source Breakdown Voltage ID = 1 mA, VGS = 0 V, TJ = 25°C 600 − − V ID = 1 mA, VGS = 0 V, TJ = 150°C 650 − −

BVDSS

/ TJ

Breakdown Voltage Temperature

Coefficient ID = 1 mA, Referenced to 25°C − 0.68 − V/°C

I_DSS Zero Gate Voltage Drain Current V_DS = 480 V, V_GS = 0 V − − 10 A

V_DS = 480 V, T_J = 125°C − − 100

I_GSS Gate to Body Leakage Current V_GS = ±50 V, VDS = 0 V − − ±100 nA

ON CHARACTERISTICS

V_GS(th) Gate Threshold Voltage V_GS = V_DS, I_D = 250 A 2.0 3 4.0 V

R_DS(on) Static Drain to Source On Resistance V_GS = 10 V, I_D = 11 A − 0.140 0.165

g_FS Forward Transconductance V_DS = 20 V, I_D = 11 A − 22 − S

DYNAMIC CHARACTERISTICS

C_iss Input Capacitance V_DS = 100 V, V_GS = 0 V,

f = 1 MHz − 1950 − pF

C_oss Output Capacitance − 75.9 − pF

C_rss Reverse Transfer Capacitance − 3 − pF

C_oss Output Capacitance V_DS = 380 V, V_GS = 0 V, f = 1 MHz − 43.2 − pF

C_oss(eff.) Effective Output Capacitance V_DS = 0 V to 480 V, V_GS = 0 V − 196.4 − pF Q_g(tot) Total Gate Charge at 10 V V_DS = 380 V, I_D = 11 A,

V_GS = 10 V (Note 4)

− 45 − nC

Q_gs Gate to Source Gate Charge − 8.7 − nC

Q_gd Gate to Drain “Miller” Charge − 14.5 − nC

ESR Equivalent Series Resistance(G−S) f = 1 MHz − 1 −

SWITCHING CHARACTERISTICS

td(on) Turn-On Delay Time V_DD = 380 V, I_D = 11 A, R_G = 4.7

(Note 4)

− 16.9 − ns

tr Turn−On Rise Time − 16.7 − ns

td(off) Turn-Off Delay Time − 49 − ns

tf Turn−Off Fall Time − 4 − ns

DRAIN-SOURCE DIODE CHARACTERISTICS

IS Maximum Continuous Drain to Source Diode Forward Current − − 22 A

ISM Maximum Pulsed Drain to Source Diode Forward Current − − 66 A

VSD Drain to Source Diode Forward Voltage VGS = 0 V, ISD = 11 A − − 1.2 V

trr Reverse Recovery Time VGS = 0 V, ISD = 11 A,

dI_F/dt = 100 A/s − 350 − ns

Qrr Reverse Recovery Charge − 6 − C

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

4. Essentially Independent of Operating Temperature Typical Characteristics.

(4)

TYPICAL CHARACTERISTICS

Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics

Figure 3. On−Resistance Variation vs. Drain Current and Gate Voltage

ID, Drain Current [A]

V_DS, Drain−Source Voltage [V] VGS, Gate−Source Voltage [V]

I_D, Drain Current [A]

RDS(ON) [], Drain−Source On−Resistance

VSD, Body Diode Forward Voltage [V]

IS, Reverse Drain Current [A]

Figure 4. Body Diode Forward Voltage Variation vs. Source Current and Temperature

Capacitance [pF] VGS, Gate−Source Voltage [V]

2 3 4 5 6

0.1 1 10 100

0.3

*Notes:

1. 250 s Pulse Test 2. T_C = 25°C

V_GS = 15.0 V 10.0 V 8.0 V 7.0 V 6.0 V 5.0 V 4.0 V

1 10 1 7 8

10 100

−55°C 25°C 150°C

*Notes:

1. V_DS = 20 V 2. 250 s Pulse Test

0.1 0.2 0.3 0.4

V_GS = 10 V

V_GS = 20 V

*Note: T_C = 25°C

0 10 20 30 40 50 60 10.0 0.5 1.0 1.5

10 100

150°C 25°C

*Notes:

1. VGS = 0 V 2. 250 s Pulse Test

0.1 1 10 100

1 10 100 1000 10000 1E5

600

*Notes:

1. V_GS = 0 V 2. f = 1 MHz

C_iss = C_gs + C_gd (C_ds = shorted) Coss = Cds + Cgd

C_rss = C_gd V_DS = 120 V

VDS = 300 V V_DS = 480 V

*Note: I_D = 11 A

0 10 20 30 40 50

0 2 4 6 8 10 C_oss

Ciss

C_rss

(5)

TYPICAL CHARACTERISTICS

(continued)

Figure 7. Breakdown Voltage Variation vs. Temperature

Figure 8. On−Resistance Variation vs. Temperature

Figure 9. Maximum Safe Operating Area Figure 10. Maximum Drain Current vs. Case Temperature T_J, Junction Temperature [°C]

BVDSS, (Normalized) Drain−Source Breakdown Voltage

T_J, Junction Temperature [°C]

RDS(ON), (Normalized) Drain−Source On−Resistance

V_DS, Drain−Source Voltage [V]

T_C, Case Temperature [°C]

−100 −50 0 50 100 150 200 −100 −50 0 50 100 150 200

25 50 75 100 125 150

0.8 0.9 1.0 1.1 1.2

*Notes:

1. V_GS = 0 V 2. ID = 1 mA

0.0 0.5 1.0 1.5 2.0 2.5 3.0

*Notes:

1. VGS = 10 V 2. I_D = 11 A

1 10 100 1000

0.01 0.1 1 10 100

1 ms 10 ms

DC 100 s

10 s

*Notes:

1. TC = 25°C 2. T_J = 150°C 3. Single Pulse Operation in This Area

is Limited by R_DS(on)

0 5 10 15 20 25

0.01 0.1 1

0.01 0.1 0.2

0.050.02 0.5

Single Pulse

*Notes:

1. Z_JC(t) = 0.61°C/W Max.

2. Duty Factor, D = t1/t2

3. T_JM− T_C = P_DM * Z_JC(t) t1

t₂ P_DM

ZJC(t), Thermal Response [°C/W]

(6)

Figure 12. Gate Charge Test Circuit & Waveform

Charge DUT

V_DS

DUT

V_DS

I_G = const.

Q_g

Q_gd Q_gs

R_L VGS

V_GS

Figure 13. Resistive Switching Test Circuit & Waveforms

Figure 14. Unclamped Inductive Switching Test Circuit & Waveforms R_L

V_DS V_GS

V_GS

R_G

DUT

V_DD

V_DS

V_GS10%

90%

ton toff

t_r t_f

t_d(on) t_d(off)

V_DD V_DS

R_G

V_GS DUT

L

I_D

t_p

V_DD

tp Time

I_AS BV_DSS

I_D(t)

V_DS(t) E_AS+1

2LI_AS²

(7)

Figure 15. Peak Diode Recovery dv/dt Test Circuit & Waveforms DUT

L

VDD

RG

I_SD

V_DS +

−

VGS

Same Type as DUT

− dv/dt controlled by R_G

− I_SD controlled by pulse period Driver

V_GS (Driver)

ISD

(DUT)

V_DS

(DUT) V_SD

I_RM

10 V

di/dt

V_DD I_FM, Body Diode Forward Current

Body Diode Reverse Current

Body Diode Recovery dv/dt

Body Diode Forward Voltage Drop D+ Gate Pulse Width

Gate Pulse Period

(8)

TO−247−3LD SHORT LEAD CASE 340CK

ISSUE A

DATE 31 JAN 2019

XXXX = Specific Device Code A = Assembly Location Y = Year

WW = Work Week ZZ = Assembly Lot Code

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.

GENERIC MARKING DIAGRAM*

AYWWZZ XXXXXXX XXXXXXX

E

D

L1 E2

(3X) b (2X) b2

b4

(2X) e

Q

L

0.25 ^M B A ^M A

A1 A2 A

c

B

D1 P1

S P

E1

D2

1 2 3 2

DIM MILLIMETERS MIN NOM MAX A 4.58 4.70 4.82 A1 2.20 2.40 2.60 A2 1.40 1.50 1.60 b 1.17 1.26 1.35 b2 1.53 1.65 1.77 b4 2.42 2.54 2.66 c 0.51 0.61 0.71 D 20.32 20.57 20.82

D1 13.08 ~ ~

D2 0.51 0.93 1.35 E 15.37 15.62 15.87

E1 12.81 ~ ~

E2 4.96 5.08 5.20

e ~ 5.56 ~

L 15.75 16.00 16.25 L1 3.69 3.81 3.93

P 3.51 3.58 3.65 P1 6.60 6.80 7.00 Q 5.34 5.46 5.58 S 5.34 5.46 5.58

98AON13851G

DOCUMENT NUMBER: Electronic versions are uncontrolled except when accessed directly from the Document Repository.

(9)
