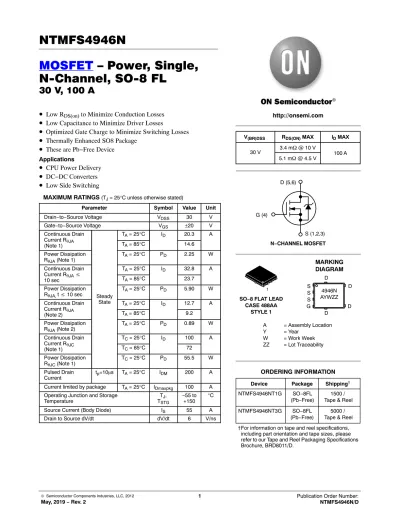

NTMFS4946N MOSFET – Power, Single, N-Channel, SO-8 FL

MOSFET – Power, Single, N-Channel, SO-8 FL

30 V, 100 A

• ^{Low R}

to Minimize Conduction Losses

• Low Capacitance to Minimize Driver Losses

• Optimized Gate Charge to Minimize Switching Losses

• Thermally Enhanced SO8 Package

• These are Pb−Free Device

• CPU Power Delivery

• DC−DC Converters

• Low Side Switching

MAXIMUM RATINGS (TJ = 25°C unless otherwise stated)

Parameter Symbol Value Unit

Drain−to−Source Voltage V_DSS 30 V

Gate−to−Source Voltage VGS ±20 V

Continuous Drain Current R_qJA (Note 1)

Steady State

T_A = 25°C I_D 20.3 A

T_A = 85°C 14.6

Power Dissipation

R_qJA (Note 1) T_A = 25°C P_D 2.25 W

Continuous Drain Current R_qJA v 10 sec

T_A = 25°C I_D 32.8 A

T_A = 85°C 23.7

Power Dissipation

R_qJA, t v 10 sec T_A = 25°C P_D 5.90 W

Continuous Drain Current R_qJA (Note 2)

TA = 25°C ID 12.7 A

TA = 85°C 9.2

Power Dissipation

R_qJA (Note 2) TA = 25°C PD 0.89 W

Continuous Drain Current R_qJC (Note 1)

TC = 25°C I_D 100 A

TC = 85°C 72

Power Dissipation

R_qJC (Note 1) T_C = 25°C P_D 55.5 W

Pulsed Drain

Current t_p=10ms T_A = 25°C I_DM 200 A

Current limited by package T_A = 25°C I_Dmaxpkg 100 A Operating Junction and Storage

Temperature T_J,

T_STG −55 to

+150 °C

Source Current (Body Diode) I_S 55 A

Drain to Source dV/dt dV/dt 6 V/ns

SO−8 FLAT LEAD CASE 488AA

STYLE 1

MARKING DIAGRAM http://onsemi.com

A = Assembly Location

Y = Year

W = Work Week ZZ = Lot Traceability

4946N AYWZZ

1

V_(BR)DSS R_DS(ON) MAX I_D MAX 30 V 3.4 mW @ 10 V

100 A 5.1 mW @ 4.5 V

G (4)

S (1,2,3) N−CHANNEL MOSFET

D (5,6)

Device Package Shipping^† ORDERING INFORMATION

NTMFS4946NT1G SO−8FL

(Pb−Free) 1500 / Tape & Reel NTMFS4946NT3G SO−8FL

(Pb−Free) 5000 / Tape & Reel S

S S G

D

D D

D

MAXIMUM RATINGS (T_J = 25°C unless otherwise stated)

Parameter Symbol Value Unit

Single Pulse Drain−to−Source Avalanche Energy (V_DD = 50 V, V_GS = 10 V, IL = 37 Apk, L = 0.3 mH, RG = 25 W)

EAS 205 mJ

Lead Temperature for Soldering Purposes

(1/8” from case for 10 s) TL 260 °C

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

THERMAL RESISTANCE MAXIMUM RATINGS

Parameter Symbol Value Unit

Junction−to−Case (Drain) R_qJC 2.25

°C/W

Junction−to−Ambient – Steady State (Note 1) R_qJA 55.6

Junction−to−Ambient – Steady State (Note 2) R_qJA 140.8

Junction−to−Ambient − t v 10 sec R_qJA 21.2

1. Surface−mounted on FR4 board using 1 sq−in pad, 1 oz Cu.

2. Surface−mounted on FR4 board using the minimum recommended pad size.

ELECTRICAL CHARACTERISTICS (T_J = 25°C unless otherwise specified)

Parameter Symbol Test Condition Min Typ Max Unit

OFF CHARACTERISTICS

Drain−to−Source Breakdown Voltage V_(BR)DSS VGS = 0 V, ID = 250 mA 30 V

Drain−to−Source Breakdown Voltage

Temperature Coefficient V_(BR)DSS/ TJ

25 mV/°C

Zero Gate Voltage Drain Current IDSS VGS = 0 V,

V_DS = 24 V TJ = 25 °C 1

T_J = 125°C 10 mA

Gate−to−Source Leakage Current I_GSS V_DS = 0 V, V_GS = ±20 V ±100 nA

ON CHARACTERISTICS (Note 3)

Gate Threshold Voltage V_GS(TH) V_GS = V_DS, I_D = 250 mA 1.45 1.8 2.5 V

Negative Threshold Temperature Coefficient V_GS(TH)/T_J 5.2 mV/°C

Drain−to−Source On Resistance RDS(on) VGS = 10 V to

11.5 V I_D = 30 A 2.5 3.4

I_D = 15 A 2.4 mW

V_GS = 4.5 V I_D = 30 A 3.8 5.1

I_D = 15 A 3.8

Forward Transconductance g_FS V_DS = 1.5 V, I_D = 30 A 85 S

CHARGES AND CAPACITANCES

Input Capacitance C_ISS

V_GS = 0 V, f = 1 MHz, V_DS = 12 V

3250

Output Capacitance C_OSS 562 pF

Reverse Transfer Capacitance C_RSS 289

Total Gate Charge Q_G(TOT)

V_GS = 4.5 V, V_DS = 15 V; I_D = 30 A

21.8 32

Threshold Gate Charge Q_G(TH) 3.2 nC

Gate−to−Source Charge Q_GS 8.1

Gate−to−Drain Charge Q_GD 7.4

Total Gate Charge Q_G(TOT) V_GS = 11.5 V, V_DS = 15 V,

ID = 30 A 53 nC

SWITCHING CHARACTERISTICS (Note 4)

Turn−On Delay Time td(ON)

V_GS = 4.5 V, V_DS = 15 V, I_D = 15 A, R_G = 3.0 W

18.9

Rise Time t_r 34 ns

Turn−Off Delay Time t_d(OFF) 24.6

ELECTRICAL CHARACTERISTICS (T_J = 25°C unless otherwise specified)

Parameter Symbol Test Condition Min Typ Max Unit

SWITCHING CHARACTERISTICS (Note 4)

Turn−On Delay Time td(ON)

V_GS = 11.5 V, V_DS = 15 V, ID = 15 A, RG = 3.0 W

10.7

Rise Time tr 18.9 ns

Turn−Off Delay Time td(OFF) 34.2

Fall Time tf 7.1

DRAIN−SOURCE DIODE CHARACTERISTICS

Forward Diode Voltage VSD V_GS = 0 V,

IS = 30 A

T_J = 25°C 0.8 1.0

T_J = 125°C 0.66 V

Reverse Recovery Time t_RR

VGS = 0 V, dIS/dt = 100 A/ms, I_S = 30 A

21.6

Charge Time t_a 11.4 ns

Discharge Time t_b 10.2

Reverse Recovery Charge Q_RR 8.5 nC

PACKAGE PARASITIC VALUES

Source Inductance L_S

T_A = 25°C

0.65 nH

Drain Inductance L_D 0.005

Gate Inductance L_G 1.84

Gate Resistance R_G 0.5 1.4 2.2 W

3. Pulse Test: pulse width v 300 ms, duty cycle v 2%.

4. Switching characteristics are independent of operating junction temperatures.

TYPICAL CHARACTERISTICS

Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics V_DS, DRAIN−TO−SOURCE VOLTAGE (V) V_GS, GATE−TO−SOURCE VOLTAGE (V)

6 5

4 3

2 1

00 20 40 60 80 160 180 200

6 5

4 3

2 1 00

20 40 60 80 120 140 160

ID, DRAIN CURRENT (A) ID, DRAIN CURRENT (A)

100 120 140

TJ = 25°C V_GS = 4.2 V

10 V

5.0 V 4.5 V

4.0 V 3.8 V 3.6 V 3.4 V 3.2 V 3.0 V 2.8 V 2.6 V

100

V_DS≥ 10 V

T_J = 25°C T_J = 125°C

TJ = −55°C

TYPICAL CHARACTERISTICS

Figure 3. On−Resistance vs. Gate−to−Source Voltage

Figure 4. On−Resistance vs. Drain Current and Gate Voltage

V_GS, GATE−TO−SOURCE VOLTAGE (V) I_D, DRAIN CURRENT (A)

10 9 8 7 5

4 3 0.0022 0.003 0.004 0.005 0.006 0.008 0.009 0.010

55 50 45 30

25 20 15 010 0.001 0.002 0.003 0.004 0.005 0.006 0.007

Figure 5. On−Resistance Variation with Temperature

Figure 6. Drain−to−Source Leakage Current vs. Voltage

T_J, JUNCTION TEMPERATURE (°C) V_DS, DRAIN−TO−SOURCE VOLTAGE (V) 125

100 75 50 25 0

−25 0.50−50

0.75 1.00 1.25 1.50 1.75

18 14

12 10 8 6 4 1002 1000 10,000

25 20

15 10

5 00

1000 1500 2000 2500 3000 3500 4000

45 35

30 25 20 10

5 00 2 4 5 9 10 11 12 RDS(on), DRAIN−TO−SOURCE RESISTANCE (W)

RDS(on), DRAIN−TO−SOURCE RESISTANCE (NORMALIZED) IDSS, LEAKAGE (nA)

C, CAPACITANCE (pF) VGS, GATE−TO−SOURCE VOLTAGE (V)

6 11

0.007

ID = 30 A T_J = 25°C

35 40 60

TJ = 25°C

VGS = 4.5 V

V_GS = 11.5 V

RDS(on), DRAIN−TO−SOURCE RESISTANCE (W)

150 ID = 30 A

V_GS = 10 V

16 20

TJ = 150°C V_GS = 0 V

T_J = 125°C

500

T_J = 25°C C_oss

C_iss

Crss

15 40 50

8 7 6

3 1

20 18 VDS, DRAIN−TO−SOURCE VOLTAGE (V)

16 14 12 10 8 6 4 2 0 ID = 30 A T_J = 25°C QT

V_DS

V_GS

Q_gd Q_gs

TYPICAL CHARACTERISTICS

Figure 9. Resistive Switching Time Variation

vs. Gate Resistance Figure 10. Diode Forward Voltage vs. Current

RG, GATE RESISTANCE (W) V_SD, SOURCE−TO−DRAIN VOLTAGE (V)

100 10

11 10 100 1000

0.9 0.8

0.7 0.6

0.5 00.4

24 6 12 24 28

Figure 11. Maximum Rated Forward Biased

Safe Operating Area Figure 12. Maximum Avalanche Energy vs.

Starting Junction Temperature V_DS, DRAIN−TO−SOURCE VOLTAGE (V) T_J, STARTING JUNCTION TEMPERATURE(°C)

100 10

1 0.10.1

1 10 100 1000

75 100 125 150

50 025

20 40 60 120 160 180 220

DRAIN CURRENT (A) PULSE WIDTH (ms)

90 70

60 50 40 20

10 00 1020 30 110 120 130140

10,000 1000

100 10

1 10.1

10 1000

t, TIME (ns) IS, SOURCE CURRENT (A)

ID, DRAIN CURRENT (A) EAS, SINGLE PULSE DRAIN−TO− SOURCE AVALANCHE ENERGY (mJ)

gFS (S) Id (A)

VDS = 15 V ID = 15 A

VGS = 11.5 V tf

t_r t_d(off)

t_d(on)

108 14 16 1820 26 30

22

VGS = 0 V T_J = 25°C

10 ms

100 ms 1 ms 10 ms

dc V_GS = 20 V

Single Pulse TC = 25°C

RDS(on) Limit Thermal Limit Package Limit

80 100 140

200 ID = 37 A

30 80 100

40 50 70 80 90 100

60

125°C 100°C 25°C

V_DS = 1.5 V

100

M 3.00 3.40 q 0 _ −−− ^3.8012 _ DFN5 5x6, 1.27P

(SO−8FL) CASE 488AA

ISSUE N

DATE 25 JUN 2018 SCALE 2:1

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: MILLIMETER.

3. DIMENSION D1 AND E1 DO NOT INCLUDE MOLD FLASH PROTRUSIONS OR GATE BURRS.

XXXXXX = Specific Device Code A = Assembly Location

Y = Year

W = Work Week

ZZ = Lot Traceability

1 2 3 4

TOP VIEW

SIDE VIEW

BOTTOM VIEW D1

E1 q

D

E 2

2 B A

0.20 C

0.20 C

2 X

2 X

DIM MIN NOM MILLIMETERS A 0.90 1.00 A1 0.00 −−−

b 0.33 0.41 c 0.23 0.28

D 5.15

D1 4.70 4.90 D2 3.80 4.00

E 6.15

E1 5.70 5.90 E2 3.45 3.65

e 1.27 BSC

G 0.51 0.575

K 1.20 1.35

L 0.51 0.575

L1 0.125 REF

A 0.10 C

0.10 C

DETAIL A

1 4

L1 e/2

8X

G D2 E2

K b

A 0.10 C B 0.05 c

L

DETAIL A c A1

4 X

C

SEATING PLANE

GENERIC MARKING DIAGRAM*

1

XXXXXX AYWZZ 1

MAX 1.10 0.05 0.51 0.33 5.10 4.20 6.10 3.85 0.71 1.50 0.71

STYLE 1:

PIN 1. SOURCE 2. SOURCE 3. SOURCE 4. GATE 5. DRAIN

M

*For additional information on our Pb−Free strategy and soldering SOLDERING FOOTPRINT*

1.270

2X

0.750 1.000 0.905

4.530 1.530

4.560 0.495

3.200

1.330

0.965

2X 2X

4X 4X PIN 5

(EXPOSED PAD)

STYLE 2:

PIN 1. ANODE 2. ANODE 3. ANODE 4. NO CONNECT 5. CATHODE

5.00 5.30

6.00 6.30

PITCH

DIMENSIONS: MILLIMETERS

1

RECOMMENDED e

2X

0.475

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “ G”, may or may not be present. Some products may not follow the Generic Marking.
