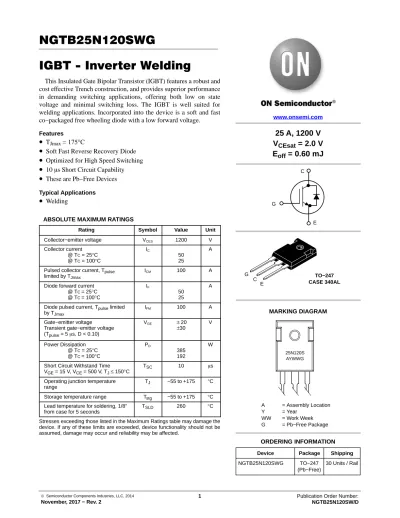

NGTB25N120SWG IGBT - Inverter Welding

IGBT - Inverter Welding

This Insulated Gate Bipolar Transistor (IGBT) features a robust and cost effective Trench construction, and provides superior performance in demanding switching applications, offering both low on state voltage and minimal switching loss. The IGBT is well suited for welding applications. Incorporated into the device is a soft and fast co−packaged free wheeling diode with a low forward voltage.

Features

• ^T

= 175 ° C

• Soft Fast Reverse Recovery Diode

• Optimized for High Speed Switching

• ¹⁰ m s Short Circuit Capability

• These are Pb−Free Devices

• ^Welding

ABSOLUTE MAXIMUM RATINGS

Rating Symbol Value Unit

Collector−emitter voltage VCES 1200 V

Collector current

@ TC = 25°C

@ TC = 100°C

IC

50 25

A

Pulsed collector current, T_pulse limited by T_Jmax

I_CM 100 A

Diode forward current

@ TC = 25°C

@ TC = 100°C

IF

50 25

A

Diode pulsed current, T_pulse limited by T_Jmax

IFM 100 A

Gate−emitter voltage Transient gate−emitter voltage (T_pulse = 5 ms, D < 0.10)

V_GE $20

±30

V

Power Dissipation

@ TC = 25°C

@ TC = 100°C

PD

385 192

W

Short Circuit Withstand Time V_GE = 15 V, V_CE = 500 V, T_J≤ 150°C

T_SC 10 ms

Operating junction temperature range

T_J −55 to +175 °C Storage temperature range T_stg −55 to +175 °C Lead temperature for soldering, 1/8”

from case for 5 seconds

T_SLD 260 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

TO−247 CASE 340AL C

G

25 A, 1200 V V

= 2.0 V E

= 0.60 mJ

E

Device Package Shipping ORDERING INFORMATION

NGTB25N120SWG TO−247

(Pb−Free)

30 Units / Rail www.onsemi.com

A = Assembly Location

Y = Year

WW = Work Week G = Pb−Free Package

MARKING DIAGRAM

25N120S AYWWG G

E C

NGTB25N120SWG

www.onsemi.com 2

THERMAL CHARACTERISTICS

Rating Symbol Value Unit

Thermal resistance junction−to−case, for IGBT R_qJC 0.39 °C/W

Thermal resistance junction−to−case, for Diode R_qJC 0.63 °C/W

Thermal resistance junction−to−ambient R_qJA 40 °C/W

ELECTRICAL CHARACTERISTICS (T_J = 25°C unless otherwise specified)

Parameter Test Conditions Symbol Min Typ Max Unit

STATIC CHARACTERISTIC Collector−emitter breakdown voltage, gate−emitter short−circuited

V_GE = 0 V, I_C = 500 mA V_(BR)CES 1200 − − V

Collector−emitter saturation voltage V_GE = 15 V, I_C = 25 A V_GE = 15 V, I_C = 25 A, T_J = 175°C

V_CEsat −

−

2.00 2.40

2.40

−

V Gate−emitter threshold voltage V_GE = V_CE, I_C = 400 mA V_GE(th) 4.5 5.5 6.5 V Collector−emitter cut−off current, gate−

emitter short−circuited

V_GE = 0 V, V_CE = 1200 V V_GE = 0 V, V_CE = 1200 V, T_{J =} 175°C

I_CES −

−

−

−

0.4 2

mA Gate leakage current, collector−emitter

short−circuited

V_GE = 20 V , V_CE = 0 V I_GES − − 200 nA

Input capacitance

V_CE = 20 V, V_GE = 0 V, f = 1 MHz

C_ies − 4420 − pF

Output capacitance C_oes − 151 −

Reverse transfer capacitance C_res − 81 −

Gate charge total

V_CE = 600 V, I_C = 25 A, V_GE = 15 V

Q_g − 178 − nC

Gate to emitter charge Q_ge − 39 −

Gate to collector charge Q_gc − 83 −

SWITCHING CHARACTERISTIC, INDUCTIVE LOAD Turn−on delay time

T_J = 25°C V_CC = 600 V, I_C = 25 A

R_g = 10 W V_GE = 0 V/ 15V

t_d(on) − 87 − ns

Rise time t_r − 74 −

Turn−off delay time t_d(off) − 179 −

Fall time t_f − 136 −

Turn−on switching loss E_on − 1.95 − mJ

Turn−off switching loss E_off − 0.60 −

Total switching loss E_ts − 2.55 −

Turn−on delay time

T_J = 150°C V_CC = 600 V, I_C = 25 A

R_g = 10 W V_GE = 0 V/ 15V

t_d(on) − 84 − ns

Rise time t_r − 94 −

Turn−off delay time t_d(off) − 185 −

Fall time t_f − 245 −

Turn−on switching loss E_on − 2.39 − mJ

Turn−off switching loss E_off − 1.26 −

Total switching loss E_ts − 3.65 −

DIODE CHARACTERISTIC

Forward voltage V_GE = 0 V, I_F = 25 A

V_GE = 0 V, I_F = 50 A, T_J = 175°C

V_F −

−

2.10 2.30

2.60

−

V

Reverse recovery time T_J = 25°C

I_F = 25 A, V_R = 400 V di_F/dt = 200 A/ms

t_rr − 154 − ns

Reverse recovery charge Q_rr − 1.3 − mc

Reverse recovery current I_rrm − 15 − A

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

TYPICAL CHARACTERISTICS

Figure 1. Output Characteristics Figure 2. Output Characteristics V_CE, COLLECTOR−EMITTER VOLTAGE (V) V_CE, COLLECTOR−EMITTER VOLTAGE (V)

8 6

5 4 3 2 1 0

Figure 3. Typical Capacitance Figure 4. Diode Forward Characteristics

Figure 5. Typical Gate Charge IC, COLLECTOR CURRENT (A)

7 V_GE = 13 V

to 20 V T_J = 25°C

9 V 7 V 8 V

8 6

5 4 3 2 1 IC, COLLECTOR CURRENT (A)

7 T_J = 150°C

9 V 8 V 7 V V_GE = 13 V

to 20 V

Figure 6. Switching Loss vs. I_C V_CE, COLLECTOR−EMITTER VOLTAGE (V)

90 80 50

40 30 20 10 0

C, CAPACITANCE (pF)

100 C_ies

C_oes C_res

70 60

10 V 11 V

10 V 11 V

T_J = 25°C 10,000

1000

100

1 100

0 80

70 60

40 30 20 10 0

100 90 80

60

40 30 20 10 0

50 50

10 90

70

V_F, FORWARD VOLTAGE (V) 3.0 2.5 2.0 1.5 1.0 0.5 0 40

IF, FORWARD CURRENT (A)

T_J = 25°C

T_J = 150°C 35

30 25

15 10 5 0

3.5 20

Q_G, GATE CHARGE (nC) 100

50 0

0 2 4 6 8 12 14 16

VGE, GATE−EMITTER VOLTAGE (V)

150 10

V_CE = 600 V V_GE = 25 V

I_C = 25 A

200

I_C, COLLECTOR CURRENT (A) 20

10 0

5

SWITCHING LOSS (mJ)

V_CE = 600 V V_GE = 15 V T_J = 150°C Rg = 10 W

E_off

30 40 60

4

3

2

1 0

E_on

50

NGTB25N120SWG

www.onsemi.com 4

TYPICAL CHARACTERISTICS

Figure 7. Switching Time vs. I_C Figure 8. Safe Operating Area I_C, COLLECTOR CURRENT (A)

1000

SWITCHING TIME (ns)

V_CE = 600 V V_GE = 15 V T_J = 150°C Rg = 10 W t_f

t_d(off)

10

0 20 30 50

10

40 60

100 t_d(on)

t_r

V_CE, COLLECTOR−EMITTER VOLTAGE (V) IC, COLLECTOR CURRENT (A)

1000 100

10 1

0.1 1 10 100 1000

50 ms 100 ms

1 ms dc operation

Single Nonrepetitive Pulse T_C = 25°C Curves must be derated linearly with increase in temperature

10k

Figure 9. IGBT Die Self−heating Square−wave Duty Cycle Transient Thermal Response ON−PULSE WIDTH (s)

1 0.1

0.01 0.0001

1

SQUARE−WAVE PEAK R(t) (°C/W)

0.00001 50% Duty Cycle 20%

10%

5%

2%

Single Pulse

R_qJC = 0.39

Junction

C₁ C₂ R₁ R₂

Duty Factor = t₁/t₂ Peak T_J = P_DM x Z_qJC + T_C

Case

C_n R_n 0.1

0.01

0.001

0.0001

0.001 0.000001

R_i (°C/W) C_i (J/°C) 0.0931 0.0034 0.0559 0.1139 0.1187 0.0079

0.0179 0.0278 0.0842 3.9912 0.0004 238.3112

Figure 10. Diode Die Self−heating Square−wave Duty Cycle Transient Thermal Response ON−PULSE WIDTH (s)

SQUARE−WAVE PEAK R(t) (°C/W)

50% Duty Cycle 20%

10%

5%

2%

Single Pulse 1

R_qJC = 0.635

Junction Case

C₁ C₂

R₁ R₂ R_n

Duty Factor = t₁/t₂ Peak T_J = P_DM x Z_qJC + T_C

C_n

1 0.1

0.01 0.0001

0.000001 0.00001 0.001

R_i (°C/W) C_i (J/°C) 0.000088 0.011310

0.1

0.01

0.014776 0.017184 0.042148 0.078172 0.047623 0.036547

0.000677 0.001840 0.002373 0.004045 0.020998 0.086526 0.075548 0.175265 0.135917

0.132366 0.180428 0.735746

TO−247 CASE 340AL

ISSUE D

DATE 17 MAR 2017

GENERIC MARKING DIAGRAM*

XXXXX = Specific Device Code A = Assembly Location

Y = Year

WW = Work Week G = Pb−Free Package

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “ G”, may or may not be present.

SCALE 1:1

XXXXXXXXX AYWWG E2

L1 D

L

b4 b2

b E

0.25 ^M B A^M c

A1 A

1 2 3

B

e

2X

3X

0.635^M B A^M A

S P

SEATING PLANE

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: MILLIMETERS.

3. SLOT REQUIRED, NOTCH MAY BE ROUNDED.

4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH.

MOLD FLASH SHALL NOT EXCEED 0.13 PER SIDE. THESE DIMENSIONS ARE MEASURED AT THE OUTERMOST EXTREME OF THE PLASTIC BODY.

5. LEAD FINISH IS UNCONTROLLED IN THE REGION DEFINED BY L1.

6.∅P SHALL HAVE A MAXIMUM DRAFT ANGLE OF 1.5° TO THE TOP OF THE PART WITH A MAXIMUM DIAMETER OF 3.91.

7. DIMENSION A1 TO BE MEASURED IN THE REGION DEFINED BY L1.

DIM MIN MAX MILLIMETERS

D 20.80 21.34 E 15.50 16.25 A 4.70 5.30

b 1.07 1.33 b2 1.65 2.35

e 5.45 BSC A1 2.20 2.60

c 0.45 0.68

L 19.80 20.80

Q 5.40 6.20 E2 4.32 5.49

L1 3.81 4.32 P 3.55 3.65 S 6.15 BSC b4 2.60 3.40 NOTE 6

4

NOTE 7

Q

NOTE 4

NOTE 3

NOTE 5

E2/2

NOTE 4

F 2.655 ---

2XF
