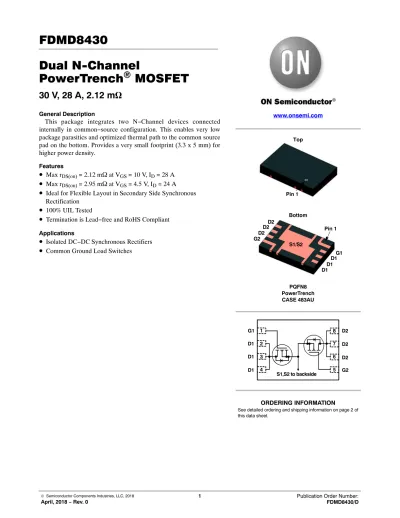

FDMD8430 Dual N-Channel PowerTrench

(1)

Dual N-Channel

PowerTrench ⁾ MOSFET

30 V, 28 A, 2.12 m W

General Description

This package integrates two N−Channel devices connected internally in common−source configuration. This enables very low package parasitics and optimized thermal path to the common source pad on the bottom. Provides a very small footprint (3.3 x 5 mm) for higher power density.

Features

• Max r

DS(on)

= 2.12 mW at V

GS

= 10 V, I

D

= 28 A

• ^{Max r}

DS(on)

= 2.95 mW at V

GS

= 4.5 V, I

D

= 24 A

• Ideal for Flexible Layout in Secondary Side Synchronous Rectification

• 100% UIL Tested

• Termination is Lead−free and RoHS Compliant

Applications

• Isolated DC−DC Synchronous Rectifiers

• Common Ground Load Switches

D2

S1/S2

Pin 1 Bottom

www.onsemi.com

PQFN8 PowerTrench CASE 483AU

See detailed ordering and shipping information on page 2 of this data sheet.

ORDERING INFORMATION Top

Pin 1

G1

S1,S2 to backside 1

2 3 4

8 7 6 5 D2

G2D2

D1G1 D1D1

D2 D2 D2 G2 D1

D1 D1

(2)

Table 1. MOSFET MAXIMUM RATINGS TA = 25°C unless otherwise noted.

Symbol Parameter Rating Units

VDS Drain to Source Voltage 30 V

V_GS Gate to Source Voltage ±20 V

ID Drain Current −Continuous TC = 25°C (Note 1) 95 A

Drain Current − Continuous TC = 100°C (Note 1) 60

Drain Current − Continuous T_A= 25°C (Figure 1) 28

Drain Current − Pulsed (Note 2) 562

E_AS Single Pulse Avalanche Energy (Note 3) 96 mJ

PD Power Dissipation T_C= 25°C 29 W

Power Dissipation T_A= 25°C (Figure 1) 2.1

T_J, T_STG Operating and Storage Junction Temperature Range −55 to +150 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

1. Computed continuous current limited to Max Junction Temperature only, actual continuous current will be limited by thermal & electro−

mechanical application board design.

2. Pulse Id refers to Figure 13 Forward Bias Safe Operating Area.

3. E_AS of 96 mJ is based on starting T_J = 25°C; L = 0.3 mH, IAS = 31.7 A, V_DD = 27 V.

a. 60 °C/W when mounted on a 1 in² pad of 2 oz copper

b.160 °C/W when mounted on a minimum pad of 2 oz copper

G DF DS SF SS

Figure 1. Figure 2.

Table 2. THERMAL CHARACTERISTICS

R_qJC Thermal Resistance, Junction to Case 4.7 °C/W

R_qJA Thermal Resistance, Junction to Ambient (Figure 1) 60

4. R_qJA is determined with the device mounted on a 1 in² pad 2 oz copper pad on a 1.5 x 1.5 in. board of FR−4 material, R_qCA is determined by the user’s board design.

Table 3. PACKAGE MARKING AND ORDERING INFORMATION

Device Marking Device Package Reel Size Tape Width Quantity

FDMD8430 FDMD8430 Power 3.3 x 5 13″ 12 mm 3000 units

(3)

Table 4. ELECTRICAL CHARACTERISTICS T_J = 25°C unless otherwise noted.

Symbol Parameter Test Conditions Min Typ Max Units

OFF CHARACTERISTICS

BV_DSS Drain to Source Breakdown Voltage I_D = 250 mA, VGS = 0 V 30 V

DBVDSS /

DT_J Breakdown Voltage Temperature

Coefficient I_D = 250 mA, referenced to 25°C 17 mV/°C

I_DSS Zero Gate Voltage Drain Current V_DS = 24 V, V_GS= 0 V 1 mA

I_GSS Gate to Source Leakage Current V_GS = ±20 V, VDS = 0 V ±100 nA

ON CHARACTERISTICS

V_GS(th) Gate to Source Threshold Voltage V_GS = V_DS, I_D = 250 mA 1.0 1.6 3.0 V

DV_{GS(th) /} DTJ

Gate to Source Threshold Voltage

Temperature Coefficient I_D = 250 mA, referenced to 25°C −5 mV/°C

r_DS(on) Static Drain to Source On Resistance VGS = 10 V, ID = 28 A 1.5 2.12 mW

VGS = 4.5 V, ID = 24 A 2.0 2.95

VGS = 10 V, ID = 28 A, TJ = 125°C 1.7 2.4

g_FS Forward Transconductance V_DD = 5 V, I_D = 28 A 250 S

DYNAMIC CHARACTERISTICS

Ciss Input Capacitance VDS = 15 V, VGS = 0 V, f = 1 MHZ 3595 5035 pF

C_oss Output Capacitance 1150 1610 pF

C_rss Reverse Transfer Capacitance 112 160 pF

R_g Gate Resistance 2.3 4.5 W

SWITCHING CHARACTERISTICS

t_d(on) Turn−On Delay Time VDD = 15 V, ID = 28 A,

V_GS = 10 V, R_GEN = 6 W 11 20 ns

t_r Rise Time 8 16 ns

t_d(off) Turn−Off Delay Time 71 114 ns

t_f Fall Time 20 36 ns

Q_g(tot) Total Gate Charge V_GS= 0 V to 10 V V_DD = 15 V,

I_D = 28 A 52 90 nC

Total Gate Charge V_GS= 0 V to 4.5 V 25 45 nC

Q_gs Gate to Source Charge 10 nC

Q_gd Gate to Drain “Miller” Charge 7 nC

DRAIN−SOURCE DIODE CHARACTERISTICS

V_SD Source to Drain Diode Forward Voltage V_GS= 0 V, I_S = 28 A (Note 5) 0.8 1.2 V

t_rr Reverse Recovery Time I_F = 28 A, di/dt = 100 A/ms 40 64 ns

Q_rr Reverse Recovery Charge 22 36 nC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

5. Pulse Test: Pulse Width < 300 ms, Duty Cycle < 2.0%.

(4)

TYPICAL CHARACTERISTICS

T_J = 25°C unless otherwise noted.

Figure 3. On Region Characteristics Figure 4. Normalized On−Resistance vs. Drain Current and Gate Voltage

Figure 5. Normalized On−Resistance vs. Junction Temperature

Figure 6. On−Resistance vs. Gate to Source Voltage

00.0 35 70 105 130

V_GS = 3 V V_GS = 4 V

V_GS = 10 V

V_GS = 4.5 V

PULSE DURATION = 80ms DUTY CYCLE = 0.5% MAX V_GS = 3.5 V

VGS = 6 V

ID, DRAIN CURRENT (A)

V_DS, DRAIN TO SOURCE VOLTAGE (V)

0 26 52 78 104 130

0 1 2 3 4 5 6

V_GS = 10 V V_GS = 6 V

V_GS = 3 V

V_GS = 4 V PULSE DURATION = 80 ms DUTY CYCLE = 0.5% MAX

NORMALIZED DRAIN TO SOURCE ON−RESISTANCE

ID, DRAIN CURRENT (A) V_GS = 4.5 V

V_GS = 3.5 V

−75 −50 −25 0 25 50 75 100 125 150 0.7

0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6

ID = 28 A V_GS = 10 V

NORMALIZED DRAIN TO SOURCE ON−RESISTANCE

TJ, JUNCTION TEMPERATURE (^oC)

0 2 4 6 8 10

0 4 8 12 16 20 24 28

TJ= 125^oC ID= 28 A

TJ= 25^oC

V_GS, GATE TO SOURCE VOLTAGE (V)

rDS(on),DRAIN TO SOURCE ON−RESISTANCE(mW) PULSE DURATION = 80ms

DUTY CYCLE = 0.5% MAX

00 26 52 78 104 130

TJ = 150^oC VDS= 5 V

PULSE DURATION = 80ms DUTY CYCLE = 0.5% MAX

TJ = −55^oC TJ = 25^oC ID, DRAIN CURRENT (A)

VGS, GATE TO SOURCE VOLTAGE (V)

0.0 0.2 0.4 0.6 0.8 1.0 1.2

0.001 0.01 0.1 1 10 100

T_J = −55ôC TJ = 25ôC TJ= 150ôC

VGS= 0 V

IS, REVERSE DRAIN CURRENT (A)

VSD, BODY DIODE FORWARD VOLTAGE (V) 130

0.5 1.0 1.5 2.0

1 2 3 4 5

(5)

TYPICAL CHARACTERISTICS

Figure 9. Gate Charge Characteristics Figure 10. Capacitance vs. Drain to Source Voltage

Figure 11. Unclamped Inductive Switching Capability

Figure 12. Maximum Continuous Drain Current vs. Case Temperature

Figure 13. Forward Bias Safe Operating Figure 14. Single Pulse Maximum Power

0 12 24 36 48 60

0 2 4 6 8 10

ID= 28 A

VDD = 20 V VDD= 15 V

VGS, GATE TO SOURCE VOLTAGE (V)

Qg, GATE CHARGE (nC) VDD = 10 V

0.1 1 10 30

10 100 1000 10000

f = 1 MHz VGS = 0 V

CAPACITANCE (pF)

VDS, DRAIN TO SOURCE VOLTAGE (V) Crss

Coss

Ciss

0.0011 0.01 0.1 1 10 100 1000

10 100

T_J= 100^oC T_J= 25^oC

TJ= 125^oC

t_AV, TIME IN AVALANCHE (ms) IAS, AVALANCHE CURRENT (A)

25 50 75 100 125 150

0 20 40 60 80 100

VGS= 4.5 V

RqJC= 4.7^oC/W VGS= 10 V

ID,DRAIN CURRENT (A)

T_C, CASE TEMPERATURE (^oC)

0.1 1 10 100

0.1 1 10 100 1000

CURVE BENT TO MEASURED DATA

10ms

100 ms 10 ms 1 ms 100ms

ID, DRAIN CURRENT (A)

VDS, DRAIN to SOURCE VOLTAGE (V) THIS AREA IS

LIMITED BY r_DS(on) SINGLE PULSE TJ= MAX RATED R_qJC= 4.7^oC/W T_C= 25^oC

10⁻⁵ 10⁻⁴ 10⁻³ 10⁻² 10⁻¹ 1 10

100 1000 10000

SINGLE PULSE R_qJC= 4.7^oC/W T_C= 25^oC

P( PK

),PEAK TRANSIENT POWER (W)

t, PULSE WIDTH (sec)

(6)

TYPICAL CHARACTERISTICS

Figure 15. Junction−to−Case Transient Thermal Response Curve

10⁻⁵ 10⁻⁴ 10⁻³ 10⁻² 10⁻¹ 1

0.001 0.01 0.1 1 2

SINGLE PULSE

DUTY CYCLE−DESCENDING ORDER

r(t), NORMALIZED EFFECTIVE TRANSIENT THERMAL RESISTANCE

t, RECTANGULAR PULSE DURATION (sec) D = 0.5

0.2 0.1 0.05 0.02 0.01

NOTES:

Z_qJC(t) = r(t) x R_qJC R_qJC = 4.7^oC/W Duty Cycle, D = t₁ / t₂ Peak T_J = P_DM x Z_qJC(t) + T_C

P_DM

t₁ t₂

(7)

PQFN8 3.3X5, 0.65P CASE 483AU

ISSUE A

DATE 06 MAY 2021

(8)
