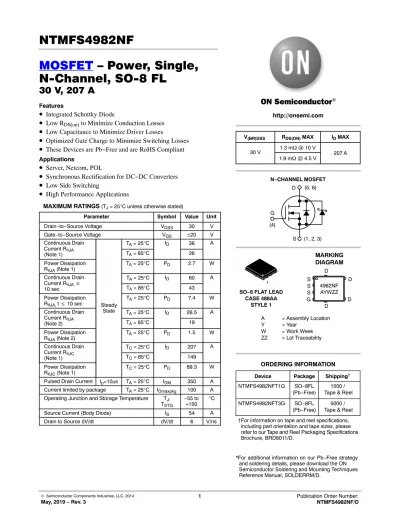

© Semiconductor Components Industries, LLC, 2014
May, 2019 − Rev. 3 1 Publication Order Number:
NTMFS4982NF/D
MOSFET – Power, Single, N-Channel, SO-8 FL
30 V, 207 A
Features
• Integrated Schottky Diode
• Low R
DS(on)to Minimize Conduction Losses
• Low Capacitance to Minimize Driver Losses
• Optimized Gate Charge to Minimize Switching Losses
• These Devices are Pb−Free and are RoHS Compliant
Applications• Server, Netcom, POL
• Synchronous Rectification for DC−DC Converters
• Low Side Switching
• High Performance Applications
MAXIMUM RATINGS (TJ = 25°C unless otherwise stated)
Parameter Symbol Value Unit
Drain−to−Source Voltage VDSS 30 V
Gate−to−Source Voltage VGS ±20 V
Continuous Drain Current RqJA (Note 1)
Steady State
TA = 25°C ID 36 A
TA = 85°C 26
Power Dissipation
RqJA (Note 1) TA = 25°C PD 2.7 W
Continuous Drain Current RqJA v 10 sec
TA = 25°C ID 60 A
TA = 85°C 43
Power Dissipation
RqJA, t v 10 sec TA = 25°C PD 7.4 W
Continuous Drain Current RqJA (Note 2)
TA = 25°C ID 26.5 A
TA = 85°C 19
Power Dissipation
RqJA (Note 2) TA = 25°C PD 1.5 W
Continuous Drain Current RqJC (Note 1)
TC = 25°C ID 207 A
TC = 85°C 149
Power Dissipation
RqJC (Note 1) TC = 25°C PD 89.3 W
Pulsed Drain Current tp=10ms TA = 25°C IDM 350 A Current limited by package TA = 25°C IDmaxpkg 100 A Operating Junction and Storage Temperature TJ,
TSTG −55 to
+150 °C
Source Current (Body Diode) IS 54 A
Drain to Source dV/dt dV/dt 6 V/ns
SO−8 FLAT LEAD CASE 488AA
STYLE 1
MARKING DIAGRAM http://onsemi.com
A = Assembly Location
Y = Year
W = Work Week ZZ = Lot Traceability
4982NF AYWZZ
1
V(BR)DSS RDS(ON) MAX ID MAX
30 V 1.3 mW @ 10 V
207 A 1.9 mW @ 4.5 V
N−CHANNEL MOSFET
Device Package Shipping† ORDERING INFORMATION
NTMFS4982NFT1G SO−8FL
(Pb−Free) 1500 / Tape & Reel NTMFS4982NFT3G SO−8FL
(Pb−Free) 5000 / Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.
S S S G
D
D D
D
*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.
G
S D (5, 6)
(4)
(1, 2, 3)
MAXIMUM RATINGS (TJ = 25°C unless otherwise stated)
Parameter Symbol Value Unit
Single Pulse Drain−to−Source Avalanche Energy (VDD = 50 V, VGS = 10 V, IL = 50 Apk, L = 0.1 mH, RG = 25 W)
EAS 125 mJ
Lead Temperature for Soldering Purposes
(1/8” from case for 10 s) TL 260 °C
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
http://onsemi.com 3
THERMAL RESISTANCE MAXIMUM RATINGS
Parameter Symbol Value Unit
Junction−to−Case (Drain) RqJC 1.4
°C/W
Junction−to−Ambient – Steady State (Note 1) RqJA 46.6
Junction−to−Ambient – Steady State (Note 2) RqJA 84.1
Junction−to−Ambient − t v 10 sec RqJA 16.8
1. Surface−mounted on FR4 board using 1 sq−in pad, 2 oz Cu.
2. Surface−mounted on FR4 board using the minimum recommended pad size of 100 mm2. ELECTRICAL CHARACTERISTICS (TJ = 25°C unless otherwise specified)
Parameter Symbol Test Condition Min Typ Max Unit
OFF CHARACTERISTICS
Drain−to−Source Breakdown Voltage V(BR)DSS VGS = 0 V, ID = 1.0 mA 30 V
Drain−to−Source Breakdown Voltage
Temperature Coefficient V(BR)DSS/ TJ
ID = 10 mA, referenced to 25°C 15
mV/°C Zero Gate Voltage Drain Current IDSS VGS = 0 V,
VDS = 24 V TJ = 25°C 500 mA
Gate−to−Source Leakage Current IGSS VDS = 0 V, VGS = ±20 V ±100 nA
ON CHARACTERISTICS (Note 3)
Gate Threshold Voltage VGS(TH) VGS = VDS, ID = 1.0 mA 1.0 1.7 2.2 V
Negative Threshold Temperature Coefficient VGS(TH)/TJ ID = 10 mA, referenced to 25°C 5.0 mV/°C
Drain−to−Source On Resistance RDS(on) VGS = 10 V ID = 25 A 0.95 1.3
VGS = 4.5 V ID = 25 A 1.4 1.9 mW
Forward Transconductance gFS VDS = 1.5 V, ID = 15 A 60 S
CHARGES AND CAPACITANCES
Input Capacitance CISS
VGS = 0 V, f = 1 MHz, VDS = 15 V
6000
Output Capacitance COSS 2400 pF
Reverse Transfer Capacitance CRSS 160
Total Gate Charge QG(TOT)
VGS = 4.5 V, VDS = 15 V; ID = 25 A
40
Threshold Gate Charge QG(TH) 8.8 nC
Gate−to−Source Charge QGS 15
Gate−to−Drain Charge QGD 12
Total Gate Charge QG(TOT) VGS = 10 V, VDS = 15 V,
ID = 25 A 84 nC
SWITCHING CHARACTERISTICS (Note 4)
Turn−On Delay Time td(ON)
VGS = 4.5 V, VDS = 15 V, ID = 25 A, RG = 3 W
17.2
Rise Time tr 31.6 ns
Turn−Off Delay Time td(OFF) 34.3
Fall Time tf 12
Turn−On Delay Time td(ON)
VGS = 10 V, VDS = 15 V, ID = 25 A, RG = 3 W
12.7
Rise Time tr 20.4 ns
Turn−Off Delay Time td(OFF) 38.6
Fall Time tf 11.3
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.
3. Pulse Test: pulse width v 300 ms, duty cycle v 2%.
4. Switching characteristics are independent of operating junction temperatures.
ELECTRICAL CHARACTERISTICS (TJ = 25°C unless otherwise specified)
Parameter Symbol Test Condition Min Typ Max Unit
DRAIN−SOURCE DIODE CHARACTERISTICS
Forward Diode Voltage VSD VGS = 0 V,
IS = 2 A
TJ = 25°C 0.4 0.7
TJ = 125°C 0.32 V
Reverse Recovery Time tRR
VGS = 0 V, dIS/dt = 100 A/ms, IS = 25 A
58
Charge Time ta 29 ns
Discharge Time tb 29
Reverse Recovery Charge QRR 71 nC
PACKAGE PARASITIC VALUES
Source Inductance LS
TA = 25°C
0.65 nH
Drain Inductance LD 0.20
Gate Inductance LG 1.5
Gate Resistance RG 0.8 W
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.
3. Pulse Test: pulse width v 300 ms, duty cycle v 2%.
4. Switching characteristics are independent of operating junction temperatures.
http://onsemi.com 5
TYPICAL CHARACTERISTICS
Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics VDS, DRAIN−TO−SOURCE VOLTAGE (V) VGS, GATE−TO−SOURCE VOLTAGE (V)
5 2
1 00
15 45 105
4.0 3.5 3.0
2.0 1.5
1.0
Figure 3. On−Resistance vs. VGS Figure 4. On−Resistance vs. Drain Current and Gate Voltage
VGS, GATE−TO−SOURCE VOLTAGE (V) ID, DRAIN CURRENT (A)
9.0 8.0
7.0 10
6.0 5.0 4.0 02.0
0.006
120 50
30 40 60
20 1.25E−03
1.5E−03 2.0E−03
5.0E−04
Figure 5. On−Resistance Variation with
Temperature Figure 6. Drain−to−Source Leakage Current vs. Voltage
TJ, JUNCTION TEMPERATURE (°C) VDS, DRAIN−TO−SOURCE VOLTAGE (V) 150
125 100 75 25
0
−25
−50 0.8 1.0 1.1 1.3
30 25
20 15
10 5
1E−02 1E−01
ID, DRAIN CURRENT (A) ID, DRAIN CURRENT (A)
RDS(on), DRAIN−TO−SOURCE RESISTANCE (W) RDS(on), DRAIN−TO−SOURCE RESISTANCE (W)
RDS(on), DRAIN−TO−SOURCE RESISTANCE (NORMALIZED) IDSS, LEAKAGE (A)
3.4 V
2.8 V 2.6 V 2.4 V
VDS = 5 V
TJ = 25°C TJ = 125°C
TJ = −55°C
0.004
ID = 25 A TJ = 25°C
VGS = 4.5 V TJ = 25°C
VGS = 10 V
50 ID = 20 A
VGS = 10 V
VGS = 0 V
TJ = 25°C TJ = 125°C 2.5
0.002 0.008
1.2 1.4
0.5 1.5 0.010 135
10 3.2 V
3 0
40 100 180
80 200
20 120
0.012
7.5E−04
1.6 1.8
0.9 60 90
1.0E−03 1.75E−03 4
3.0 V 3.6 V to 10 V
30 75 120 150
60 140 160
3.0 70 80 90 100 110
1.7
0.7 0.6
1E−03
1E−04
1E−05
TYPICAL CHARACTERISTICS
Figure 7. Capacitance Variation Figure 8. Gate−to−Source and Drain−to−Source Voltage vs. Total Charge
VDS, DRAIN−TO−SOURCE VOLTAGE (V) Qg, TOTAL GATE CHARGE (nC)
25 20
15 10
5 00
2000
Figure 9. Resistive Switching Time Variation
vs. Gate Resistance Figure 10. Diode Forward Voltage vs. Current
RG, GATE RESISTANCE (W) VSD, SOURCE−TO−DRAIN VOLTAGE (V)
100 10
11 10 100 10000
0.6 0.5 0.4 0.3 0.1
00 1 2 5
Figure 11. Maximum Rated Forward Biased Safe Operating Area
Figure 12. Maximum Avalanche Energy vs.
Starting Junction Temperature VDS, DRAIN−TO−SOURCE VOLTAGE (V) TJ, STARTING JUNCTION TEMPERATURE (°C)
100 10
0.01 1 0.1 1 10
150 125
100 75
50 025
10 60 100
C, CAPACITANCE (pF) VGS, GATE−TO−SOURCE VOLTAGE (V)
t, TIME (ns) IS, SOURCE CURRENT (A)
ID, DRAIN CURRENT (A) EAS, SINGLE PULSE DRAIN−TO− SOURCE AVALANCHE ENERGY (mJ)
VGS = 0 V TJ = 25°C Ciss
Coss
Crss
QT
VDD = 15 V ID = 10 A VGS = 10 V
td(on) tr
tf
TJ = 25°C VGS = 0 V
VGS = 20 V Single Pulse TC = 25°C RDS(on) Limit Thermal Limit Package Limit
100 ms
10 ms 1 ms
dc
ID = 50 A 5000
40 80 1000
3000 4000
120
0.7 0
2 5 7 9 11
0 20 30 40 60 70 90
TJ = 25°C VDD = 15 V VGS = 10 V ID = 25 A
6 8 10
10 ms
50 10
6000 7000
1000 8000
1 3 6 8 10
4 Qgs Qgd
td(off)
80
1000
0.2 3
4 7 9
100
20 30 50 70 90 110 130
0.1
http://onsemi.com 7
TYPICAL CHARACTERISTICS
Figure 13. Thermal Response PULSE TIME (sec)
0.01 0.001
0.0001 0.00001
0.000001 0.01
0.1 1 10 100
R(t) (°C/W)
0.1 1 10 100 1000
10%
Duty Cycle = 50%
20%
5%
2%
1%
Single Pulse
M 3.00 3.40 q 0 _ −−− 3.8012 _ DFN5 5x6, 1.27P
(SO−8FL) CASE 488AA
ISSUE N
DATE 25 JUN 2018 SCALE 2:1
NOTES:
1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETER.
3. DIMENSION D1 AND E1 DO NOT INCLUDE MOLD FLASH PROTRUSIONS OR GATE BURRS.
XXXXXX = Specific Device Code A = Assembly Location
Y = Year
W = Work Week
ZZ = Lot Traceability
1 2 3 4
TOP VIEW
SIDE VIEW
BOTTOM VIEW D1
E1 q
D
E 2
2 B A
0.20 C
0.20 C
2 X
2 X
DIM MIN NOM MILLIMETERS A 0.90 1.00 A1 0.00 −−−
b 0.33 0.41 c 0.23 0.28
D 5.15
D1 4.70 4.90 D2 3.80 4.00
E 6.15
E1 5.70 5.90 E2 3.45 3.65
e 1.27 BSC
G 0.51 0.575
K 1.20 1.35
L 0.51 0.575
L1 0.125 REF
A 0.10 C
0.10 C
DETAIL A
1 4
L1 e/2
8X
G D2 E2
K b
A 0.10 C B 0.05 c
L
DETAIL A c A1
4 X
C
SEATING PLANE
GENERIC MARKING DIAGRAM*
1
XXXXXX AYWZZ 1
MAX 1.10 0.05 0.51 0.33 5.10 4.20 6.10 3.85 0.71 1.50 0.71
STYLE 1:
PIN 1. SOURCE 2. SOURCE 3. SOURCE 4. GATE 5. DRAIN
M
*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.
SOLDERING FOOTPRINT*
1.270
2X
0.750 1.000 0.905
4.530 1.530
4.560 0.495
3.200
1.330
0.965
2X 2X
4X 4X PIN 5
(EXPOSED PAD)
STYLE 2:
PIN 1. ANODE 2. ANODE 3. ANODE 4. NO CONNECT 5. CATHODE
5.00 5.30
6.00 6.30
PITCH
DIMENSIONS: MILLIMETERS
1
RECOMMENDED e
2X
0.475
*This information is generic. Please refer to device data sheet for actual part marking.
Pb−Free indicator, “G” or microdot “ G”, may or may not be present. Some products may not follow the Generic Marking.
ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the
98AON14036D DOCUMENT NUMBER:
DESCRIPTION:
Electronic versions are uncontrolled except when accessed directly from the Document Repository.
Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
PAGE 1 OF 1 DFN5 5x6, 1.27P (SO−8FL)
