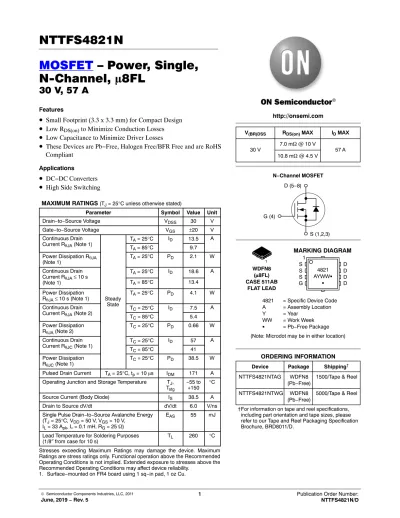

NTTFS4821N MOSFET – Power, Single, N-Channel, m8FL

(1)

MOSFET – Power, Single, N-Channel, m 8FL

30 V, 57 A

Features

• Small Footprint (3.3 x 3.3 mm) for Compact Design

• Low R

DS(on)

to Minimize Conduction Losses

• Low Capacitance to Minimize Driver Losses

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Applications

• DC−DC Converters

• High Side Switching

MAXIMUM RATINGS (T_J = 25°C unless otherwise stated)

Parameter Symbol Value Unit

Drain−to−Source Voltage V_DSS 30 V

Gate−to−Source Voltage VGS ±20 V

Continuous Drain Current R_qJA (Note 1)

Steady State

T_A = 25°C I_D 13.5 A

T_A = 85°C 9.7

Power Dissipation R_qJA

(Note 1) T_A = 25°C P_D 2.1 W

Continuous Drain Current R_qJA ≤ 10 s (Note 1)

T_A = 25°C I_D 18.6 A

T_A = 85°C 13.4

Power Dissipation

R_qJA ≤ 10 s (Note 1) T_A = 25°C P_D 4.1 W Continuous Drain

Current R_qJA (Note 2) T_C = 25°C ID 7.5 A

TC = 85°C 5.4

Power Dissipation

R_qJA (Note 2) TC = 25°C PD 0.66 W

Continuous Drain

Current R_qJC (Note 1) T_C = 25°C ID 57 A

T_C = 85°C 41

Power Dissipation

R_qJC (Note 1) TC = 25°C PD 38.5 W

Pulsed Drain Current T_A = 25°C, t_p = 10 ms I_DM 171 A Operating Junction and Storage Temperature TJ,

T_stg −55 to +150 °C

Source Current (Body Diode) I_S 38.5 A

Drain to Source dV/dt dV/dt 6.0 V/ns

Single Pulse Drain−to−Source Avalanche Energy (T_J = 25°C, VDD = 50 V, V_GS = 10 V,

IL = 33 Apk, L = 0.1 mH, RG = 25 W)

E_AS 55 mJ

Lead Temperature for Soldering Purposes

(1/8″ from case for 10 s) TL 260 °C

ORDERING INFORMATION http://onsemi.com

Device Package Shipping^† V_(BR)DSS R_DS(on) MAX I_D MAX

30 V 7.0 mW @ 10 V

57 A

N−Channel MOSFET D (5−8)

S (1,2,3) G (4)

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D.

WDFN8 (m8FL) CASE 511AB

FLAT LEAD

MARKING DIAGRAM 10.8 mW @ 4.5 V

NTTFS4821NTAG WDFN8

(Pb−Free) 1500/Tape & Reel (Note: Microdot may be in either location)

1

4821 = Specific Device Code A = Assembly Location

Y = Year

WW = Work Week G = Pb−Free Package

1

NTTFS4821NTWG WDFN8

(Pb−Free) 5000/Tape & Reel 4821

AYWWG G

D D DD S

S SG

(2)

http://onsemi.com 2

2. Surface−mounted on FR4 board using the minimum recommended pad size.

THERMAL RESISTANCE MAXIMUM RATINGS

Parameter Symbol Value Unit

Junction−to−Case (Drain) R_qJC 3.25 °C/W

Junction−to−Ambient – Steady State (Note 3) R_qJA 58.3

Junction−to−Ambient – Steady State (Note 4) R_qJA 188.4

Junction−to−Ambient – (t ≤ 10 s) (Note 3) R_qJA 30.6

3. Surface−mounted on FR4 board using 1 sq−in pad, 1 oz Cu.

4. Surface−mounted on FR4 board using the minimum recommended pad size.

ELECTRICAL CHARACTERISTICS (T_J = 25°C unless otherwise specified)

Parameter Symbol Test Condition Min Typ Max Unit

OFF CHARACTERISTICS

Drain−to−Source Breakdown Voltage V_(BR)DSS V_GS = 0 V, I_D = 250 mA 30 V

Drain−to−Source Breakdown Voltage

Temperature Coefficient V_(BR)DSS/T_J 25 mV/°C

Zero Gate Voltage Drain Current I_DSS V_GS = 0 V, V_DS = 24 V

T_J = 25°C 1.0 mA

T_J = 125°C 10

Gate−to−Source Leakage Current I_GSS V_DS = 0 V, V_GS = ±20 V ±100 nA

ON CHARACTERISTICS (Note 5)

Gate Threshold Voltage V_GS(TH) VGS = VDS, ID = 250 mA 1.5 1.9 2.5 V

Negative Threshold Temperature

Coefficient VGS(TH)/TJ 6 mV/°C

Drain−to−Source On Resistance RDS(on)

VGS = 10 V to 11.5 V I_D = 20 A 5.8 7.0 mW

I_D = 10 A 5.7

V_GS = 4.5 V I_D = 20 A 8.8 10.8

I_D = 10 A 8.6

Forward Transconductance g_FS V_DS = 15 V, I_D = 30 A 53 S

CHARGES AND CAPACITANCES

Input Capacitance C_iss

V_GS = 0 V, f = 1.0 MHz, V_DS = 12 V

1300 1755 pF

Output Capacitance C_oss 300 405

Reverse Transfer Capacitance C_rss 150 233

Total Gate Charge Q_G(TOT)

V_GS = 4.5 V, V_DS = 15 V, I_D = 30 A

10.5 15 nC

Threshold Gate Charge Q_G(TH) 1.3

Gate−to−Source Charge Q_GS 3.9

Gate−to−Drain Charge Q_GD 4.5

Total Gate Charge Q_G(TOT) V_GS = 11.5 V, V_DS = 15 V, I_D = 20 A 24 nC

SWITCHING CHARACTERISTICS (Note 6)

Turn−On Delay Time t_d(on)

V_GS = 4.5 V, V_DS = 15 V, I_D = 15 A, R_G = 3.0 W

12 ns

Rise Time t_r 22

Turn−Off Delay Time t_d(off) 16

Fall Time t_f 4.5

5. Pulse Test: pulse width = 300 ms, duty cycle v 2%.

6. Switching characteristics are independent of operating junction temperatures.

(3)

ELECTRICAL CHARACTERISTICS (T_J = 25°C unless otherwise specified)

Parameter Symbol Test Condition Min Typ Max Unit

SWITCHING CHARACTERISTICS (Note 6)

Turn−On Delay Time td(on)

V_GS = 11.5 V, V_DS = 15 V, ID = 15 A, RG = 3.0 W

8.5 ns

Rise Time tr 20

Turn−Off Delay Time td(off) 23

Fall Time tf 2.8

DRAIN−SOURCE DIODE CHARACTERISTICS

Forward Diode Voltage VSD V_GS = 0 V,

IS = 20 A

T_J = 25°C 0.9 1.0 V

T_J = 125°C 0.78

Reverse Recovery Time t_RR

V_GS = 0 V, d_IS/d_t = 100 A/ms,

I_S = 20 A

9.0 ns

Charge Time t_a 6.5

Discharge Time t_b 2.5

Reverse Recovery Charge Q_RR 1.7 nC

PACKAGE PARASITIC VALUES

Source Inductance L_S

T_A = 25°C

0.38 nH

Drain Inductance L_D 0.054

Gate Inductance L_G 1.3

Gate Resistance R_G 0.6 2.0 W

5. Pulse Test: pulse width = 300 ms, duty cycle v 2%.

6. Switching characteristics are independent of operating junction temperatures.

(4)

http://onsemi.com 4

TYPICAL CHARACTERISTICS

0 10 20 30 40 50 60 70 80 90

0 1 2 3 4 5 6

Figure 1. On−Region Characteristics V_DS, DRAIN−TO−SOURCE VOLTAGE (V) ID, DRAIN CURRENT (A)

10 V

T_J = 25°C V_GS = 4.5 V

5.0 V

4.0 V 3.8 V 3.6 V 3.4 V 3.2 V 4.2 V

0 10 20 30 40 50 60 70 80 90

0 1 2 3 4 5 6

ID, DRAIN CURRENT (A)

Figure 2. Transfer Characteristics V_GS, GATE−TO−SOURCE VOLTAGE (V) VDS ≥ 10 V

T_J = 25°C T_J = 100°C

T_J = −55°C

0.004 0.005 0.006 0.007 0.008

3 4 6 8 10

Figure 3. On−Resistance vs. Gate−to−Source Voltage

V_GS, GATE−TO−SOURCE VOLTAGE (V) I_D = 20 A T_J = 25°C

RDS(on), DRAIN−TO−SOURCE RESISTANCE (W)

0.003 0.005 0.007 0.009 0.011 0.013 0.015

20 40 50 60 70 80 90 100

Figure 4. On−Resistance vs. Drain Current and Gate Voltage

I_D, DRAIN CURRENT (A) RDS(on), DRAIN−TO−SOURCE RESISTANCE (W)

V_GS = 4.5 V

V_GS = 10 V T_J = 25°C

0.6 0.8 1 1.2 1.4 1.6 1.8

−50 −25 0 25 50 75 100 125 150

Figure 5. On−Resistance Variation with Temperature

T_J, JUNCTION TEMPERATURE (°C) RDS(on), DRAIN−TO−SOURCE RESISTANCE (NORMALIZED)

I_D = 20 A V_GS = 10 V

10 100 1000 10000

5 10 15 20 25 30

Figure 6. Drain−to−Source Leakage Current vs. Voltage

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) IDSS, LEAKAGE (nA)

T_J = 150°C V_GS = 0 V

TJ = 125°C 7.0 V

0.009 0.010 0.011 0.012 0.013 0.014 0.015

5 7 9 30

(5)

TYPICAL CHARACTERISTICS

0 200 400 600 800 1000 1200 1400 1600 1800 2000

0 5 10 15 20 25 30

Figure 7. Capacitance Variation

GATE−TO−SOURCE OR DRAIN−TO−SOURCE VOLTAGE (V)

C, CAPACITANCE (pF)

V_GS = 0 V T_J = 25°C

C_oss C_iss

C_rss

0 2 4 6 8 10 12

0 4 8 12 16 20 24

Figure 8. Gate−to−Source and Drain−to−Source Voltage vs. Total Charge

Q_g, TOTAL GATE CHARGE (nC) VGS, GATE−TO−SOURCE VOLTAGE (V)

I_D = 30 A T_J = 25°C QT

V_GS Q_gd

Q_gs

1 10 100 1000

1 10 100

Figure 9. Resistive Switching Time Variation vs. Gate Resistance

R_G, GATE RESISTANCE (W)

t, TIME (ns)

V_DD = 15 V ID = 15 A VGS = 10 V

t_f tr

t_d(off)

t_d(on)

0 5 10 15 20 25 30

0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

Figure 10. Diode Forward Voltage vs. Current V_SD, SOURCE−TO−DRAIN VOLTAGE (V) IS, SOURCE CURRENT (A)

VGS = 0 V T_J = 25°C

0.01 1 10 100 1000

0.1 1 10 100

ID, DRAIN CURRENT (A)

10 ms 100 ms 1 ms 10 ms

dc V_GS = 20 V

Single Pulse TC = 25°C

R_DS(on) Limit Thermal Limit Package Limit

0 25 50 75

25 50 75 100 125 150

EAS, SINGLE PULSE DRAIN−TO− SOURCE AVALANCHE ENERGY (mJ)

ID = 33 A

0.1

(6)

M 1.40 1.50 q 0 _ −−− ^1.60¹²_ WDFN8 3.3x3.3, 0.65P

CASE 511AB ISSUE D

DATE 23 APR 2012 SCALE 2:1

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: MILLIMETERS.

3. DIMENSION D1 AND E1 DO NOT INCLUDE MOLD FLASH PROTRUSIONS OR GATE BURRS.

1 2 3 4 5 6

TOP VIEW

SIDE VIEW

BOTTOM VIEW D1

E1 q

D

E A B

0.20 C

2X

DIM MIN NOM MILLIMETERS A 0.70 0.75 A1 0.00 −−−

b 0.23 0.30 c 0.15 0.20 D1D 2.95 3.05 D2 1.98 2.11

E

E1 2.95 3.05 E2 1.47 1.60

e 0.65 BSC

G 0.30 0.41 K 0.65 0.80 L 0.30 0.43 L1 0.06 0.13

A 0.10 C

0.10 C

DETAIL A

1 4

8 L1

e/2

8X

G D2 E2

K b

A 0.10 C B 0.05 C

L

DETAIL A

A1

6Xe c

4X

C

SEATING PLANE 1

5

MAX0.80 0.05 0.40 0.25 3.15 2.24 3.15 1.73

0.51 0.95 0.56 0.20

M

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

SOLDERING FOOTPRINT*

0.65 0.42

0.75 2.30

3.46

PACKAGE 8X

0.055 0.059 0 _ −−− ^0.063¹²_

0.028 0.030

0.000 −−−

0.009 0.012 0.006 0.008 0.116 0.120 0.078 0.083 0.116 0.120 0.058 0.063 0.026 BSC 0.012 0.016 0.026 0.032 0.012 0.017 0.002 0.005

0.031 0.002 0.016 0.010 0.124 0.088 0.124 0.068

0.020 0.037 0.022 0.008 MIN NOM

INCHES 7 MAX

8

PITCH

3.60 0.57

0.47

OUTLINE

DIMENSION: MILLIMETERS 3.30 BSC

3.30 BSC

0.130 BSC

2.37

0.66^4X

GENERIC MARKING DIAGRAM*

XXXXX = Specific Device Code A = Assembly Location

Y = Year

WW = Work Week G = Pb−Free Package

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “ G”, may or may not be present.

XXXXX AYWWG

G 1

E3 0.23 0.30 0.40 0.009 0.012 0.016

E3

4X
