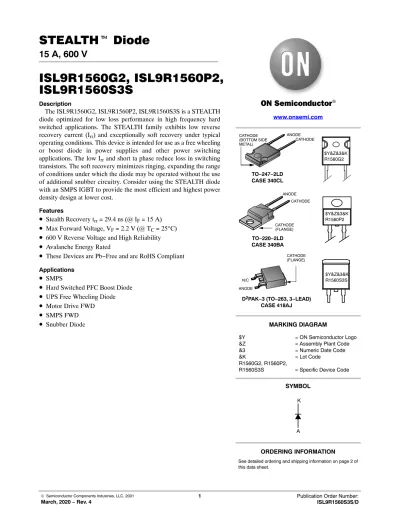

STEALTHt Diode 15 A, 600 V

15 A, 600 V

ISL9R1560G2, ISL9R1560P2, ISL9R1560S3S

Description

The ISL9R1560G2, ISL9R1560P2, ISL9R1560S3S is a STEALTH diode optimized for low loss performance in high frequency hard switched applications. The STEALTH family exhibits low reverse recovery current (I

) and exceptionally soft recovery under typical operating conditions. This device is intended for use as a free wheeling or boost diode in power supplies and other power switching applications. The low I

and short ta phase reduce loss in switching transistors. The soft recovery minimizes ringing, expanding the range of conditions under which the diode may be operated without the use of additional snubber circuitry. Consider using the STEALTH diode with an SMPS IGBT to provide the most efficient and highest power density design at lower cost.

Features

• Stealth Recovery t

= 29.4 ns (@ I

= 15 A)

• Max Forward Voltage, V

= 2.2 V (@ T

= 25 ° C)

• 600 V Reverse Voltage and High Reliability

• Avalanche Energy Rated

• These Devices are Pb−Free and are RoHS Compliant

• ^SMPS

• Hard Switched PFC Boost Diode

• UPS Free Wheeling Diode

• Motor Drive FWD

• ^{SMPS FWD}

• Snubber Diode

www.onsemi.com

MARKING DIAGRAM

$Y = ON Semiconductor Logo

&Z = Assembly Plant Code

&3 = Numeric Date Code

&K = Lot Code

R1560G2, R1560P2,

R1560S3S = Specific Device Code

$Y&Z&3&K R1560G2

K TO−247−2LD CASE 340CL

TO−220−2LD CASE 340BA

D²PAK−3 (TO−263, 3−LEAD) CASE 418AJ

$Y&Z&3&K R1560P2

$Y&Z&3&K R1560S3S ANODE

CATHODE CATHODE

(BOTTOM SIDE METAL)

ANODE CATHODE

CATHODE (FLANGE)

ANODE N/C

CATHODE (FLANGE)

A SYMBOL

DEVICE MAXIMUM RATINGS (T_C = 25°C unless otherwise noted)

Parameter Symbol Ratings Unit

Repetitive Peak Reverse Voltage VRRM 600 V

Working Peak Reverse Voltage V_RWM 600 V

DC Blocking Voltage V_R 600 V

Average Rectified Forward Current (T_C = 145°C) I_F(AV) 15 A

Repetitive Peak Surge Current (20 kHz Square Wave) I_FRM 30 A

Non−repetitive Peak Surge Current (Halfwave 1 Phase 60 Hz) I_FSM 200 A

Power Dissipation P_D 150 W

Avalanche Energy (1 A, 40 mH) E_AVL 20 mJ

Operating and Storage Temperature Range T_J, T_STG −55 to +175 °C

Maximum Temperature for Soldering

Leads at 0.063 in (1.6 mm) from Case for 10 s Package Body for 10 s, See Techbrief TB334

T_L

T_PKG 300

260 °C

°C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

PACKAGE MARKING AND ORDERING INFORMATION

Device Device Marking Package Packing Method Reel Size Tape Width Quantity

ISL9R1560G2 R1560G2 TO−247−2LD Tube N/A N/A 30

ISL9R1560P2 R1560P2 TO−220−2LD Tube N/A N/A 50

ISL9R1560S3ST R1560S3S TO−263(D²−PAK) Reel 13″dia 24 mm 800

THERMAL CHARACTERISTICS

Parameter Symbol Test Conditions Min Typ Max Unit

Thermal Resistance Junction to Case R_qJC − − 1.0 °C/W

Thermal Resistance Junction to Ambient R_qJA TO−247 − − 30 °C/W

Thermal Resistance Junction to Ambient R_qJA TO−220 − − 62 °C/W

Thermal Resistance Junction to Ambient R_qJA TO−263 − − 62 °C/W

ELECTRICAL CHARACTERISTICS (TC = 25°C unless otherwise noted)

Parameter Symbol Test Conditions Min Typ Max Unit

Off State Characteristics

Instantaneous Reverse Current I_R V_R = 600 V T_C = 25°C − − 100 mA

T_C = 125°C − − 1.0 mA

On State Characteristics

Instantaneous Forward Voltage V_F I_F = 15 A TC = 25°C − 1.8 2.2 V

TC = 125°C − 1.65 2.0 V

Dynamic Characteristics

Junction Capacitance C_J V_R = 10 V, I_F = 0 A − 62 − pF

Switching Characteristics

Reverse Recovery Time t_rr I_F = 1 A, dI_F/dt = 100 A/ms, V_R = 30 V − 25 30 ns I_F = 15 A, dI_F/dt = 100 A/ms, V_R = 30 V − 35 40 ns Reverse Recovery Time t_rr I_F = 15 A,

dIF/dt = 200 A/ms, V_R = 390 V, T_C = 25°C

− 29.4 − ns

Reverse Recovery Current I_rr − 3.5 − A

Reverse Recovered Charge Q_rr − 57 − nC

Reverse Recovery Time t_rr I_F = 15 A, dIF/dt = 200 A/ms, V_R = 390 V, T_C = 125°C

− 90 − ns

Softness Factor (t_b/_ta) S − 2.0 −

Reverse Recovery Current I_rr − 5.0 − A

Reverse Recovered Charge Qrr − 275 − nC

Reverse Recovery Time trr I_F = 15 A, dI_F/dt = 800 A/ms, V_R = 390 V, TC = 125°C

− 52 − ns

Softness Factor (tb/ta) S − 1.36 −

Reverse Recovery Current Irr − 13.5 − A

Reverse Recovered Charge Qrr − 390 − nC

Maximum di/dt During tb dIM/dt − 800 − A/ms

TYPICAL PERFORMANCE CURVES

Figure 1. Forward Current vs. Forward Voltage Figure 2. Reverse Current vs. Reverse Voltage

Figure 3. t_a and t_b Curves vs. Forward Current Figure 4. t_a and t_b Curves vs. dI_F/dt I_F, Forward Current (A)

t, Recovery Times (ns)

dI_F/dt, Current Rate of Change (A/ms)

t, Recovery Times (ns)

I_F, Forward Current (A) IRR, Max Reverse Recovery Current (A)

dIF/dt, Current Rate of Change (A/ms) IRR, Max Reverse Recovery Current (A)

V_F, Forward Voltage (V) IF, Forward Current (A)

V_R, Reverse Voltage (V) IR, Reverse Current (mA)

30 25 20

5 15 10

00.5 0.75 1.0 1.25 1.5 1.75 2.0 2.25 175°C

150°C

125°C 25°C

100°C 10

100 1000

1

0.1 4000

100 200 300 400 500 600

175°C 150°C 125°C 100°C 75°C

25°C

0 20 40 60 80 100

0 5 10 15 20 25 30

V_R = 390 V, T_J = 125°C

t_b AT dI_F/dt = 200 A/ms, 500 A/ms, 800 A/ms

t_a AT dI_F/dt = 200 A/ms, 500 A/ms, 800 A/ms 0 20 40 60 80 100

200 400 600 800 1000 1200 1400 1600 VR = 390 V, TJ = 125°C

t_b AT I_F = 30 A, 15 A, 7.5 A

t_a AT I_F = 30 A, 15 A, 7.5 A

2 6 8 10 12 14 16

4

0 5 10 15 20 25 30

V_R = 390 V, T_J = 125°C dI_F/dt = 800 A/ms

dI_F/dt = 500 A/ms

dI_F/dt = 200 A/ms

0 5 10 15 20

25 VR = 390 V, TJ = 125°C

I_F = 15 A

I_F = 7.5 A I_F = 30 A

200 400 600 800 1000 1200 1400 1600

TYPICAL PERFORMANCE CURVES (continued)

Figure 7. Reverse Recovery Softness Factor

vs. dI_F/dt Figure 8. Reverse Recovered Charge vs. dI_F/dt

Figure 9. Junction Capacitance vs. Reverse Voltage

Figure 10. DC Current Derating Curve V_R, Reverse Voltage (V)

CJ, Junction Capacitance (pF)

TC, Case Temperature (°C) IF(AV), Average Forward Current (A)

ZqJA, Normalized Thermal Impedance

dI_F/dt, Current Rate of Change (A/ms)

S, Reverse Recovery Softness Factor

dI_F/dt Current Rate of Change (A/ms) QRR, Reverse Recovered Charge (nC)

0.5 1.0 1.5 2.0

2.5 V_R = 390 V, T_J = 125°C

IF = 30 A I_F = 15 A

I_F = 7.5 A

200 400 600 800 1000 1200 1400 1600 200

300 400 500 600 700

200 400 600 800 1000 1200 1400 1600 V_R = 390 V, T_J = 125°C

IF = 30 A

I_F = 15 A

IF = 7.5 A

400 800 600

200 1200 1000

0 0.1 1 10 100

4

0 160

12 14 16

170 145

2 10

6 8

150 155 165 175

140

0.1 1.0

Notes:

Duty Factor: D = t₁/t₂

Peak TJ = PDM x Z_qJA x R_qJA + TA

Duty Cycle − Descending Order 0.50.2

0.10.05 0.020.01

Single Pulse

0.0110⁻⁵ 10⁻⁴ 10⁻³ 10⁻² 10⁻¹ 10⁰ 10¹

P_DM t₁

t₂

TEST CIRCUIT AND WAVEFORMS

Figure 12. t_rr Test Circuit Figure 13. t_rr Waveforms and Definitions

Figure 14. Avalanche Energy Test Circuit Figure 15. Avalanche Current and Voltage Waveforms

L

MOSFET

CURRENT SENSE DUT

t1 t2

+

− V_GE AMPLITUDE AND

R_G CONTROL dI_F/dt t₁ AND t₂ Control I_F

VGE

R_G

V_DD

DUT CURRENT

SENSE +

− VDD

V_DD Q₁

L R

I = 1 A L = 40 mH R < 0.1 W V_DD = 50 V

E_AVL = 1/2LI² [V_R(AVL)/(V_R(AVL) − V_DD)]

Q1 = IGBT (BVCES > DUT VR(AVL) V_AVL

I_L I_L

I V

t₀ t₁ t₂ t

I_F dI_F

dt t_rr

ta tb

0.25 I_RM I_RM 0

TO−220−2LD CASE 340BA

ISSUE O

DATE 31 AUG 2016

5° 3° 5°

3°

4.672 4.472 10.360

10.109

4.036 3.636 2.860 2.660

8.787 8.587 15.215

14.757

2.640 2.440

1.65 1.25 0.889 0.787

5.180 4.980

13.894 12.941

0.60 MAX 0.36M B A

0.36^M C A B A

B

1.400

1.146 7° 3°

6.477 6.121

2.755 2.555

0.457 0.357

5° 3° 5°

3°

C

8.89 6.86

3.962 3.720

NOTES:

A. PACKAGE REFERENCE: JEDEC TO220 VARIATION AC.

B. ALL DIMENSIONS ARE IN MILLIMETERS.

C. DIMENSION AND TOLERANCE AS PER ASME Y14.5−2009.

D. DIMENSIONS ARE EXCLUSIVE OF BURRS, MOLD FLASH AND TIE BAR PROTRUSIONS.

1 2

3

XXXX = Specific Device Code A = Assembly Location Y = Year

WW = Work Week ZZ = Assembly Lot Code

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.

GENERIC MARKING DIAGRAM*

AYWWZZ XXXXXXX XXXXXXX

TO−247−2LD CASE 340CL

ISSUE A

DATE 03 DEC 2019

D²PAK−3 (TO−263, 3−LEAD) CASE 418AJ

ISSUE F

DATE 11 MAR 2021 SCALE 1:1

XX XXXXXXXXX AWLYWWG

GENERIC MARKING DIAGRAMS*

XXXXXX = Specific Device Code A = Assembly Location WL = Wafer Lot

Y = Year

WW = Work Week W = Week Code (SSG) M = Month Code (SSG) G = Pb−Free Package AKA = Polarity Indicator XXXXXXXXG

AYWW

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “ G”, may or may not be present. Some products XXXXXXXXGAYWW
