Straight Plug Connector Crimp Type Size φa () Coupling Crimp Tool φa DM-SP-.DHQS-CR-.D-V,.D-W.D-HQ SUPER.8 9. Ni Au Ni CR-H- () DM-P-8U-CR-BS-CF RG-8A

http://www.ddknet.co.jp

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice. 　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

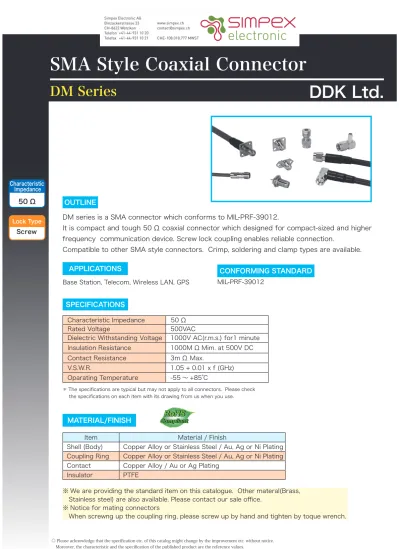

DM Series

SMA Style Coaxial Connector　

121226

Base Station, Telecom, Wireless LAN, GPS

CONFORMING STANDARD

MIL-PRF-39012

※ We are providing the standard item on this catalogue. Other materal(Brass, Stainless steel) are also available. Please contact our sale office.

※ Notice for mating connectors

　When screwng up the coupling ring, please screw up by hand and tighten by toque wrench.

OUTLINE

50 Ω

Lock Type Screw Characteristic Impedance

APPLICATIONS

RoHS

Compliant

RoHS

Compliant

Item Material / Finish

Shell (Body) Copper Alloy or Stainless Steel / Au, Ag or Ni Plating Coupling Ring Copper Alloy or Stainless Steel / Au, Ag or Ni Plating Contact Copper Alloy / Au or Ag Plating

Insulator PTFE

Characteristic Impedance 50 Ω

Rated Voltage 500VAC

Dielectric Withstanding Voltage 1000V AC(r.m.s.) for1 minute Insulation Resistance 1000M Ω Mim. at 500V DC

Contact Resistance 3m Ω Max.

V.S.W.R. 1.05 + 0.01 x f (GHz)

Oparating Temperature -55 〜 +85℃

SPECIFICATIONS

＊ The specifications are typical but may not apply to all connectors. Please check 　 the specifications on each item with its drawing from us when you use.

MATERIAL/FINISH

DM series is a SMA connector which conforms to MIL-PRF-39012.

It is compact and tough 50 Ω coaxial connector which designed for compact-sized and higher

frequency communication device. Screw lock coupling enables reliable connection.

http://www.ddknet.co.jp

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice. 　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

Unit：mm

DM　Series

2

○ Straight Plug Connector

Part Number Applicable

Cable Size φ A （L）

Finish

Assembly Instruction Crimp Tool Outer

Conductor Center Conductor Coupling

DM-SP-1.5DHQS-CR1-2 1.5D-2V , 1.5D-2W_{1.5D-HQ・SUPER} 4.8 19.3 Ni Au Ni 1 CR-H-1156 DM-P-58U-CR-BS-CF RG-58A/U 6.25 24.4 Au Au Au 2 CR-H-1105

Crimp Type

(L) φ A

DM-P-1.5D2V-CR-BS-CF

Part Number Applicable

Cable Size φ A （L）

Finish

Assembly Instruction Crimp Tool Outer

Conductor Center Conductor Coupling

DM-SP-2.5DV-CR1-CF 2.5D-2V 5.9 19.2 Ni Au Ni 3 CR-H-1163 2.5D-QEV DM-SP-2.5DHQS-CR1-1 2.5D-HQ・SUPER 5.9 18.9 Ni Au Ni 4 CR-H-1163 DM-SP-2.5DW-CR1-CF 2.5D-2W 5.9 18.8 Passivation Au Passivaion 5 CR-H-1163 DM-P-3DW-CR-CF 3D-2W 7.6 24.2 Au Au Au 6 CR-H-18293 (L) φ A

DM-SP-2.5DV-CR1-CF

for Semi-Rigid, Semi-Flexble Cable

Part Number Applicable

Cable Size φ A （L）

Finish

Assembly Instruction Outer

Conductor Center Conductor Coupling DM-P-85-SO-BS-2-CF UT-85 3.5 13.7 Ni Au Ni

FCCAVG1

Part Number Applicable Cable Size

Finish

Assembly Instruction Outer

Conductor Center Conductor Coupling DM-SP-141-SO-2-D1-CF UF141A Ag Utilize center

conductor of the applicable cable Ag FCCAVG0 DM-SP-141-SO-2-D3-CF UF-141A Ag Ni FCCAVG0 FCCAVGO-4.6

Part Number Applicable Cable Size （L）

Finish

Assembly Instruction Outer

Conductor Center Conductor Coupling

DM-P-141-SO-D1-CF UT-141A 8.7 Au Utilize center conductor of the applicable cable Ni FCCAVG0 φ A (L)

DM-P-85-SO-BS-2-CF

(14.2)

DM-SP-141-SO-2-D1

(L)

DM-P-141-SO-D1

☆

http://www.ddknet.co.jp

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice. 　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

Unit：mm

DM　Series

○ Right Angle Plug Connector

3

○ Panel Jack Connector

Part Number Applicable

Cable Size (L1) （L2）

Finish

Assembly Instruction Crimp Tool Outer

Conductor Center Conductor Coupling

DM-LP-1.5DHQS-CR1 1.5D-2V, 1.5D-2W_{1.5D-HQ・SUPER 17.8 17.0} Ni Au Ni 7 CR-H-1156 DM-LP-2.5DHQS-CR1-2-CF 2.5D-HQ・SUPER 17.8 17.0 Ni Au Ni 8 CR-H-1163 DM-LP-3D2W-CR1-CF 3D-2W 18.8 21.2 Ni Au Ni 9 CR-H-18923

Crimp Type

for Semi-Rigid, Semi-Flexible Cable

Part Number Applicable

Cable Size (L1) （L2）

Finish

Assembly Instruction Outer

Conductor Center Conductor Coupling DM-LP-85-SO-4-CF UT-85 18.0 11.0 Ni Au Ni FCCAVG1 DM-LP-141-SO-4-D1-CF UT-141A 19.0 11.4 Ni Au Ni FCCAVG0 8 (L2) 7 (L1) □7 8 4.8 六角対辺幅 注１．符号①，③，⑩は添付品とする。 (15) １０ DM-LP-1.5DHQS-CR1 23924 資 番 (L1) (L2)

DM-LP-85-SO-4-CF

○ Jack Connector

Part Number Applicable

Connector φ A L Finish Assembly Instruction Outer Conductor Center Conductor DM-SJ-141-SO-1-CF UT-141A 6.4 13.3 Ag Ag FCCAVG0 DM-SJ-85-SO-CF UT-85 4.0 12.5 Ni Au FCCAVG1

Part Number Applicable

Cable Size φ A L

Finish

Assembly Instruction Outer

Conductor Center Conductor DM-PJ-141-SO-DI UT-141A 4.7 12.7 Ni Au FCCAVG0 DM-PJ-141-SO-D3-CF UT-141A 4.7 12.7 Ni Au FCCAVGO DM-PJ-85-SO-D3 UT-85 3.4 12.7 Ni Au FCCAVG1 9 (L) φ A

DM-SJ-141-SO-1

1.7 9.55 L φ A 8.60 0.05 8.600.05 φ6.5 +0.1 0 4-φ2.75+0.1 0 PCB Mounting Dimensions

DM-PJ-141-SO-D1

4-φ2.6 8.60 □12.7 8.60 ☆

for Semi-Rigid, Semi-Flexible Cable

http://www.ddknet.co.jp

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice. 　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

Unit：mm DM　Series

○ Receptacle Connector

4 Part Number A B L Finish Outer

Conductor Center Conductor DM-SR-18-CF 4.0 1.5 15.0 Ag Ag DM-SR-20-CF 6.0 1.0 16.5 Ag Ag DM-SR-27-CF 5.0 1.0 15.5 Ag Ag Part Number A L Finish Outer

Conductor Center Conductor DM-SR-23-CF 5,1 14.6 Ag Ag DM-SR-28-CF 6.0 15.5 Ag Ag DM-SR-31-CF 3.0 12.5 Ag Ag Part Number A B L Finish Outer

Conductor Center Conductor DM-SR-1 2.0 4.0 15.5 Passivation Au DM-SR-15-CF 4.0 8.7 22.2 Ag Ag DM-SR-24-CF 5.0 6.5 21.0 Ag Ag DM-SR-30-CF 4.0 6.5 20.0 Ag Ag Part Number Finish Outer

Conductor Center Conductor

DM-SR-19-CF Ag Ag □12.7 8.64 1.65 9.5 8.64 1.27 φ 4.11 B A L ４-φ2.7 8.640.05 8.64 0.05

取付参考寸法

DM-SR-18

４-φ2.75+0.1 0 φ4.2+0.1 0 □12.7 8.64 1.65 9.5 8.64 1.27 φ 4.11 B A L ４-φ2.7 8.640.05 8.64 0.05

取付参考寸法

DM-SR-18

４-φ2.75+0.1 0 φ4.2+0.1 0 φ 1.27 8.64 □12.7 8.64 9.5 1.65 L ４-φ2.7 A 8.64 0.05 8.64 0.05 ４− ２．７５＋０．１_０ ４．２ _{＋０．１ ０}

取付参考寸法

DM-SR-23-CF

8.64 0.05 8.640.05 ４-φ2.75＋0.1 0 φ4.2＋0.1 0 φ 1.27 8.64 □12.7 8.64 9.5 1.65 L ４-φ2.7 A 8.64 0.05 8.64 0.05 ４− ２．７５＋０．１_０ ４．２ _{＋０．１ ０}

取付参考寸法

DM-SR-23-CF

8.64 0.05 8.640.05 ４-φ2.75＋0.1 0 φ4.2＋0.1 0 □12.7 8.64 1.65 9.5 8.64 φ 1.27 φ 4.11 B A L ４-φ2.7 8.64 0.05 8.640.05 ４-φ2.75＋0.1 0 φ4.2＋0.1 0

取付参考寸法

DM-SR-15-CF

□12.7 8.64 1.65 9.5 8.64 φ 1.27 φ 4.11 B A L ４-φ2.7 8.64 0.05 8.640.05 ４-φ2.75＋0.1 0 φ4.2＋0.1 0

取付参考寸法

DM-SR-15-CF

□12.7 8.64 1.65 9.5 8.64 0.62 φ 4.11 8.7 1.7 19.9 ４-φ2.7 8.64 8.64 ±0.05 ±0.05 ４−∅２．７５＋０．１  ０ ∅４．２＋０．１  ０

取付参考寸法

DM-SR-19-CF

8.64 0.05 8.640.05 ４-φ2.75＋0.1 0 φ4.2＋0.1 0 □12.7 8.64 1.65 9.5 8.64 0.62 φ 4.11 8.7 1.7 19.9 ４-φ2.7 8.64 8.64 ±0.05 ±0.05 ４−∅２．７５＋０．１  ０ ∅４．２＋０．１  ０

取付参考寸法

DM-SR-19-CF

8.64 0.05 8.640.05 ４-φ2.75＋0.1 0 φ4.2＋0.1 0 PCB Mounting Dimensions PCB Mounting Dimensions PCB Mounting Dimensions PCB Mounting Dimensions

http://www.ddknet.co.jp

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice. 　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

Unit：mm DM　Series

○ Receptacle Connector

Part Number Finish Outer Conductor Center Conductor DM-SR2-18-CF Ag Ag Part Number A L Finish Outer Conductor Center Conductor DM-SR2-1-CF 5,1 14.6 Ag Ag DM-SR2-1-D1-CF 5.1 14.6 Au Au DM-SR2-22-CF 3.1 12.6 Ag Ag 1.65 9.5 φ 4.11 φ 1.27 1 6 15.5 φ_16.8 5.8 2-φ2.75 12.2 6.1 0.05 12.2 0.05 φ4.2 +0.1 0 2-φ2.75+0.1 0

取付参考寸法

DM-SR2-18

1.65 9.5 φ 4.11 φ 1.27 1 6 15.5 φ_16.8 5.8 2-φ2.75 12.2 6.1 0.05 12.2 0.05 φ4.2 +0.1 0 2-φ2.75+0.1 0

取付参考寸法

DM-SR2-18

1.65 9.5 L φ 1.27 12.2 φ_16.8 5.8 6.1 0.05 12.2 0.1 φ4.2 2-φ2.75+0.1 0 取付参考寸法

DM-SR2-1-CF

A ２-M2.6 0.45 +0.1 0 1.65 9.5 L φ 1.27 12.2 φ_16.8 5.8 6.1 0.05 12.2 0.1 φ4.2 2-φ2.75+0.1 0 取付参考寸法

DM-SR2-1-CF

A ２-M2.6 0.45 +0.1 0 Part Number A B L Finish Outer Conductor Center Conductor DM-SR2-4-CF 2.5 5.0 17.0 Ni Au DM-SR2-8-CF 4.0 5.5 19.0 Ni Au DM-SR2-8-D1-CF 4.0 5.5 19.0 Au Au DM-SR2-9-CF 1.5 4.0 15.0 Ag Ag DM-SR2-15-CF 1.5 3.2 14.2 Ni Au Part Number A B L Finish Outer Conductor Center Conductor DM-SR2-10-CF 6.9 2.9 16.4 Ag Ag DM-SR2-11-CF 4.4 2.9 13.9 Ag Ag Part Number Finish Outer Conductor Center Conductor DM-SR2-16-CF Ni Au 1.65 9.5 B A L 5.8 φ 1.27 φ 4.11 12.2 φ_16.8 φ4.3+0.1 0

取付参考寸法

2-φ2.75+0.1 0 6.1 0.05 12.2 0.1 2-φ2.75

DM-SR2-4-CF

1.65 9.5 φ 1.27 φ 4.11 12.2 6.7 φ17 L B A ２-φ2.7

取付参考寸法

6.1 0.05 12.2 0.1

DM-SR2-10-CF

φ4.2+0.1 0 4-φ2.75 φ17

取付参考寸法

2-φ2.7 1.65 9.5 2 5 16.5 φ 1.27 φ 4.11 Ø0.8 6.7 12.2 6.11 0.05 12.2 0.1

DM-SR2-16-CF

2-φ2.75+0.1 0 φ4.2+0.1 0 5 PCB Mounting Dimensions PCB Mounting Dimensions PCB Mounting Dimensions PCB Mounting Dimensions PCB Mounting Dimensions

http://www.ddknet.co.jp

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice. 　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

Unit：mm

DM　Series

○ Right Angle Receptacle Connector

Part Number A B L

Finish Outer

Conductor Center Conductor DM-LR-7-CF 6.0 2.0 20.5 Ag Ag DM-LR-8-CF 4.0 6.5 23.0 Ag Ag Part Number Finish Outer Conductor Center Conductor DM-LR2-CF Ag Ag Part Number Finish Outer

Conductor Center Conductor

DM-LR2-2-CF Ag Ag Part Number Finish Outer Conductor Center Conductor DM-LR2-5-CF Ag Ag Part Number Finish Outer

Conductor Center Conductor

DM-LR-PC-CF Ni Au 12.5 1.65 φ 4.11 15.7 φ 1.27 L 8.64 □12.7 8.64 8.64 0.05 8.640.05 φ4.2 +0.1 0 0 B A 4-φ2.7

取付参考寸法

DM-LR-7

4-φ2.75+0.1 0 12.5 1.65 φ 4.11 15.7 φ 1.27 L 8.64 □12.7 8.64 8.64 0.05 8.640.05 φ4.2 +0.1 0 0 B A 4-φ2.7

取付参考寸法

DM-LR-7

4-φ2.75+0.1 0 12.516.9 1.65 12.22 17 φ 4.11 6.7 15.7 φ 1.27 2.9 4.4 2-φ2.7

DM-LR2

9.5 1.7 11.2 φ 15.9 φ 1.27 19.15 12.2 4.1 16.9 6.6 _2-M2.6

DM-LR2-2-CF

6.6 1.7 4.1 9.5 16.9 φ 1.27 11.2 15.7 12.2 φ15.9 取付参考寸法 6.10.05 12.20.1 2-φ2.75+0.1 0 2-M2.6

DM-LR2-5-CF

φ4.2+0.1 0 5-φ1.60.05 φ1.2 10 13.5 □6 2.540.05 2.54 0.05 □5.080.05 4-□0.923.5 5 11.5

取付参考寸法

DM-LR-PC-CF

5-φ1.60.05 φ1.2 10 13.5 □6 2.540.05 2.54 0.05 □5.080.05 4-□0.923.5 5 11.5

取付参考寸法

DM-LR-PC-CF

6 PCB Mounting Dimensions PCB Mounting Dimensions PCB Mounting Dimensions

http://www.ddknet.co.jp

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice. 　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

Unit：mm

DM　Series

○ Dust Cap

7

Part Number Contact Plating

DM-RC-2-CF Ni

Part Number Contact Plating

DM-RC-1-CF Ni (φ2.5) (φ2.3) (60) (68.5) Flat Diameter:8

DM-RC-2-CF

(8.5) Flat Diameter：８ 1/4-36UNS-2B

DM-RC-1-CF

http://www.ddknet.co.jp

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice. 　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

Unit：mm

DM　Series

8

○ Assembly Insutruction（1）

Ferrule Contact Body

１−１．片端結線においてのケーブル必要長 Ｌ

３−１．ケーブル端面を図示寸法に処理する。

注）内部導体及び外部導体に傷を付けない

  こと。

３−２．内部導体に予備はんだを施す。

２−１．ケーブルにフェルールを挿入する。

注）はんだの熱により絶縁体を膨張，変形

  させないこと。

４−１．内部導体にコンタクトをはんだ付けする。

注）はんだの熱により絶縁体を膨張，変形

  させないこと。

注）コンタクトと絶縁体間に隙間のないこと。

注）はんだの盛り上がりは、コンタクト外径に

  沿って削り取ること。

注）下記開口部寸法（ボディ∼コンタクト間）を

  満足すること。

六角クリンプハイト（ａ，ｂ，ｃ三辺共）

４．１２∼４．３５

表１

３．０５∼３．１８

ディンプルクリンプハイト

Ｌ＝Ｌ −７．７

５−１．外部導体及びアルミ箔テープの先端を拡げる。

５−２．ボディ組立をケーブ外部導体（アルミ箔テープ）∼

    絶縁体間に挿入し、突き当てる。

注）アルミ箔テープは、ボディ外径に乗り上げること。

注）アルミ箔テープ端の図示下限位置以上に円周上の

  一部が乗り上げられていれば良い。

  但し、工程５−３．のフェルールが容易に通ること。

注）かしめ後のクリンプハイトは、下図の位置にて

  表１の規格を満足すること。

注）ボディ組立∼フェルール間の隙間は、０．５以下

  のこと。

５−３．予め通しておいたフェルールを外部導体上に被せ、

    ボディ組立に突き当てかしめる。

=L +11.6

L2 L1 Ferrule Cable Pre-soldering Outer Conductor，

Aluminum foil tape Insulator Center Conductor

Soldering A-R1

↑

↑

Crimping Dies. Ferrule Spread out Body Aluminum foil tape

lower limit position Body knurl

0.1 0.1

（ボディ∼コンタクト間） Aluminum foil tape

3 0.5

0.5 Max. 6 1

Make sure there is no space. Contact 1 2 4.8 0.3 1.5 0.3 8 0.3

1

2

3

4

5

Parts Configuration

Ferrule Contact Body

１−１．片端結線においてのケーブル必要長 Ｌ

３−１．ケーブル端面を図示寸法に処理する。

注）内部導体及び外部導体に傷を付けない

  こと。

３−２．内部導体に予備はんだを施す。

２−１．ケーブルにフェルールを挿入する。

注）はんだの熱により絶縁体を膨張，変形

  させないこと。

４−１．内部導体にコンタクトをはんだ付けする。

注）はんだの熱により絶縁体を膨張，変形

  させないこと。

注）コンタクトと絶縁体間に隙間のないこと。

注）はんだの盛り上がりは、コンタクト外径に

  沿って削り取ること。

注）下記開口部寸法（ボディ∼コンタクト間）を

  満足すること。

六角クリンプハイト（ａ，ｂ，ｃ三辺共）

４．１２∼４．３５

表１

３．０５∼３．１８

ディンプルクリンプハイト

Ｌ＝Ｌ −７．７

５−１．外部導体及びアルミ箔テープの先端を拡げる。

５−２．ボディ組立をケーブ外部導体（アルミ箔テープ）∼

    絶縁体間に挿入し、突き当てる。

注）アルミ箔テープは、ボディ外径に乗り上げること。

注）アルミ箔テープ端の図示下限位置以上に円周上の

  一部が乗り上げられていれば良い。

  但し、工程５−３．のフェルールが容易に通ること。

注）かしめ後のクリンプハイトは、下図の位置にて

  表１の規格を満足すること。

注）ボディ組立∼フェルール間の隙間は、０．５以下

  のこと。

５−３．予め通しておいたフェルールを外部導体上に被せ、

    ボディ組立に突き当てかしめる。

=L +11.6

L2 L1 Ferrule Cable Pre-soldering Outer Conductor，

Aluminum foil tape Insulator Center Conductor

Soldering A-R1

↑

↑

Crimping Dies. Ferrule Spread out Body Aluminum foil tape

lower limit position Body knurl

0.1 0.1

（ボディ∼コンタクト間） Aluminum foil tape

3 0.5

0.5 Max. 6 1

Make sure there is no space. Contact 1 2 4.80.3 1.50.3 8 0.3

1

2

3

4

5

Parts Configuration

1. Necessary cable length in case of one side termination = L

L ＝ L1-7.7

＝ L2+11.6

2．Insert the cable into the ferrule.　

（Note）Please confirm the direction of ferule 3．Strip cable as shown dimension. fig.2.

（Note）Be careful not to nick to outer conductor and center conductor.

3-1．Pre-solder the center conductor.

（Note）Please be careful to not deform the insulator by heat.

5．Spread the top of the outer conductor. 5-1. Insert the body into the cable between outer conductor and aluminum foil tape. (Note）Ride aluminum foil tape on Body outer dimension.

(Note）At least,ride a part of aluminum foil tape on body knurl.

But ferrule of Step5-2 should entry easily.

5-2. Slide ferrule on outer conductor until shall butt body and crimp ferrule

(Note) The gap between body and ferrule is within 0.5 4. Solder up the contact to the center conductor of the cable

（Note）Please be careful to not deform the insulator by heat.

（Note）No gap between contact and insulator. （Note）When the solder is stick out, please shave the extra solder.

http://www.ddknet.co.jp

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice. 　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

Unit：mm DM　Series

○ Assembly Insutruction（2）

Parts Configuration

Boot 1 2 3 4 5 6 7 L1

Ferrule Contact _Body

Spread the top

0.1 0.1 Ferrule Crimping Dies：F Measuring position of crimp height Boot 0.5 max. 3.01.0 0.10.1 Connector Body Cable Boot

Sheath Outer Conductor

Contact No gap Insulator Insulator Center Conductor Pre-soldering Soldering 6.3 0.2 2.00.2 9.0 0.2 Ferrule

(Gap between body and contact)

(Gap between body and contact)

Parts Configuration

Boot 1 2 3 4 5 6 7 L1

Ferrule Contact _Body

Spread the top

0.10.1 Ferrule Crimping Dies：F Measuring position of crimp height Boot 0.5 max. 3.01.0 0.10.1 Connector Body Cable Boot Sheath Outer Conductor

Contact No gap Insulator Insulator Center Conductor Pre-soldering Soldering 6.30.2 2.00.2 9.00.2 Ferrule

(Gap between body and contact)

(Gap between body and contact)

1. The cable length require for the cable assembly

L ＝ L1ー 7.1

2. Insert the boot and ferule into the cable.

3. Cut the cable as fig.3.　　

（Note） Please be carefule to not damage the outer 　　　　conductor , insulator and center conductor. 3-1. Pre-solder the center conductor.　　

（Note）Please be careful to not deform the insulator 　　　　by heat

4. Solder up the contact and center conductor.　　 （Note）Please be careful to not deform the insulator

by heat.

（Note）No gap between contact and insulator. （Note）When the solder is stick out, please shave the extra solder.

5. Spread the top of the outer conductor. 5-1. Insert the root of connector body between outer conductor and insulator.

(Note）Please do not pick the outer conductor. 6. Insert the connector body until the gap between body and contact is within 0.1±0.1.

6-1. Cover the ferule on the outer conductor and insert the cable until strike the top of the cable. 6-2. While the cable is touch the connector body, crimp the ferule two points. Crimping Dies ：F （Note） Crimp point is nearest to the body first. （Note）The gap between body and ferule is within 0.5. （Note）Crimp height is 5.38 〜 5.56.

（Note）The gap between body and contact is within 　　　0.1±0.1.

7.Cover the boot on the ferule.

http://www.ddknet.co.jp

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice. 　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

Unit：mm DM　Series 10

○ Assembly Instruction （3）

Parts Configuration

Heat-shrinkable tube 1 2 3 4 5 6 L1 L

Ferrule Contact _Body

Spread the top

0.5 max.

（between body and ferule）

Ferrule Crimping Dies RFD-1 Heat-shirinkable tube Cable Sheath Outer Conductor Contact No gap Insulator Center conductor Soldering 4.5 0.5 Ferrule Heat-shrinkable tube +0.5 0 10.5 2.0+0.3-0.5

Parts Configuration

Heat-shrinkable tube 1 2 3 4 5 6 L1 L

Ferrule Contact _Body

Spread the top

0.5 max.

（between body and ferule）

Ferrule Crimping Dies RFD-1 Heat-shirinkable tube Cable Sheath Outer Conductor Contact No gap Insulator Center conductor Soldering 4.5 0.5 Ferrule Heat-shrinkable tube +0.5 0 10.5 2.0+0.3-0.5

The cable length require for the cable assembly

L ＝ L1+6

1. Insert the boot and ferrule into the cable.

2. Cut the cable as fig..2.　

　 Pre-soldering to the center conductor of the cable. （Note） Please be careful to not damage outer

conductor, insulator and center conductor.

3. Solder up the contact with center conductor. （Note） When the solder is stick out, please shave

the extra solder.

（Note）No gap between contact and insulator. 4. Spread the top of the outer conductor. Insert the root of connector body between outer conductor and insulator.

5. Cover the ferrule on the naked outer conductor and crimp.

6. Cover the heat-shrinkable tube on the ferrule and heat up the tube.

http://www.ddknet.co.jp

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice. 　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

Unit：mm

DM　Series

11

○ Assembly Instruction（4）

Spread the top

L1

Ferrule

Ferrule Contact Body

Cable Outer Conductor

Aluminum foil tape InsulatorCenter conductor

1.7 7.0 （8.7） 5.50.3 (Pre-soldering) Parts Configuration RFD-1 1 2 5 Crimping Dies Connector Body Ferrrule 3 4 Soldering _Contact No gap 先端を拡げる L1 フェルール ケーブル 外部導体 アルミ箔テープ 内部導体 絶縁体 1.7 0.3 7.00.3 （8.7） 5.5 0.3 (予備はんだ) L2 RFD-1 1 2 5 かしめダイス ボディ組立 フェルール 3 4 はんだ付け コンタクト 隙間のないこと

Aluminum foil tape lower limit position Body knurl

Spread the top

L1

Ferrule

Ferrule Contact Body

Cable Outer Conductor

Aluminum foil tape InsulatorCenter conductor

1.7 7.0 （8.7） 5.5 0.3 (Pre-soldering) Parts Configuration RFD-1 1 2 5 Crimping Dies Connector Body Ferrrule 3 4 Soldering _Contact No gap 先端を拡げる L1 フェルール ケーブル 外部導体 アルミ箔テープ 内部導体 絶縁体 1.70.3 7.0 0.3 （8.7） 5.50.3 (予備はんだ) L2 RFD-1 1 2 5 かしめダイス ボディ組立 フェルール 3 4 はんだ付け コンタクト 隙間のないこと

Aluminum foil tape lower limit position Body knurl

1. The cable length require for the cable assembly.

L=L1ー 8

　　 =L2＋ 11

2. Insert the ferrule into the cable.

3. Cut the cable as fig.2.　

（Note）Please be carefule to not damage the center conductor and outer conductor.

3-1. Pre-solder the center conductor.

（Note）Please be careful to not deform the insulator by heat

4. Solder up the contact with center conductor. （Note）Don't melt to the insulator by supplying

excessive heat.

（Note）No gap between contact and insulator. （Note）If it get solder on outside surface of Contact, remove solder

5. Spread the top of the outer conductor. 5-1. Insert the body into the cable between outer conductor and aluminum foil tape. (Note）Ride aluminum foil tape on Body outer dimension.

(Note）At least,ride a part of aluminum foil tape on body knurl.

But ferrule of Step5-2 should entry easily. 5-2. Slide ferrule on outer conductor until shall butt body and crimp ferrule

http://www.ddknet.co.jp

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice. 　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

Unit：mm

DM　Series

12

○ Assembly Insutruction（5）

Spread the top Sheath Ferrule Heat-shrinkable tube Ferrule Parts Configuration Heat-shrinkable tube 1 2 3 4 5 L1 L

Ferrule Contact Body

Heat-shirinkable tube Cable Outer Conductor Contact No gap Insulator Insulator Center Conductor Soldering 2.30.3 2.2 0.3 （9.5）7.3 0.3 Pre-soldering Crimping Dies RFD-1

5

Spread the top Sheath Ferrule Heat-shrinkable tube Ferrule Parts Configuration Heat-shrinkable tube 1 2 3 4 5 L1 L

Ferrule Contact Body

Heat-shirinkable tube Cable Outer Conductor Contact No gap Insulator Insulator Center Conductor Soldering 2.30.3 2.2 0.3 （9.5）7.3 0.3 Pre-soldering Crimping Dies RFD-1

5

1. The cable length require for the cable assembly.

　L ＝ L1ー 7.0

2. Cut the cable as fig.2.　

（Note）Please be careful to not damage the outer conductor, insulator and center conductor. 2-1. Pre-soldering the center conductor.　　

（Note）Please be careful to not deform the insulator by heat

3. Solder up the contact with center conductor.　 （Note）Please be careful to not deform the insulator by heat.

（Note）No gap between contact and insulator. （Note）When the solder is stick out, please shave the extra solder.

4. Insert the heat-shrinkable tube and ferrule into the cable.

4-1．Spread the top of outer conductor.

4-2．Insert the body into the cable between outer conductor and aluminum foil tape.

4-3．At least,ride a part of aluminum foil tape on body knurl.

4-4．Crimp the ferrule. (Crimping Dies : RFD-1) （Note）The gap between connector body and ferrule

is within 0.5.

5．Cover the heat-shrinkable tube on the root of the connector body and heat up the tube.

http://www.ddknet.co.jp

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice. 　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

Unit：mm DM　Series 13

○ Assembly Instruction（6）

Parts Configuration Boot 1

Ferrule Contact Body

L1

2

Cable

Boot Ferrule _{Outer Conductor}

12.3

3 Outer Conductor Insulator Center Conductor

Pre-soldering 2.0 0--0.5 10.3+0.5 0 7.0 0-0.5 4 Contact No gap Insulator Soldering

5 _{Outer Conductor} Body

Contact 6

0.5 max.

（between body and ferule） Ferrule Crimping Dies D-P Body 2.180.15 7 Boot Parts Configuration Boot 1

Ferrule Contact Body

L1

2

Cable

Boot Ferrule _{Outer Conductor}

12.3

3 Outer Conductor Insulator Center Conductor

Pre-soldering 2.0 0--0.5 10.3+0.5 0 7.0 0-0.5 4 Contact No gap Insulator Soldering

5 _{Outer Conductor} Body

Contact 6

0.5 max.

（between body and ferule） Ferrule

Crimping Dies D-P

Body

2.18 0.15

7 Boot

1. The cable length require for the cable assembly.

L ＝ L1ー 7.2mm

2. Insert the boot and ferrule into the cable and strip the sheath as fig.2.

3. Cut the outer conductor, insulator and center conductor as fig.3.

And pre-solder the center conductor.

4. Solder up the contact with the center conductor. （Note）No gap between contact and insulator.

（Note）When the solder is stick out, please shave the extra solder.

5. Spread the outer conductor and insert into the connector body.

6. Cover the ferrule on the naked outer conductor and crimp. (Crimping Dies : D-P)

7. Cover the boot on the root of the connector body.

http://www.ddknet.co.jp

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice. 　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

Unit：mm DM　Series

○ Assembly Instruction（7）

A3 承認 設計 _形式 品名 工程４ 工程５ 工程６ 工程７ Ferrule _Body Heat-shrinkable tube L １−１．片端結線においてのケーブル必要長 Ｌ1 Ｌ＝Ｌ1+0.5 ２−１．ケーブルに熱収縮チューブとフェルールを挿入する。 ６−１．コンタクトと内部導体をはんだ付けする。 工程１ ３−１．ケーブル端末を図示寸法に処理する。    注）内部導体、絶縁体、外部導体に傷を付けないこと。 ３−２．内部導体に予備はんだを施す。    注）はんだの熱により絶縁体を変形，膨張させないこと。 ４−１．外部導体及びアルミ箔テープの先端をを拡げる。 ４−２．ボディ組立をケーブル外部導体（アルミ箔テープ）∼絶縁体間    に挿入し、突き当てる。 注）アルミ箔テ−プは、ボディの外側へ乗り上げ、テープの一部が   ボディローレット部にかかっていればよい。 但し、工程５−１のフェルールが容易に通ること。 注）内部導体がコンタクトスリットに半分以上収まっていること。 1 ７−２．予め通しておいた熱収縮チューブを図示のように被せ収縮させる。 ７−１．ボディ組立に盲蓋を９．８Ｎ・ｃｍ（１Ｋｇｆ・ｃｍ）のトルクで締め付ける。 ５−１．フェルールを外部導体上に被せ、ボディ組立に突き当てる。 ５−２．かしめダイス：Ａ−Ｒ１にてフェルールをかしめる。 注）ボディ組立とフェルール間の隙間は、０．５以下のこと。 注）かしめ後のクリンプハイトは、下図の位置にて表１の規格を満足すること。 1.3 0-0.3 6 11 工程２ Pre-soldering 工程３ Sheath Outer Conductor， Aluminum foil tape

Center Conductor Insulator A-R1

↑

↑

Blind Screw Contact Center Conductor Crimping Dies Ferrule Heat-shrinkable tube Ferrule Cable Heat-shrinkable tube

Aluminum foil tape

minimum point Laurette

Aluminum foil tape

数量 符号 図番 部品名称 材質 処理・他

Parts Configuration

1

2

3

4

5

6

7

Blind Screw

結線作業（9）

A3 承認 設計 _形式 品名 工程４ 工程５ 工程６ 工程７ Ferrule _Body Heat-shrinkable tube L １−１．片端結線においてのケーブル必要長 Ｌ1 Ｌ＝Ｌ1+0.5 ２−１．ケーブルに熱収縮チューブとフェルールを挿入する。 ６−１．コンタクトと内部導体をはんだ付けする。 工程１ ３−１．ケーブル端末を図示寸法に処理する。    注）内部導体、絶縁体、外部導体に傷を付けないこと。 ３−２．内部導体に予備はんだを施す。    注）はんだの熱により絶縁体を変形，膨張させないこと。 ４−１．外部導体及びアルミ箔テープの先端をを拡げる。 ４−２．ボディ組立をケーブル外部導体（アルミ箔テープ）∼絶縁体間    に挿入し、突き当てる。 注）アルミ箔テ−プは、ボディの外側へ乗り上げ、テープの一部が   ボディローレット部にかかっていればよい。 但し、工程５−１のフェルールが容易に通ること。 注）内部導体がコンタクトスリットに半分以上収まっていること。 1 ７−２．予め通しておいた熱収縮チューブを図示のように被せ収縮させる。 ７−１．ボディ組立に盲蓋を９．８Ｎ・ｃｍ（１Ｋｇｆ・ｃｍ）のトルクで締め付ける。 ５−１．フェルールを外部導体上に被せ、ボディ組立に突き当てる。 ５−２．かしめダイス：Ａ−Ｒ１にてフェルールをかしめる。 注）ボディ組立とフェルール間の隙間は、０．５以下のこと。 注）かしめ後のクリンプハイトは、下図の位置にて表１の規格を満足すること。 1.3-0.3 0 6 11 工程２ Pre-soldering 工程３ Sheath Outer Conductor， Aluminum foil tape

Center Conductor Insulator A-R1

↑

↑

Blind Screw Contact Center Conductor Crimping Dies Ferrule Heat-shrinkable tube Ferrule Cable Heat-shrinkable tube

Aluminum foil tape

minimum point Laurette

Aluminum foil tape

数量 符号 図番 部品名称 材質 処理・他 Parts Configuration 1 2 3 4 5 6 7 Blind Screw 結線作業（9）

1. The cable length require for the cable assembly.

L=L1+0.5　（mm）

2. Heat-shrinkable tube and ferrule into the cable. fig.2.

3. Cut the cable as fig.3.

（Note）Please be careful to not damage the outer conductor, insulator and center conductor. 3-1. Pre-soldering the center conductor.　　

（Note）Please be careful to not deform the insulator by heat

4. Spread the top of the outer conductor. 4-1. （Note）At least,ride apart of aluminum foil tape on Body knurl.

But Ferrule of Step5-1 should entry easily. （Note）The center conductor is caught in the contact slit enough.

5. Cover the ferrule on the naked outer conductor. 5-1. Crimp the ferrule. (Crimping Dies : A-R1)

（Note）The gap between body and ferrule is within 0.5.

7. Screw up the blind screw on the body.Screw torque 9.8N・cm（1Kgf・cm）

7-1.Cover the heat-shrinkable tube on the root of the connector body and heat up the tube. 6. Solder the contact with center conductor.

http://www.ddknet.co.jp

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice. 　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

Unit：mm DM　Series

○ Assembly Instruction（8）

Ferrule Sheath Cable Cable Ferrule Crimping Dies Ferrule Soldering Blind Screw Contact Outer Conductor

Aluminum foil tape Center Conductor Pre-soldering 1.3 5.5 10.5 Ｌ Ｌ1 Body Contact Slit Body

Parts Configuration

6-1.コンタクトと内部導体をはんだ付けする。 7-1.ボディ組立てに盲蓋を9.8N・cm（1Kgf・cm）の トルクで締め付ける。 1-1.片端結線においてのケーブル必要長 L1 L=L1+0.5 3-1.ケーブル端面を図示寸法に処理する。   （注）ケーブル内部導体及び外部導体に 傷を付けないこと。 3-2.内部導体に予備はんだを施す。 2-1.同軸ケーブルにフェルールを挿入する。 4-1.外部導体及びアルミ箔テープを拡げる。 4-2.ボディ組立をケーブル外部導体∼アルミ箔 テープ間に挿入し、突き当てる。  （注）内部導体がコンタクトスリットに 半分以上収まっていること。  （注）アルミ箔テープは、ボディの外側へ乗り上げテープの 内径へ入れること。 5-1.フェルールを外部導体上に被せ、ボディ 組立に突き当てる。 5-2.フェルールをクリンプする。    ダイス：RFD-1  （注）ボディ組立とフェルール間の隙間は、 0.5以下のこと。 1 2 3 4 5 6 7 0 -0.3 RFD-1 Blind Screw

Aluminum foil tape Body knurl

Ferrule Sheath Cable Cable Ferrule Crimping Dies Ferrule Soldering Blind Screw Contact Outer Conductor Aluminum foil tape

Center Conductor Pre-soldering 1.3 5.5 10.5 Ｌ Ｌ1 Body Contact Slit Body

Parts Configuration

6-1.コンタクトと内部導体をはんだ付けする。 7-1.ボディ組立てに盲蓋を9.8N・cm（1Kgf・cm）の トルクで締め付ける。 1-1.片端結線においてのケーブル必要長 L1 L=L1+0.5 3-1.ケーブル端面を図示寸法に処理する。   （注）ケーブル内部導体及び外部導体に 傷を付けないこと。 3-2.内部導体に予備はんだを施す。 2-1.同軸ケーブルにフェルールを挿入する。 4-1.外部導体及びアルミ箔テープを拡げる。 4-2.ボディ組立をケーブル外部導体∼アルミ箔 テープ間に挿入し、突き当てる。  （注）内部導体がコンタクトスリットに 半分以上収まっていること。  （注）アルミ箔テープは、ボディの外側へ乗り上げテープの 内径へ入れること。 5-1.フェルールを外部導体上に被せ、ボディ 組立に突き当てる。 5-2.フェルールをクリンプする。    ダイス：RFD-1  （注）ボディ組立とフェルール間の隙間は、 0.5以下のこと。 1 2 3 4 5 6 7 0 -0.3 RFD-1 Blind Screw

Aluminum foil tape Body knurl

1. The cable length require for the cable assembly.

L=L1+0.5

2. Cut the cable as fig.2.　

（Note）Please be careful to not damage the outer conductor and center conductor. 2-1. Pre-solder the center conductor.

3. Insert the ferule into the cable.

4. Spread the top of the outer conductor. 4-1. Insert the body into the cable between outer 　　 conductor and aluminum foil tape.　

（Note）Center conductor is caught in the contact slit enough.

（Note）Aluminum foil tape is inserted in the body.

5. Cover the ferule on the naked outer conductor. 5-1. Crimp the ferule. (Crimping Dies : RFD-1) （Note）The gap between body and ferule is

within 0.5.

6. Solder the contact with center conductor.

7. Screw up the blind screw on the body. Screw torque 9.8N・cm（1Kgf・cm）

http://www.ddknet.co.jp

◎ Please acknowledge that the specification etc. of this catalog might change by the improvement etc. without notice. 　Moreover, the characteristic and the specification of the published product are the reference values.

　Please confirm the content with the latest delivery specifications when you use the product.

Unit：mm DM　Series

○ Assembly Instruction（9）

Blind Screw Washer Gasket Body Ferrule Parts Configuration L2 L1 Ferrule 1 Center Conductor Pre-soldering Insulator Outer Conductor 2 3 Cable 2.0 0-0.5 +0.5 0 10.0 6.0+0.5 0 Blind Screw Washer Gasket 6 Soldering Contact 5 Crimping Dies :D-P Ferrule 0.5 max.

（gap between dies and body） 4

1∼1.5

Spread the top Contact Slit

Body Blind Screw Washer Gasket Body Ferrule Parts Configuration L2 L1 Ferrule 1 Center Conductor Pre-soldering Insulator Outer Conductor 2 3 Cable 2.0 0-0.5 +0.5 0 10.0 6.0+0.5 0 Blind Screw Washer Gasket 6 Soldering Contact 5 Crimping Dies :D-P Ferrule 0.5 max.

（gap between dies and body） 4

1∼1.5

Spread the top Contact Slit

Body

1. The cable length require for the cable assembly.

L=L1+0.6

=L2-3.4

1-1. Insert the ferule into the cable.

2. Cut the cable as fig.2.　

（Note）Please be careful to not damage the center conductor and outer conductor. 2-1. Pre-solder the center conductor.

3. Spread the top of the outer conductor. 3-1. Insert the body into the cable between outer conductor and insulator.

（Note）The center conductor is caught in the contact slit enough.

4. Cover the ferule on the naked outer conductor. 4-1. Crimp the ferule. (Crimping Dies ：D-P)　 （Note）The gap between body and ferule is within

0.5.

5. Solder up the contact with center conductor.

6. Insert the gasket, washer and blind screw. And screw up the blind screw.

　Screw toque・・・9.8 〜 19.6N・cm 　　　　　　　（1 〜 2Kgf・cm）
