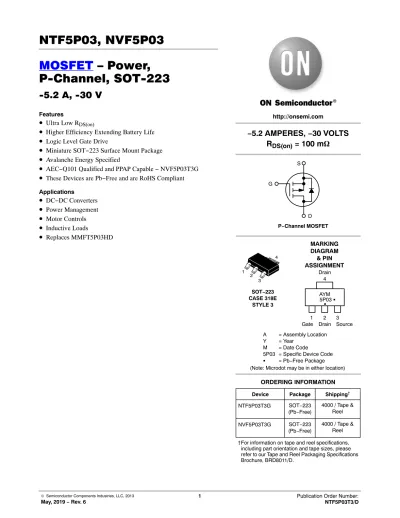

NTF5P03, NVF5P03 MOSFET – Power, P-Channel, SOT-223

Publication Order Number:

NTF5P03T3/D

© Semiconductor Components Industries, LLC, 2013

May, 2019 − Rev. 6 1

MOSFET – Power, P-Channel, SOT-223

-5.2 A, -30 V

Features

• Ultra Low R

• Higher Efficiency Extending Battery Life

• Logic Level Gate Drive

• Miniature SOT−223 Surface Mount Package

• Avalanche Energy Specified

• AEC−Q101 Qualified and PPAP Capable − NVF5P03T3G

• These Devices are Pb−Free and are RoHS Compliant

• DC−DC Converters

• Power Management

• Motor Controls

• Inductive Loads

• Replaces MMFT5P03HD

1 2 3

4

−5.2 AMPERES, −30 VOLTS R

= 100 m W

Device Package Shipping^† ORDERING INFORMATION SOT−223

CASE 318E STYLE 3

MARKING DIAGRAM

& PIN ASSIGNMENT http://onsemi.com

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

5P03 G

A = Assembly Location Y = Year

M = Date Code

5P03 = Specific Device Code G = Pb−Free Package

AYM

1 Gate 2

Drain 3 Source Drain

4

(Note: Microdot may be in either location)

SOT−223 (Pb−Free)

NTF5P03T3G 4000 / Tape &

Reel G G

S

D P−Channel MOSFET

SOT−223 (Pb−Free)

NVF5P03T3G 4000 / Tape &

Reel

MAXIMUM RATINGS (T_J = 25°C unless otherwise noted) Negative sign for P−Channel devices omitted for clarity

Rating Symbol Max Unit

Drain−to−Source Voltage V_DSS −30 V

Drain−to−Gate Voltage (RGS = 1.0 MW) V_DGR −30 V

Gate−to−Source Voltage − Continuous V_GS ±20 V

1 sq in

FR−4 or G−10 PCB

10 seconds

Thermal Resistance − Junction to Ambient Total Power Dissipation @ TA = 25°C Linear Derating Factor

Drain Current − Continuous @ T_A = 25°C Continuous @ TA = 70°C

Pulsed Drain Current (Note 1)

R_THJA PD

I_D ID

I_DM

3.1340

−5.225

−4.1−26

°C/W Watts mW/°C

AA A Minimum

FR−4 or G−10 PCB

10 seconds

Thermal Resistance − Junction to Ambient Total Power Dissipation @ T_A = 25°C Linear Derating Factor

Drain Current − Continuous @ T_A = 25°C Continuous @ T_A = 70°C

Pulsed Drain Current (Note 1)

R_THJA P_D

I_D I_D IDM

1.5680 12.5−3.7

−2.9−19

Watts°C/W mW/°C

AA A

Operating and Storage Temperature Range T_J, T_stg −55 to 150 °C

Single Pulse Drain−to−Source Avalanche Energy − Starting T_J = 25°C

(V_DD = −30 Vdc, V_GS = −10 Vdc, Peak I_L = −12 Apk, L = 3.5 mH, R_G = 25 W) E_AS

250 mJ

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

1. Repetitive rating; pulse width limited by maximum junction temperature.

http://onsemi.com 3

ELECTRICAL CHARACTERISTICS (T_A = 25°C unless otherwise noted)

Characteristic Symbol Min Typ Max Unit

OFF CHARACTERISTICS

Drain−to−Source Breakdown Voltage (Cpk ≥2.0) (Notes 2 and 4) (V_GS = 0 Vdc,I_D = −250 mAdc)

Temperature Coefficient (Positive)

V_(BR)DSS

−30− −

−28

−−

Vdc mV/°C Zero Gate Voltage Drain Current

(V_DS = −24 Vdc, V_GS = 0 Vdc)

(V_DS = −24 Vdc, V_GS = 0 Vdc, T_J = 125°C)

IDSS

−− −

− −1.0

−25

mAdc

Gate−Body Leakage Current

(V_GS = ±20 Vdc, V_DS = 0 Vdc) I_GSS − − ±100 nAdc

ON CHARACTERISTICS (Note 2)

Gate Threshold Voltage(Cpk ≥2.0) (Notes 2 and 4) (V_DS = V_GS,I_D = −250 mAdc)

Threshold Temperature Coefficient (Negative)

V_GS(th)

−1.0− −1.75

3.5 −3.0

−

Vdc mV/°C Static Drain−to−Source On−Resistance (Cpk ≥2.0)(Notes 2 and 4)

(V_GS = −10 Vdc, I_D = −5.2 Adc) (VGS = −4.5 Vdc, ID = −2.6Adc)

RDS(on)

− 76

107

100 150

mW

Forward Transconductance(Note 2)

(VDS = −15 Vdc, ID = −2.0 Adc) g_fs 2.0 3.9 − Mhos

DYNAMIC CHARACTERISTICS

Input Capacitance (V_DS = −25 Vdc, V_GS = 0 V,

f = 1.0 MHz) Ciss − 500 950 pF

Output Capacitance Coss − 153 440

Transfer Capacitance Crss − 58 140

SWITCHING CHARACTERISTICS (Note 3)

Turn−On Delay Time (V_DD = −15 Vdc, I_D = −4.0 Adc, VGS = −10 Vdc, R_G = 6.0 W) (Note 2)

td(on) − 10 24 ns

Rise Time tr − 33 48

Turn−Off Delay Time td(off) − 38 94

Fall Time tf − 20 92

Turn−On Delay Time (VDD = −15 Vdc, ID = −2.0 Adc, V_GS = −10 Vdc, R_G = 6.0 W) (Note 2)

t_d(on) − 16 38 ns

Rise Time t_r − 45 110

Turn−Off Delay Time t_d(off) − 23 60

Fall Time t_f − 24 80

Gate Charge (V_DS = −24 Vdc, I_D = −4.0 Adc,

V_GS = −10 Vdc) (Note 2) Q_T − 15 38 nC

Q₁ − 1.6 −

Q₂ − 3.5 −

Q3 − 2.6 −

SOURCE−DRAIN DIODE CHARACTERISTICS

Forward On−Voltage (I_S = −4.0 Adc, V_GS = 0 Vdc) (I_S = −4.0 Adc, V_GS = 0 Vdc,

TJ = 125°C) (Note 2)

V_SD

−− −1.1

−0.89 −1.5

−

Vdc

Reverse Recovery Time (I_S = −4.0 Adc, V_GS = 0 Vdc,

dIS/dt = 100 A/ms) (Note 2) t_rr − 34 − ns

t_a − 20 −

t_b − 14 −

Reverse Recovery Stored Charge Q_RR − 0.036 − mC

2. Pulse Test: Pulse Width ≤300 ms, Duty Cycle ≤2.0%.

3. Switching characteristics are independent of operating junction temperatures.

4. Reflects typical values.

Cpk+

Ť

Ť

TYPICAL ELECTRICAL CHARACTERISTICS

Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics

Figure 3. On−Resistance versus Gate−to−Source Voltage

Figure 4. On−Resistance versus Drain Current and Gate Voltage

Figure 5. On−Resistance Variation with Temperature

Figure 6. Drain−to−Source Leakage Current versus Voltage

−V_GS, GATE−TO−SOURCE VOLTAGE (V)

−ID, DRAIN CURRENT (A) TJ = 25°C

T_J = 100°C

T_J = −55°C

−V_GS, GATE−TO−SOURCE VOLTAGE (V) RDS(on), DRAIN−TO−SOURCE RESISTANCE (W)

−I_D, DRAIN CURRENT (A) RDS(on), DRAIN−TO−SOURCE RESISTANCE (W)

V_GS = −10 V

T_J, JUNCTION TEMPERATURE (°C) RDS(on), DRAIN−TO−SOURCE RESISTANCE (NORMALIZED)

I_D = −5.2 A VGS = −10 V

−V_DS, DRAIN−TO−SOURCE VOLTAGE (V)

−IDSS, LEAKAGE (nA)

−V_DS, DRAIN−TO−SOURCE VOLTAGE (V)

−ID, DRAIN CURRENT (A)

V_GS = −2.7 V

TJ = 100°C TJ = 25°C

V_DS ≥ −10 V

V_GS = 0 V

T_J = 125°C

−3.1 V

−2.8 V

−3.5 V

−3.7 V T_J = 25°C

V_GS = −4.5 V 0

1 2 3 4 5

0 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2

−3.9 V

−4.1 V

−4.3 V

−4.5 V

−8 V−6 V

−10 V

0 1 2 3 4 5 6 7 8 9 10

2 2.5 3 3.5 4 4.5 5

0.025 0.050 0.075 0.100 0.125 0.150 0.175 0.200

3 4 5 6 7 8 9 10

I_D = −5.2 A T_J = 25°C

0.000 0.020 0.040 0.060 0.080 0.100 0.120 0.140 0.160 0.180 0.200

1 2.5 4 5.5 7 8.5 10

0.65 0.75 0.85 0.95 1.05 1.15 1.25 1.35 1.45 1.55 1.65

−50 −25 0 25 50 75 100 125 150

10 100 1000

5 10 15 20 25 30

http://onsemi.com 5

TYPICAL ELECTRICAL CHARACTERISTICS

RDS(on) LIMIT 100

1

0.1

0.01 1000

100

10

12.5

5.0

2.5

0 DRAIN−TO−SOURCE VOLTAGE (V)

C, CAPACITANCE (pF)

Q_g, TOTAL GATE CHARGE (nC) Figure 7. Capacitance Variation Figure 8. Gate−to−Source and

Drain−to−Source Voltage versus Total Charge

−VGS, GATE−TO−SOURCE VOLTAGE (V)

Figure 9. Resistive Switching Time Variation versus Gate Resistance

RG, GATE RESISTANCE (W)

Figure 10. Diode Forward Voltage versus Current

−V_SD, SOURCE−TO−DRAIN VOLTAGE (V)

−IS, SOURCE CURRENT (A)

t, TIME (ns)

Figure 11. Maximum Rated Forward Biased Safe Operating Area

−V_DS, DRAIN−TO−SOURCE VOLTAGE (VOLTS)

Figure 12. Maximum Avalanche Energy versus Starting Junction Temperature

T_J, STARTING JUNCTION TEMPERATURE (°C)

−ID, DRAIN CURRENT (AMPS) EAS, SINGLE PULSE DRAIN−TO−SOURCE AVALANCHE ENERGY (mJ)

0 20 40 50 60

1 10 100

0.1 1 10 100

ID = −2 A TJ = 25°C

−V_GS C_iss

Coss

C_rss

V_GS = 20 V SINGLE PULSE T_C = 25°C

VDD = −15 V I_D = −4.0 A V_GS = −10 V

V_GS = 0 V T_J = 25°C

ID = −6 A

1 ms 100 ms 10 ms

dc

t_r t_d(off)

t_d(on)

Q₂ Q1

Q_T

30 10

t_f

THERMAL LIMIT PACKAGE LIMIT

7.5

10

10

−V_DS

−VDS, DRAIN−TO−SOURCE VOLTAGE (V)

10 ms

Mounted on 2”sq. FR4 board (1”sq. 2 oz. Cu 0.06” thick single sided) with on die operating, 10 s max.

0 5 10 15 20 25

0 100 200 300 400 500 600 700 800 900 1000

0 5 10 15 20 25 30

TJ = 25°C VGS = 0 V

0.00 0.50 1.00 1.50 2.00 2.50 3.00 3.50 4.00

0.5 0.55 0.6 0.65 0.7 0.75 0.8 0.85 0.9 0.95 1

0 50 100 150 200 250

25 50 75 100 125 150

TYPICAL ELECTRICAL CHARACTERISTICS

RTHJA(t), EFFECTIVE TRANSIENT THERMAL RESPONSE

Figure 13. FET Thermal Response t, TIME (s)

0.1

0.01 D = 0.5

SINGLE PULSE

1.0E-03 1.0E-02 1.0E-01 1.0E+00 1.0E+01

0.2 0.1 0.05 0.02

0.01

1.0E+02 1.0E+03

1

NORMALIZED TO R_qJA AT STEADY STATE (1″ PAD)

CHIP JUNCTION

0.0175 W 0.0154 F

0.0710 W 0.0854 F

0.2706 W 0.3074 F

0.5779 W 1.7891 F

0.7086 W 107.55 F

AMBIENT

SOT−223 (TO−261) CASE 318E−04

ISSUE R

DATE 02 OCT 2018 SCALE 1:1

q

q

ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.

ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others.

98ASB42680B DOCUMENT NUMBER:

DESCRIPTION:

Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

PAGE 1 OF 2 SOT−223 (TO−261)

© Semiconductor Components Industries, LLC, 2018 www.onsemi.com

ISSUE R

DATE 02 OCT 2018

STYLE 4:

PIN 1. SOURCE 2. DRAIN 3. GATE 4. DRAIN

STYLE 6:

PIN 1. RETURN 2. INPUT 3. OUTPUT 4. INPUT

STYLE 8:

CANCELLED STYLE 1:

PIN 1. BASE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

STYLE 10:

PIN 1. CATHODE 2. ANODE 3. GATE 4. ANODE STYLE 7:

PIN 1. ANODE 1 2. CATHODE 3. ANODE 2 4. CATHODE

STYLE 3:

PIN 1. GATE 2. DRAIN 3. SOURCE 4. DRAIN STYLE 2:

PIN 1. ANODE 2. CATHODE 3. NC 4. CATHODE

STYLE 9:

PIN 1. INPUT 2. GROUND 3. LOGIC 4. GROUND

STYLE 5:

PIN 1. DRAIN 2. GATE 3. SOURCE 4. GATE

STYLE 11:

PIN 1. MT 1 2. MT 2 3. GATE 4. MT 2

STYLE 12:

PIN 1. INPUT 2. OUTPUT 3. NC 4. OUTPUT

STYLE 13:

PIN 1. GATE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

1

A = Assembly Location

Y = Year

W = Work Week

XXXXX = Specific Device Code G = Pb−Free Package

GENERIC MARKING DIAGRAM*

AYW XXXXXG

G

(Note: Microdot may be in either location)

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.
