UQFN8 1.6X1.6, 0.5P CASE 523AY
ISSUE O
DATE 31 AUG 2016
SEATING C PLANE 0.05 C
SIDE VIEW
0.05 C
A B
2X
1.60
1.60 0.05 C
TOP VIEW
PIN#1 IDENT
NOTES:
A. PACKAGE CONFORMS TO JEDEC MO−255 VARIATION UAAD.
B. DIMENSIONS ARE IN MILLIMETERS.
C. DIMENSIONS AND TOLERANCES PER ASME Y14.5M, 2009.
D. LAND PATTERN RECOMMENDATION IS EXISTING INDUSTRY LAND PATTERN.
0.025±0.025
4
1 2 3
5 6 7
8 0.30±0.05
(0.15)
(0.20)
0.30±0.05 0.05 C
0.50±0.05
BOTTOM VIEW
1.60±0.05
1.60±0.05
0.50 0.20±0.05 (8X)
1.00±0.05 0.30±0.05 (7X)
0.10 C A B 0.05 C (0.20)3X
(0.09) DETAIL A
DETAIL A SCALE : 2X (0.10)
RECOMMENDED LAND PATTERN
1.60 0.45 (2X)
0.40 (6X)
1.61
0.25 (8X) 0.50

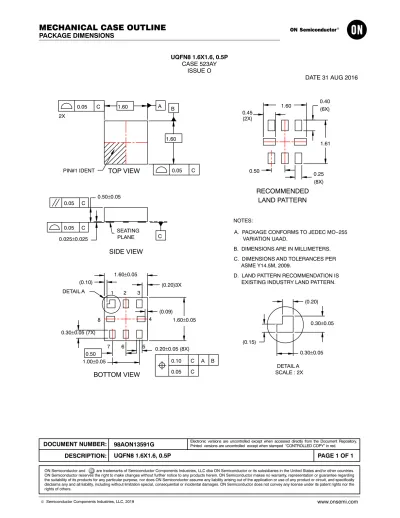

MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
