SOT−23, 5 Lead CASE 527AH
ISSUE A
DATE 09 JUN 2021
GENERIC MARKING DIAGRAM*
XXX = Specific Device Code M = Date Code
XXXM
*This information is generic. Please refer to device data sheet for actual part marking.
Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.
q
q
q
q q1 q2 q

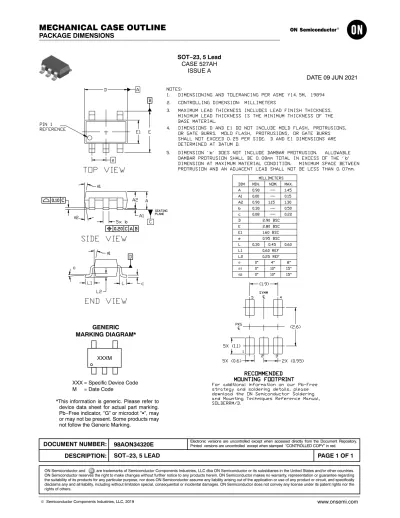

MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
