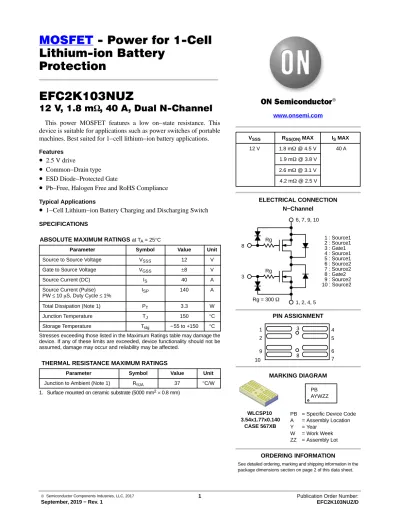

MOSFET - Power for 1-Cell Lithium-ion Battery
Protection
EFC2K103NUZ
12 V, 1.8 mW , 40 A, Dual N-Channel
This power MOSFET features a low on−state resistance. This device is suitable for applications such as power switches of portable machines. Best suited for 1−cell lithium−ion battery applications.
Features
• 2.5 V drive
• Common−Drain type
• ESD Diode−Protected Gate
• Pb−Free, Halogen Free and RoHS Compliance
Typical Applications• 1−Cell Lithium−ion Battery Charging and Discharging Switch
SPECIFICATIONSABSOLUTE MAXIMUM RATINGS at TA = 25°C
Parameter Symbol Value Unit
Source to Source Voltage VSSS 12 V
Gate to Source Voltage VGSS ±8 V
Source Current (DC) IS 40 A
Source Current (Pulse) PW ≤10 mS, Duty Cycle ≤1%
ISP 140 A
Total Dissipation (Note 1) PT 3.3 W
Junction Temperature TJ 150 °C
Storage Temperature Tstg − 55 to +150 °C
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
THERMAL RESISTANCE MAXIMUM RATINGS
Parameter Symbol Value Unit
Junction to Ambient (Note 1) RqJA 37 °C/W
1. Surface mounted on ceramic substrate (5000 mm2×0.8 mm)
MARKING DIAGRAM www.onsemi.com
VSSS RSS(ON) MAX IS MAX 12 V 1.8 mW @ 4.5 V
1.9 mW @ 3.8 V 2.6 mW @ 3.1 V 4.2 mW @ 2.5 V
40 A
PB AYWZZ 1
8
3
6, 7, 9, 10
1, 2, 4, 5
1 : Source1 2 : Source1 3 : Gate1 4 : Source1 5 : Source1 6 : Source2 7 : Source2 8 : Gate2 9 : Source2 10 : Source2 ELECTRICAL CONNECTION
PIN ASSIGNMENT N−Channel
Rg
Rg
2 9 10
4 5 6 7 3
8 Rg = 300 W
ELECTRICAL CHARACTERISTICS at TA = 25°C
Parameter Symbol Conditions
Value Min Typ Max Unit Source to Source Breakdown Voltage V(BR)SSS IS = 1 mA, VGS = 0 V Test Circuit 1 12 − − V Zero Gate Voltage Source Current ISSS VSS = 10 V, VGS = 0 V Test Circuit 1 − − 1 mA Gate to Source Leakage Current IGSS VGS = ±8 V, VSS = 0 V Test Circuit 2 − − ±1 mA Gate Threshold Voltage VGS(th) VSS = 6 V, IS = 1 mA Test Circuit 3 0.4 − 1.3 V Static Source to Source On−State
Resistance
RSS(on) IS = 5 A, VGS = 4.5 V Test Circuit 4 0.8 1.25 1.8 mW IS = 5 A, VGS = 3.8 V Test Circuit 4 0.85 1.35 1.9 mW IS = 5 A, VGS = 3.1 V Test Circuit 4 1.0 1.7 2.6 mW IS = 5 A, VGS = 2.5 V Test Circuit 4 1.2 2.1 4.2 mW Turn−ON Delay Time td(on) VSS = 6 V, VGS = 3.8 V, IS = 5 A,
RG = 10 kW Test Circuit 5
− 25 − ms
Rise Time tr − 100 − ms
Turn−OFF Delay Time td(off) − 165 − ms
Fall Time tf − 148 − ms
Total Gate Charge Qg VSS = 6 V, VGS = 3.8 V, IS = 5 A Test Circuit 6
− 62 − nC
Forward Source to Source Voltage VF(S−S) IS = 3 A, VGS = 0 V Test Circuit 7 − 0.75 1.2 V Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.
ORDERING INFORMATION
Device Marking Package Shipping (Qty / Packing)†
EFC2K103NUZTDG PB WLCSP10, 3.54 ×1.77 × 0.140
(Pb−Free / Halogen Free)
5,000 / Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.
TYPICAL CHARACTERISTICS
Figure 1. IS − VSS
0.0000 0.0050 0.0100 0.0150 0.0200
0 1 2 3 4 5 6
Source-to-Source Voltage, VSS (V) Source Current, IS (A)
4.5 V
3.8 V 3.1 V
2.5 V
TA = 25°C Single Pulse
0 1 2 3 4 5 6 7 8 9 10
0 0.3 0.6 0.9 1.2 1.5 1.8
Gate-to-Source Voltage, VGS (V) Source Current, IS (A)
VSS = 6 V Single Pulse
TA = 75°C TA = 25°C TA = −25°C
Figure 2. IS − VGS
1 1.5 2 2.5 3 3.5 4 4.5 5
1 2 3 4 5 6 7 8
Figure 3. RSS(on) − VGS Figure 4. RSS(on) − TA Gate-to-Source Voltage, VGS (V)
Static Source-to-Source On-State Resistance, RSS(on) (mW)
IS = 5 A Single Pulse
TA = 75°C
TA = 25°C
TA = −25°C
0.5 1 1.5 2 2.5 3 3.5 4 4.5 5
−60 −40 −20 0 20 40 60 80 100 120 140 160 Ambient Temperature, TA (5C)
Static Source-to-Source On-State Resistance, RSS(on) (mW)
IS = 5 A Single Pulse
VGS = 2.5 V
VGS = 4.5 V
VGS = 3.8 V VGS = 3.1 V
0.1 1 10
S (A)
VGS = 0 V Single Pulse
TA = 75°C TA = 25°C TA = −25°C
ime, S/W (ms)
TA = 25°C VSS = 6 V V = 3.8 V 10
100
td(on) td(off)
tr
tf 0.5
TYPICAL CHARACTERISTICS
(Continued)Single Pulse 0.01 0.02
0.05 0.1 0.2
Duty Cycle = 0.5 0
0.5 1 1.5 2 2.5 3 3.5 4
0 10 20 30 40 50
Figure 7. VGS − QG Figure 8. PT − TA
Total Gate Charge, QG (nC)
Gate-to-Source Voltage, VGS (V) TA = 25°C
VSS = 6 V IS = 5 A
0 0.5 1 1.5 2 2.5 3 3.5
0 25 50 75 100 125 150 175
Ambient Temperature, TA (5C) Total Dissipation, PT (W)
Surface mounted on ceramic substrate (5000 mm2× 0.8 mm)
0.01 0.1 1 10 100 1000
0.01 0.1 0 10
Figure 9. Safe Operating Area Source-to-Source Voltage, VSS (V) Source Current, IS (A)
Figure 10. Thermal Response
TA = 25°C Single pulse
When mounted on ceramic substrate (5000 mm2 x 0.8 mm)
Operation in this area is limited by RSS(on) ISP = 140 A (PW ≤ 10 ms) IS = 40 A
100 ms 10 ms
1 ms 10 ms 100 ms DC
Operation
Pulse Time, PT (s) Thermal Resistance, RqJA (5C/W)
60
0.1 1 10 100
0.00001 0.0001 0.001 0.01 0.1 1 10
TEST CIRCUITS ARE EXAMPLES OF MEASURING FET1 SIDE
VSS
When FET1 is measured, Gate and Source of FET2 are short−circuited.
A
G1 G2
S2
S1 V(BR)SSS / ISSS
Figure 11. Test Circuit 1
VGS A
G1 G2
S2
S1 IGSS
Figure 12. Test Circuit 2
VGS
A
G1 G2
S2
S1 VGS(th)
Figure 13. Test Circuit 3
When FET1 is measured, Gate and Source of FET2 are short−circuited.
VSS
VGS
V G1
G2
S2
S1 RSS(on)
Figure 14. Test Circuit 4
IS
Rg
V G1
G2
S2
S1 td(on), tr, td(off), tf
RL
VSS When FET1 is measured,
Gate and Source of FET2 are short−circuited.
PG
A
G1 G2
S2
S1 Qg
RL
VSS When FET1 is measured, Gate and Source of FET2 IG = 1 mA
VGS = 0 V G1 G2
S2
S1 VF(S−S)
Figure 17. Test Circuit 7
IS
V
When FET1 is mea- sured, + 4.5 V is added to VGS of FET2.
NOTE: When FET2 is measured, the position of FET1 and FET2 is switched.
WLCSP10, 3.54x1.77x0.14 CASE 567XB
ISSUE O
DATE 09 OCT 2018
1 2
3
9 10
4 5 6 7
8
1 2 3
9 10
4 5 6 7
8
XXXX = Specific Device Code A = Assembly Location GENERIC
MARKING DIAGRAM*
PACKAGE DIMENSIONS
