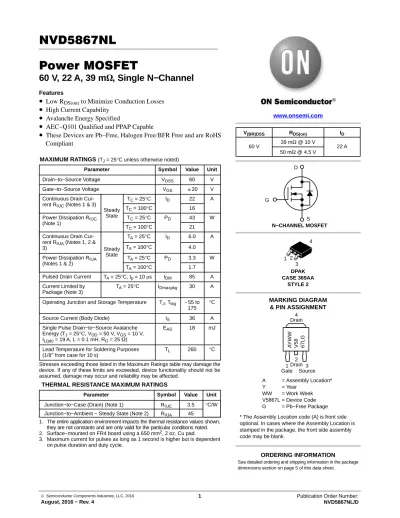

NVD5867NL Power MOSFET

NVD5867NL Power MOSFET

60 V, 22 A, 39 m W , Single N−Channel

Features

• ^{Low R}

to Minimize Conduction Losses

• High Current Capability

• Avalanche Energy Specified

• AEC−Q101 Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

MAXIMUM RATINGS (T_J = 25°C unless otherwise noted)

Parameter Symbol Value Unit

Drain−to−Source Voltage V_DSS 60 V

Gate−to−Source Voltage V_GS "20 V

Continuous Drain Cur- rent R_qJC (Notes 1 & 3)

Steady State

T_C = 25°C I_D 22 A

T_C = 100°C 16

Power Dissipation R_qJC (Note 1)

T_C = 25°C P_D 43 W

T_C = 100°C 21

Continuous Drain Cur- rent R_qJA (Notes 1, 2 &

3) Steady

State

T_A = 25°C I_D 6.0 A T_A = 100°C 4.0 Power Dissipation R_qJA

(Notes 1 & 2)

T_A = 25°C P_D 3.3 W T_A = 100°C 1.7 Pulsed Drain Current T_A = 25°C, t_p = 10 ms I_DM 85 A Current Limited by

Package (Note 3)

T_A = 25°C I_Dmaxpkg 30 A Operating Junction and Storage Temperature T_J, T_stg − 55 to

175 °C

Source Current (Body Diode) I_S 36 A

Single Pulse Drain−to−Source Avalanche Energy (T_J = 25°C, V_DD = 50 V, V_GS = 10 V, I_L(pk) = 19 A, L = 0.1 mH, R_G = 25 W)

E_AS 18 mJ

Lead Temperature for Soldering Purposes (1/8″ from case for 10 s)

T_L 260 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL RESISTANCE MAXIMUM RATINGS

Parameter Symbol Value Unit

Junction−to−Case (Drain) (Note 1) R_qJC 3.5 °C/W Junction−to−Ambient − Steady State (Note 2) R_qJA 45

1. The entire application environment impacts the thermal resistance values shown, they are not constants and are only valid for the particular conditions noted.

2. Surface−mounted on FR4 board using a 650 mm², 2 oz. Cu pad.

3. Maximum current for pulses as long as 1 second is higher but is dependent on pulse duration and duty cycle.

DPAK CASE 369AA

STYLE 2

MARKING DIAGRAM

& PIN ASSIGNMENT 60 V 39 mW @ 10 V

R_DS(on)

22 A I_D V_(BR)DSS

50 mW @ 4.5 V www.onsemi.com

1 2 3

4

See detailed ordering and shipping information in the package dimensions section on page 5 of this data sheet.

ORDERING INFORMATION 1

Gate 2 Drain 3

Source 4 Drain

AYWW V58 67LG

A = Assembly Location*

Y = Year

WW = Work Week V5867L = Device Code G = Pb−Free Package

G

S N−CHANNEL MOSFET

D

* The Assembly Location code (A) is front side optional. In cases where the Assembly Location is stamped in the package, the front side assembly code may be blank.

Parameter Symbol Test Condition Min Typ Max Unit OFF CHARACTERISTICS

Drain−to−Source Breakdown Voltage V_(BR)DSS V_GS = 0 V, I_D = 250 mA 60 V

Drain−to−Source Breakdown Voltage Temperature Coefficient

V_(BR)DSS/T_J 60 mV/°C

Zero Gate Voltage Drain Current I_DSS V_GS = 0 V, V_DS = 60 V

T_J = 25°C 1.0 mA

T_J = 125°C 100

Gate−to−Source Leakage Current I_GSS V_DS = 0 V, V_GS = ±20 V ±100 nA

ON CHARACTERISTICS (Note 4)

Gate Threshold Voltage V_GS(TH) V_GS = V_DS, I_D = 250 mA 1.5 1.8 2.5 V

Negative Threshold Temperature Coefficient V_GS(TH)/T_J 5.2 mV/°C

Drain−to−Source On Resistance R_DS(on) V_GS = 10 V, I_D = 11 A 26 39 mW

V_GS = 4.5 V, I_D = 11 A 33 50

Forward Transconductance g_FS V_DS = 15 V, I_D = 11 A 8.0 S

CHARGES, CAPACITANCES AND GATE RESISTANCES

Input Capacitance C_iss

V_GS = 0 V, f = 1.0 MHz, V_DS = 25 V

675 pF

Output Capacitance C_oss 68

Reverse Transfer Capacitance C_rss 47

Total Gate Charge Q_G(TOT)

V_GS = 10 V, V_DS = 48 V, I_D = 22 A

15 nC

Threshold Gate Charge Q_G(TH) 1.0

Gate−to−Source Charge Q_GS 2.2

Gate−to−Drain Charge Q_GD 4.3

Total Gate Charge Q_G(TOT) V_GS = 4.5 V, V_DS = 48 V, I_D = 22 A

7.6 nC

Gate Resistance R_G 1.3 W

SWITCHING CHARACTERISTICS (Note 5)

Turn−On Delay Time t_d(on)

V_GS = 10 V, V_DD = 48 V, I_D = 22 A, R_G = 2.5 W

6.5 ns

Rise Time t_r 12.6

Turn−Off Delay Time t_d(off) 18.2

Fall Time t_f 2.4

DRAIN−SOURCE DIODE CHARACTERISTICS

Forward Diode Voltage V_SD V_GS = 0 V,

I_S = 10 A

T_J = 25°C 0.87 1.2 V

T_J = 125°C 0.78

Reverse Recovery Time t_RR

V_GS = 0 V, dIs/dt = 100 A/ms, I_S = 22 A

17 ns

Charge Time ta 13

Discharge Time tb 4.0

Reverse Recovery Charge Q_RR 12 nC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

4. Pulse Test: Pulse Width ≤ 300 ms, Duty Cycle ≤ 2%.

5. Switching characteristics are independent of operating junction temperatures.

TYPICAL PERFORMANCE CURVES

10V

V_DS, DRAIN−TO−SOURCE VOLTAGE (VOLTS)

ID, DRAIN CURRENT (AMPS)

V_GS, GATE−TO−SOURCE VOLTAGE (VOLTS) Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics

ID, DRAIN CURRENT (AMPS)

Figure 3. On−Resistance vs. Gate−to−Source Voltage

V_GS, GATE−TO−SOURCE VOLTAGE (VOLTS)

Figure 4. On−Resistance vs. Drain Current and Gate Voltage

I_D, DRAIN CURRENT (AMPS) RDS(on), DRAIN−TO−SOURCE RESISTANCE (W)

RDS(on), DRAIN−TO−SOURCE RESISTANCE (W)

Figure 5. On−Resistance Variation with Temperature

T_J, JUNCTION TEMPERATURE (°C)

Figure 6. Drain−to−Source Leakage Current vs. Drain Voltage

V_DS, DRAIN−TO−SOURCE VOLTAGE (VOLTS)

RDS(on), DRAIN−TO−SOURCE RESISTANCE (NORMALIZED) IDSS, LEAKAGE (nA)

V_DS≥ 10 V

T_J = 25°C

T_J = −55°C T_J = 125°C

V_GS = 4.5 V

I_D = 22 A V_GS = 10 V

T_J = 25°C 3.8 V

3.0 V 4 V

3.6 V

2.8 V 3.2 V 3.4 V

I_D = 22 A T_J = 25°C

V_GS = 10 V T_J = 25°C

0 10 20 30 40 35

5

0 1 2 3 2 3 4 5

0.020 0.030 0.040 0.050 0.060

4 6 8 10 0.020

0.035

10 15 20

5 0.030

0.025 0.040

0.6 0.8 1.0 1.2 1.4

−50 0 50 100 175

1.6 1.8

−25 25 75 125

3 5 7 9

4.5 V

V_GS = 0 V

T_J = 150°C

T_J = 125°C 100

1000

10 20 30 40 60

10 10000 25

15

4 5 0

10 20 30 40 35

5 25

15

2.0 2.4

50 2.2

150

C_rss

0 20 30

DRAIN−TO−SOURCE VOLTAGE (VOLTS)

C, CAPACITANCE (pF)

Figure 7. Capacitance Variation 10

V_GS = 0 V T_J = 25°C

C_oss

C_iss V_GS

Figure 8. Gate−To−Source Voltage vs.

Total Charge

VGS, GATE−TO−SOURCE VOLTAGE (VOLTS)

Q_G, TOTAL GATE CHARGE (nC) V_DS = 48 V I_D = 22 A T_J = 25°C Q_gd

Q_gs

Q_T

V_SD, SOURCE−TO−DRAIN VOLTAGE (VOLTS) I S

, SOURCE CURRENT (AMPS)

Figure 9. Resistive Switching Time Variation vs. Gate Resistance

R_G, GATE RESISTANCE (OHMS)

t, TIME (ns)

V_GS = 0 V

Figure 10. Diode Forward Voltage vs. Current t_r

t_d(off)

t_d(on) t_f

V_DD = 48 V I_D = 22 A

V_GS = 10 V T_J = 25°C

Figure 11. Maximum Rated Forward Biased Safe Operating Area

V_DS, DRAIN−TO−SOURCE VOLTAGE (VOLTS) I D

, DRAIN CURRENT (AMPS)

R_DS(on) LIMIT THERMAL LIMIT PACKAGE LIMIT V_GS = 10 V

SINGLE PULSE T_C = 25°C

1 ms 100 ms

10 ms dc 10 ms 40

T_J, JUNCTION TEMPERATURE (°C) I_D = 19 A

Figure 12. Maximum Avalanche Energy vs.

Starting Junction Temperature

EAS, SINGLE PULSE DRAIN−TO−SOURCE AVALANCHE ENERGY (mJ)

0 100 200 300 400

00 2 4 6 8

5 10 15

1 10 100

10 100 1000

0.7 00.5

10 20

5 15

0.8 0.9

10 100

1 10 100

0.1

1 25 125

20

10

0 50 75 100 175

1.0

15

5 700

800

600 500

10

1

0.6 900

1000

50 60

150

TYPICAL PERFORMANCE CURVES

Figure 13. Thermal Response t, PULSE TIME (s) 0.1

10

0.01 0.1 0.2

0.02 D = 0.5

0.05 0.01 SINGLE PULSE

0.01 0.1

0.001 0.0001

0.00001 0.000001

1.0

RqJC(t) (°C/W) EFFECTIVE TRANSIENT THERMAL RESISTANCE

ORDERING INFORMATION

Order Number Package Shipping^†

NVD5867NLT4G DPAK

(Pb−Free)

2500 / Tape & Reel

SVD5867NLT4G DPAK

(Pb−Free)

2500 / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

DPAK (SINGLE GUAGE) CASE 369AA−01

ISSUE B

DATE 03 JUN 2010 SCALE 1:1

STYLE 1:

PIN 1. BASE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

STYLE 2:

PIN 1. GATE 2. DRAIN 3. SOURCE 4. DRAIN

STYLE 3:

PIN 1. ANODE 2. CATHODE 3. ANODE 4. CATHODE

STYLE 4:

PIN 1. CATHODE 2. ANODE 3. GATE 4. ANODE STYLE 5:

PIN 1. GATE 2. ANODE 3. CATHODE 4. ANODE

b D E

b3

L3

L4b2

e 0.005 (0.13) ^M C

c2 A

c

C

Z

DIM MININCHESMAX MILLIMETERSMIN MAX

D 0.235 0.245 5.97 6.22 E 0.250 0.265 6.35 6.73 A 0.086 0.094 2.18 2.38 b 0.025 0.035 0.63 0.89

c2 0.018 0.024 0.46 0.61 b2 0.030 0.045 0.76 1.14 c 0.018 0.024 0.46 0.61

e 0.090 BSC 2.29 BSC b3 0.180 0.215 4.57 5.46

L4 −−− 0.040 −−− 1.01 L 0.055 0.070 1.40 1.78

L3 0.035 0.050 0.89 1.27

Z 0.155 −−− 3.93 −−−

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: INCHES.

3. THERMAL PAD CONTOUR OPTIONAL WITHIN DI- MENSIONS b3, L3 and Z.

4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS, OR BURRS. MOLD FLASH, PROTRUSIONS, OR GATE BURRS SHALL NOT EXCEED 0.006 INCHES PER SIDE.

5. DIMENSIONS D AND E ARE DETERMINED AT THE OUTERMOST EXTREMES OF THE PLASTIC BODY.

6. DATUMS A AND B ARE DETERMINED AT DATUM PLANE H.

1 2 3

4

STYLE 6:

PIN 1. MT1 2. MT2 3. GATE 4. MT2

STYLE 7:

PIN 1. GATE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

XXXXXX = Device Code A = Assembly Location

L = Wafer Lot

Y = Year

WW = Work Week

G = Pb−Free Package YWW XXX XXXXXG XXXXXXG

ALYWW

Discrete IC

1 2 3 4

5.80 0.228

2.58 0.102

1.60 0.063 6.20

0.244

3.00 0.118

6.17 0.243

ǒ

Ǔ

SCALE 3:1

GENERIC MARKING DIAGRAM*

*This information is generic. Please refer to device data sheet for actual part marking.

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

SOLDERING FOOTPRINT*

H 0.370 0.410 9.40 10.41 A1 0.000 0.005 0.00 0.13

L1 0.108 REF 2.74 REF L2 0.020 BSC 0.51 BSC

A1

DETAIL A H

SEATING PLANE

A

B

C

L1 L

H L2 ^GAUGE_PLANE

DETAIL A

ROTATED 90 CW5
