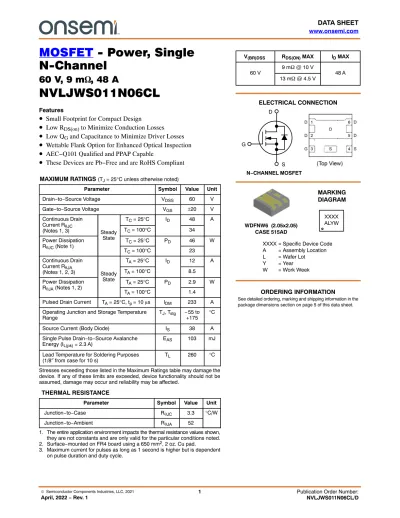

MOSFET - Power, SingleN-Channel

MOSFET - Power, Single N-Channel

60 V, 9 m W , 48 A

NVLJWS011N06CL

Features

• Small Footprint for Compact Design

• ^{Low R}

to Minimize Conduction Losses

• ^{Low Q}

and Capacitance to Minimize Driver Losses

• Wettable Flank Option for Enhanced Optical Inspection

• AEC−Q101 Qualified and PPAP Capable

• These Devices are Pb−Free and are RoHS Compliant

Parameter Symbol Value Unit

Drain−to−Source Voltage V_DSS 60 V

Gate−to−Source Voltage V_GS ±20 V

Continuous Drain Current R_qJC

(Notes 1, 3) Steady State

T_C = 25°C I_D 48 A

TC = 100°C 34

Power Dissipation

R_qJC (Note 1) T_C = 25°C P_D 46 W

T_C = 100°C 23

Continuous Drain Current R_qJA

(Notes 1, 2, 3) Steady State

T_A = 25°C I_D 12 A

TA = 100°C 8.5

Power Dissipation

R_qJA (Notes 1, 2) T_A = 25°C P_D 2.9 W

T_A = 100°C 1.4

Pulsed Drain Current T_A = 25°C, tp = 10 ms I_DM 233 A Operating Junction and Storage Temperature

Range T_J, T_stg −55 to

+175 °C

Source Current (Body Diode) IS 38 A

Single Pulse Drain−to−Source Avalanche

Energy (I_L(pk) = 2.3 A) EAS 103 mJ

Lead Temperature for Soldering Purposes

(1/8″ from case for 10 s) T_L 260 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL RESISTANCE

Parameter Symbol Value Unit

Junction−to−Case R_qJC 3.3 °C/W

Junction−to−Ambient R_qJA 52

1. The entire application environment impacts the thermal resistance values shown, they are not constants and are only valid for the particular conditions noted.

2. Surface−mounted on FR4 board using a 650 mm², 2 oz. Cu pad.

3. Maximum current for pulses as long as 1 second is higher but is dependent on pulse duration and duty cycle.

See detailed ordering, marking and shipping information in the package dimensions section on page 5 of this data sheet.

ORDERING INFORMATION MARKING DIAGRAM

WDFNW6 (2.05x2.05) CASE 515AD

ELECTRICAL CONNECTION

G

S N−CHANNEL MOSFET

D

XXXX ALYW

XXXX = Specific Device Code A = Assembly Location L = Wafer Lot Y = Year W = Work Week

V_(BR)DSS R_DS(ON) MAX I_D MAX 60 V 9 mW @ 10 V

13 mW @ 4.5 V 48 A

Parameter Symbol Test Conditions Min Typ Max Unit OFF CHARACTERISTICS

Drain−to−Source Breakdown Voltage V(BR)DSS VGS = 0 V, ID = 250 mA 60 V

Drain−to−Source Breakdown Voltage

Temperature Coefficient V(BR)DSS/

T_J 27.5 mV/°C

Zero Gate Voltage Drain Current I_DSS V_GS = 0 V,

V_DS = 60 V T_J = 25°C 10 mA

T_J = 125°C 100

Gate−to−Source Leakage Current I_GSS V_DS = 0 V, V_GS = 20 V 100 nA

ON CHARACTERISTICS (Note 4)

Drain−to−Source On Resistance R_DS(on) V_GS = 10 V, I_D = 10 A 7.7 9 mW

V_GS = 4.5 V, I_D = 10 A 10.7 13

Gate Threshold Voltage V_GS(TH) V_GS = V_DS, I_D = 34 mA 1.2 2.0 V

Gate Threshold Voltage Temperature

Coefficient V_GS(TH)/T_J −5.6 mV/°C

Forward Transconductance gFS VDS =6 V, ID = 10 A 39 S

CHARGES AND CAPACITANCES

Input Capacitance CISS

V_GS = 0 V, f = 1 MHz, V_DS = 25 V

912 pF

Output Capacitance COSS 460

Reverse Transfer Capacitance CRSS 8

Total Gate Charge Q_G(TOT) V_DS = 48 V; I_D = 10 A, V_GS = 4.5 V 6.3 nC

Total Gate Charge QG(TOT)

V_DS = 48 V; I_D = 10 A, V_GS = 10 V

13.6 nC

Threshold Gate Charge Q_G(TH) 1.4

Gate−to−Source Charge Q_GS 2.5

Gate−to−Drain Charge Q_GD 1.4

Plateau Voltage V_GP 2.7 V

SWITCHING CHARACTERISTICS (Note 5)

Turn−On Delay Time t_d(ON)

VGS = 10 V, VDS = 48 V, I_D = 10 A, R_G = 6 W

8.1 ns

Turn−Off Delay Time t_d(OFF) 23.3

Rise Time t_r 3.0

Fall Time t_f 3.6

SOURCE−TO−DRAIN DIODE CHARACTERISTICS

Forward Diode Voltage V_SD VGS = 0 V,

I_SD = 10 A

T_J = 25°C 0.82 1.2 V

T_J = 125°C 0.69

Reverse Recovery Time t_RR

V_GS = 0 V, dI/dt = 100 A/ms, I_SD = 10 A, V_DS = 48 V

32 ns

Charge Time t_a 15.8

Discharge Time t_b 16

Reverse Recovery Charge Q_RR 20 nC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

4. Pulse Test: pulse width ≤ 300 ms, duty cycle ≤ 2%.

5. Switching characteristics are independent of operating junction temperatures.

TYPICAL CHARACTERISTICS

Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics

Figure 3. On−Resistance vs. Gate−to−Source

Voltage Figure 4. On−Resistance vs. Drain Current and Gate Voltage

VGS, GATE−TO−SOURCE VOLTAGE (V) 9 8 7 0 6

Figure 5. On−Resistance Variation with

Temperature Figure 6. Drain−to−Source Leakage Current vs. Voltage

TJ, JUNCTION TEMPERATURE (°C) VDS, DRAIN−TO−SOURCE VOLTAGE (V) 175

125 100 0.5 25

40

25 35

RDS(on), DRAIN−TO−SOURCE RESISTANCE (mW) RDS(on), DRAIN−TO−SOURCE RESISTANCE (mW)

RDS(on), NORMALIZED DRAIN−TO− SOURCE RESISTANCE IDSS, LEAKAGE (nA)

T_J = 25°C I_D = 10 A

V_GS = 10 V I_D = 10 A

−50

TJ = 25°C 40

15

10 35

5 10

1.0

T_J = 85°C T_J = 175°C

0.01

0.0001 15 0.1

1

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) V_GS, GATE−TO−SOURCE VOLTAGE (V) 0 1

40 50

0 3 20 50

ID, DRAIN CURRENT (A) ID, DRAIN CURRENT (A)

T_J = 175°C T_J = 25°C

T_J = −55°C 4 VGS = 10 V to 7 V

3

35

2 4

20

V_DS = 10 V

0

10

I_D, DRAIN CURRENT (A) 0 6

10 2

2 16

3

V_GS = 10 V

4

50 75

1.5

60 30

10

30

20

5

5 40

30

15

5

2 5

T_J = 25°C 100

5

2.0

3.0 V

25

10

0

−25

0.001

TJ = 125°C

20 30 50 55

7 8

1 0

45

10

150

10 100

T_J = 150°C 50

80 90

60 70

3 2

4 6 8 12 14

V_GS = 4.5 V

4 9

45 6.0 V

5.0 V

25 45

3.5 V 4.0 V 4.5 V

Figure 7. Capacitance Variation Figure 8. Gate−to−Source Voltage vs. Total Charge

Q_G, TOTAL GATE CHARGE (nC) 8

2 00

2 4 6

Figure 9. Resistive Switching Time Variation

vs. Gate Resistance Figure 10. Diode Forward Voltage vs. Current

R_G, GATE RESISTANCE (W) V_SD, SOURCE−TO−DRAIN VOLTAGE (V)

100 11

1.0 0.8

0.6 0.5 0.1

Figure 11. Maximum Rated Forward Biased

Safe Operating Area Figure 12. Maximum Drain Current vs. Time in Avalanche

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) t_AV, TIME IN AVALANCHE (s)

10 0.10.1

10 1000

VGS, GATE−TO−SOURCE VOLTAGE (V)

t, TIME (ns) IS, SOURCE CURRENT (A)

ID, DRAIN CURRENT (A) IPEAK (A)

t_d(off)

t_d(on) tf

t_r

T_J = 25°C TJ = −55°C

0.00001 R_DS(on) Limit

Thermal Limit Package Limit

10 ms

10 ms1 ms

V_GS = 0 V

1

100

1

10 10

10 8

V_DS, DRAIN−TO−SOURCE VOLTAGE (V) 1

C, CAPACITANCE (pF) 10

V_GS = 0 V T_J = 25°C f = 1 MHz

CISS

C_OSS

C_RSS

60 0

100 1K

10

T_J = 125°C

0.5 ms T_C = 25°C

Single Pulse V_GS ≤ 10 V

TJ = 25°C I_D = 10 A V_DS = 48 V

V_GS = 10 V V_DS = 48 V ID = 10 A

TJ(initial) = 25°C Q_GS Q_GD

20 30 40 50 6 14

1 3 5 7 9

10

0.7 0.9

0.1

4 12

10K

10 100

10

100

100

TJ(initial) = 100°C

0.0001 0.001 0.01

T_J = 175°C T_J = 150°C

0.4 0.3 0.2

1 1000

1

TYPICAL CHARACTERISTICS

Figure 13. Transient Thermal Impedance TIME (s)

0.1 0.0001

10

R(t) (°C/W)

0.01 0.001

Single Pulse Duty Cycle = 0.5 0.2

0.1 0.05 0.02 0.01

0.01 100

0.000001 0.1

1000 0.00001

1

1 10 100

DEVICE ORDERING INFORMATION

Device Marking Package Shipping^†

NVLJWS011N06CLTAG 011N WDFNW6

(Pb−Free, Wettable Flanks) 3000 / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

WDFNW6 2.05x2.05, 0.65P CASE 515AD

ISSUE O
