PQFP64 14x14 / QIP64E CASE 122BP
ISSUE A
DATE 07 NOV 2013
XXXXX = Specific Device Code Y = Year
M = Month
DDD = Additional Traceability Data GENERIC
MARKING DIAGRAM*
*This information is generic. Please refer to device data sheet for actual part marking.
Pb−Free indicator, “G” or microdot “ G”, may or may not be present.
XXXXXXXX YMDDD 14.0 ± 0.1
1 2
0.8
(1.0) 0.15
14.0 ± 0.1 17.2 ± 0.2 17.2±0.2
64
0.35
+0.15−0.050.10 3.0 MAX (2.7) 0.1 ± 0.1
0~10°
0.15
+0.15−0.050.8 ± 0.2

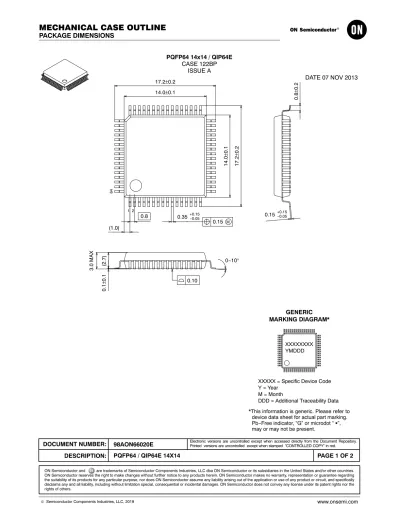

MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
