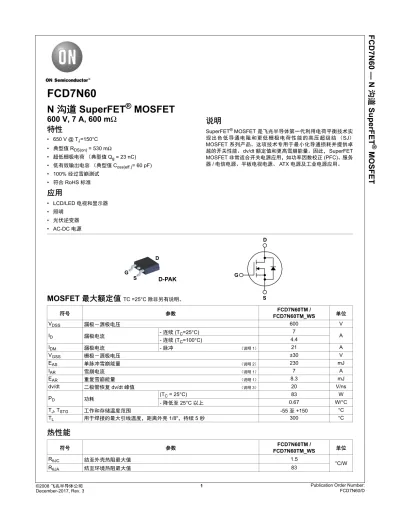

F C D 7 N 6 0

0 — N 沟道 SuperFET ® MO SFE T

FCD7N60

N 沟道 SuperFET ^® MOSFET

600 V, 7 A, 600 m Ω 特性

• 650 V @ T

_J

=150°C

•

典型值

R

_DS(on)

= 530 m

Ω

•

超低栅极电荷 （典型值

Q

_g

= 23 nC)

•

低有效输出电容 （典型值

C

_oss(eff.)

= 60 pF)

• 100% 经过雪崩测试

•

符合 RoHS 标准

应用

• LCD/LED 电视和显示器

•

照明

•

光伏逆变器

• AC-DC 电源

说明

SuperFET

^®

MOSFET 是飞兆半导体第一代利用电荷平衡技术实

现出色低导通电阻和更低栅极电荷性能的高压超级结 （SJ）

MOSFET 系列产品。这项技术专用于最小化导通损耗并提供卓

越的开关性能、

dv/dt 额定值和更高雪崩能量。因此，SuperFET

MOSFET 非常适合开关电源应用，如功率因数校正 (PFC)、服务

器

/

电信电源、平板电视电源、

ATX 电源及工业电源应用。

D-PAK

G

S

D

G

S D

MOSFET 最大额定值

TC =25°C

除非另有说明。

热性能

符号 参数 FCD7N60TM /

FCD7N60TM_WS 单位

V

_DSS 漏极－源极电压

600 V

I

_D 漏极电流

-

连续 (T_C

=25°C) 7

-

连续 (T_C

=100°C) 4.4 A

I

_DM 漏极电流

-

脉冲 （说明 1）

21 A

V

_GSS 栅极－源极电压

±30 V

E

_AS 单脉冲雪崩能量 （说明 2）

230 mJ

I

_AR 雪崩电流 （说明 1）

7 A

E

_AR 重复雪崩能量 （说明 1）

8.3 mJ

dv/dt

二极管恢复 dv/dt 峰值 （说明 3）

20 V/ns

P

_D 功耗

(T

_C

= 25°C) 83 W

-

降低至 25°C 以上

0.67 W/°C

T

_J

, T

_STG 工作和存储温度范围

-55 至 +150 °C

T

_L 用于焊接的最大引线温度，距离外壳 1/8"，持续 5 秒

300 °C

FCD7N60TM /

0 — N 沟道 SuperFET ® MO SFE T 封装标识与定购信息

电气特性 TC =25°C

除非另有说明。

关断特性

导通特性

动态特性

开关特性

漏极 - 源极二极管特性

器件编号 顶标 封装 包装方法 卷尺寸 带宽 数量

FCD7N60TM FCD7N60 D-PAK

卷带

330 mm 16 mm 2500 个

FCD7N60TM

-

WS FCD7N60 D-PAK

卷带

330 mm 16 mm 2500 个

符号 参数 测试条件 最小值 典型值 最大值 单位

BV

_DSS 漏极－源极击穿电压

V

_GS

= 0 V, I

_D

= 250 μA, T

_C

= 25°C 600 - - V V

_GS

= 0 V, I

_D

= 250 μA, T

_C

= 150°C - 650 - V

Δ

BV

_DSS

/

Δ

T

_J

击穿电压温度系数

I

_D

= 250 μA，参考 25°C - 0.6 - V/°C BV

_DS 漏源极雪崩击穿电压

V

_GS

= 0 V, I

_D

= 7.0 A - 700 - V I

_DSS 零栅极电压漏极电流

V

_DS

= 600 V, V

_GS

= 0 V - - 1

μ

A

V

_DS

= 480 V, T

_C

= 125°C - - 10

I

_GSS 栅极

-

体漏电流

V

_GS

= ±30 V, V

_DS

= 0 V - - ±100 nA

V

_GS(th) 栅极阈值电压

V

_GS

= V

_DS

, I

_D

= 250

μ

A 3.0 - 5.0 V

R

_DS(on) 漏极至源极静态导通电阻

V

_GS

= 10 V, I

_D

= 3.5 A - 0.53 0.6

Ω

g

_FS 正向跨导

V

DS

= 40 V, I

_D

= 3.5 A - 6 - S

C

_iss 输入电容

V

_DS

= 25 V, V

_GS

= 0 V, f = 1 MHz

- 710 920 pF

C

_oss 输出电容

- 380 500 pF

C

_rss 反向传输电容

- 34 - pF

C

_oss 输出电容

V

_DS

= 480 V, V

_GS

= 0 V, f = 1 MHz - 22 29 pF

C

_oss(eff.) 有效输出电容

V

_DS

= 0 V 至 400 V, V

_GS

= 0 V - 60 - pF

t

_d(on) 导通延迟时间

V

_DD

= 300 V, I

_D

= 7.0 A, V

_GS

= 10 V , R

_G

= 25

Ω

（说明4）

- 35 80 ns

t

_r 开通上升时间

- 55 120 ns

t

_d(off) 关断延迟时间

- 75 160 ns

t

_f 关断下降时间

- 32 75 ns

Q

_g(tot)

10 V

的栅极电荷总量

V

_DS

= 480 V, I

_D

= 7.0 A,

V

_GS

= 10 V

（说明4）

- 23 30 nC

Q

_gs 栅极 - 源极栅极电荷

- 4.2 5.5 nC

Q

_gd 栅极 - 漏极

“

米勒

”

电荷

- 11.5 - nC

I

_S 漏极 - 源极二极管最大正向连续电流

- - 7 A

I

_SM 漏极 - 源极二极管最大正向脉冲电流

- - 21 A

V

_SD 漏极 - 源极二极管正向电压

V

_GS

= 0 V, I

_SD

= 7.0 A - - 1.4 V t

_rr 反向恢复时间

V

_GS

= 0 V, I

_SD

= 7.0 A,

dI

_F

/dt = 100 A/

μ

s

- 360 - ns

Q

_rr 反向恢复电荷

- 4.5 -

μ

C

注意：

1.重复额定值：脉冲宽度受限于最大结温。

2. I_AS = 3.5 A，V_DD = 50 V，R_G = 25 Ω，启动T_J = 25°C。

3. ISD ≤ 7 A，di/dt ≤ 200 A/μs，VDD ≤ BVDSS，启动TJ = 25°C。

4.本质上独立于工作温度的典型特性。

0 — N 沟道 SuperFET ® MO SFE T 典型性能特征

图 1. 导通区域特性 图 2. 传输特性

图 3. 导通电阻变化与漏极电流和栅极电压的关系 图 4. 体二极管正向电压变化与源极电流和温度的关系

图 5. 电容特性 图 6. 栅极电荷特性

10^-1 10⁰ 10¹

10^-1 10⁰ 10¹

V_GS Top : 15.0 V 10.0 V 8.0 V 7.0 V 6.5 V 6.0 V Bottom : 5.5 V

∝ Notes : 1. 250レs Pulse Test 2. T_C = 25∩

ID, Drain Current [A]

V_DS, Drain-Source Voltage [V]

2 4 6 8 10

10^-1 10⁰ 10¹

∝ Note 1. VDS = 40V 2. 250レs Pulse Test -55∩

150∩

25∩

ID , Drain Current [A]

V_GS , Gate-Source Voltage [V]

0 5 10 15 20

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

V_GS = 20V V_GS = 10V

∝ Note : TJ = 25∩

RDS(ON) [ヘ], Drain-Source On-Resistance

I_D, Drain Current [A]

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

10^-1 10⁰ 10¹

25∩

150∩

∝ Notes : 1. V_GS = 0V 2. 250レs Pulse Test

IDR , Reverse Drain Current [A]

V_SD , Source-Drain Voltage [V]

10^-1 10⁰ 10¹

0 1000 2000 3000

C_iss = C_gs + C_gd (C_ds = shorted) C_oss = C_ds + C_gd C_rss = C_gd

∝ Notes : 1. VGS = 0 V 2. f = 1 MHz C_rss

C_oss

C_iss

Capacitance [pF]

V_DS, Drain-Source Voltage [V]

0 5 10 15 20 25

0 2 4 6 8 10 12

V_DS = 250V V_DS = 100V

V_DS = 400V

∝ Note : I_D = 7A

VGS, Gate-Source Voltage [V]

Q_G, Total Gate Charge [nC]

0 — N 沟道 SuperFET ® MO SFE T 典型性能特性 （接上页）

图 7. 击穿电压变化与温度的关系 图 8. 导通电阻变化与温度的关系

图 9. 最大安全工作区 图 10. 最大漏极电流与壳温的关系

图 11. 瞬态热响应曲线

-100 -50 0 50 100 150 200

0.8 0.9 1.0 1.1 1.2

∝ Notes : 1. V_GS = 0 V 2. I_D = 250 レA

BVDSS, (Normalized) Drain-Source Breakdown Voltage

T_J, Junction Temperature [^oC]

-100 -50 0 50 100 150 200

0.0 0.5 1.0 1.5 2.0 2.5 3.0

∝ Notes : 1. V_GS = 10 V 2. I_D = 3.5 A

RDS(ON), (Normalized) Drain-Source On-Resistance

T_J, Junction Temperature [^oC]

10⁰ 10¹ 10² 10³

10^-2 10^-1 10⁰ 10¹

10² Operation in This Area is Limited by R _DS(on)

DC 10 ms

1 ms 100 us

∝ Notes : 1. TC = 25 ^oC 2. T_J = 150 ^oC 3. Single Pulse

ID, Drain Current [A]

V_DS, Drain-Source Voltage [V]

25 50 75 100 125 150

0.0 2.5 5.0 7.5 10.0

ID, Drain Current [A]

T_C, Case Temperature [∩]

1 0^-5 1 0^-4 1 0^-3 1 0^-2 10^-1 1 0⁰ 1 0¹

1 0^-2 1 0^-1 1 0⁰

∝ N o te s :

1 . Z_ヨJC(t) = 1 .5 ∩/W M a x.

2 . D u ty F a c to r, D = t₁/t₂ 3 . T_JM - T_C = P_{D M} * Z_ヨJC(t)

single pulse D = 0.5

0.02 0.2

0.05 0.1

0.01 ZヨJC(t), Thermal Response

t₁, S q u a re W a ve P u lse D u ra tio n [se c]

t1

P_DM t₂

ZθJC(t)，热响应 [oC/W]

0 — N 沟道 SuperFET ® MO SFE T

图 12. 栅极电荷测试电路与波形

图 13. 阻性开关测试电路与波形 V

_GS

V

_DS

10%

90%

t_d(on) t_r

t_on t_off

t_d(off) t_f

V

_DD

10V

V

_DS

R

_L

DUT R

_G

V

_GS

V

_GS

V

_DS

10%

90%

t_d(on) t_r

t_on t_off

t_d(off) t_f

V

_DD

10V

V

_DS

R

_L

DUT R

_G

V

_GS

V

_GS

Charge V

_GS

10V

Q

_g

Q

_gs

Q

_gd

3mA

V

_GS

DUT

V

_DS

300nF 50KΩ 200nF 12V

Same Type as DUT

Charge V

_GS

10V

Q

_g

Q

_gs

Q

_gd

3mA

V

_GS

DUT

V

_DS

300nF 50KΩ 200nF 12V

Same Type as DUT

E

_AS

= ---- L I

_AS²

2

1 --- BV

_DSS

- V

_DD

BV

_DSS

V

_DD

V

_DS

BV

_DSS

t _p

V

_DD

I

_AS

V

_DS

(t) I

_D

(t)

Time

10V DUT

R

_G

L

I

_D

t _p

E

_AS

= ---- L I

_AS²

2 E

_AS

= ---- 1 L I

_AS²

2 ---- 1

2

1 --- BV

_DSS

- V

_DD

BV

_DSS

V

_DD

V

_DS

BV

_DSS

t _p

V

_DD

I

_AS

V

_DS

(t) I

_D

(t)

Time

10V DUT

R

_G

LL

I

_D

I

_D

t _p

V

_GS

V

_GS

I_G=常量

0 — N 沟道 SuperFET ® MO SFE T

图 15. 峰值二极管恢复 dv/dt 测试电路与波形

DUT

V

DS

+

_

Driver R

_G

Same Type as DUT

V

GS

• dv/dt controlled by R

_G

• I

_SD

controlled by pulse period

V

_DD

L

I

_SD

V

_GS

10V ( Driver )

I

_SD

( DUT )

V

_DS

( DUT )

V

_DD

Body Diode Forward Voltage Drop

V

SD

I

FM

, Body Diode Forward Current

Body Diode Reverse Current I

_RM

Body Diode Recovery dv/dt di/dt D = Gate Pulse Width

Gate Pulse Period --- DUT

V

DS

+

_

Driver R

_G

Same Type as DUT

V

GS

• dv/dt controlled by R

_G

• I

_SD

controlled by pulse period

V

_DD

LL

I

_SD

V

_GS

10V ( Driver )

I

_SD

( DUT )

V

_DS

( DUT )

V

_DD

Body Diode Forward Voltage Drop

V

SD

I

FM

, Body Diode Forward Current

Body Diode Reverse Current I

_RM

Body Diode Recovery dv/dt di/dt D = Gate Pulse Width

Gate Pulse Period --- D = Gate Pulse Width

Gate Pulse Period

---

0 — N 沟道 SuperFET ® MO SFE T 机械尺寸

图 16. TO252 (D-PAK)，模塑， 3 引脚，选项 AA&AB

封装图纸作为一项服务，提供给考虑飞兆半导体元件的客户。具体参数可能会有变化，且不会做出相应通知。请注意图纸上的版本和

/

或日期，并联系飞兆半导体代表核实或获得最新版本。封装规格并不扩大飞兆公司全球范围内的条款与条件，尤其是其中涉及飞兆公司 产品保修的部分。
